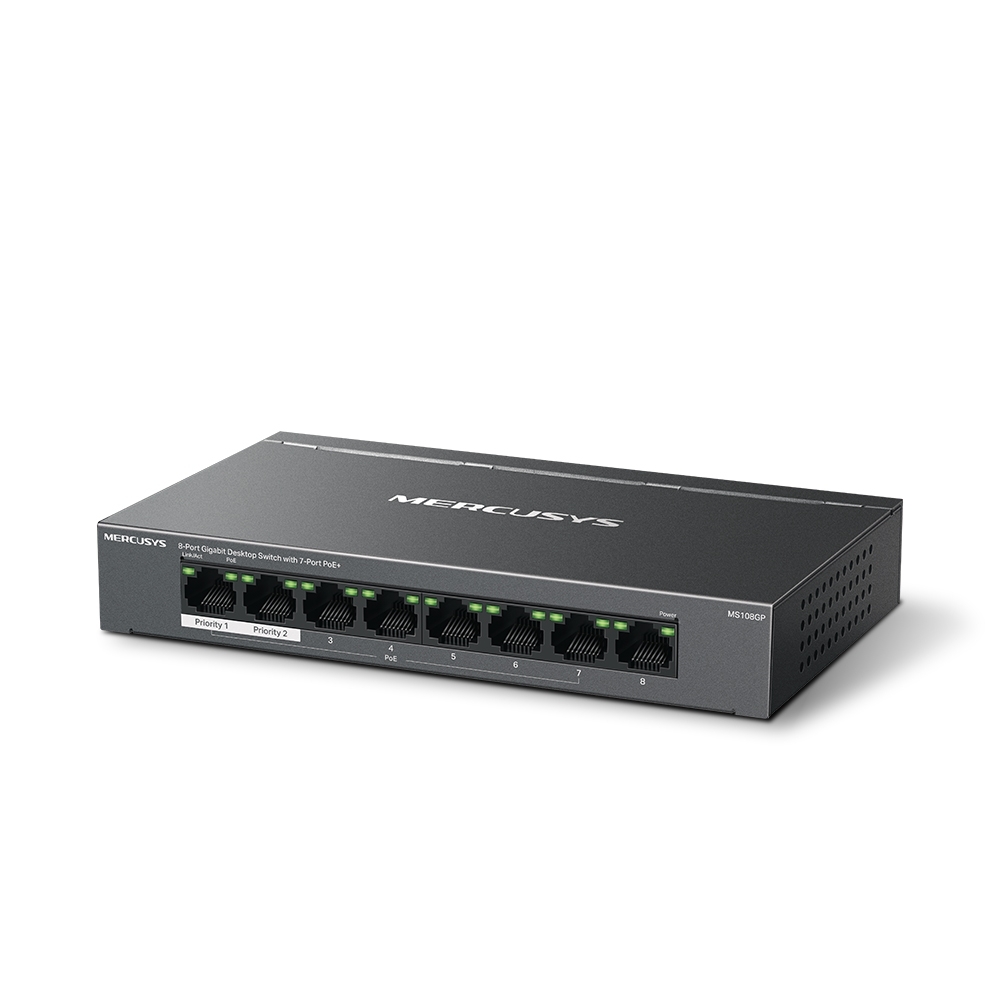

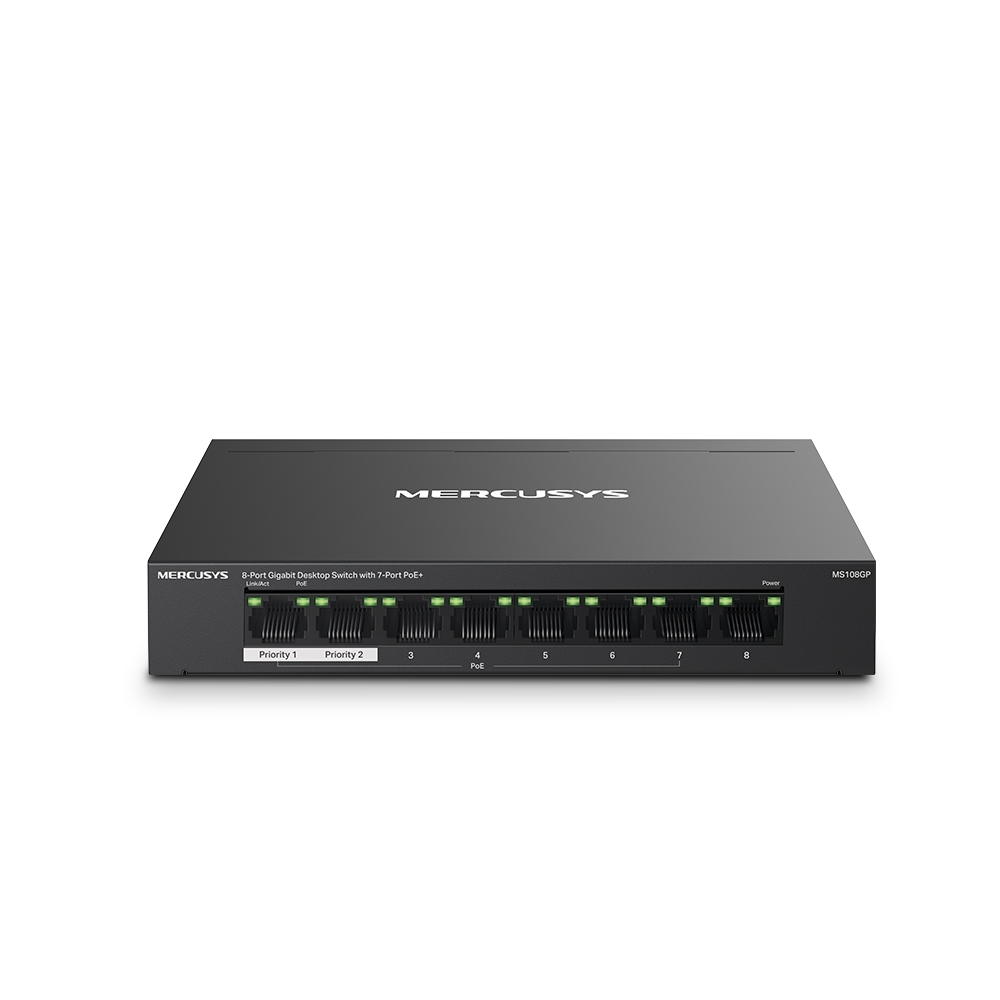

MERCUSYS 8 Prievadų Gigabitinis Desktop Komutatorius su 7 prievadais PoE+ (MS108GP)

Produkto savybės:

• Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports

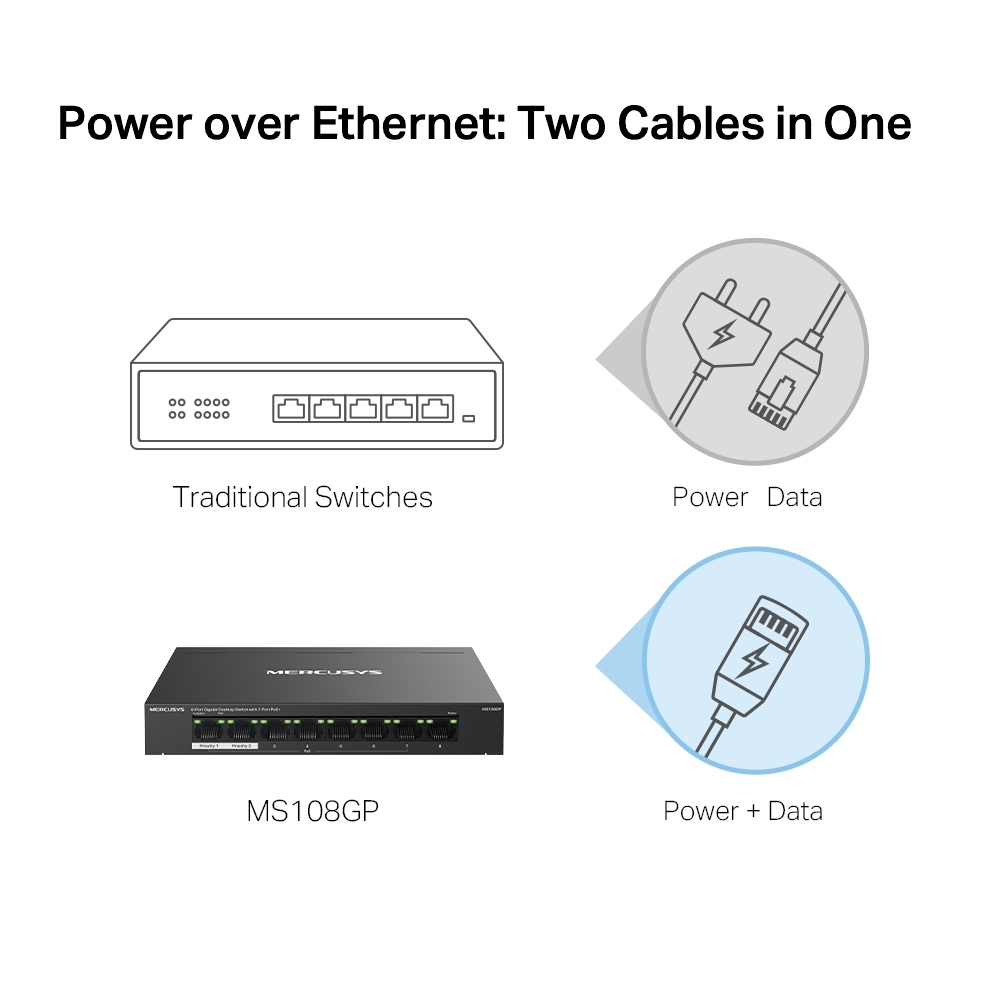

• Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable

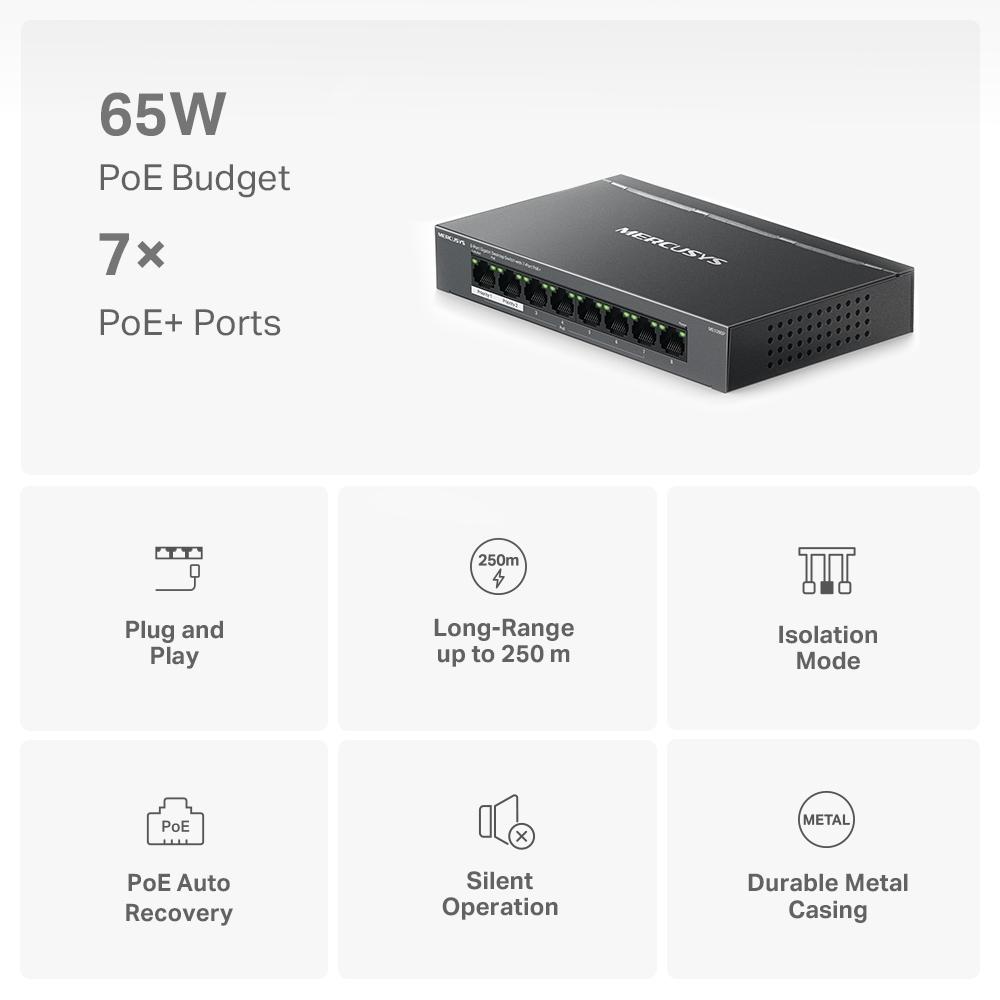

• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

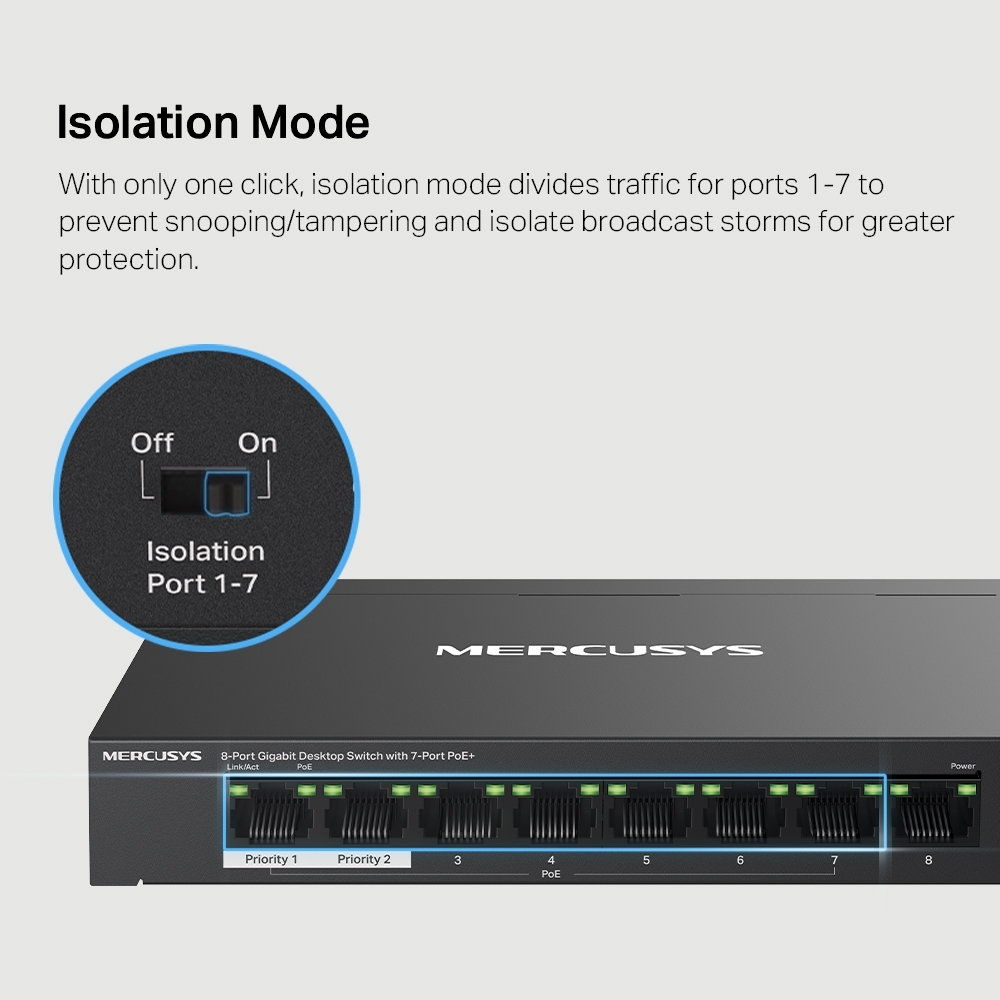

• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

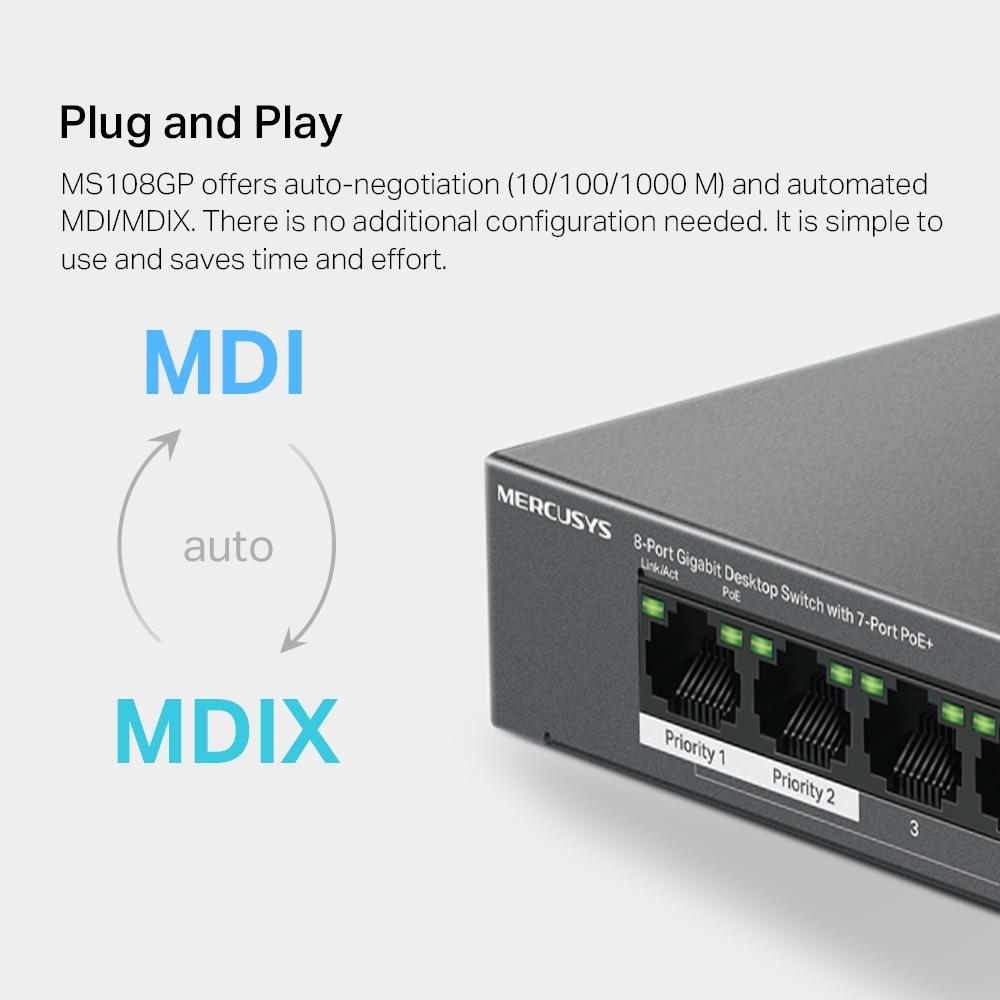

• Plug and Play: Simple to use and saves time and effort

Produkto specifikacijos:

Hardware

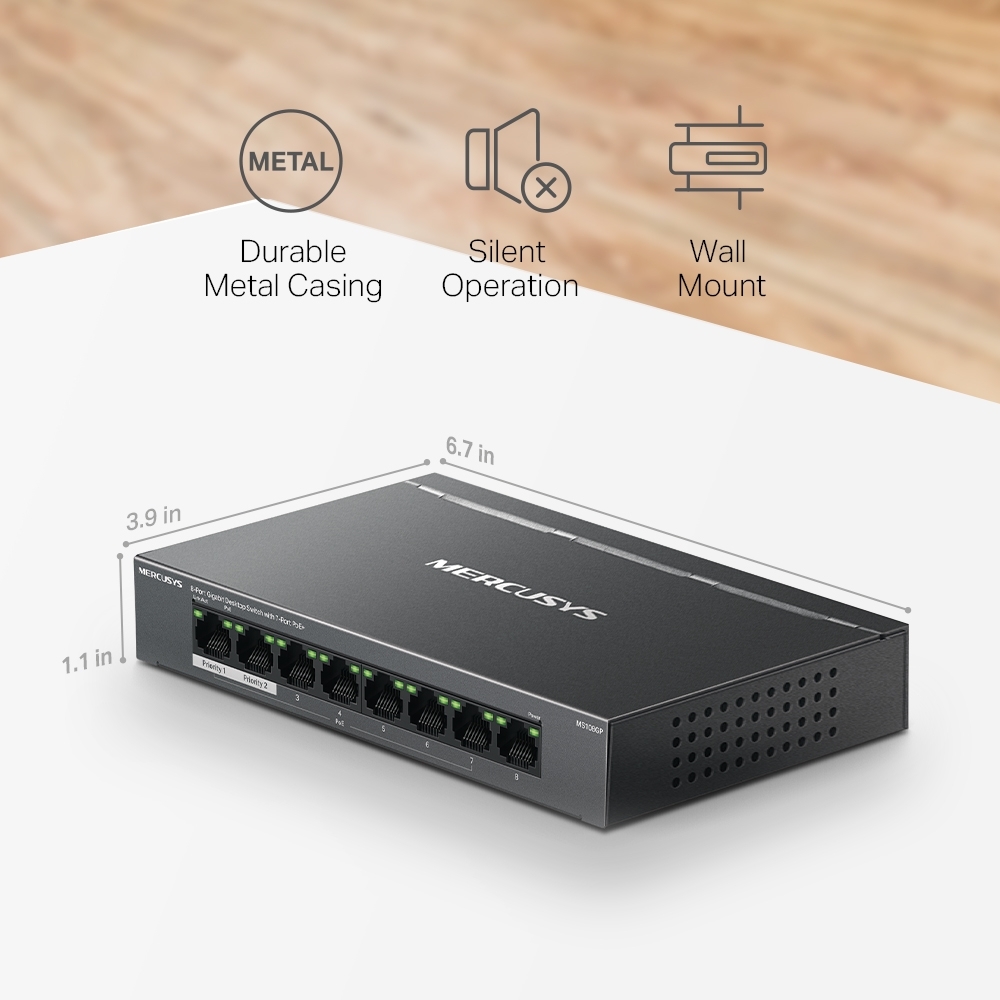

Dimensions: 171*98*27 mm
PoE Ports:
   RJ45
   Standard: Compliant with 802.3 af/at Powered Devices
   PoE Ports: Port 1- Port 7
   PoE Power Budget: 65 W
External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
Installation: Desktop/Wall Mount
Standards and Protocols: IEEE 802.3x Flow Control
Data Rates:
   10/100/1000 Mbps at Half Duplex
   20/200/2000 Mbps at Full Duplex
Jumbo Frame: 9 KB
Mac Address Table: 8K
Max Power Consumption:
   5.07W（220 V / 50 Hz, no PD connected)
   77.33W (220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation:
   17.238 BTH/h (no PD connected)
   262.922 BTH/h (with 65W PD connected)

Others

Package Contents:
   • 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
   • Power Adapter
   • Quick Installation Guide

Environment:
   Operating Temperature: 0℃~40℃ (32℉~104℉)
   Storage Temperature: -40℃~70℃ (-40℉~158℉)
   Operating Humidity: 10%~90% RH non-condensing
   Storage Humidity: 5%~95% RH non-condensing
