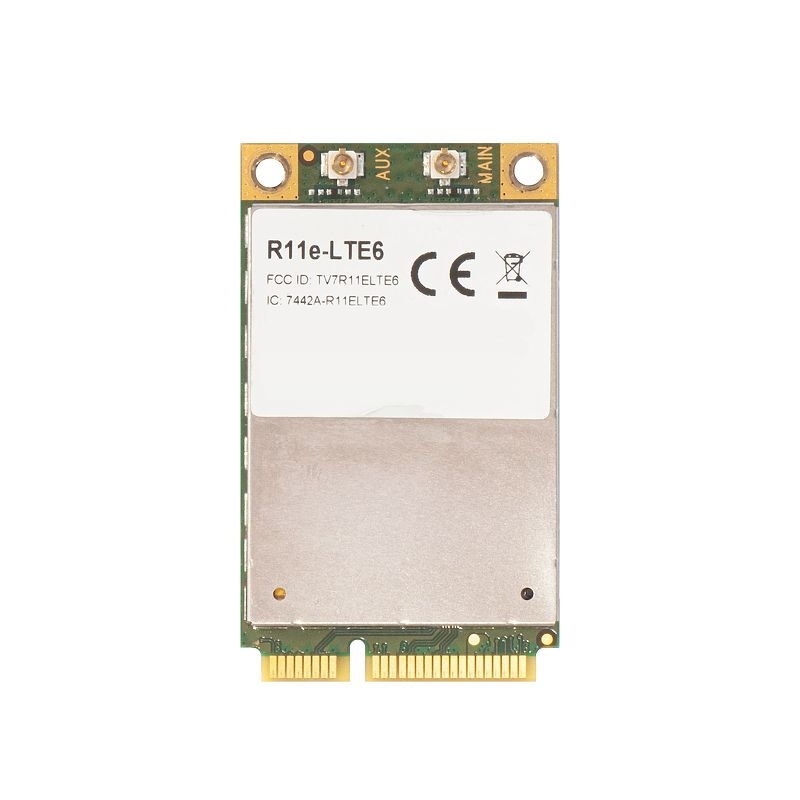

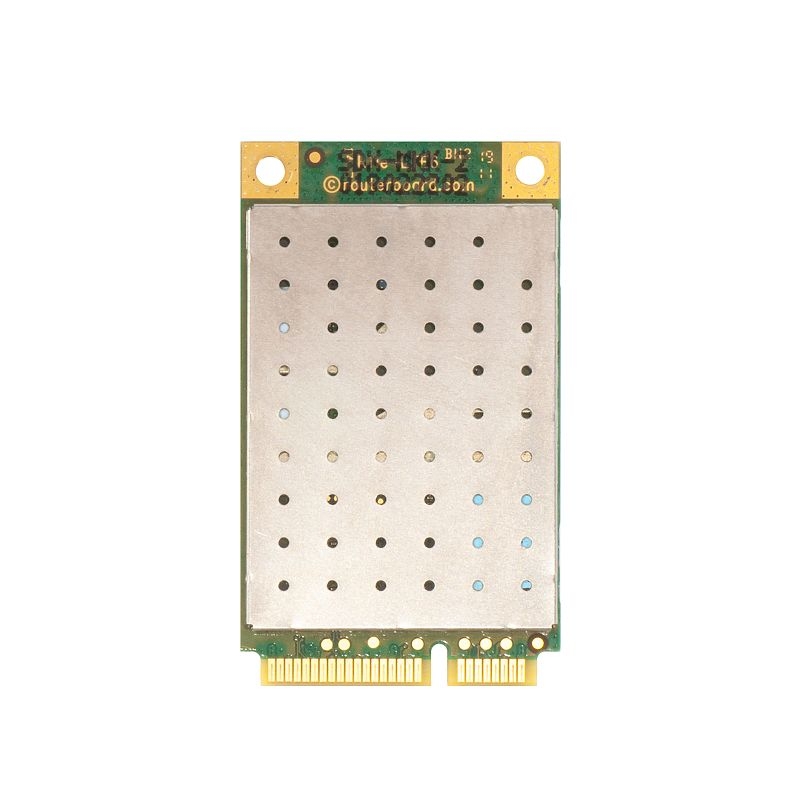

MIKROTIK 2G/3G/4G/LTE miniPCI-e kortelė su „carrier aggregation“ palaikymu (R11e-LTE6)

OEM kodas: R11e-LTE6
Kodas: R11e-LTE6
ID: #2043

2G/3G/4G/LTE miniPCI-e card with carrier aggregation support (up to 300 Mbps) for bands 1/2/3/5/7/8/12/17/20/25/26/38/39/40/41n

79.97€ su PVM

Kaina be PVM: 66.09€

Kiekis:


Produkto savybės:

The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands. It can be used with any of our products that have miniPCIe slot (exceptions RB800 and RB4011).

Produkto specifikacijos:

Specifications

Product code R11e-LTE6
Tested ambient temperature -30°C to 70°C
Connectors

u.FL

Powering

Max power consumption 5 W

Mobile

2G Category Class12
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
