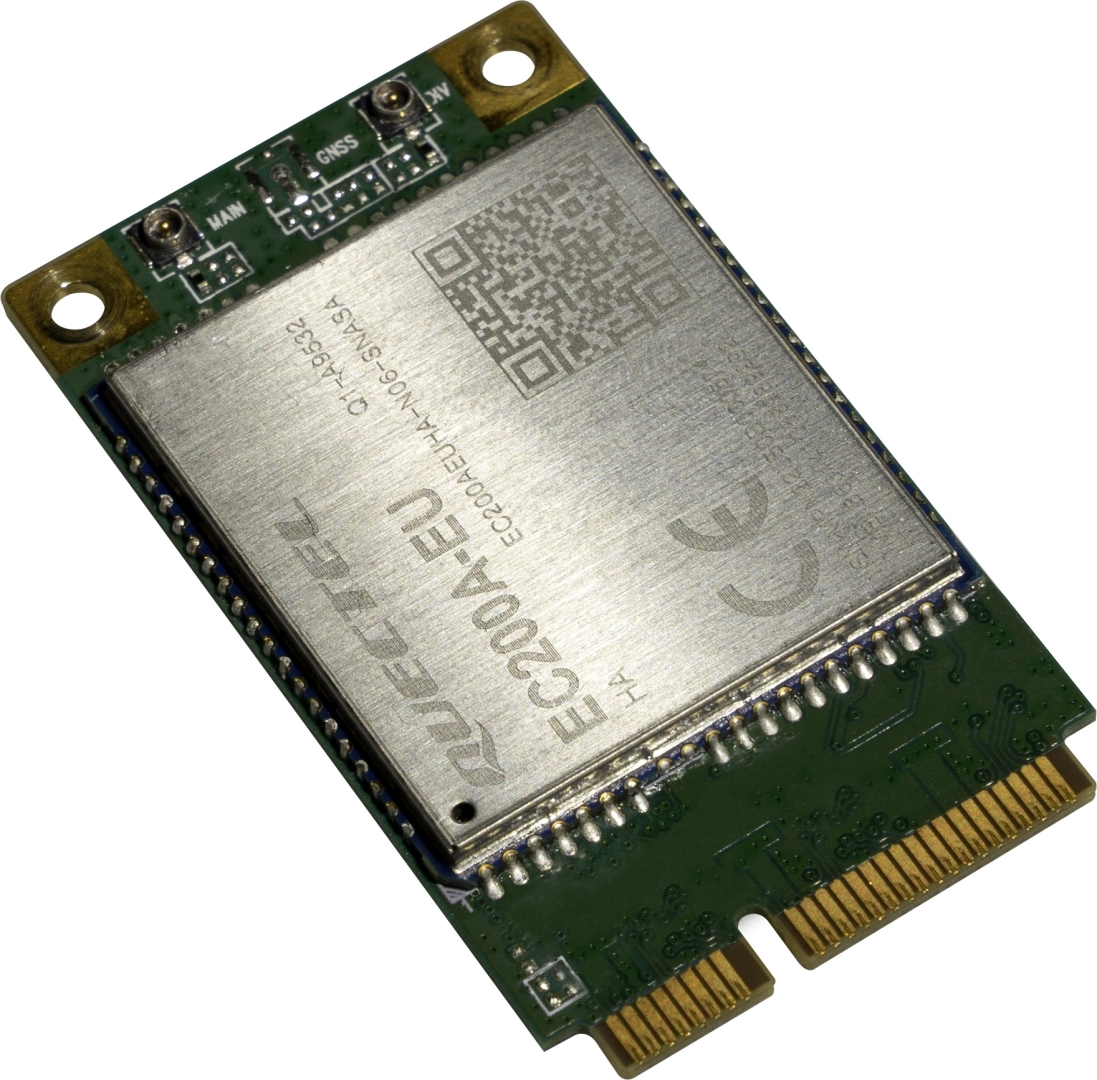

MIKROTIK 2G/3G/LTE 150Mbps miniPCI-e card (R11eL-EC200A-EU)
OEM kodas:
R11eL-EC200A-EU
Kodas:
R11eL-EC200A-EU
ID:
#4763
EAN kodas:
4752224009319
LTE Cat.4 (150Mbit/s Downlink, 50Mbit/s Uplink) | Includes B28 band | Designed for the EMEA/APAC/Australia regions
naujiena
52.91€ su PVMKaina be PVM: 43.73€ |
Produkto savybės:
This mini-PCIe modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
Produkto specifikacijos:
| Product code | R11eL-EC200A-EU |
| Tested ambient temperature | -35°C to 70°C |
Powering
| Details | |
|---|---|
| Max power consumption | 3 W |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41n (2500MHz) |
| TAC | 86314105 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, ROHS |
| IP | IP00 |
