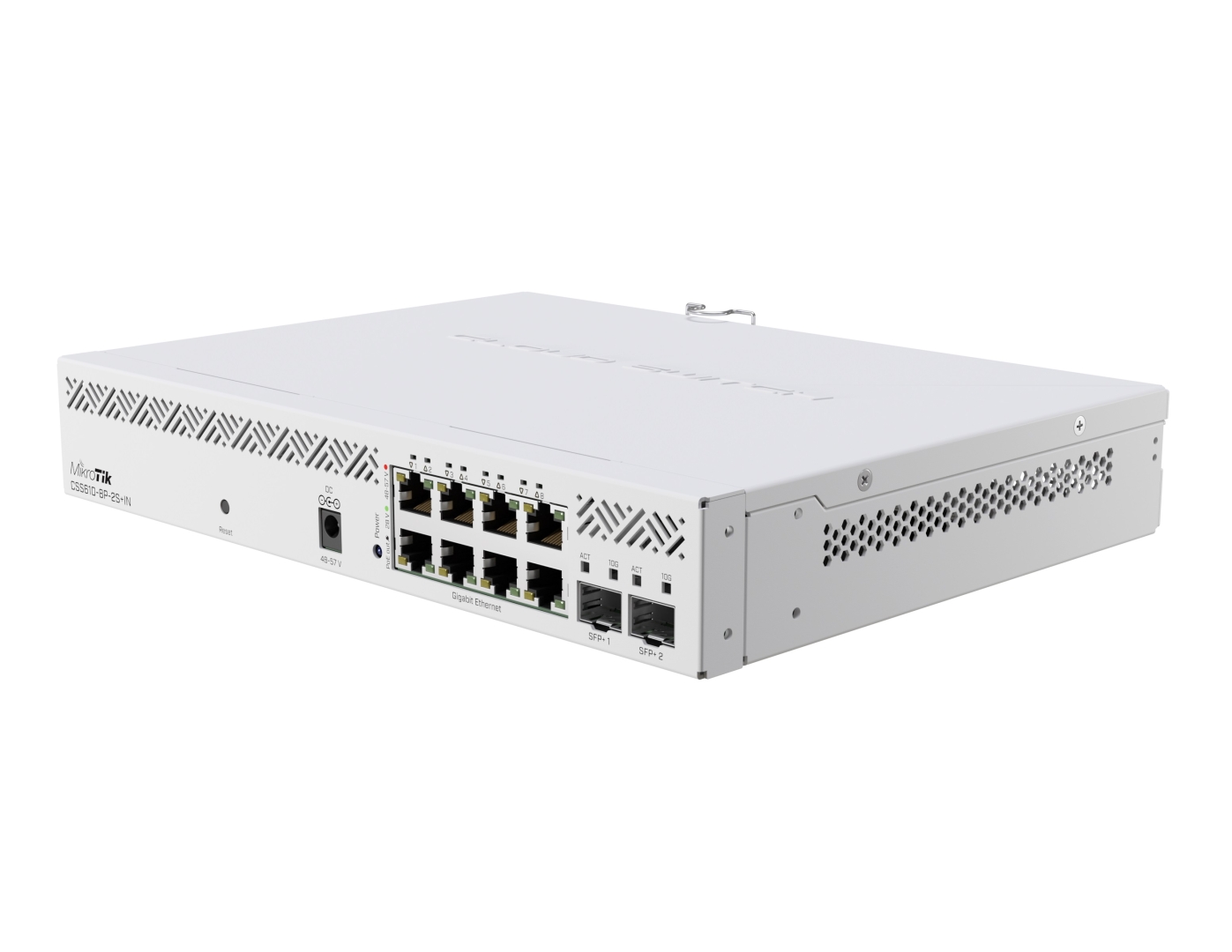

MIKROTIK Cloud Smart Switch (CSS610-8P-2S+IN)

OEM kodas: CSS610-8P-2S+IN
Kodas: CSS610-8P-2S+IN
ID: #3812

8x Gigabit LAN ports with PoE-out | 2x SFP+ ports | 802.3af/at and Passive PoE-out (Total power budget 140 W) | Fanless | Rackmount | SwitchOS

205.29€ su PVM

Kaina be PVM: 169.66€

Kiekis:


Produkto savybės:

Compact, affordable PoE powerhouse with 8x Gigabit PoE-out ports and 2x 10 Gigabit SFP+ ports.

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out (you only need a single PSU to provide both).

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.

Produkto specifikacijos:

Product code CSS610-8P-2S+IN
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of AC inputs 1
AC input range 100-240
Number of DC inputs 1 (DC jack)
DC jack input Voltage 48-57 V
Max power consumption 162 W
Max power consumption without attachments 12 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 625 mA
Total output power 140

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 8

Fiber

Details
SFP+ ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
