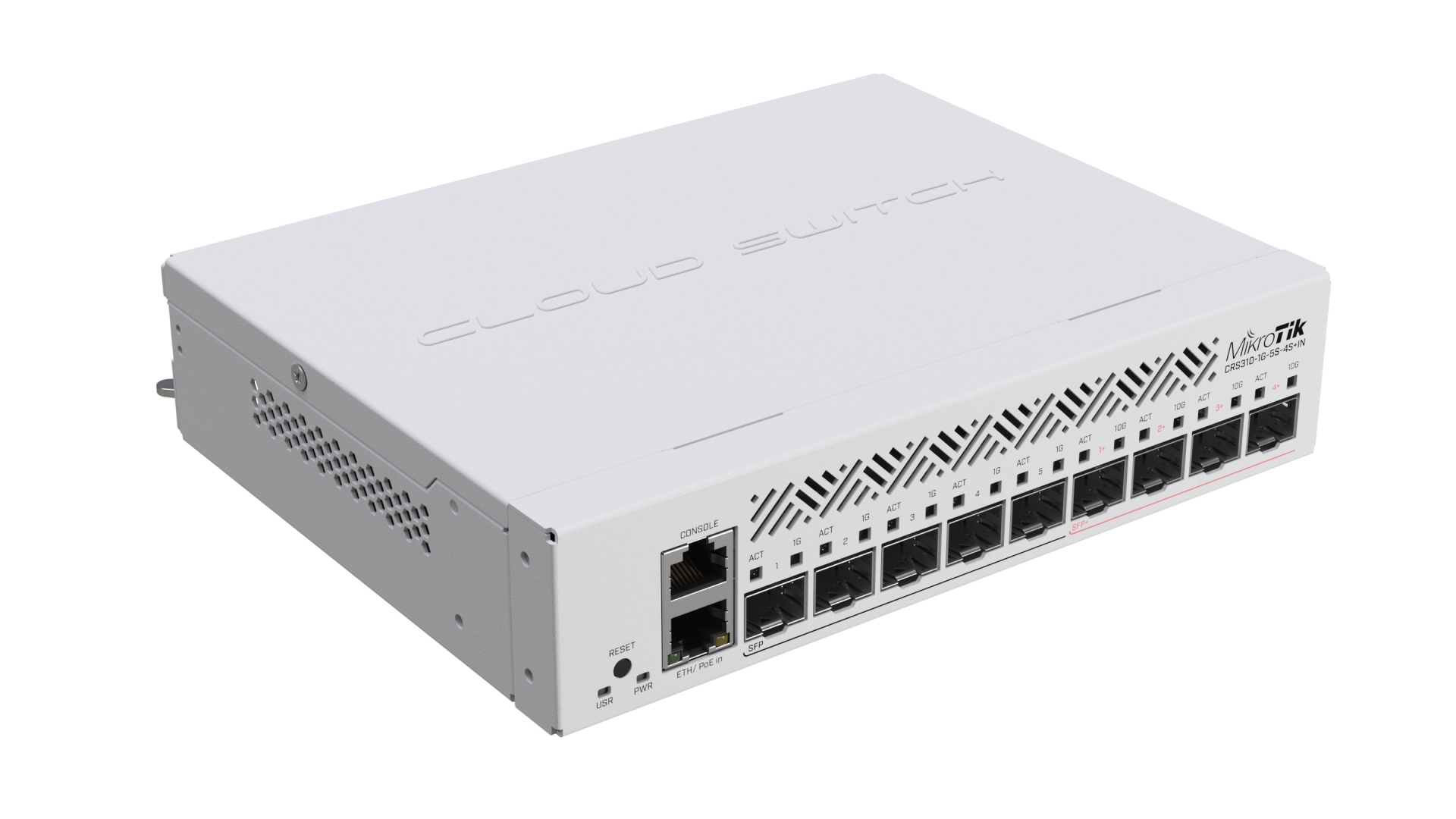

MIKROTIK Fiber Cloud Router Switch CRS310-1G-5S-4S+IN (CRS310-1G-5S-4S+IN)

OEM kodas: CRS310-1G-5S-4S+IN
Kodas: CRS310-1G-5S-4S+IN
ID: #3724

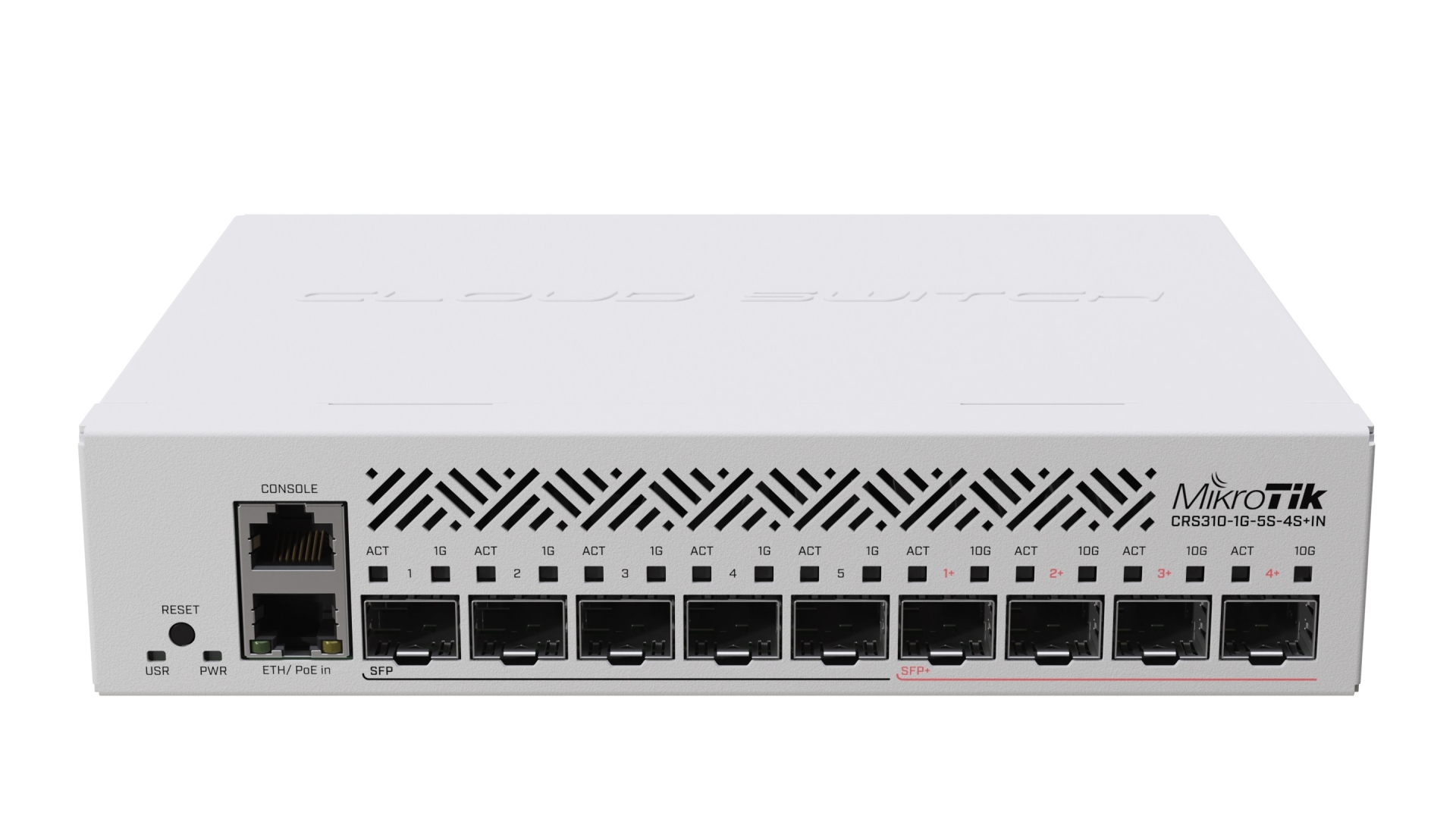

4x 10G SFP+ ports | 5x Gigabit SFP ports | 1x Gigabit LAN port | 1x Serial console port (RJ45) | Multiple Powering Options: PoE-in (802.3af/at), DC jack | RouterOS (License level 5)

179.38€ su PVM

Kaina be PVM: 148.25€

Kiekis:


Produkto savybės:

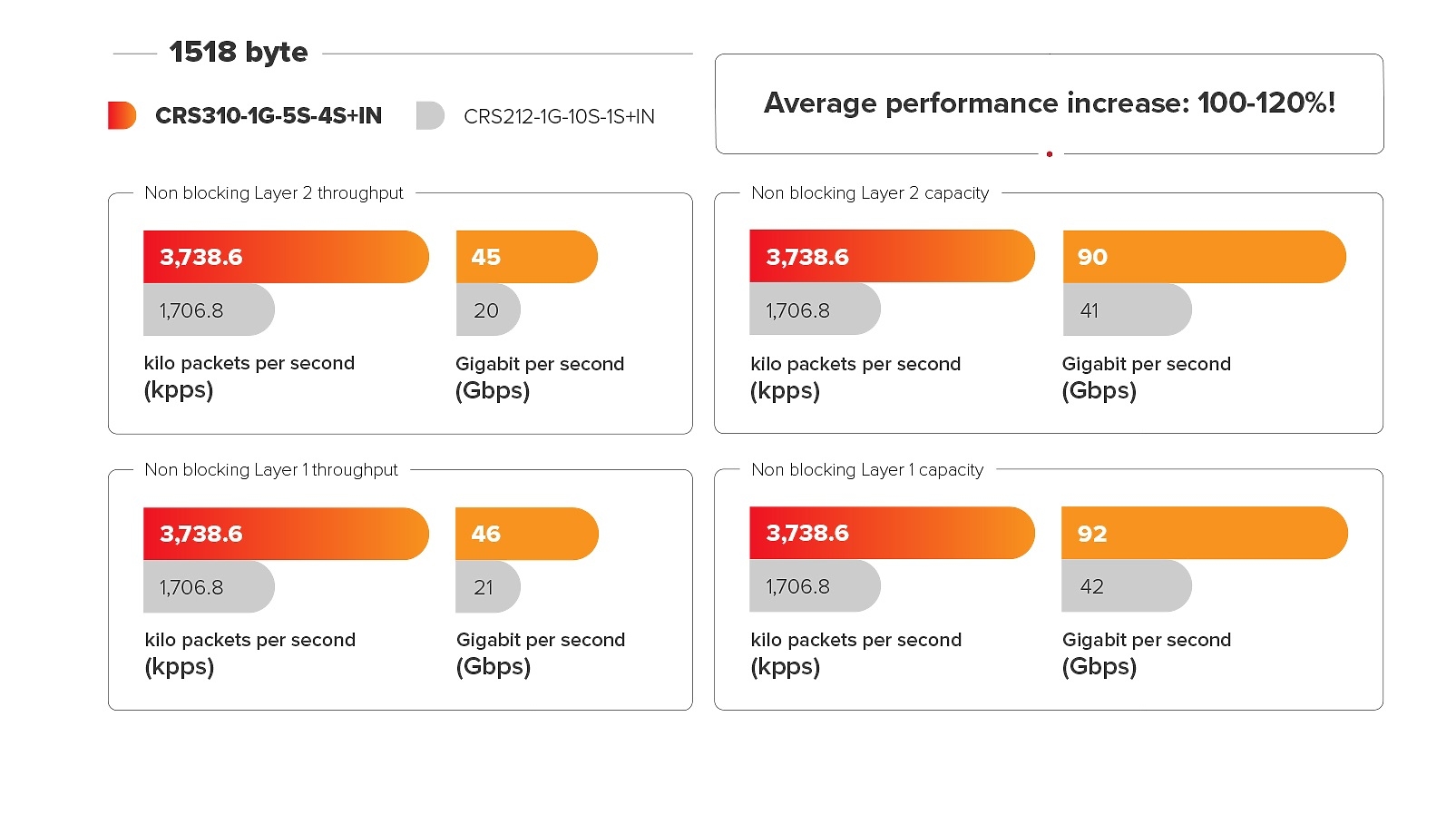

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.

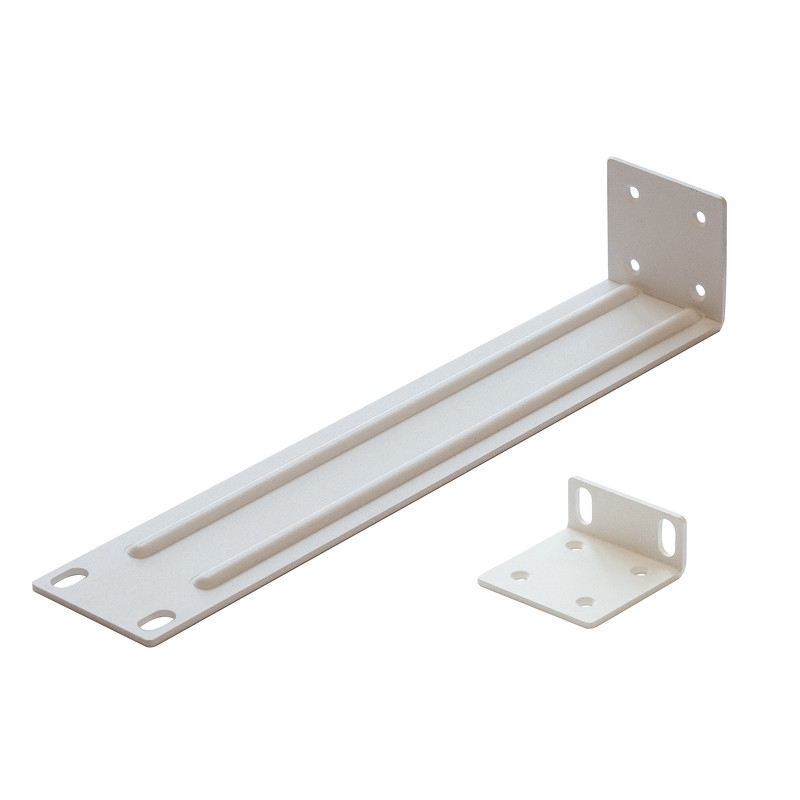

You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

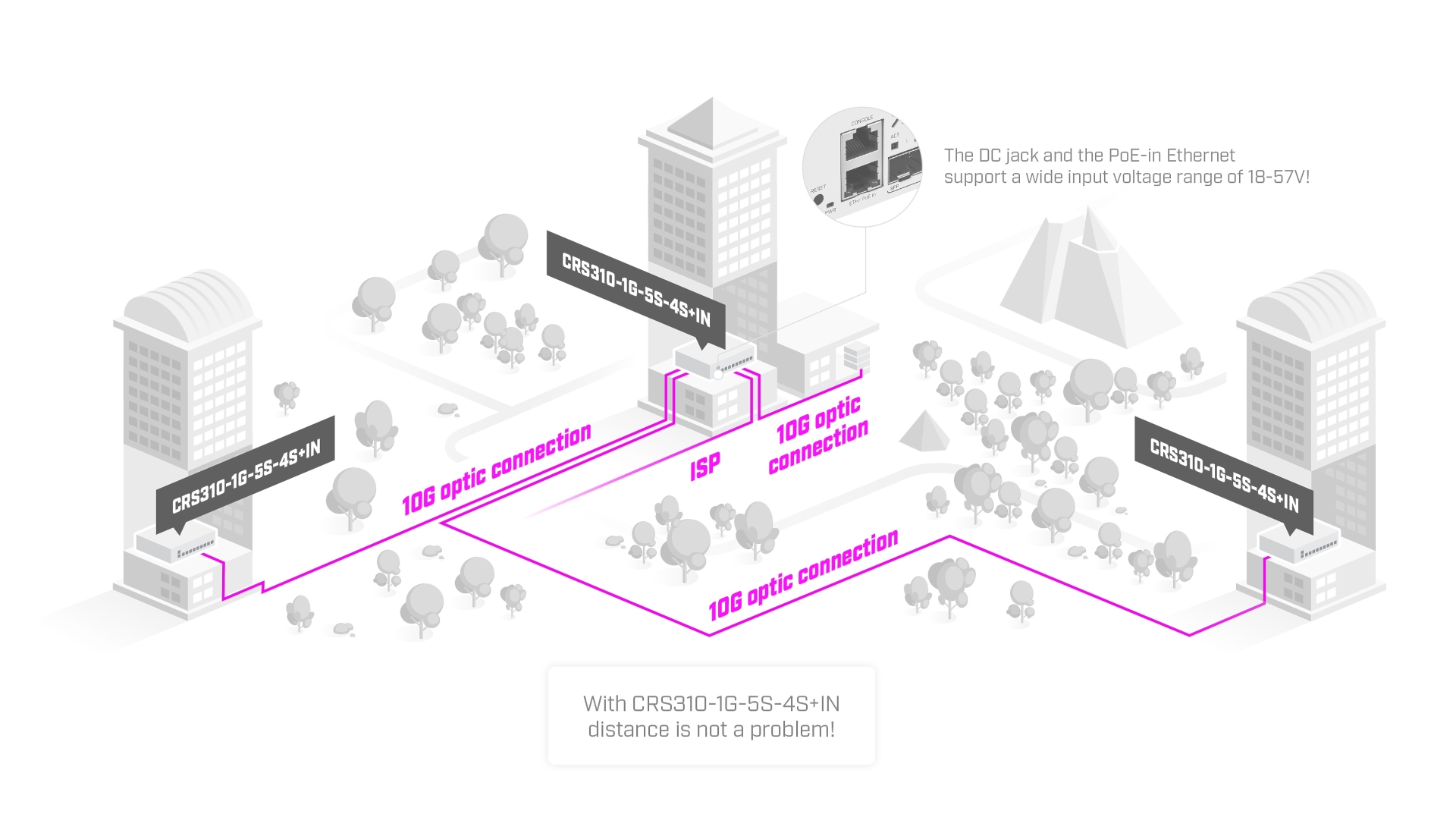

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.

Produkto specifikacijos:

Product code CRS310-1G-5S-4S+IN
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 200 x 166 x 45 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details

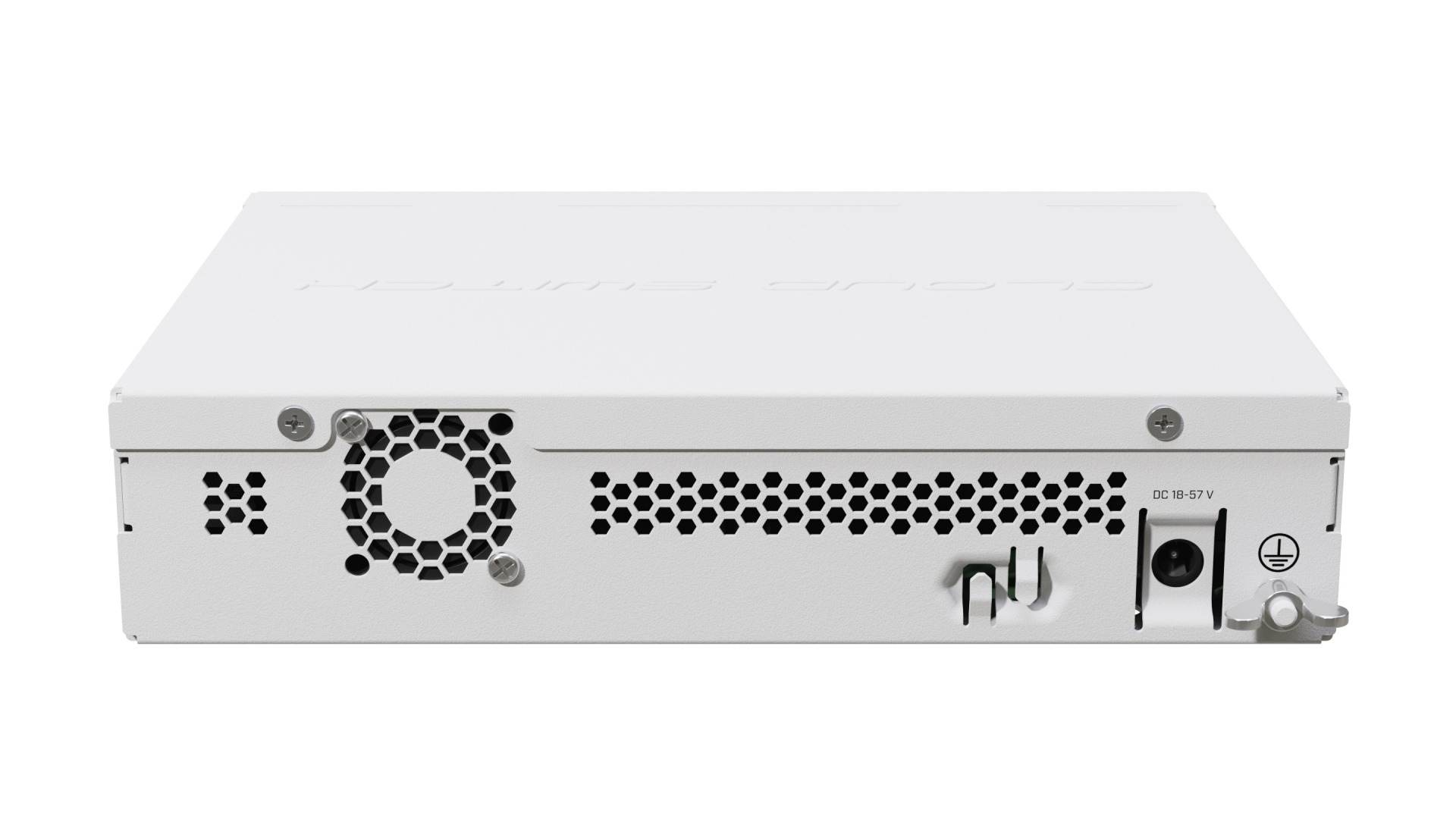

Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 20 W
Max power consumption without attachments 8 W
Cooling type 1
PoE in 802.3af/at
PoE in input Voltage 18-57 V

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 5
SFP+ ports 4

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
