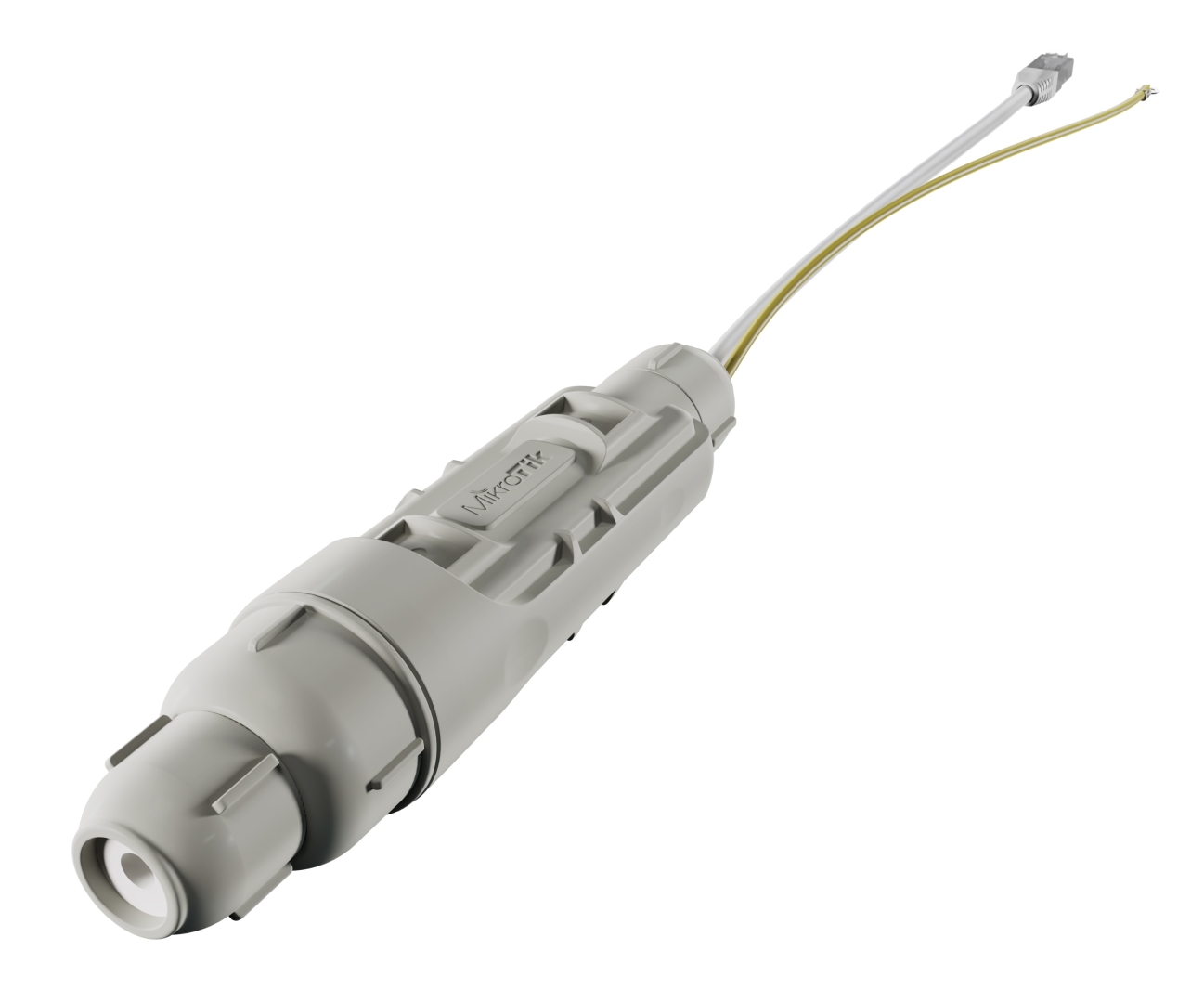

MIKROTIK Gigabit Ethernet Surge Protector (RBGESP)

OEM kodas: RBGESP
Kodas: RBGESP
ID: #1682

Can be used to protect the network from lighting or surge damages. Comes with the outdoor case and special grounding cable

naujiena

12.03€ su PVM

Kaina be PVM: 9.94€

  Turime sandėlyje
Kiekis:


Produkto savybės:

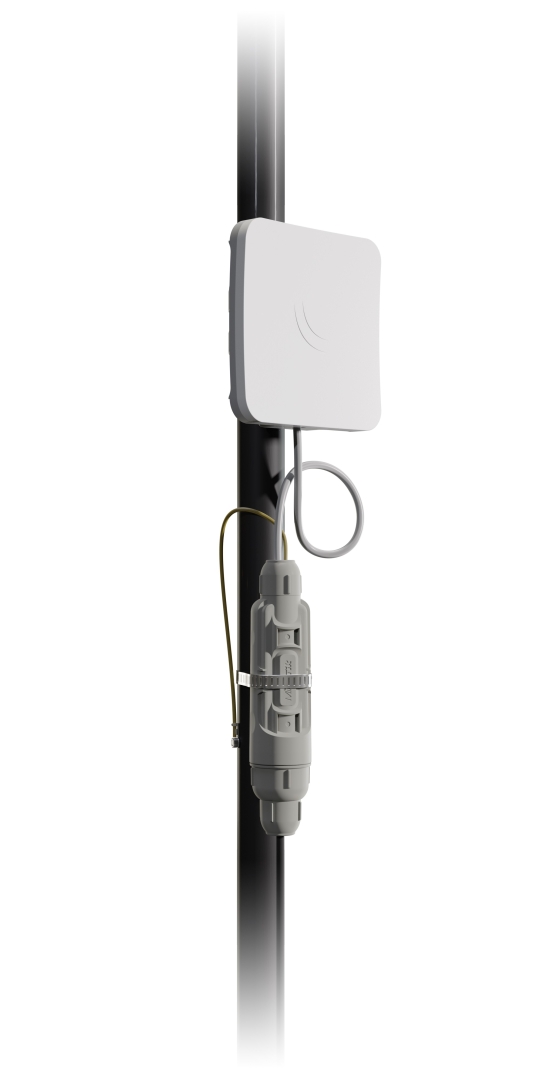

To protect your device from power surges, attach RBGESP to desired connection cable and device. Attach grounding wire to appropriate location.

If multiple devices are used, it is recomended to use RBGESP on each end of the connection cable between devices for a better protection.

Produkto specifikacijos:

Product code: RBGESP
Interface connections: RJ45 Male/Female Conector
ESD/EMP protection: Absorbing transient current with response to surge voltage of 100 V/s 1 kV/μ, ESD, IEC 61000-4-2, ±30 kV contact, ±30 kV air
DC spark-over voltage: 90 V @ 100 V/s
Maximum impulse spark-over voltage: 700 V @ 1 kV/μs
Discgarge current: 5 kA (8/20μs)
Minimum insulation resistance: 1 G ohm @ 50V
Maximum capacitance: 4 pF @ 1 MHz
Data line protecion: RJ45 10/100/1000 Ethernet
PoE support: Yes, IEEE 802af/at
Operating temperature: -40 to 70°C

Papildoma informacija apie produktą:

Brochure
Link to manufacturer product page
