MIKROTIK Dual-concurrent (2.4 GHz and 5 GHz) Access Point hAP ac2 Tower (RBD52G-5HacD2HnD-TC)

OEM kodas: RBD52G-5HacD2HnD-TC
Kodas: RBD52G-5HacD2HnD-TC
ID: #1494

Dual-Concurrent 2.4/5GHz AP, 802.11ac, 5x Gigabit Ethernet ports, USB for 3G/4G support, 716MHz CPU, 128 MB RAM, 16 MB flash memory, POE in, universal tower case, RouterOS (License level 4)

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
46.83€ 56.66€ >0€
46.40€ 56.14€ >100€
45.97€ 55.62€ >300€
Kiekis:
  Sandėlyje neturime


Produkto savybės:

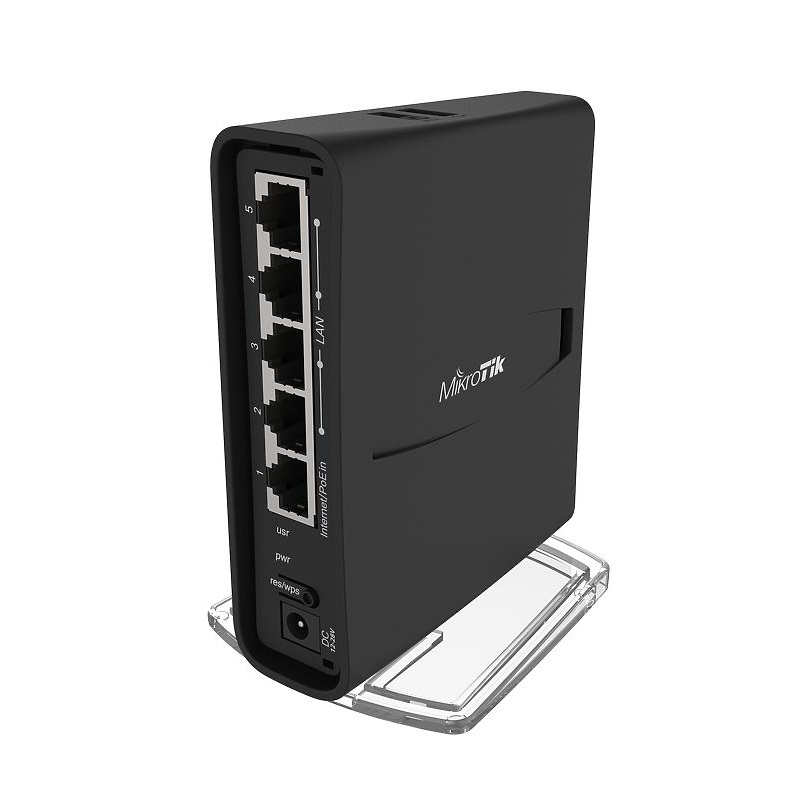

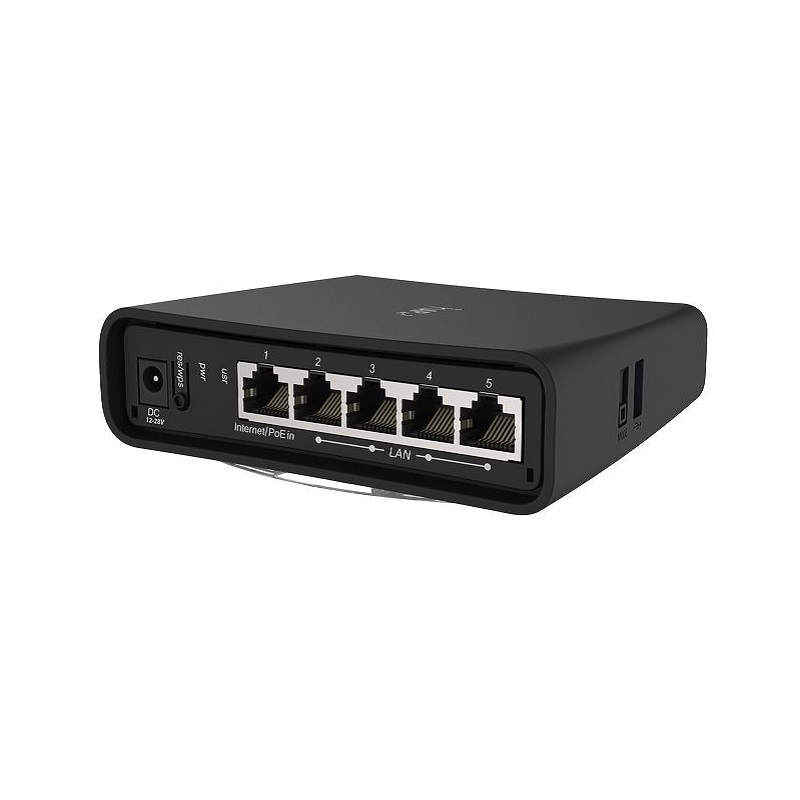

The hAP ac2 is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

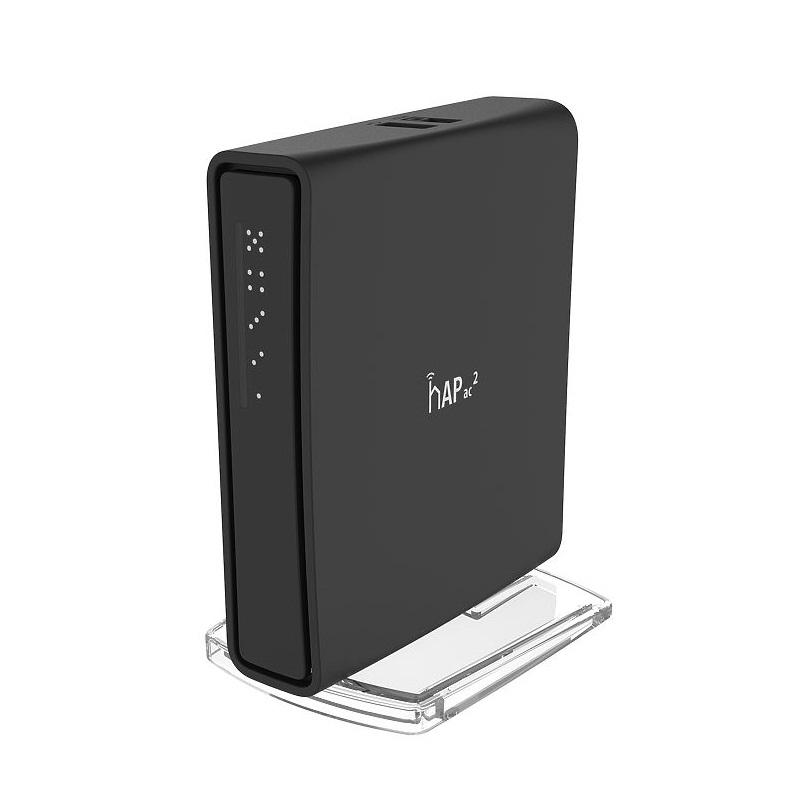

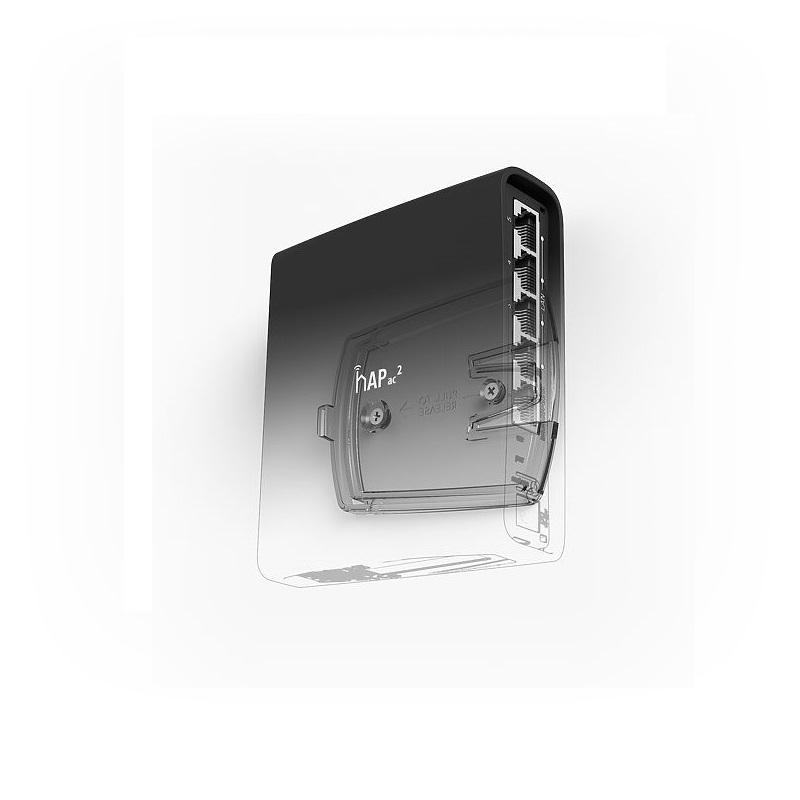

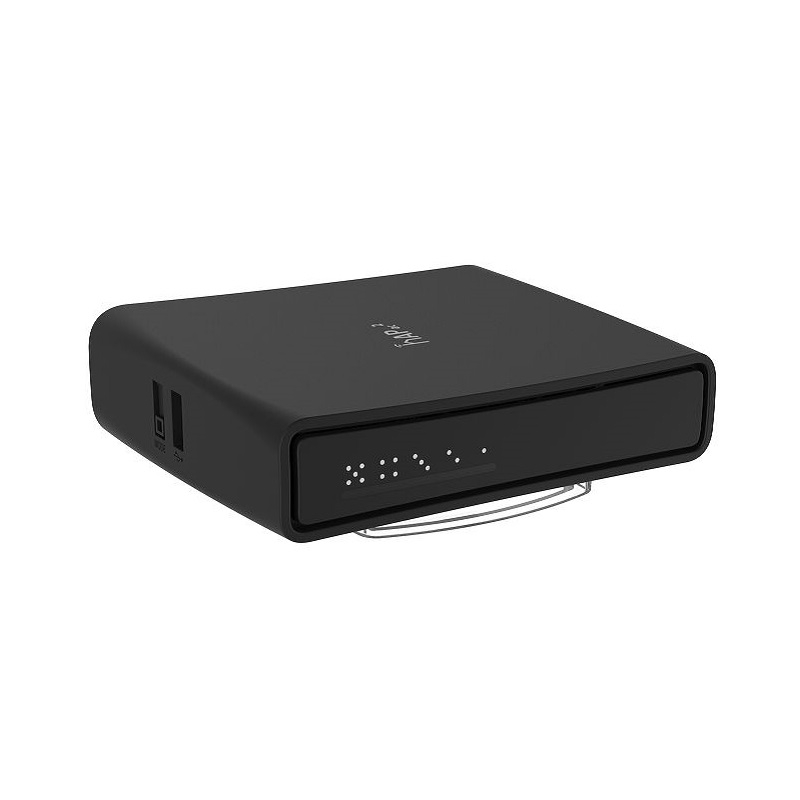

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Produkto specifikacijos:

Product code: RBD52G-5HacD2HnD-TC
Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 34 x 119 x 98mm
Operating System: RouterOS (License level 4)
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C .. +50°C

Powering

Max Power consumption: 15W
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-30 V

Wireless

Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018

Ethernet

10/100/1000 Ethernet ports: 5

Peripherals

Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 27 -96
54MBit/s 24 -78
MCS0 27 -96
MCS7 23 -73

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
