MIKROTIK LHG series LHG XL 5 ac 5 GHz CPE/Point-to-Point Integrated Antenna,4 pack (RBLHGG-5acD-XL4pack)

Produkto savybės:

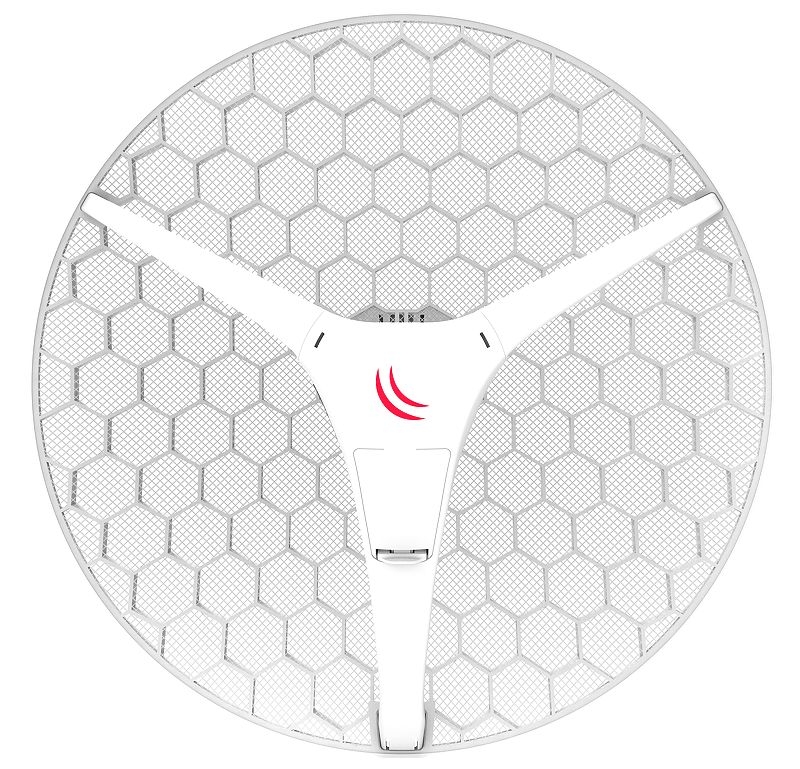

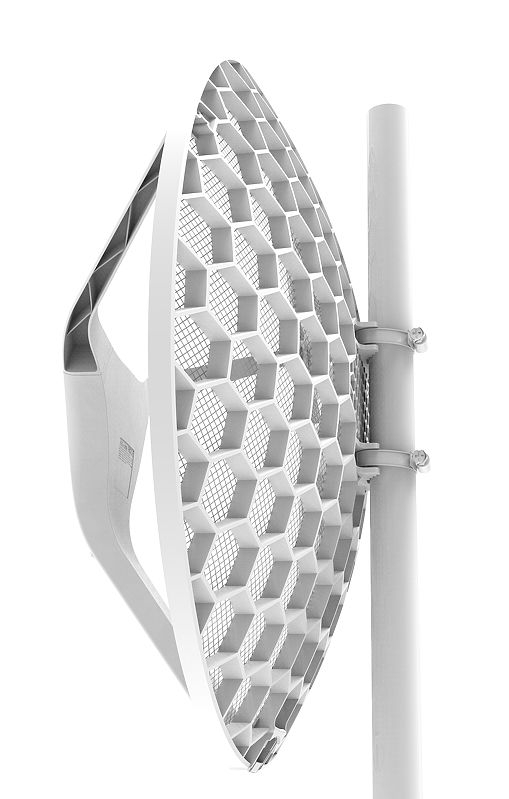

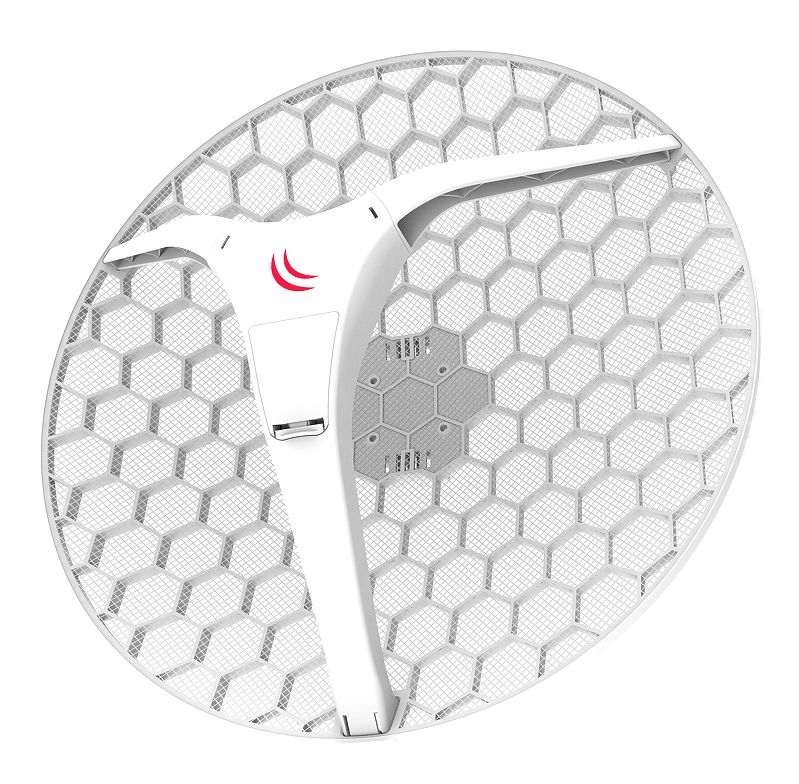

The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarization grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.

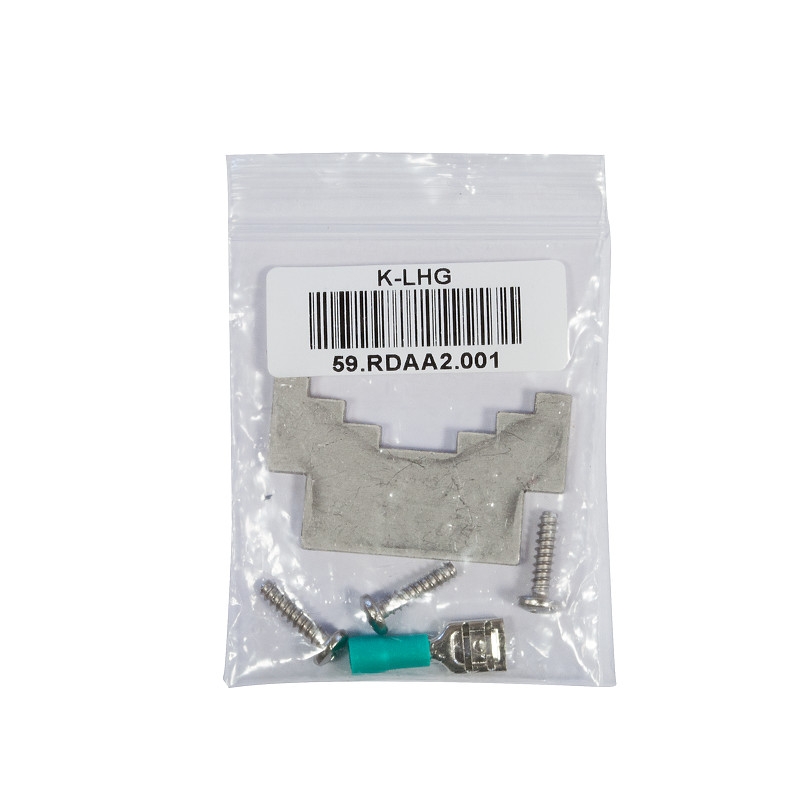

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point.

The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

LHG XL 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

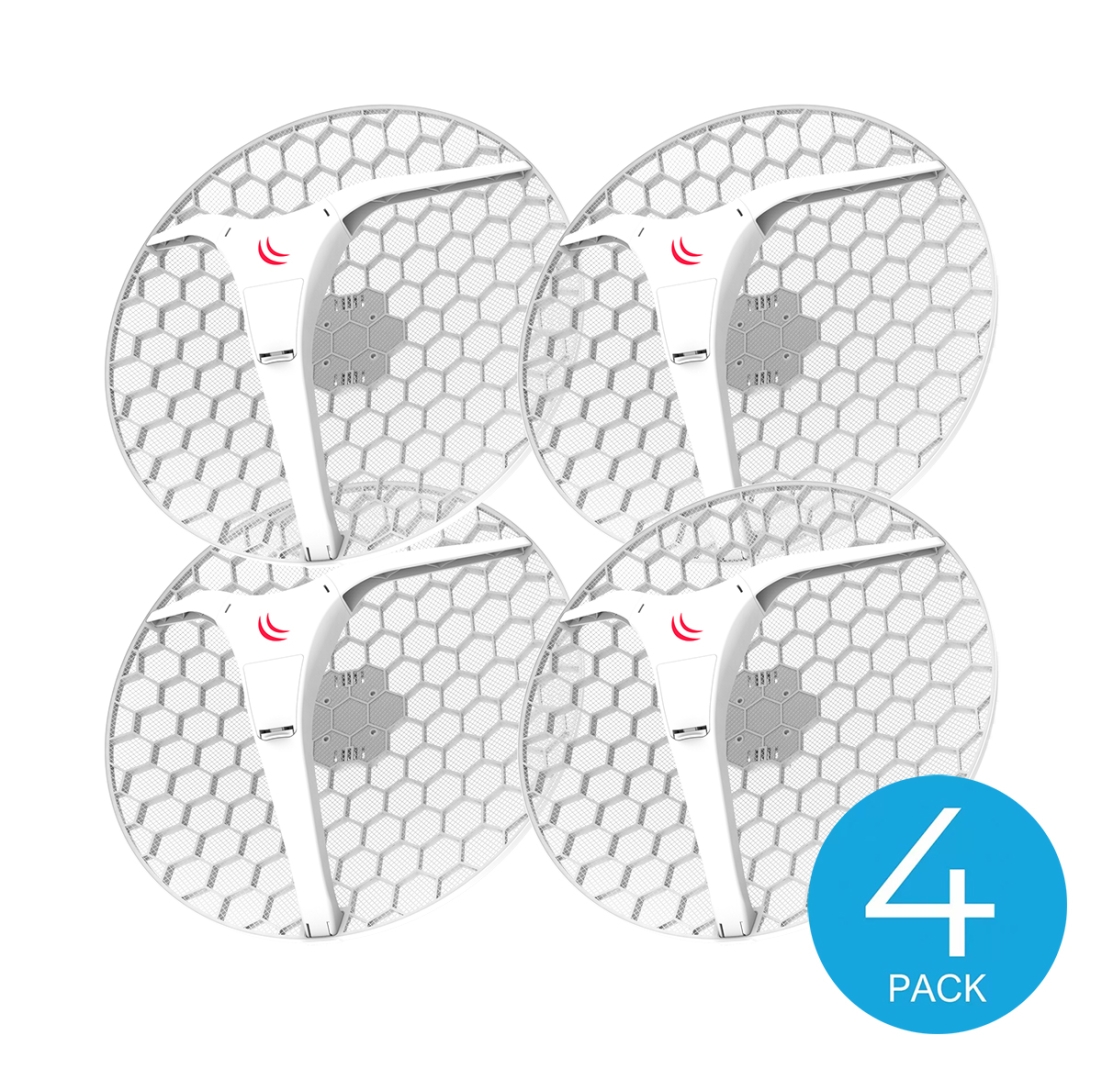

RBLHGG-5acD-XL4pack (LHG XL 5 ac 4pack) box contains 4 pieces.

Produkto specifikacijos:

Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: Ø 550 x 245 mm; package 585 x 595 x 138 mm
Operating System: RouterOS (License level 3)
Weight: unit - 945 g; package - 2.99 kg
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C .. +70°C
Wind loading: 186N @ 205 km/h

Powering

Max Power consumption: 8W

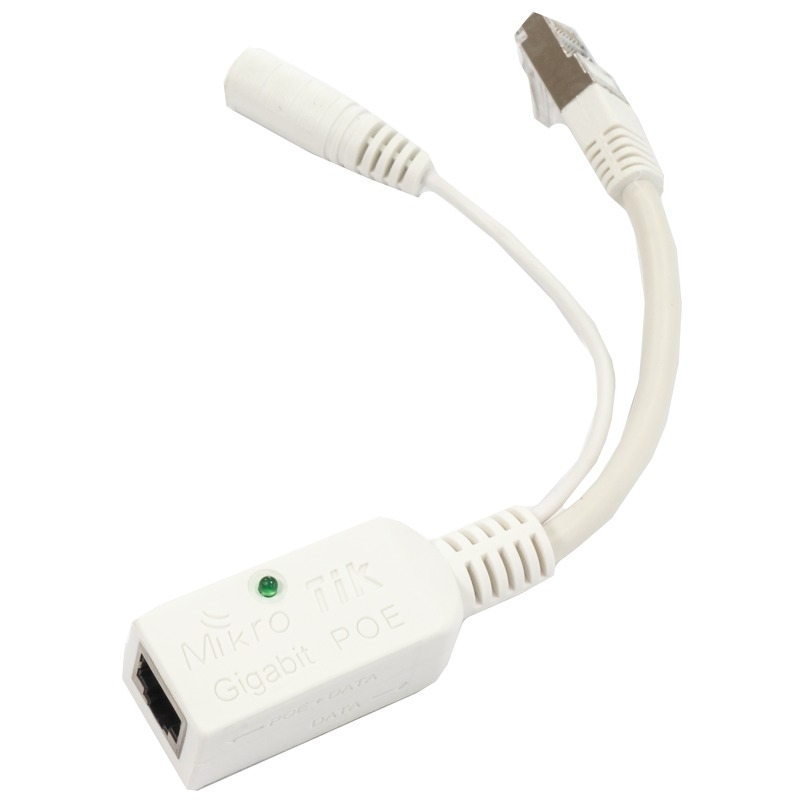

PoE in: Passive PoE
PoE in input Voltage: 10-30 V
Number of DC inputs: 1 (PoE-IN)

Wireless

Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11ac
Antenna gain dBi for 5 GHz: 27 +/- 0.5
Antenna beam width: 7°
Wireless 5 GHz chip model: IPQ-4018

Ethernet

10/100/1000 Ethernet ports: 1
