MIKROTIK Point-to-point 60 GHz 802.11ay CPE Cube 60Pro ac (CubeG-5ac60ay)

OEM kodas: CubeG-5ac60ay
Kodas: CubeG-5ac60ay
ID: #3714

Ultra-fast point-to-point connections over distances as far as 1 km and more| 5 GHz failover | Built-in 60 GHz 802.11ay | 1x Gigabit LAN port | Passive/802.3af/at PoE In | Router OS (License level 4)

136.46€ su PVM

Kaina be PVM: 112.78€

Kiekis:


Produkto savybės:

Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

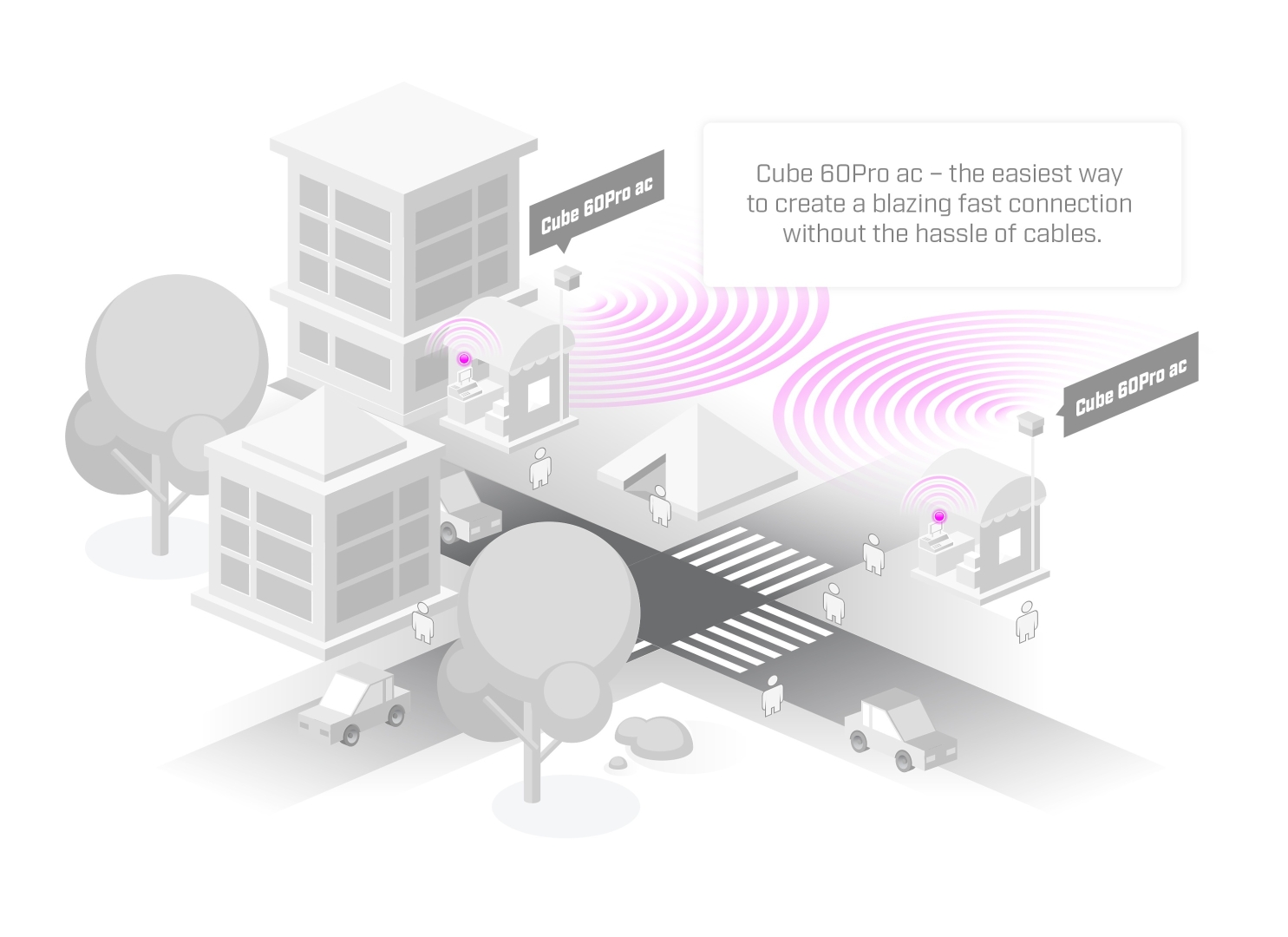

The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km. And that’s not all – Channel 5* support is added, so you can reach even higher distances if necessary. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km. Bridging two locations has never been easier!

Forget about downtime with the automatic 5 GHz backup connection

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

More durability, less unwanted attention

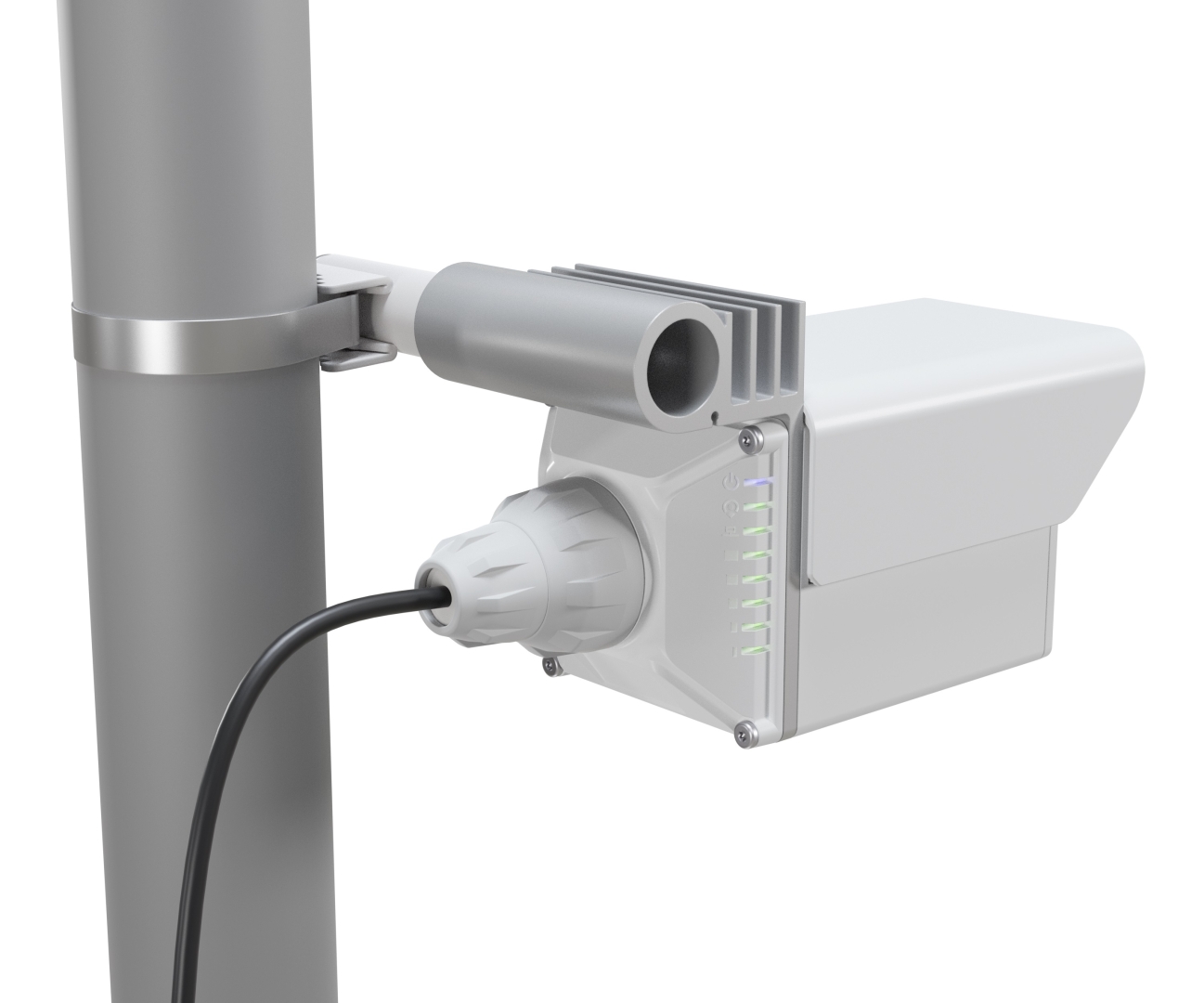

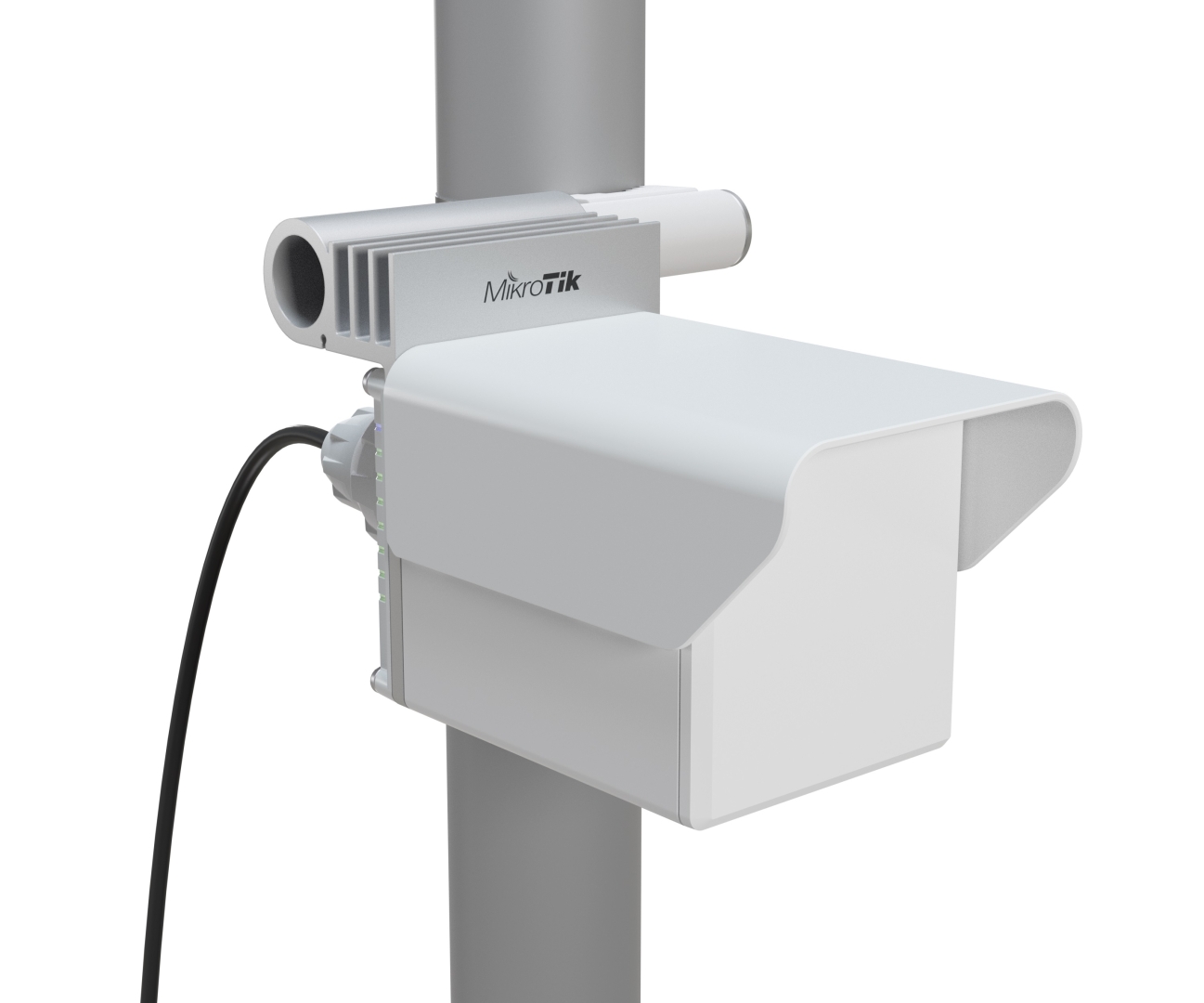

Upgraded enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Produkto specifikacijos:

Product code CubeG-5ac60ay
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency auto (448 - 896) MHz
Dimensions 115 x 95 x 82 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 64 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 10 W
Cooling type Passive

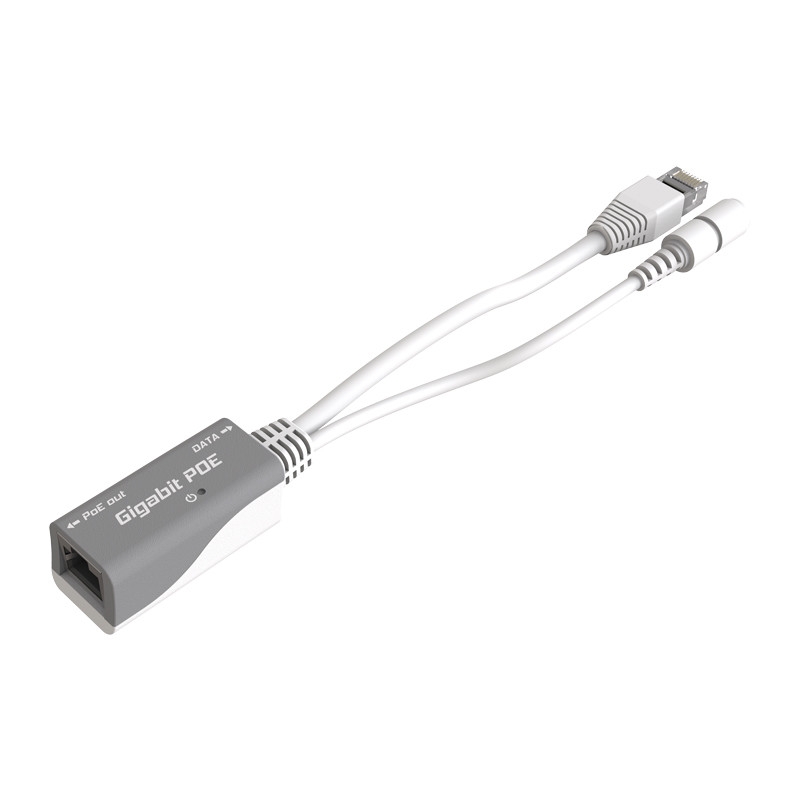

PoE in 802.3af/at
PoE in input Voltage 18-48 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 11.5
Wireless 5 GHz chip model IPQ4019
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
GNSS standards GPS

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 22 -93
54MBit/s 18 -74
MCS0 22 -93
MCS7 17 -71
MCS9 15 -68
