MIKROTIK RouterBOARD wAP LoRa9 kit (wAP_LoRa9_kit) (Licencijos lygis 4)

OEM kodas: RBwAPR-2nD&R11e-LoRa9
Kodas: wAP_LoRa9_kit
ID: #2274

"Out-of-the-box" sprendimas naudoti „LoRaWAN“ šliuzą (Gateway), veikia 902–928 MHz dažniu (naudojamas JAV, Kanadoje, Meksikoje, Australijoje, Brazilijoje, daugelyje Azijos šalių ir kt.)

137.95€ su PVM

Kaina be PVM: 114.01€

Kiekis:


Produkto savybės:

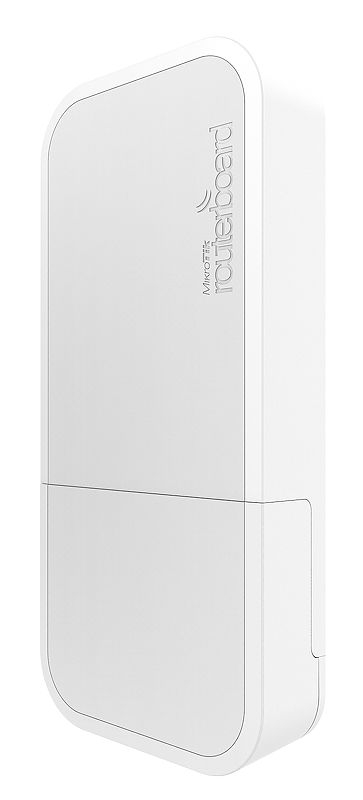

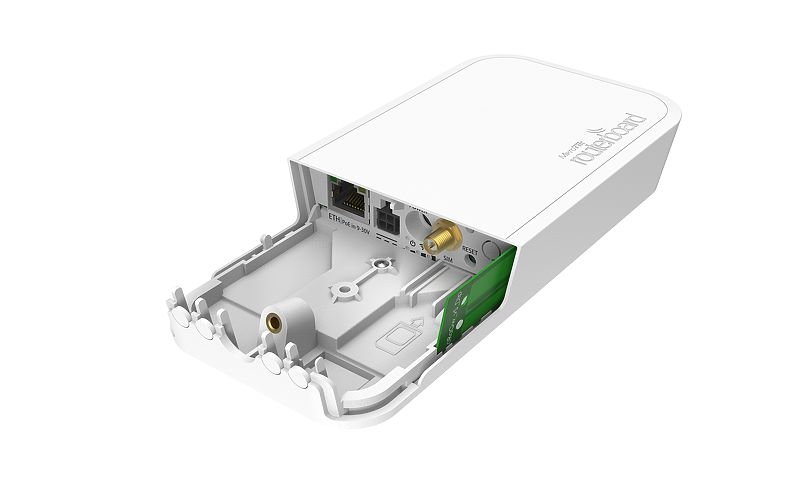

wAP LoRa9 – an out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik LoRa Antenna kit.

Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa9 kit, the long-awaited LoRa solution for LoRa enthusiasts of any level.

Produkto specifikacijos:

Specifications

Product code RBwAPR-2nD&R11e-LoRa9
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
License level 4
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C

Powering

PoE in Passive PoE
PoE in input Voltage 9-30 V
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W

Wireless

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 1

Peripherals

Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Certification CE/RED, FCC, IC, EAC, ROHS

Included parts

  • 24V 0.8A power adapter

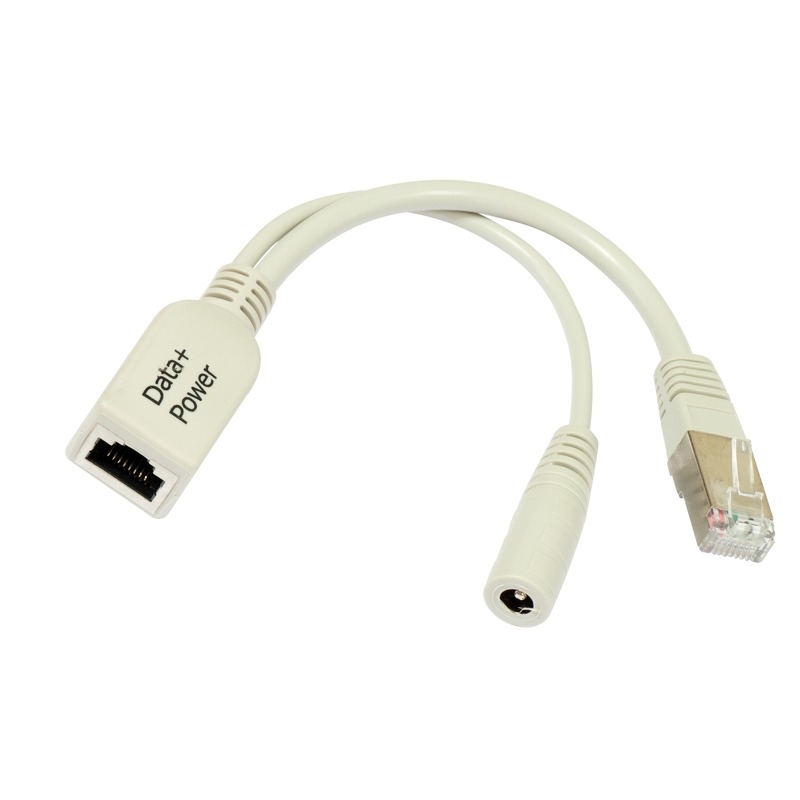

  • PoE injector

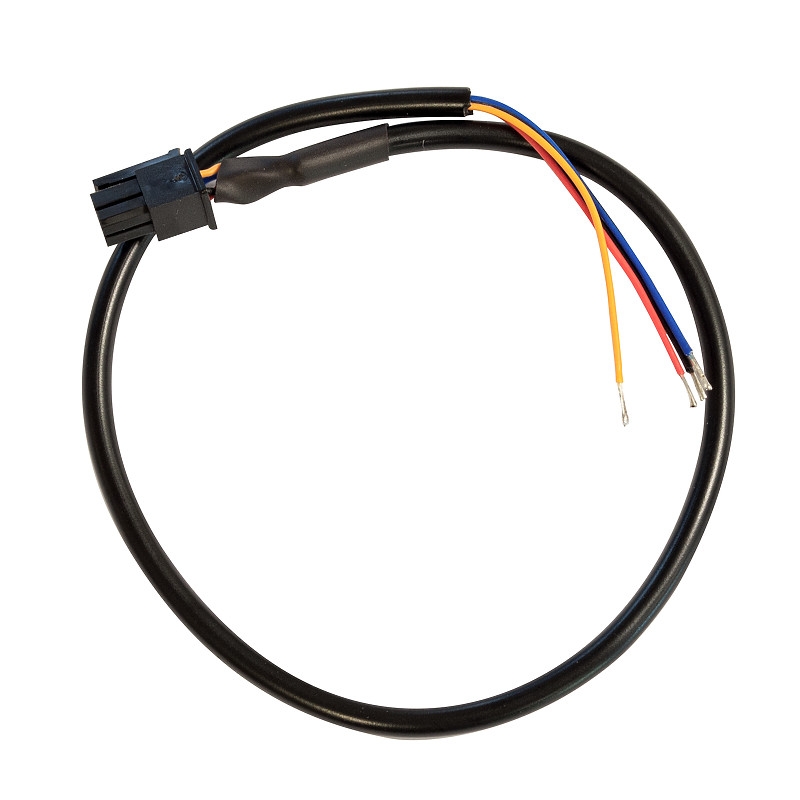

  • 0.35m 4pin Automotive adapter cable

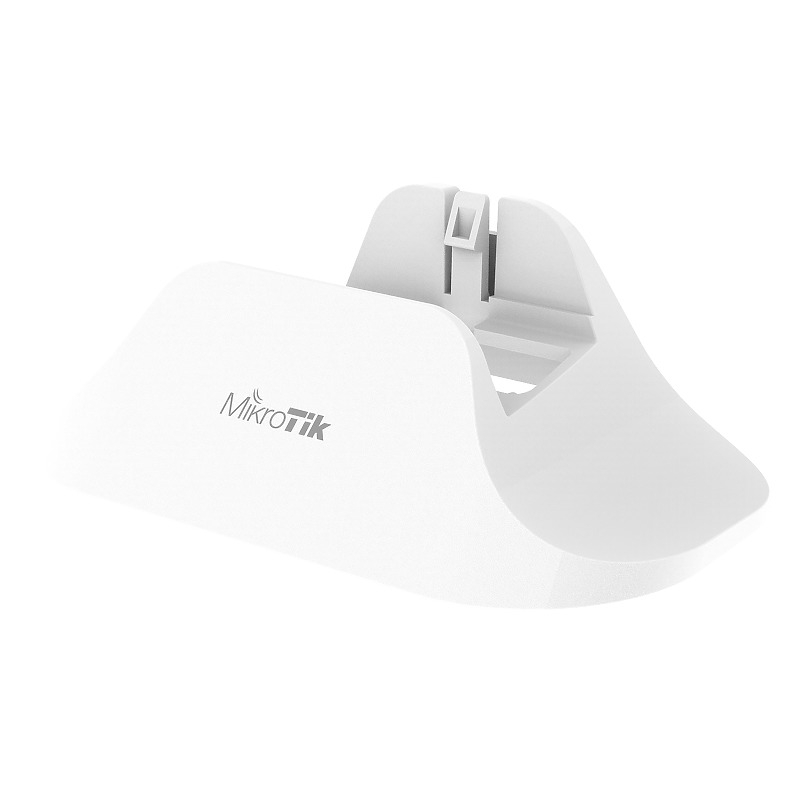

  • wAP desktop stand

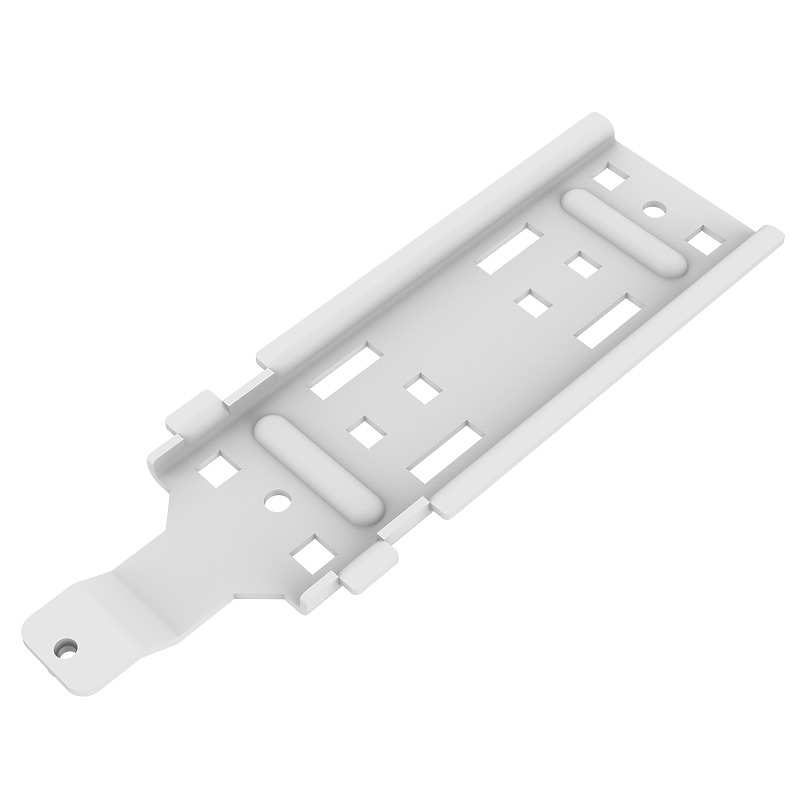

  • wAP mount bracket

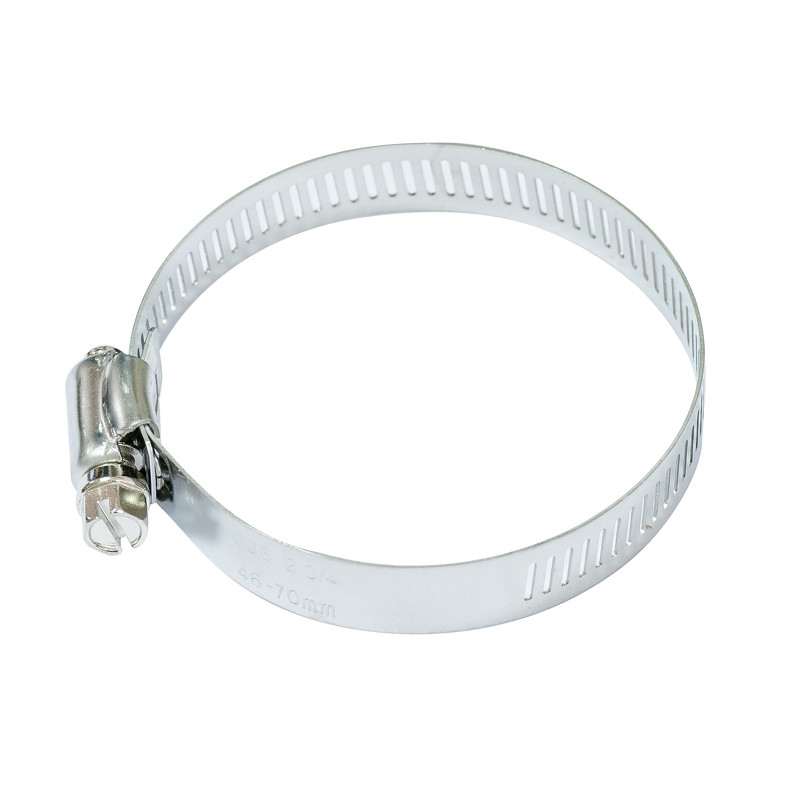

  • Metal ring (one)
