MIKROTIK wAP LoRa8 rinkinys (wAP_LoRa8_kit)

OEM kodas: RBwAPR-2nD&R11e-LoRa8
Kodas: wAP_LoRa8_kit
ID: #2064

"Out-of-the-box" sprendimas naudoti „LoRaWAN“ šliuzą (Gateway), Veikia 863–870 MHz dažniu.

135.69€ su PVM

Kaina be PVM: 112.14€

Kiekis:


Produkto savybės:

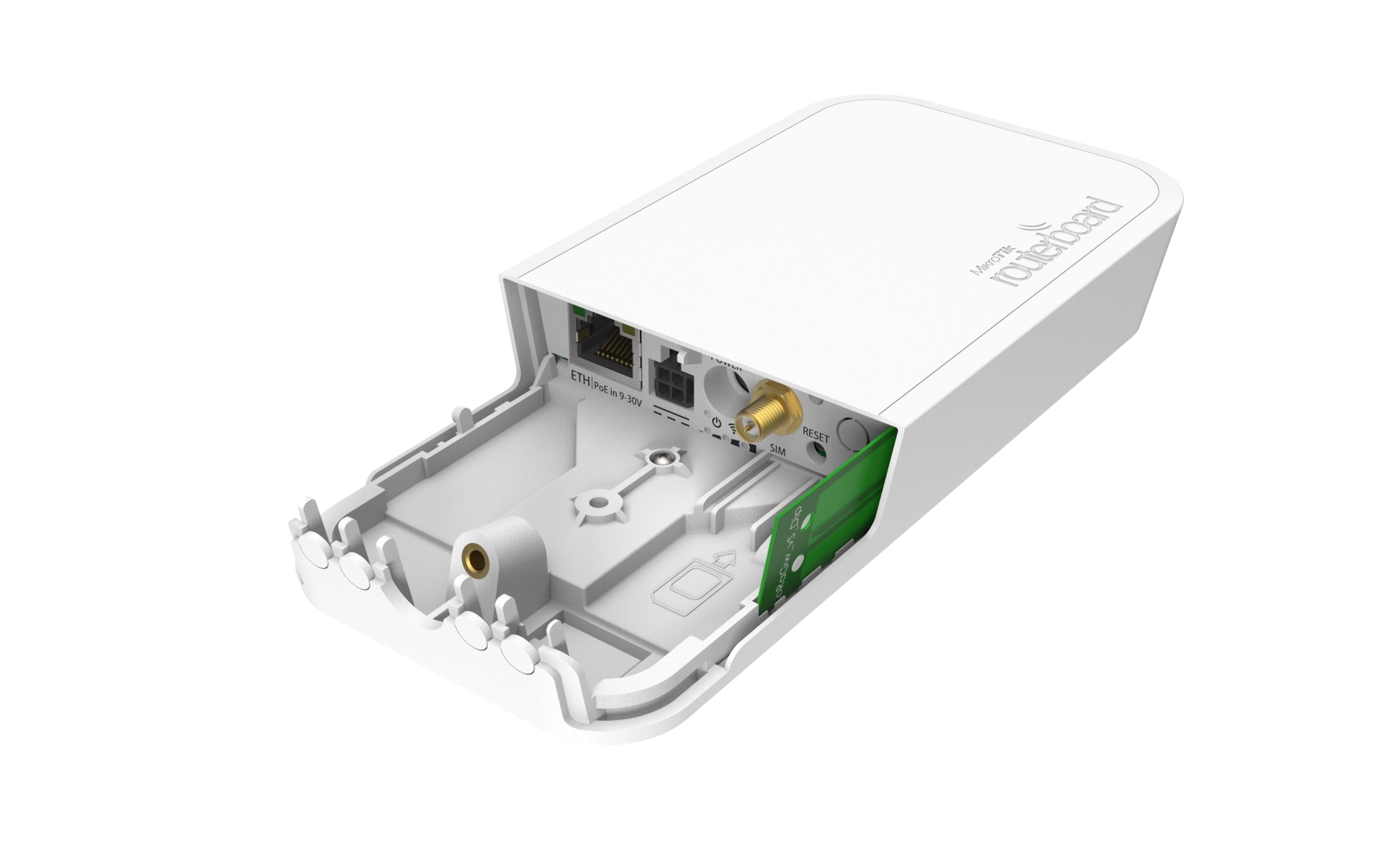

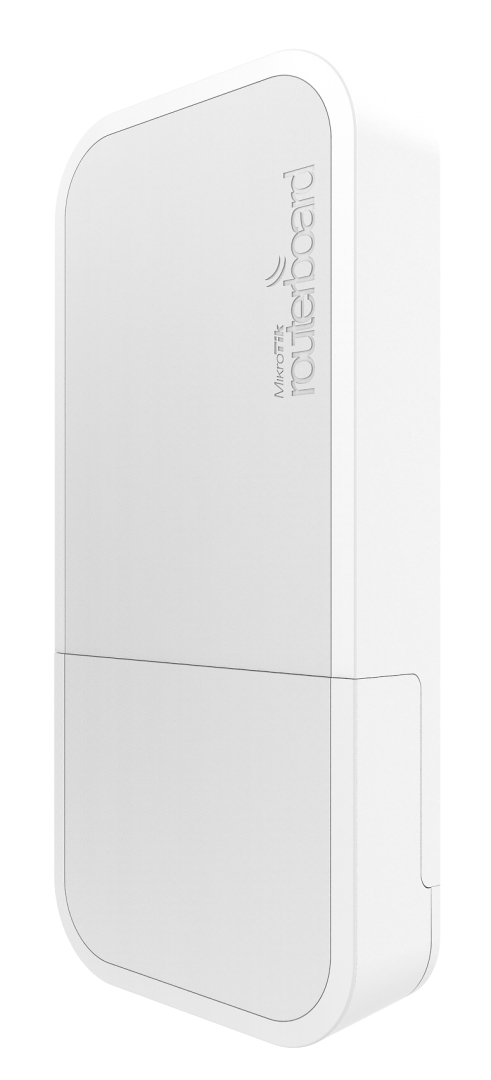

wAP LoRa8 – an out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik LoRa Antenna kit.

wAP LoRa8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa8 kit, the long-awaited LoRa solution for LoRa enthusiasts of any level.

Produkto specifikacijos:

Product code

RBwAPR-2nD&R11e-LoRa8

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

License level

4

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-40°C to 60°C

Powering

PoE in

Passive PoE

PoE in input Voltage

9-30 V

Number of DC inputs

3 (DC jack, PoE-IN, Automotive)

DC jack input Voltage

9-30 V

Automotive input Voltage

9-30 V

Max power consumption

7 W

Wireless

Wireless 2.4 GHz Max data rate

300 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

2

Wireless 2.4 GHz chip model

QCA9531

Wireless 2.4 GHz generation

Wi-Fi 4

Ethernet

10/100 Ethernet ports

1

Peripherals

Number of SIM slots

1 Modem (Mini SIM)

MiniPCI-e slots

1

Other

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification & Approvals

Certification

CE/RED, FCC, IC, EAC, ROHS

Included parts

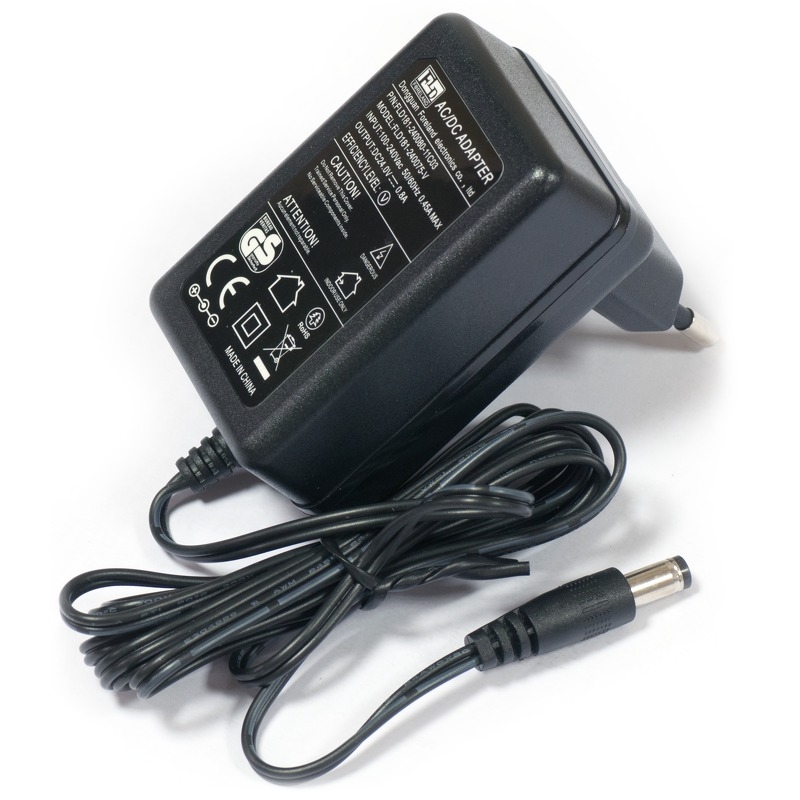

  • 24V 0.8A power adapter

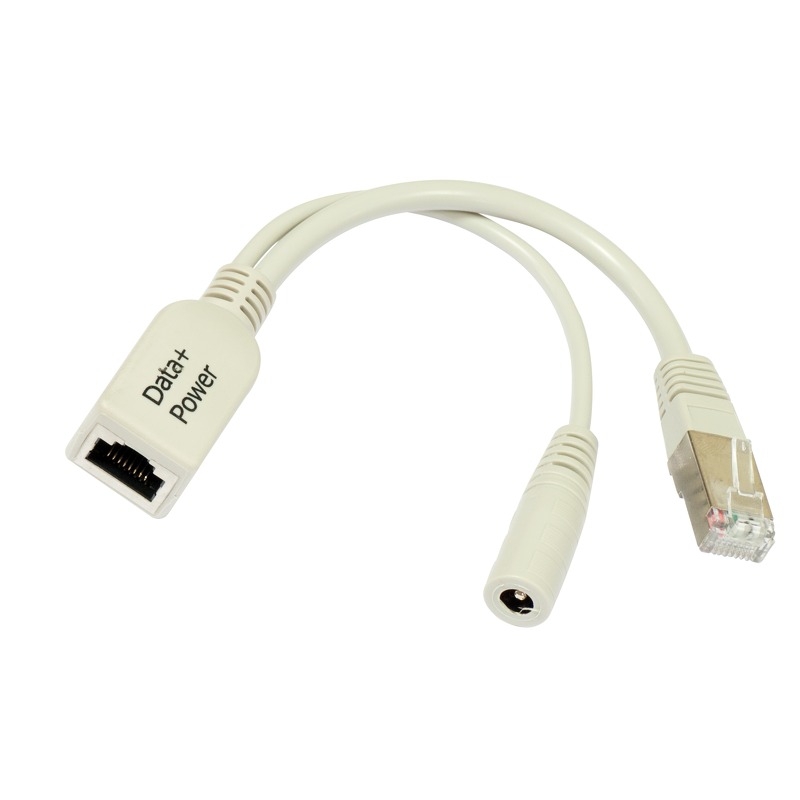

  • PoE injector

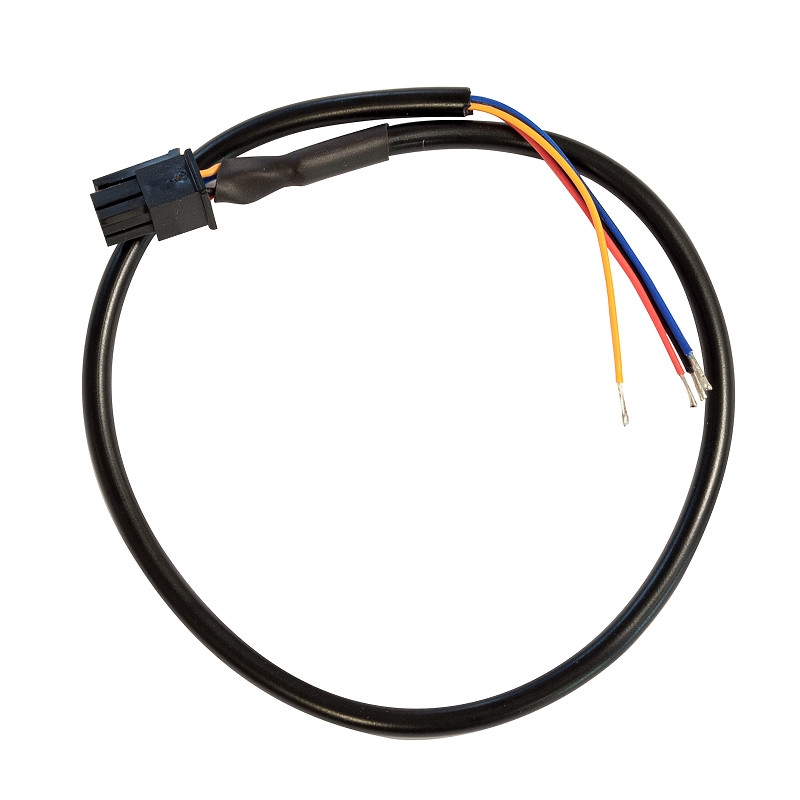

  • 0.35m 4pin Automotive adapter cable

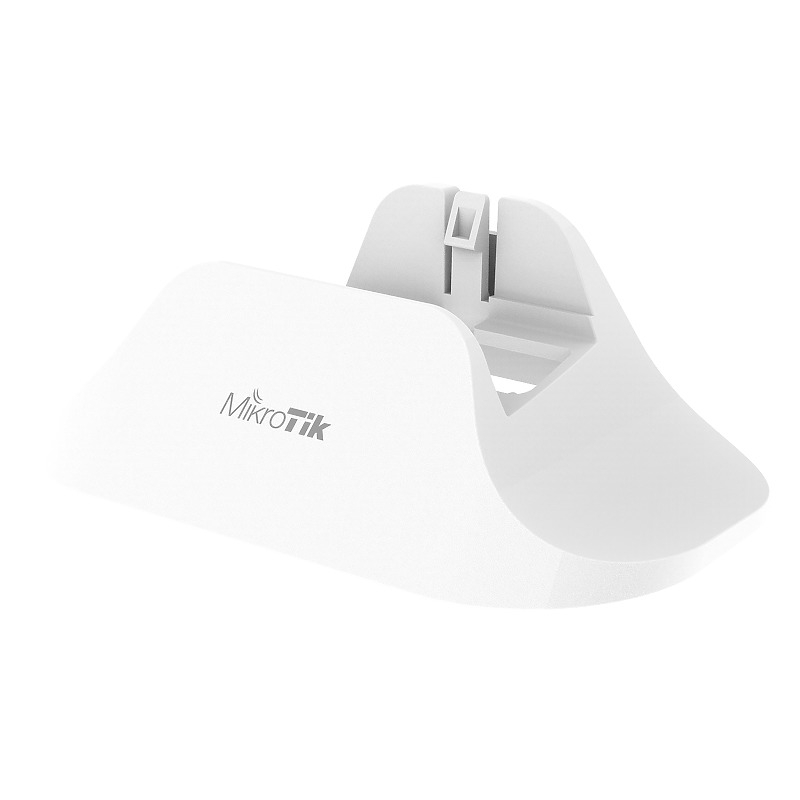

  • wAP desktop stand

  • wAP mount bracket

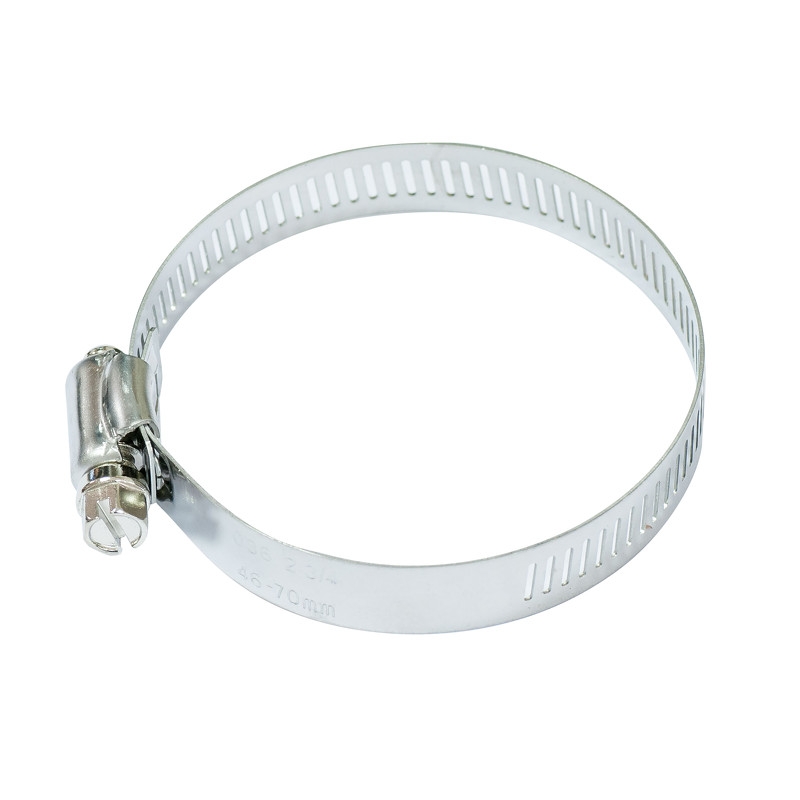

  • Metal ring (one)
