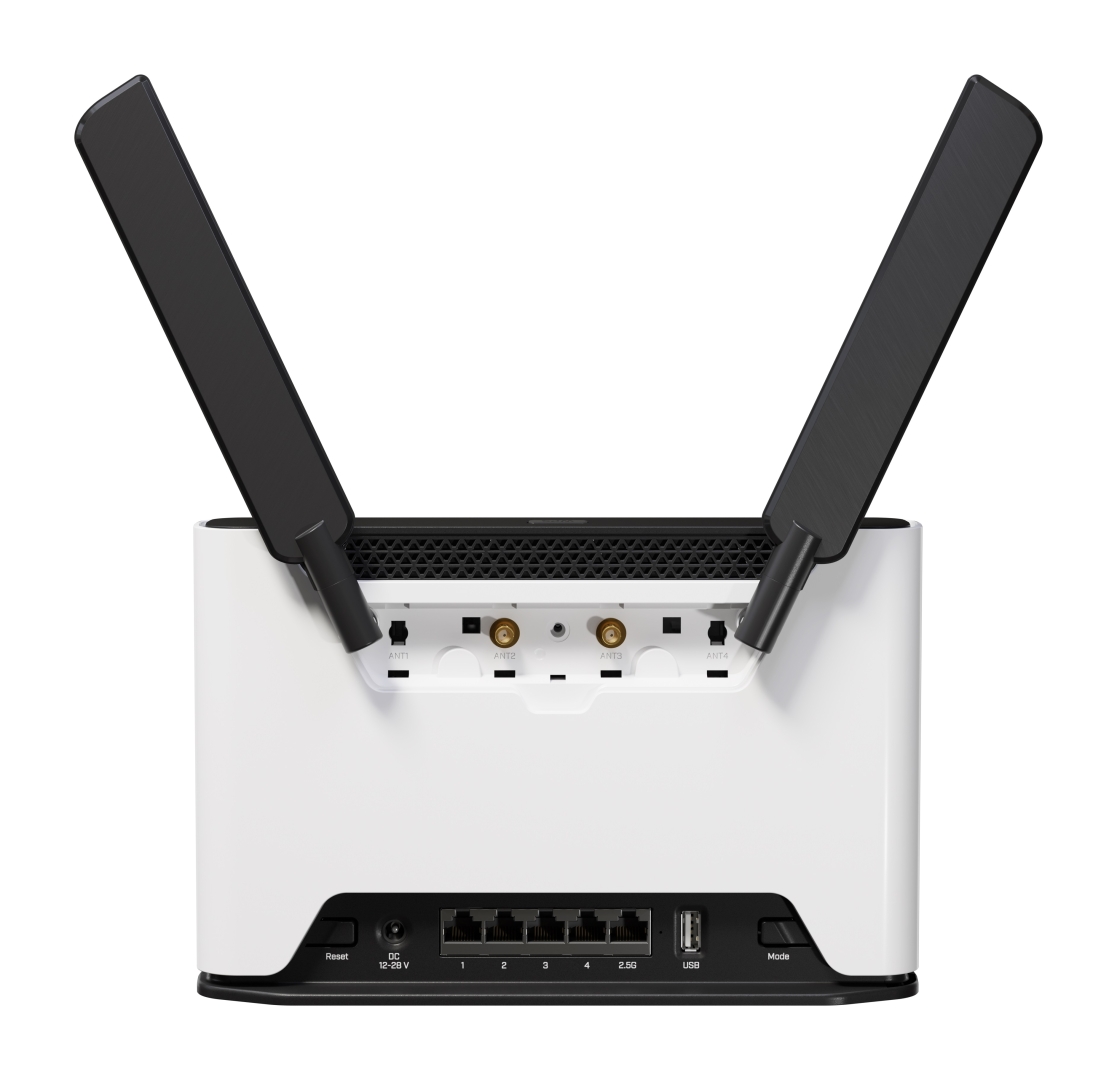

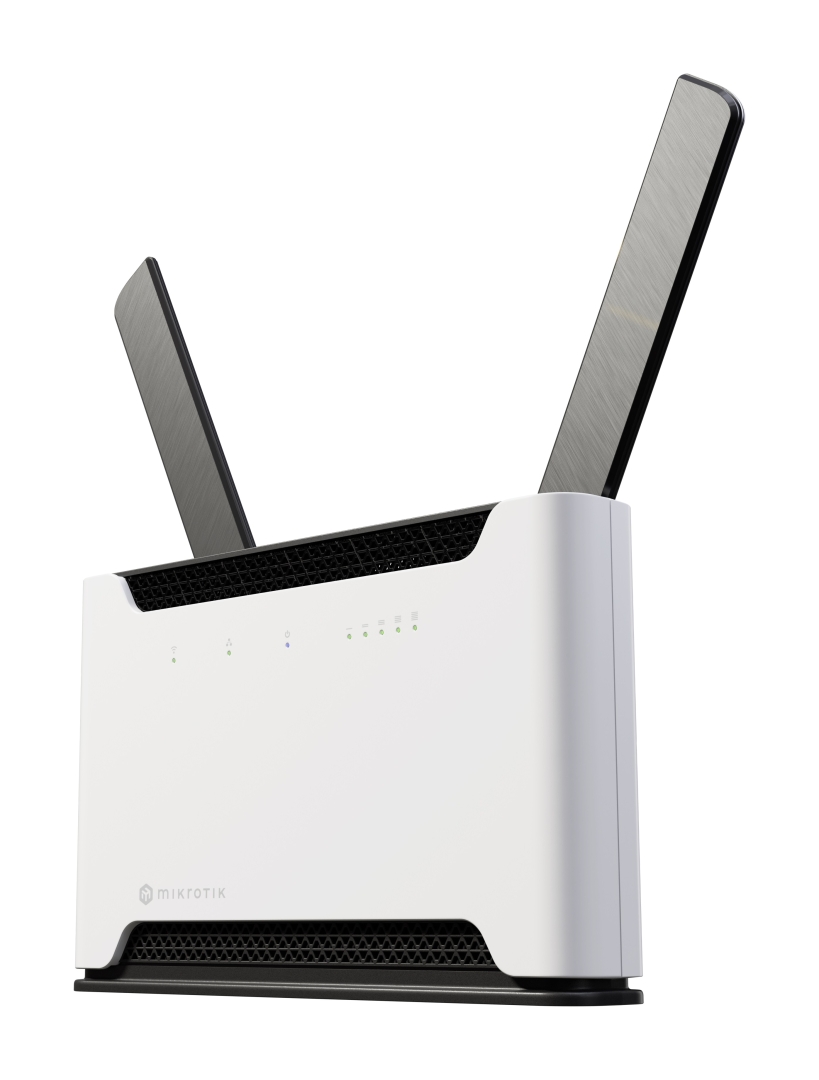

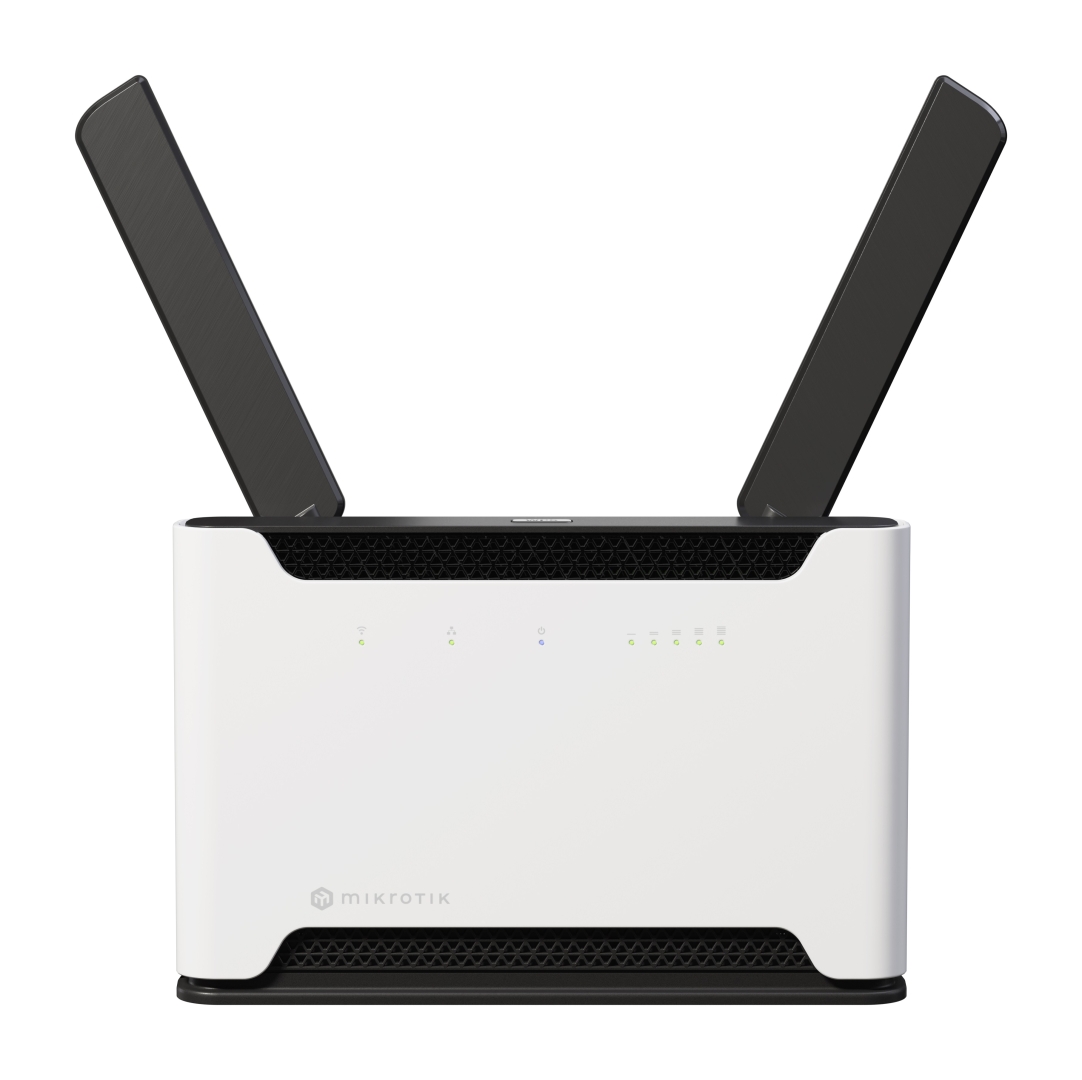

MIKROTIK Wi-Fi 6 Access Point, LTE ver.18 support, Chateau LTE18 ax (S53UG+5HaxD2HaxD-TC&EG18-EA)

OEM kodas: S53UG+5HaxD2HaxD-TC&EG18-EA
Kodas: ChateauLTE18ax
ID: #3791

Wi-Fi 6 | LTE 18 (1.2Gbps Downlink, 150 Mbps Uplink) | 4x4 MIMO LTE support | Max. antenna gain 6 dBi | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain | 1x 2.5 Gigabit LAN port | 4x Gigabit LAN ports | 1x USB 2.0 port | Router OS (Licence level 4)

258.23€ su PVM

Kaina be PVM: 213.41€

Kiekis:


Produkto savybės:

The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Massive improvements were made to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

With speeds like that, the ports also had to rise to the occasion. Together with four Gigabit Ethernet ports you'll find a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

The most advanced software on the market - RouterOS

Mikrotiks has been making his own software since 1996. And over the years, they have managed to create the most powerful and flexible networking software on the market. With each new version, the priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, QoS (traffic prioritization for certain needs, such as streaming), complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications..You can even automate complex trigger notifications (“Your bandwidth has reached X for Y minutes!”) and modify queues based on bandwidth usage. If you can imagine it – RouterOS can achieve it.

There are no paywalls and no confusing subscriptions. You’re getting all the features - from consumer to enterprise-grade. For mobile operators and ISPs, this is groundbreaking. Finally - a single product to satisfy the most diverse group of people.

Built with security in mind

Not only does RouterOS come with robust security options, Mikrotiks also focus on the production security. There is no outsourcing, every Chateau device is assembled at our EU contract manufacturers, and all the components come from reputable, trusted partners – such as Qualcomm. Mikrotiks cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.

Jack of all trades... master of many!

Chateau is a remarkable choice for any mobile operator. It can be customized with a variety of labels or printed branding. And operators can use the TR-069 technology to create custom remote client management options, such as router configuration via the same web-page clients are using to pay the mobile bill. Advanced users, seasoned sysadmins, and networking enthusiasts can take advantage of the astounding depth of RouterOS. And the non-tech households can skip all that, using a simple, straightforward web-page instead. Now is the time for great networking without compromises. Secure remote work options and a blazing fast Internet connection are no longer a luxury. They are a necessity. And Chateau is the solution.

Produkto specifikacijos:

Product code S53UG+5HaxD2HaxD-TC&EG18-EA
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 -1800) MHz
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 65°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 19 W
Max power consumption without attachments 16 W
Cooling type Passive

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL 4x4
MIMO UL 1x1
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 4
Number of 2.5G Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
