MIKROTIK Wireless Wire nRAY, pair (nRAYG-60adpair)
The most compact wireless 2 Gb/s aggregate link in the 1500 m range | Outdoor CPE/PtMP | Gigabit Ethernet | Paired Secure Link preconfigured | AF/AT/Passive PoE, DC jack | Router OS (License level 3)

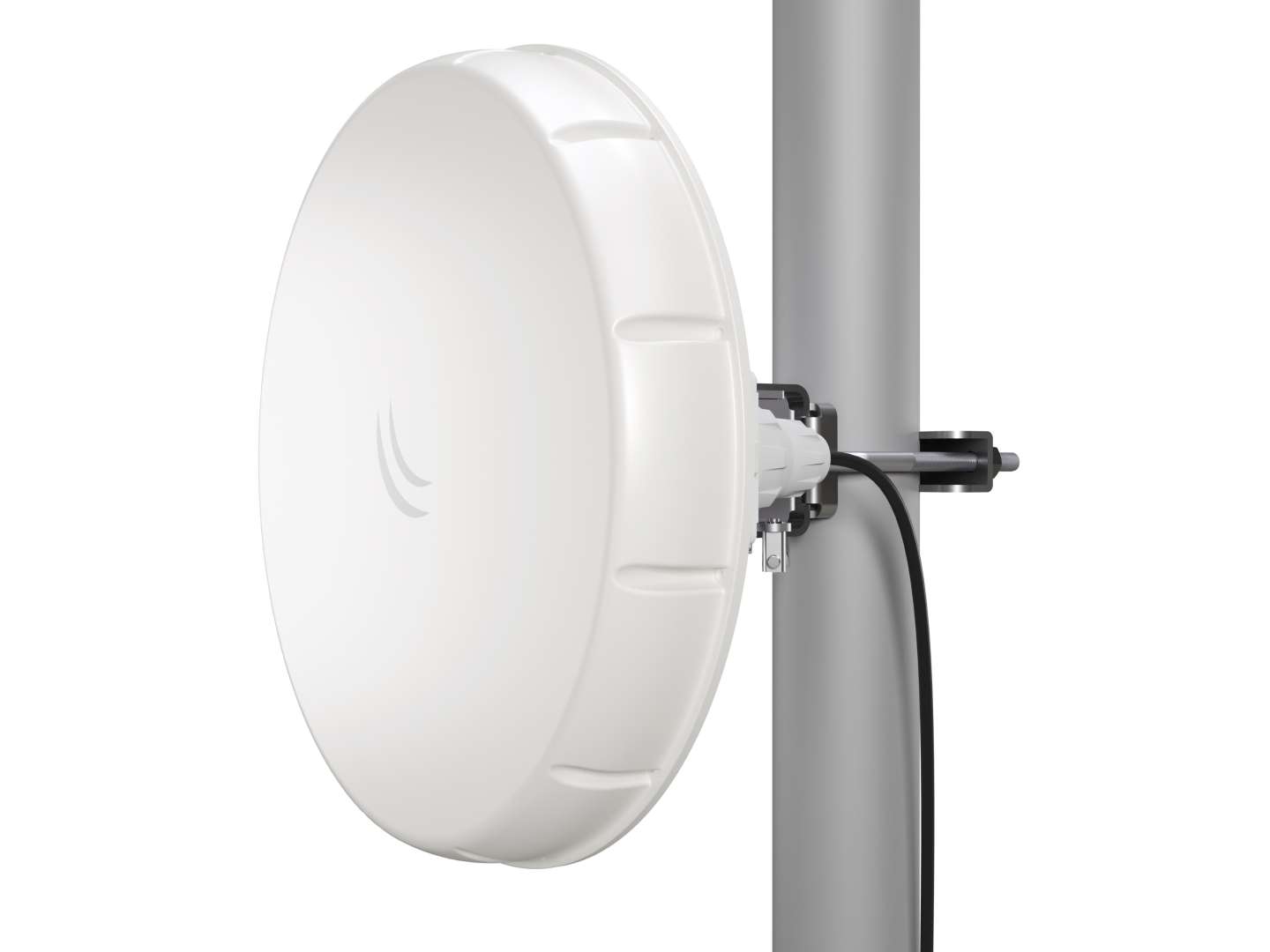

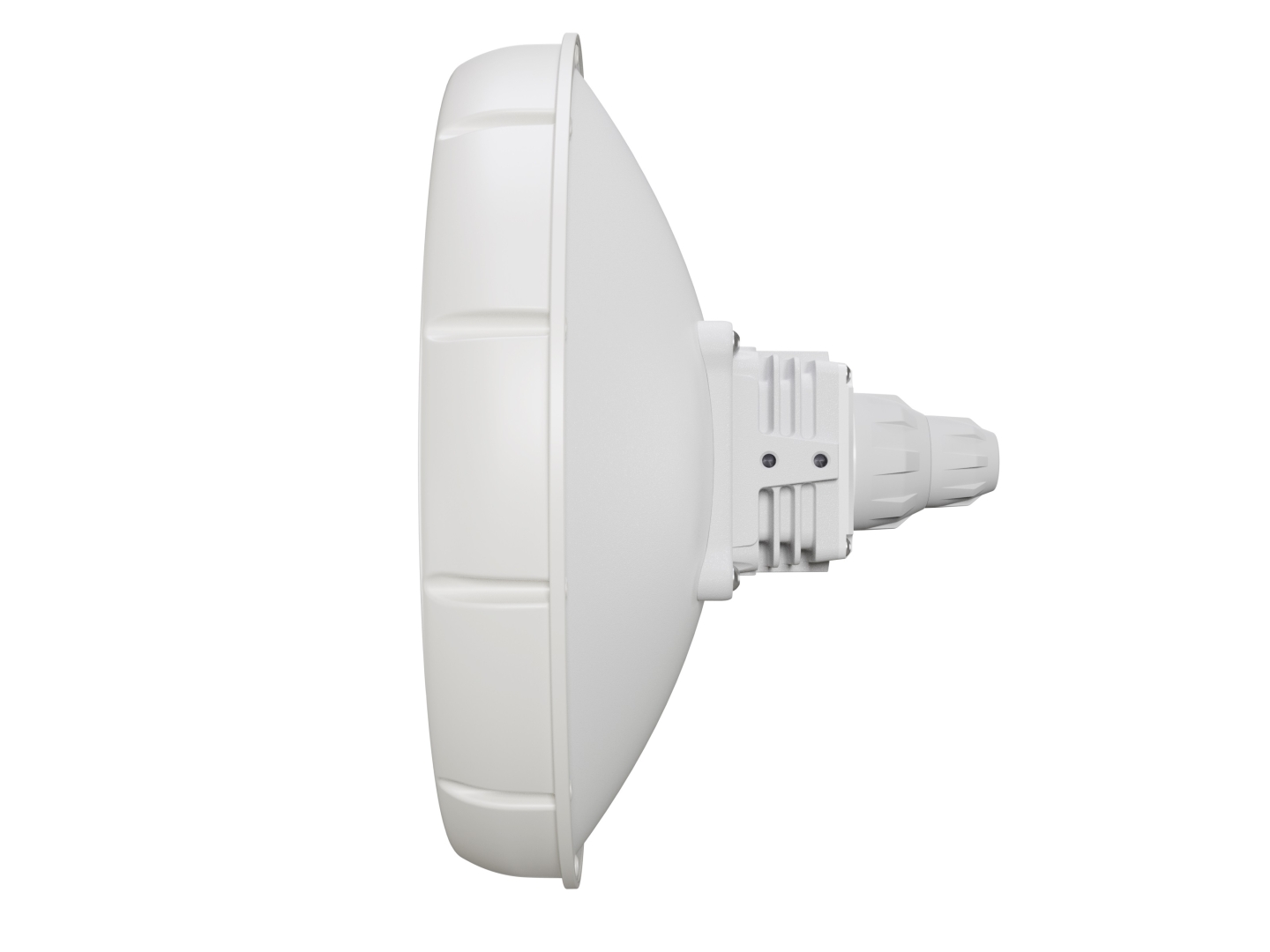

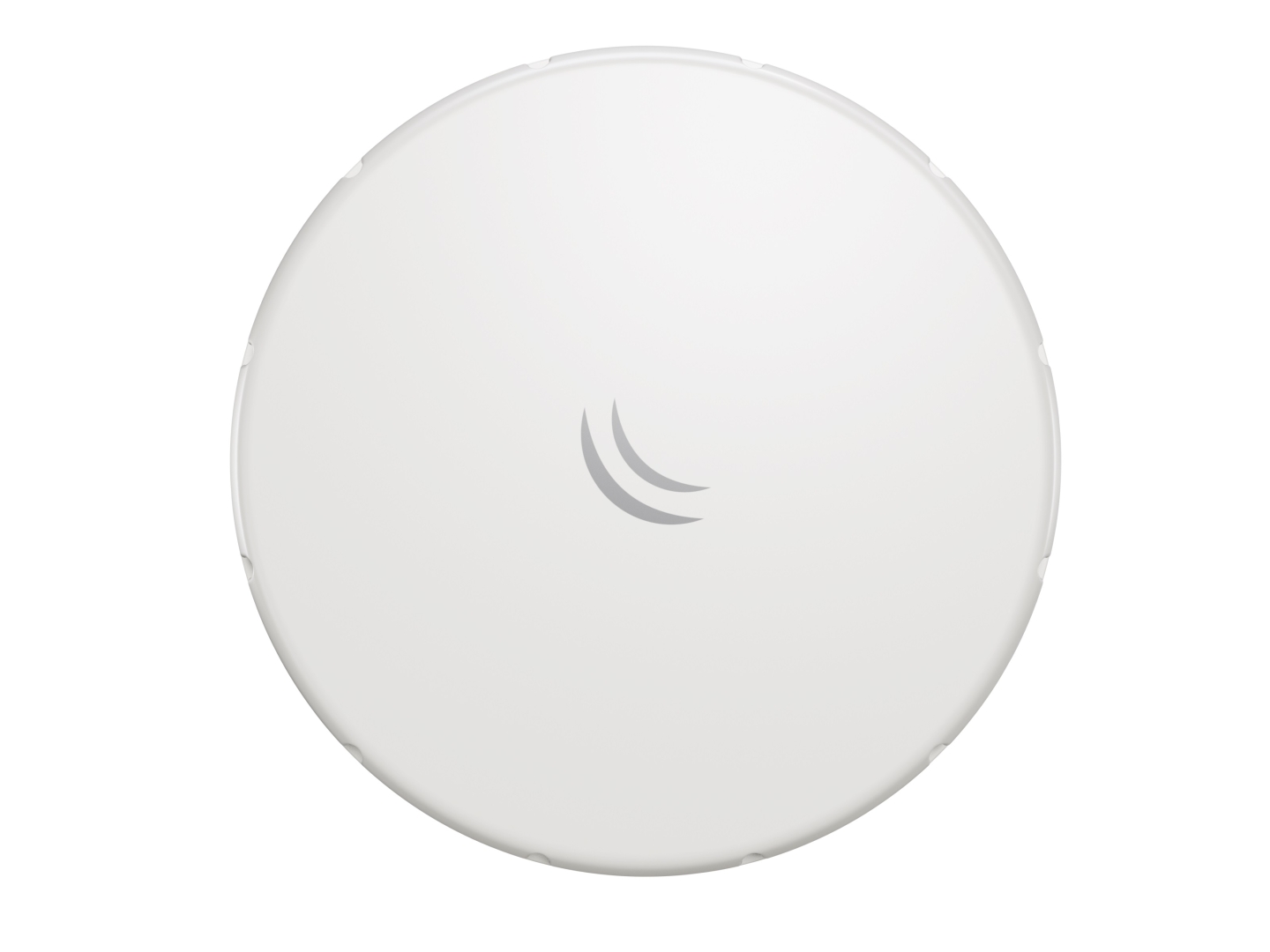

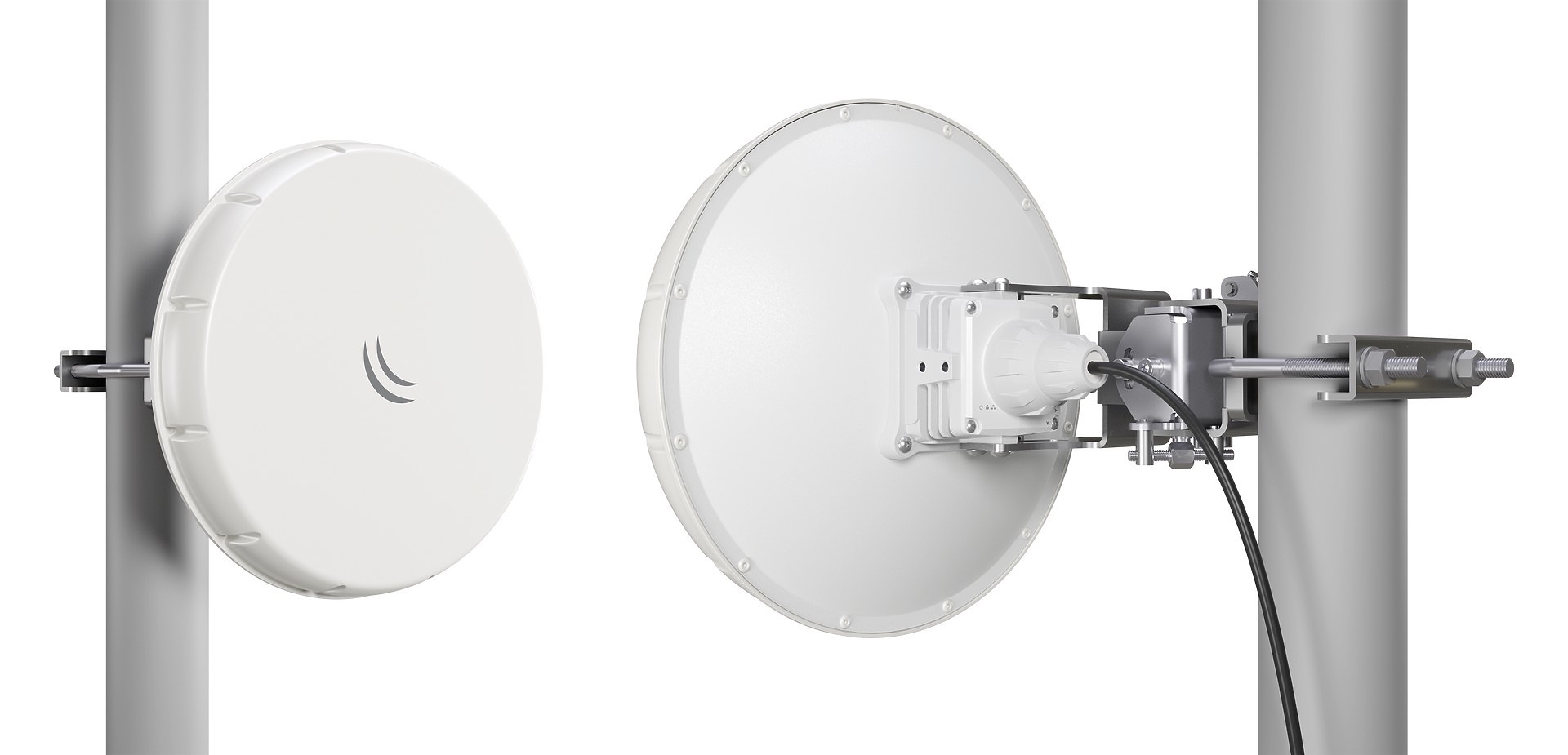

Meet a worthy successor of Mikrotik's popular Wireless Wire Dish - the best plug-and-play 60 GHz point-to-point link solution to date – the Wireless Wire nRAY. It is a kit of two pre-paired devices that make a secure AES encrypted wireless connection.
It can easily cover a distance of 1500 meters and reach fiber-like speed. There are some serious structural improvements. With the latest antenna technologies, this device is very compact, but even more durable than its predecessors.

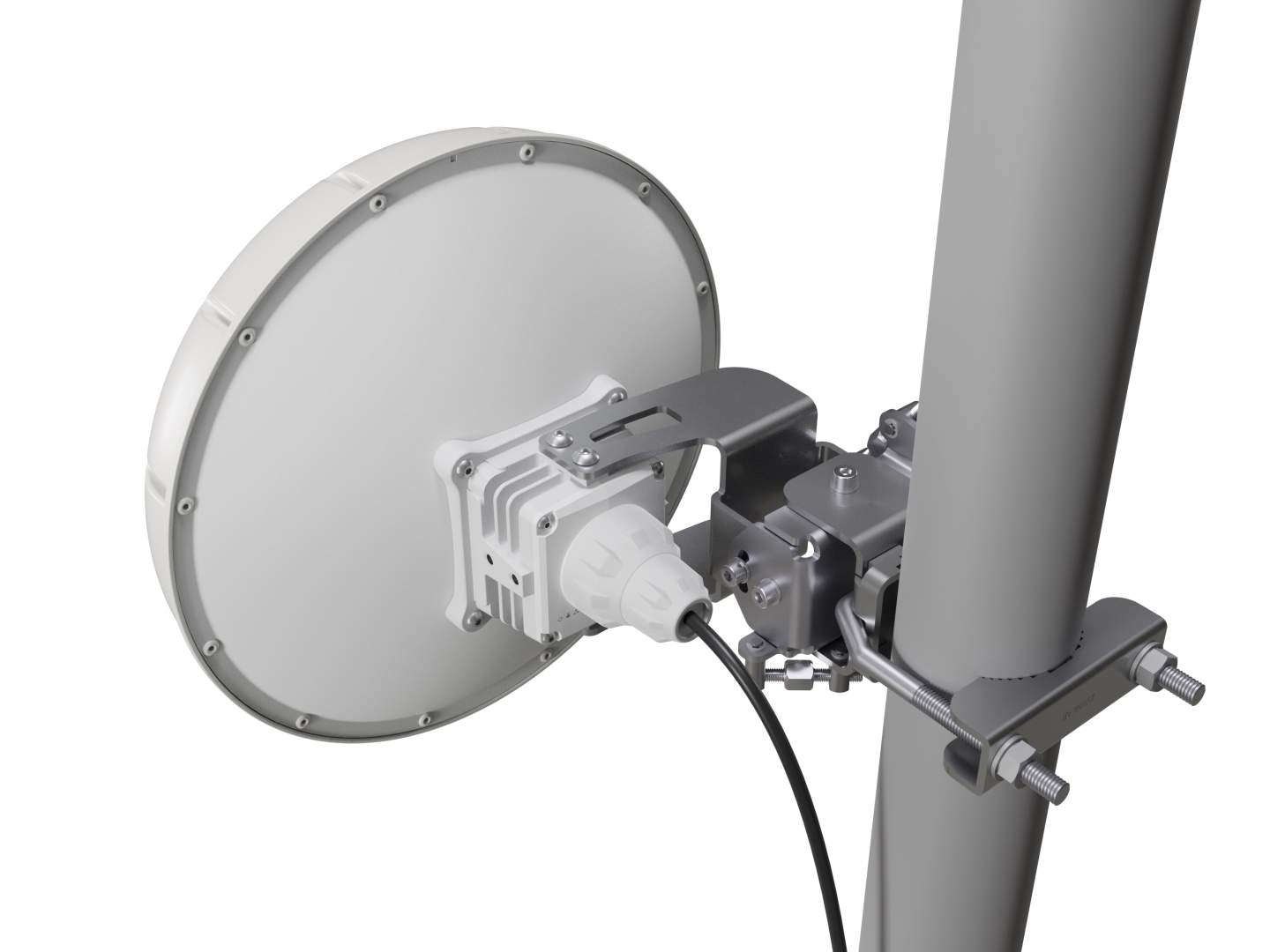

The new form-factor has been designed with snowy areas in mind – you won’t have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special fine-tune adjustment screws, a perfect alignment can be achieved.

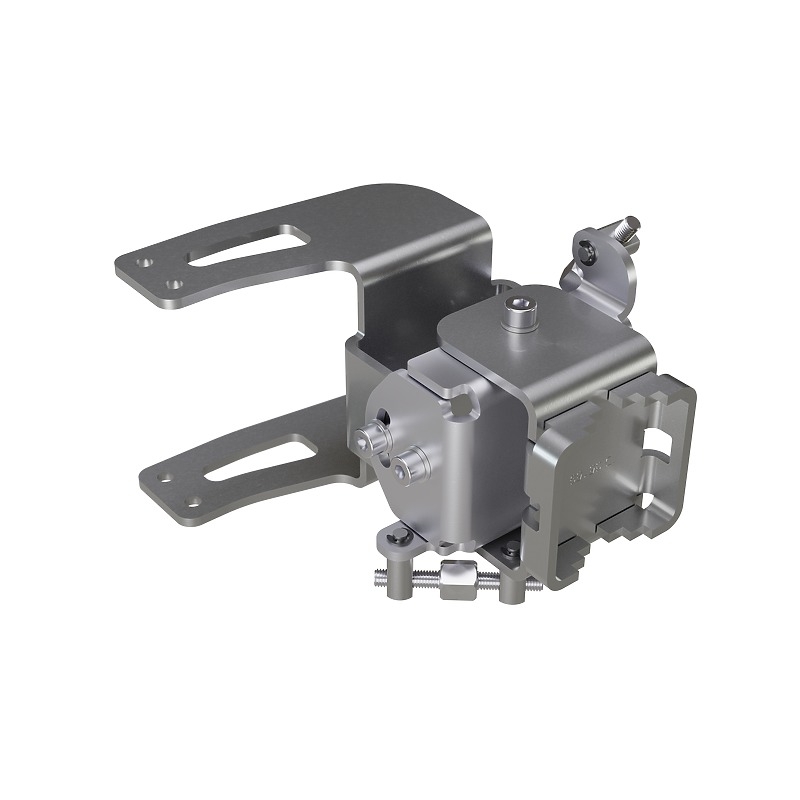

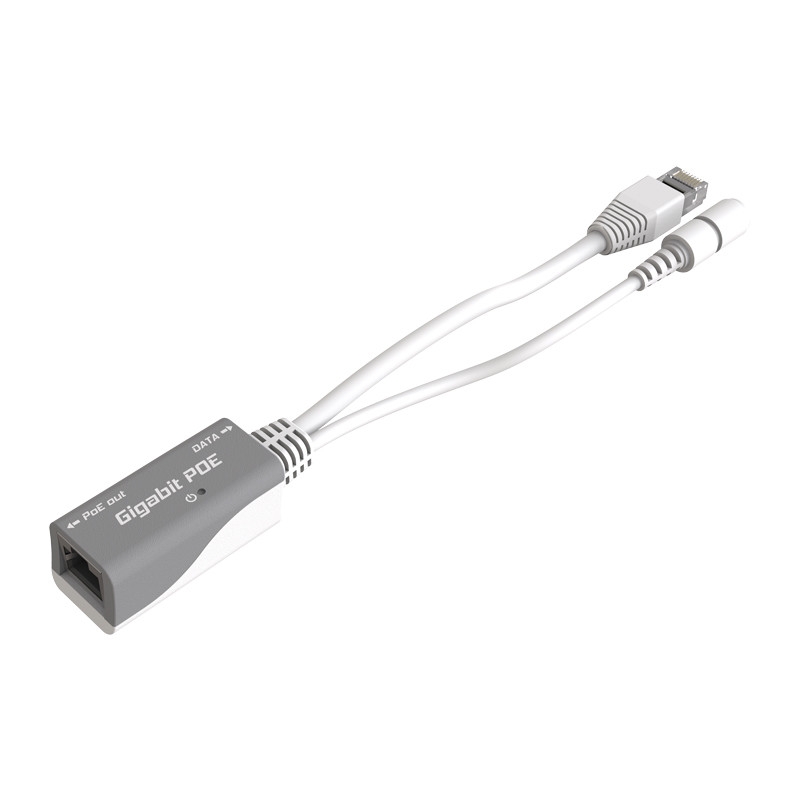

The 60 GHz frequency is unaffected by the crowded wireless spectrum, so you can enjoy a smooth connection even in a busy urban environment. A powerful arm64 dual-core CPU running at 1 GHz ensures wire speed throughput in nearly all packet sizes. The included devices are preconfigured to connect automatically, simply point them at one another and power them on! We have included the power supplies, PoE injectors and a handy precision mount for easier alignment - the solidMOUNT. It is an advanced pole mount metal adapter that allows adjustment both vertically and horizontally.
|CPU core count||2|
|CPU nominal frequency||1 GHz|
|Dimensions||261 x 166 mm|
|Size of RAM||256 MB|
|Storage size||16 MB|
|Tested ambient temperature||-30°C to 70°C|
|MTBF||Approximately 200'000 hours at 25C|
|PoE in input Voltage||12-57 V|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||6 W|
|10/100/1000 Ethernet ports||1|
Certification & Approvals
|Certification||CE, FCC, IC, EAC, ROHS|
