MIKROTIK parabolinė 5Ghz antena mANT30, 4 vnt. pakuotė (MTAD-5G-30D3)

OEM kodas: MTAD-5G-30D3
Kodas: MTAD-5G-30D3-4
ID: #1196

Antenos stiprinimas - 30 dBi, spindulio plotis - +/- 2,5 laipsnio, 2x RP-SMA (išorinis sriegis), kryžminė poliarizacija> 40 dB, aukščio reguliavimo diapazonas +/- 15 laipsnių, dažnių diapazonas - 4,7–5,775 GHz

354.09€ su PVM

Kaina be PVM: 292.64€


Produkto savybės:

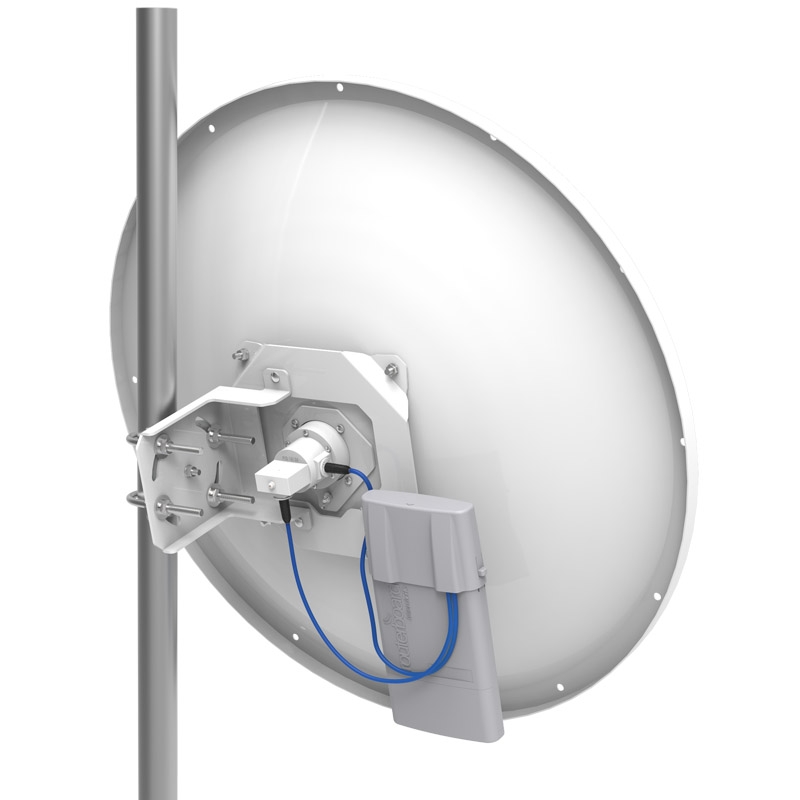

mANT30 4 pack is a professional class 5 GHz 30dBi dish antenna pack, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

4 pieces antennas packed into one box, another box comes with Mounting kits. It is the best way to save on shipping charges.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included.

Produkto specifikacijos:

Product code MTAD-5G-30D3-4pack
Antenna gain DBI 30dbi
Frequency Range 4.7-5.875 GHz
Polarization Vertical and Horizontal
Beamwidth 3 deg
VSWR ≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation >40dB min
Front-to-Back Ratio >30 dB
Cross Polarization >40 dB
Power Rating 100W
Impedance 50 ohms
Elevation adjustment range +/- 20 deg
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Weight 4.8kg (10.7 lbs)
Reflector Aluminum
Outdoor Rating ETSI EN 300 019-2-4
Standards EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability 201kph (125mph)
Wind Load (125 mph) 181.4kg (400 lbs)
Operating Temperature -50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range 3 to 7cm (1.2 to 2.75in)
Connector 2x RP-SMA Female (outside thread)
2x Flexguide cables included in package
Packaged size 53x35x38cm (mounts box) and 75x75x24cm (antenna dishes box)
Packaged weight for both boxes: 24.7 kg
