MIKROTIK RB922UAGS-5HPacD (RouterOS Level 4)

Produkto savybės:

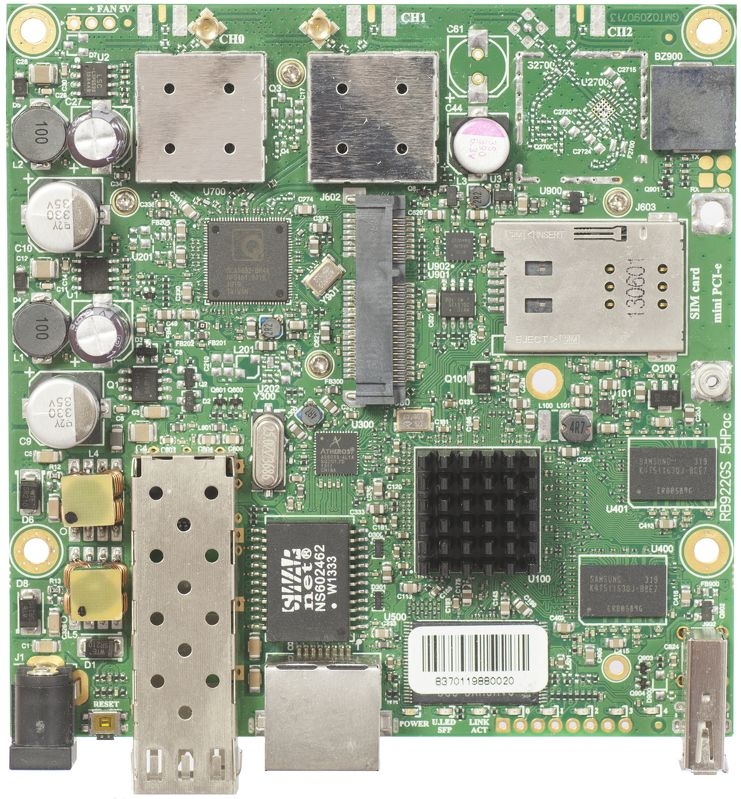

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

Produkto specifikacijos:

Product code    RB922UAGS-5HPacD
CPU nominal frequency    720 MHz
SFP DDMI    yes
CPU core count    1
Size of RAM    128 MB
10/100 Ethernet ports    None
10/100/1000 Ethernet ports    1
MiniPCI slots    0
MiniPCI-e slots    1
Wireless chip model    QCA9882-BR4A-R
Wireless standards    802.11ac
Number of USB ports    1
Power Jack    1
802.3af support    no
Supported input voltage    8 V - 30 V
PoE out    No
PoE in    Yes
Voltage Monitor    Yes
CPU temperature monitor    No
PCB temperature monitor    Yes
Dimensions    105x105mm
Operating System    RouterOS
License level    4
Antenna gain DBI    No
Current Monitor    No
CPU    QCA9557-AT4A-R
Max Power consumption    17 W
SFP ports    1
SFP+ ports    None
USB slot type    USB type A
Number of chains    2
Serial port    None
