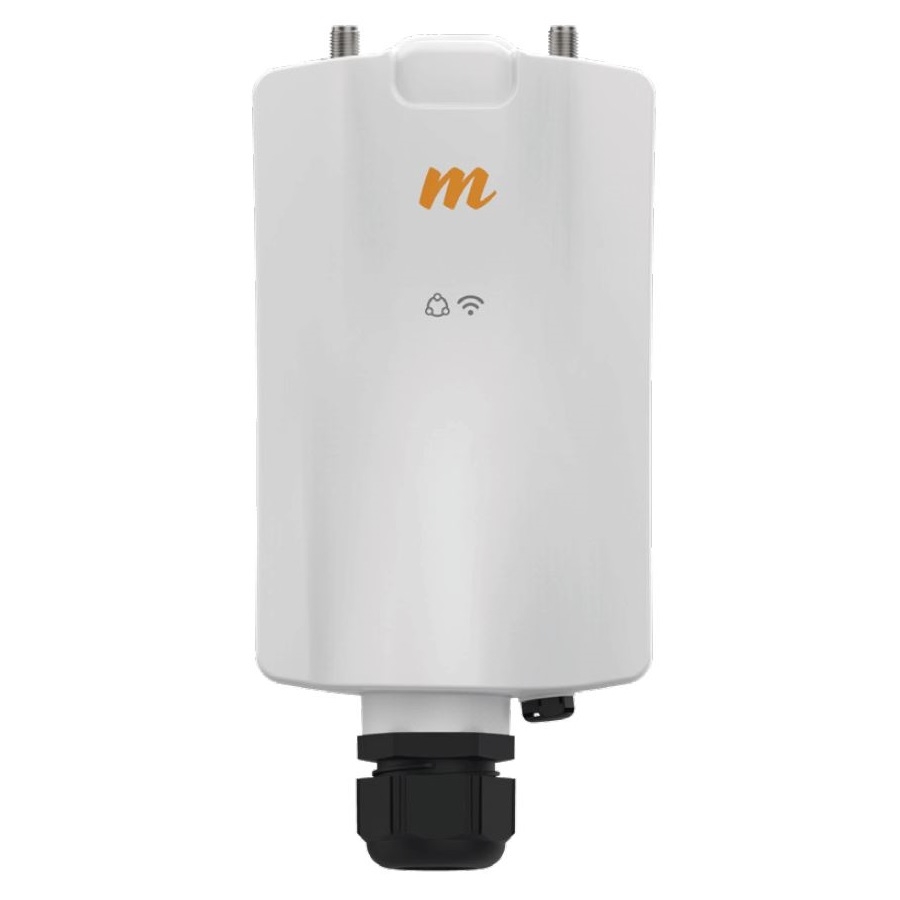

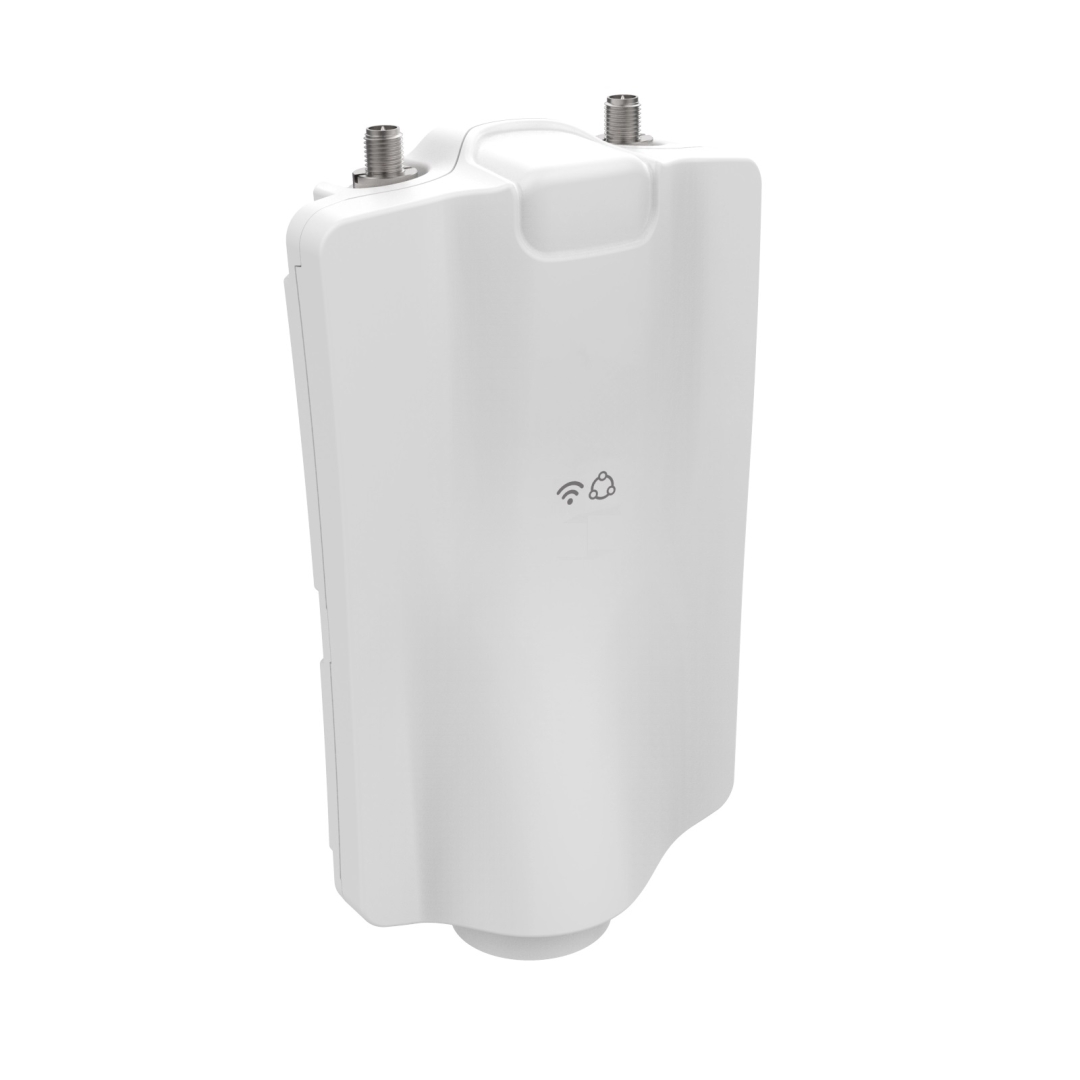

MIMOSA A5x Connectorized 2x2 Access Point (A5x-EF)

OEM kodas: 100-00107-01
Kodas: MIMOSA_A5x-EF
ID: #2459

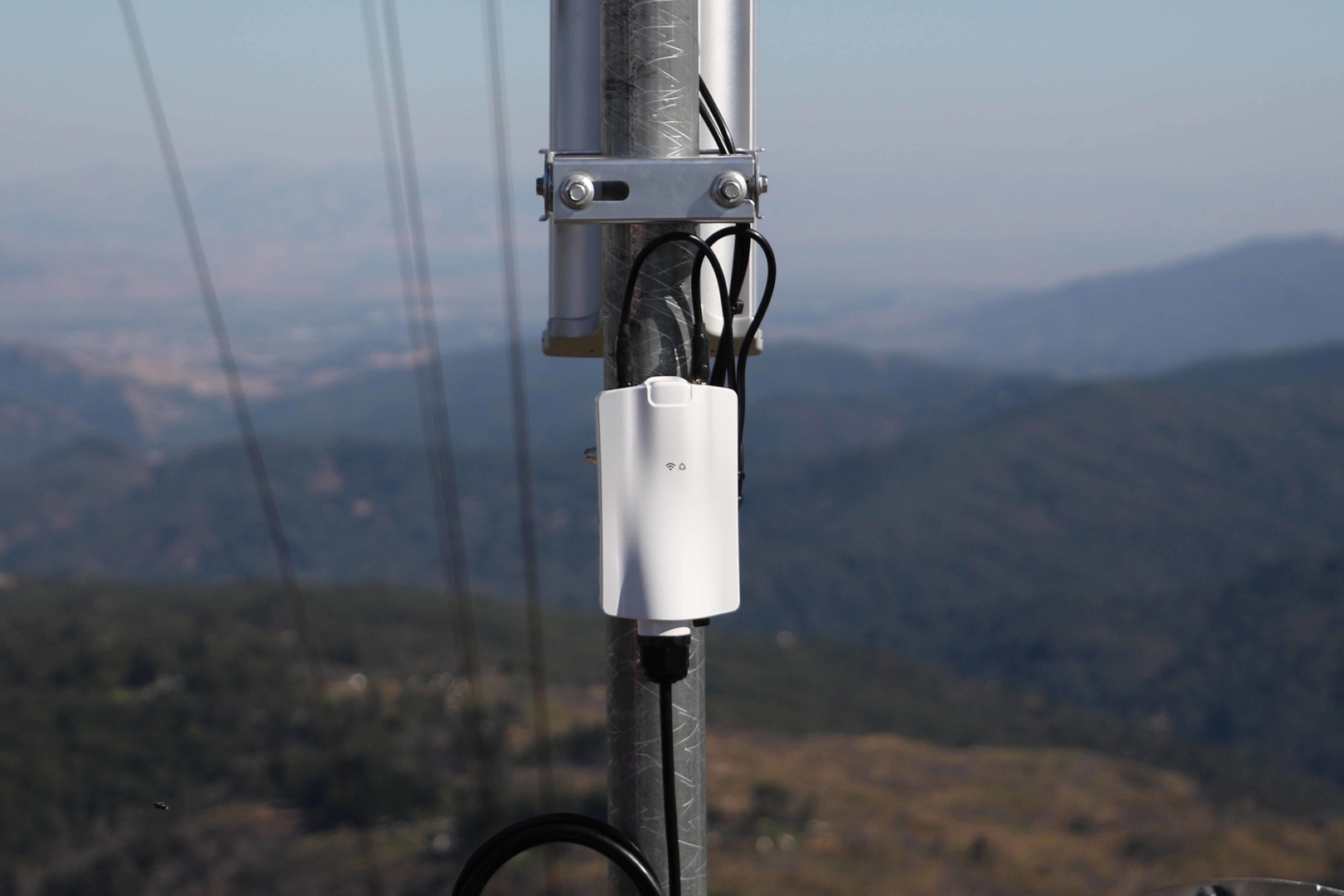

Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications | Max PTMP (IP) Throughput: 700Mbps | 4.9–6.4 GHz ROW

268.66€ su PVM

Kaina be PVM: 222.03€

Kiekis:


Produkto savybės:

Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications. In situations where the power and range of the 4x4 A5c access point isn't needed, the connectorized, 2x2 A5x is the perfect solution.

PTMP at a Fraction of the Cost

Finding the right access points that offer affordability, without compromising quality and performance, has been a dilemma. The A5x changes that. It's the ideal solution whether you're starting a new network or expanding coverage, all while achieving faster ROI.

It's Fast

Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).

Get Around the Noise

With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz with the ROW product) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.

Ultra-Rugged

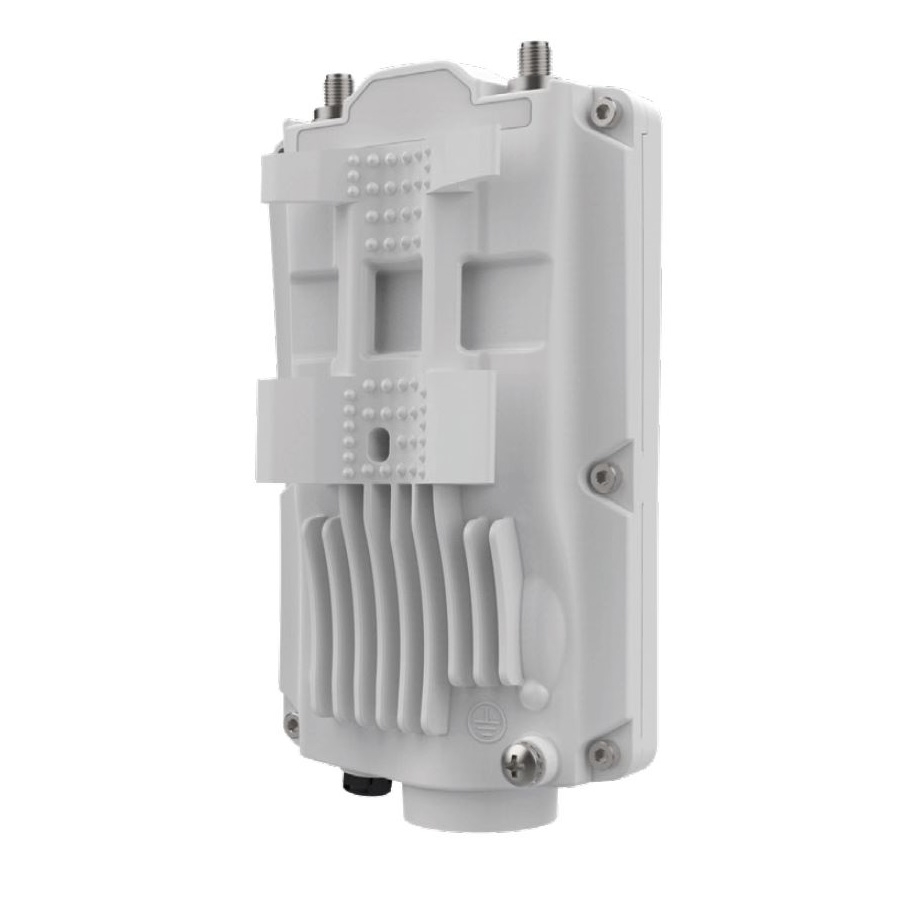

The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.

Recommended High-Performance Antenna

While almost any 2x2 3rd party antenna will work with the A5x, the Mimosa N5-45x2 comes most recommended. Get all the ground coverage of a sector, along with the sidelobe rejection of a horn.

Applications

- Short to Long-Range PTMP
- Public Safety Networks
- Multipoint Distribution for Security
- Broadband Service Provider
- Enterprise and Campus Connectivity



Produkto specifikacijos:

Performance
• Max Throughput: Up to 700 Mbps (IP)
• Client Capacity:
   64 clients (WiFi Interop);
   44 clients (SRS/GPS sync)
• Wireless Protocols: WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)

Radio
• MIMO & Modulation: 2x2:2 MIMO OFDM up to MCS9 (256-QAM 5/6)
• Bandwidth: 20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
• Frequency Range:
   4900–6400 MHz ROW (PN: 100-00107-1)
Restricted by country of operation
• Max Output Power: 27 dBm
• Sensitivity (MCS 0):
   -87 dBm @ 80 MHz
   -90 dBm @ 40 MHz
   -93 dBm @ 20 MHz

Power
• Max Power Consumption: 9–12.9 W
• System Power Method: Passive PoE (24–56 VDC)
• System Lightning & ESD Protection: 6 kV
• PoE PowerSupply: Passive POE compliant, 24–56 VDC (PoE injector not included)

Physical
• Dimensions:
   Height: 188.4 mm (7.42” including gland)
   Width: 75 mm (2.95”)
   Depth: 44 mm (1.73”)
• Weight: 0.30 kg (0.70 lbs)
• Enclosure Characteristics: Outdoor UV-stabilized engineered polymer with integrated mounting back

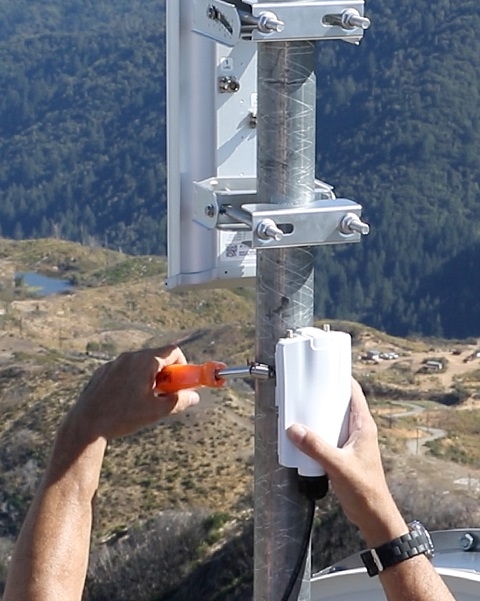

• Mounting: Single pole strap (not included) and slip on mount for comparable antennas
• Connector Type: (2) RP-SMA (female)

Environmental
• Outdoor Ingress Protection Rating: IP67
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Operating Humidity: 5 to 100% condensing
• Operating Altitude: 4,420 m (14,500’) maximum
• Shock & Vibration: ETS 300-019-2-4 class 4M5

Features
• Gigabit Ethernet: 10/100/1000-BASE-T
• Collocation Synchronizatoin: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
• Management Services: Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; mDNS support; IPv4 and IPv6
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic autooptimization of channel and bandwidth use
• Security: WPA2; AES; RADIUS; 802.1x authorization
• VLANs: Per subscriber VLAN; Management VLAN; CPE data VLAN; Passthrough mode; Untagged traffic control; DSCP-COS mapping
• QoS: Supports 3 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
• GPS Location: GNSS1 (GPS + GLONASS) Regulatory + Compliance
• Approvals: FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
• RoHS Compliance: Yes
• Safety: EN 62638-1
