MIMOSA Backhaul Radio KIT (B5-Lite)

OEM kodas: B5-Lite
Kodas: MIMOSA_B5-Lite
ID: #1597

700+ Mbps Aggregate Speed, <1 ms Latency, up to 5 km Link Distances, 20 dBi antenna gain

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
256.91€ 310.86€ >0€
>100€
254.59€ 308.05€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

Switch to the award-winning Mimosa B5-Lite, the easiest, fastest, and affordable wireless bridge kit. This backhaul radio is ideal for connecting large properties, co-located office buildings, hospital buildings, or campuses. No fiber in your future? No problem—the B5-Lite is a great short range fiber-digging alternative. Public safety providers can also take advantage of the licensed 4.9 GHz safety band and easily deploy the B5-Lite for an immediate backhaul boost. The B5-Lite is a fantastic addition to any network. Make the change  today and discover blazing backhaul.

Superior Performance

Our speeds will blow you away. With up to 700 Mbps (IP) and under 1 ms of latency, high performance has never been this affordable.

Monitor with Ease

Assessing link health and identifying potential problems is easy. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.

Rugged and Affordable

Extreme outdoor conditions have nothing on the B5-Lite. The B5-Lite handles huge fluctuations with incredible affordability.

Just Mount and Go

Connect quickly with our complete kit including super compact integrated antennas and wall mounts. Includes optional pole mounting kit.

Produkto specifikacijos:

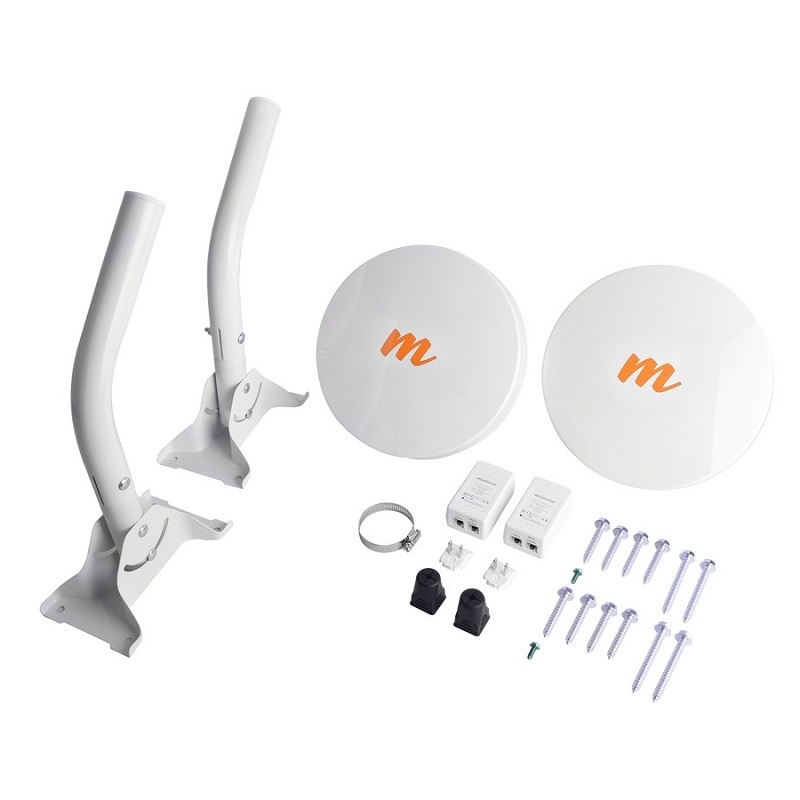

Package Contains:

B5-Lite radios - 2 pcs
J-mount mounting kits - 2 pcs
Gigabit PoE power supplies (EU type) - 2 pcs
Tube, SiliconeDielectric Compound - 1 pc

Performance

• Max Throughput: 700+ Mbps IP (833+ Mbps PHY)
• Low Latency: Configurable to 5+ ms
• Wireless Protocols: Auto-TDD/TDMA

Radio

• MIMO and Modulation: 2x2:2 MIMO OFDM up to 256-QAM
• Bandwidth†: 20/40/80 MHz channels tunable to 5 MHz increments
• Frequency Range: 4900-6000 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
• Max Output Power: 23 dBm
• Sensitivity (MCS0):
   -87 dBm @ 80 MHz
   -90 dBm @ 40 MHz
   -93 dBm @ 20 MHz

Antenna

• Gain: 20 dBi
• Beamwidth (3 dB): 14° (azimuth and elevation)
• Cross-Polar Isolation: >20 dB
• Polarization: Dual 45° slant polarization

Power

• Max Power Consumption: 15 W
• System Power Method: Passive PoE
• PoE Power Supply:
   Passive PoE compliant, 48-56 V
   Power over Ethernet supply (Passive PoE in-wall 56V 0.275A adapter included)

Physical

• Dimensions: Width: 153.31 mm (6.04”), Diameter: 260.33 mm (10.25”)
• Weight: 0.72 kg (1 lb, 9 oz)
• Enclosure Characteristics: Outdoor UV stablilized plastic
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 39 kg @ 160 km/h (86 lbs @ 100 mph)
• Mounting: Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles. Azimuth and Elevation adjustability only provided via J-mount elevation adjustment and hose clamp loosened rotation on the pole.

Environmental

• Outdoor Ingress Protection Rating: IP55
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• Outdoor Humidity: 5 to 100%
• Operating Altitude: 4,420 m (14,501’) maximum
• Shock and Vibration: ETS 300-019-2-4 class 4M5

Features

• Gigabit Ethernet: 10/100/1000-BASE-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI
• Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use
• Security: WPA2 AES 128bit encryption PSK with hardware acceleration
• QoS: Supports 4 pre-configured QoS levels

Regulatory and Compliance

• Approvals: FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
• RoHS Compliance: Yes
• Safety: UL/EC/EN/ 60950-1 + CSA-22.2

† 4.9 GHz uses 20 MHz channel widths only (US only, regulations vary by region)

Papildoma informacija apie produktą:

Datasheet
Link to manufacturer product page
