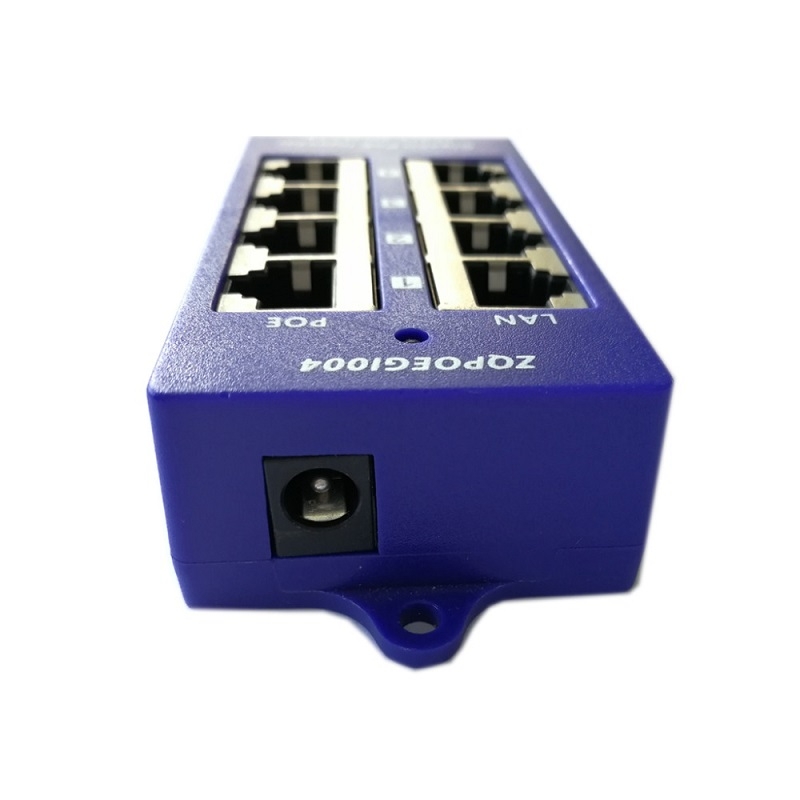

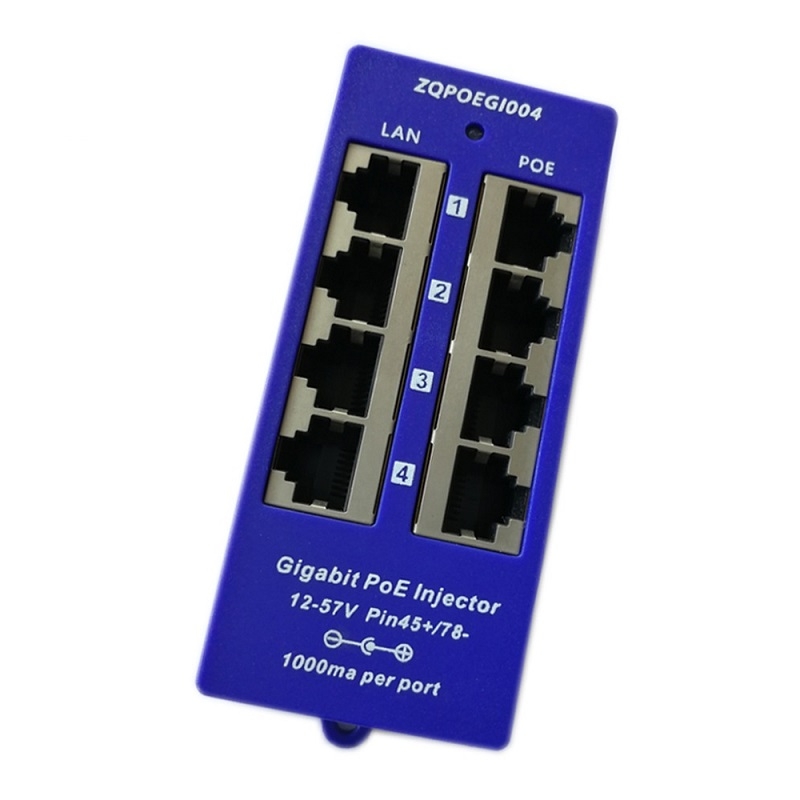

Passive Gigabit PoE Injector, 4 port (POE-INJ-4-G)

OEM kodas: ZQPOEGI004
Kodas: POE-INJ-4-G
ID: #1508

4 PORT POE INJECTOR GIGABIT supports 10/100/1000M Ethernet, LAN RJ45 sockets is for Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
7.89€ 9.55€ >0€
7.64€ 9.24€ >100€
7.51€ 9.09€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

4 PORT POE INJECTOR supports 10/100/1000M Ethernet, LAN RJ45 sockets is for  Switch/PC/HUB 1/2 & 3/6 & 4/5 &7/8 are transmitting data. POE RJ45(power+data) socket is to deliver data and power. Pin 1/2 & 3/6 & 4/5 & 7/8 transmitting data, Pin 4/5(+) & 7/8(-) is for power. Passive PoE is composed of 4 set of RJ45 sockets and one 60V DC power jack. Input power requests 90W or more AC to DC power converter. The input DC hole diameter is 2.1mm and the other end OD is 5.5mm.

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x RJ45 sockets). For example, 4 x 10W = 40W for 4 port Passive PoE panel.

– Use with any ethernet switch
– Flexible power(DC 12V TO 57V)
– 10/100/1000Mbps fast ethernet
– Ideal for IP Cameras,VOIP,WiFi
– 4 Port Injector(4 Lan&4 Lan+PoE port)

LED Indicator

- POWER OFF –Off

- 4/5 (V+),7/8 (V-) - Green LED

- 4/5 (V-),7/8 (V+) - Red LED

Produkto specifikacijos:

Input: 12-57V DC 2.1MM
Output: 12-57V PER PORT(1A Max)
Data: 1/2&3/6&4/5&7/8
Power: 4/5 & 7/8
Data In: Connects PC/HUB/Switch
Weight: 85g
Dimensions: 115mm×45mm×25mm
Ethernet Cable: TIA/EIA 568 Cat. 5
Data rate: 10/100/1000Mbps
Connector: RJ-45
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C~+70°C
Operating Humidity: 10%~80%RH
Storage Humidity: 5%~90%RH
Certification: CE, FCC
