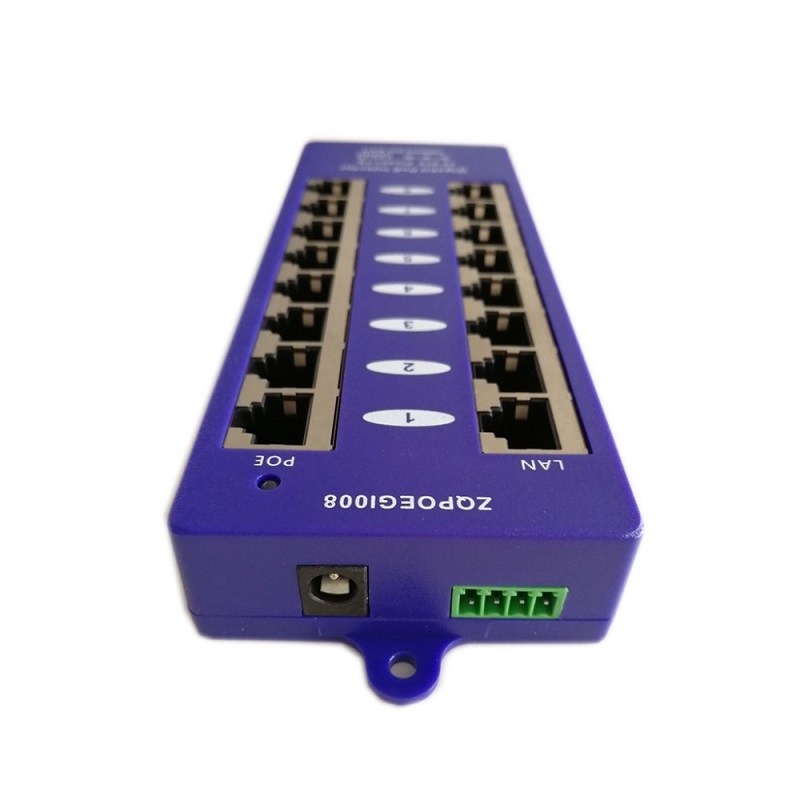

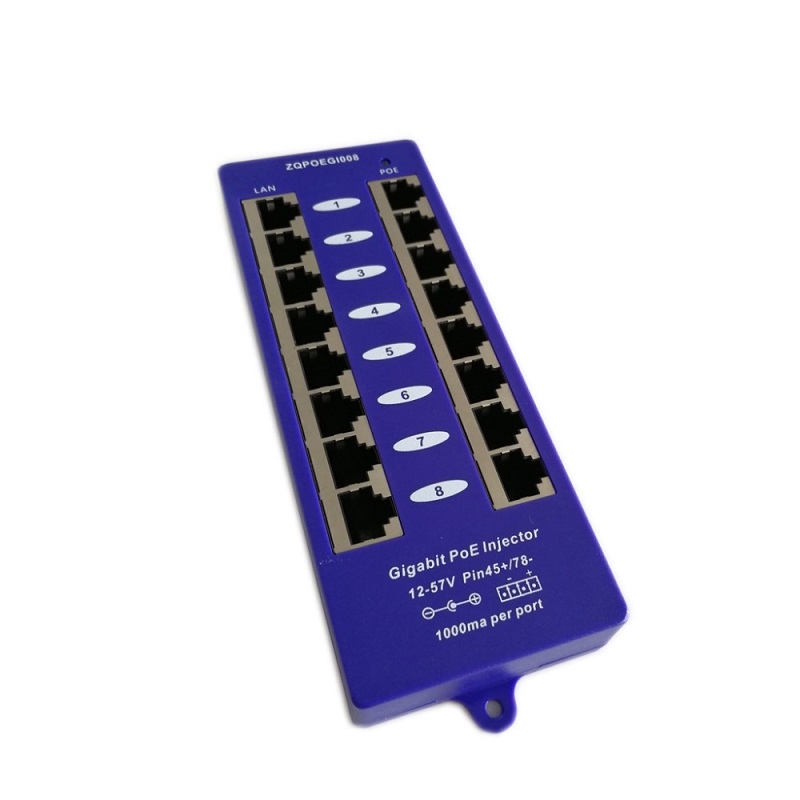

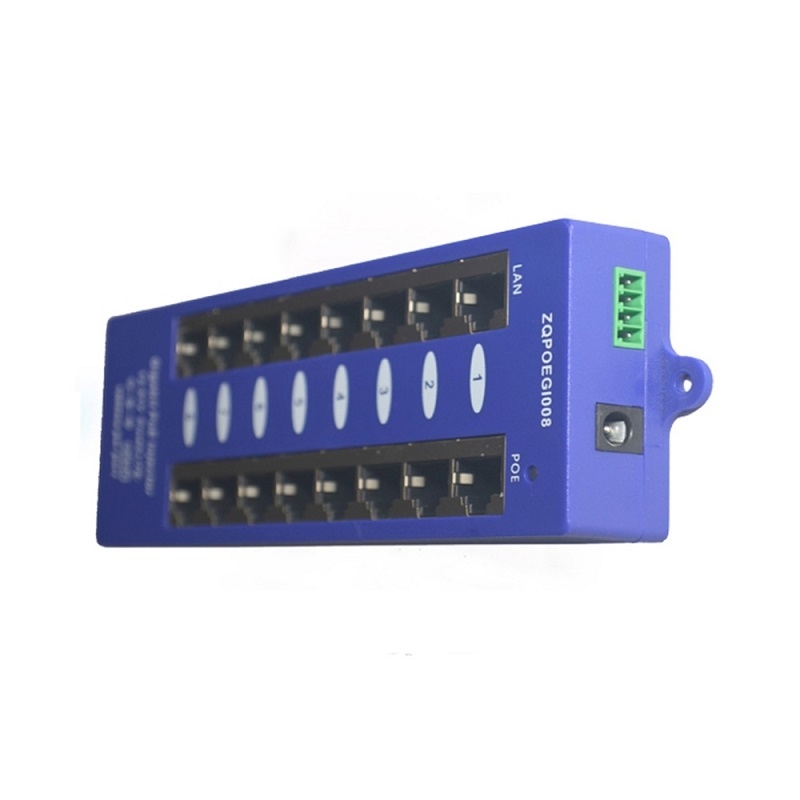

Passive Gigabit PoE Injektorius, 8 prievadai (POE-INJ-8-G)

OEM kodas: ZQPOEGI008
Kodas: POE-INJ-8-G
ID: #1507

8 prievadų PoE injektorius su 10/100/1000M Ethernet palaikymu, LAN RJ45 lizdai skirti komutatoriams / kompiuteriams /HUB'ams 1/2 ir 3/6 bei 4/5 ir 7/8 perduoda duomenis

13.79€ su PVM

Kaina be PVM: 11.40€


Produkto savybės:

The ZQPOEI008 passive Poe Injector is used for 10/100/1000M Ethernet. The LAN RJ45 sockets is form “Switch/PC/HUB ” 1/2&3/6&4/5&7/8 are transmitting data.
The POE RJ45 (power+data) socket is to deliver data and power . Pins 1/2 & 3/6 & 4/5 & 7/8 are transmitting data, Pin 4/5(+)&7/8(-) for power.

Passive PoE is composed of 8 set of RJ45 sockets and one 60V DC power jack. Input power requests 90W or more Ac To Dc Power converter.The input dc hole diameter is 2.1mm and the
other end OD id is 5.5mm.

The sum total output power must be lower than the Max AC-DCpower converter. If not, it is necessary to consider taking power converter. There commended formula for AC-DC power
10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel

- Use with any ethernet switch
- Flexible power(DC 12V TO 57V)
- 10/100/1000Mbps fast ethernet
- Ideal for IP Cameras, VOIP, WiFi
- 8 Port Injector (8 Lan & 8Lan+PoE port)

LED Indicator


- 4/5 (V+),7/8 (V-) - Green LED

- 4/5 (V-),7/8 (V+) - Red LED

Produkto specifikacijos:

Input: 12-57V DC 2.1MM, Phoenix 3.5mm
Output: 12-57V PER PORT(1A Max)
Data: 1/2&3/6&4/5&7/8
Power: 4/5 & 7/8
Data In: Connects PC/HUB/Switch
Weight: 170 g
Dimensions: 180mm×60mm×25mm
Ethernet Cable: TIA/EIA 568 Cat. 5
Data rate: 10/100/1000Mbps
Connector: RJ-45
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C~+70°C
Operating Humidity: 10%~80%RH
Storage Humidity: 5%~90%RH
Certification: CE , FCC
