QuWireless QuCam for RUT950/RUT951, C950M (QUCAM_RUT950)

OEM kodas: C950M
Kodas: QUCAM_RUT950
ID: #3039

Outdoor CCTV dual SIM LTE PoE gateway with embedded PoE switch for CCTV cameras (RUT950 LTE router not included)

265.78€ su PVM

Kaina be PVM: 219.65€

Kiekis:


Produkto savybės:

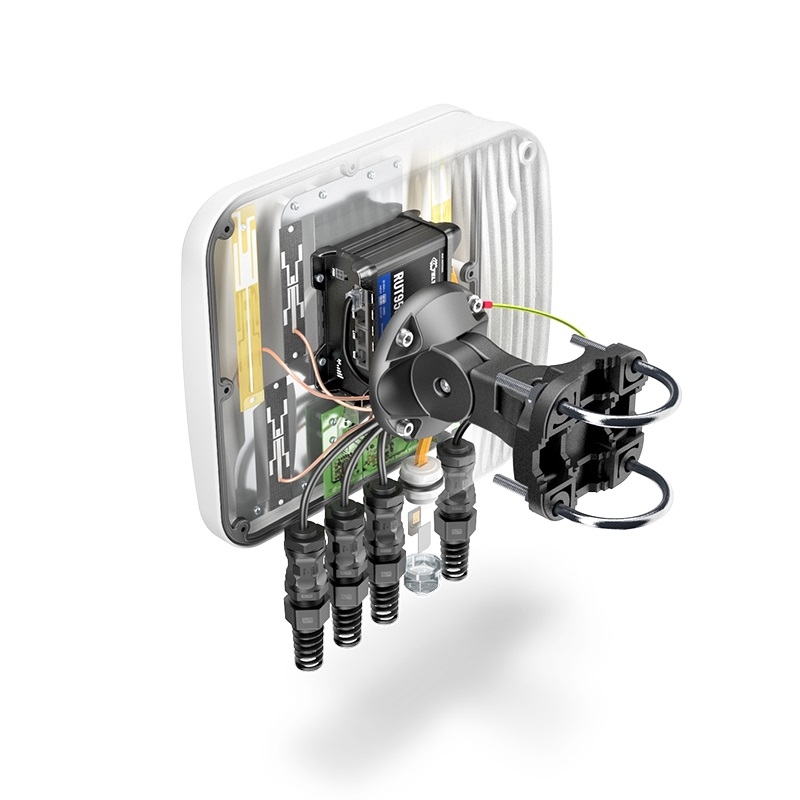

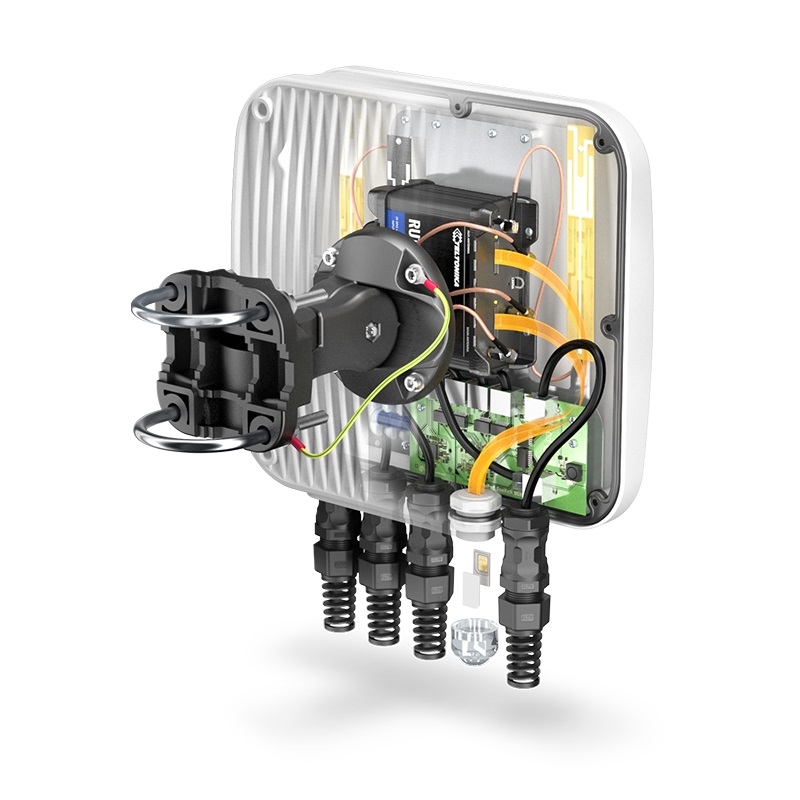

QuCam for RUT950 is a powerful outdoor industrial gateway for professional CCTV application with embedded PoE switch for up to 3x CCTV cameras and place to install Teltonika RUT950 (not included in gateway set). QuCam for RUT950 also has integrated omnidirectional LTE and Wi-Fi MIMO 2x2 antennas. The mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments where a wide operating temperature is required. Equipped with two external SIM holders.

This device is also compatible with RUT900, RUT901, RUT951

Produkto specifikacijos:

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.5 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95
Gain 0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.5 - 2.7 GHz : 4 dBi
VSWR <1.50, max <2.50
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
Gain 3 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization 2x Vertical
Impedance 50 Ω
PoE SWITCH SPECIFICATION
LAN Ports 6x RJ45 10/100Mbps

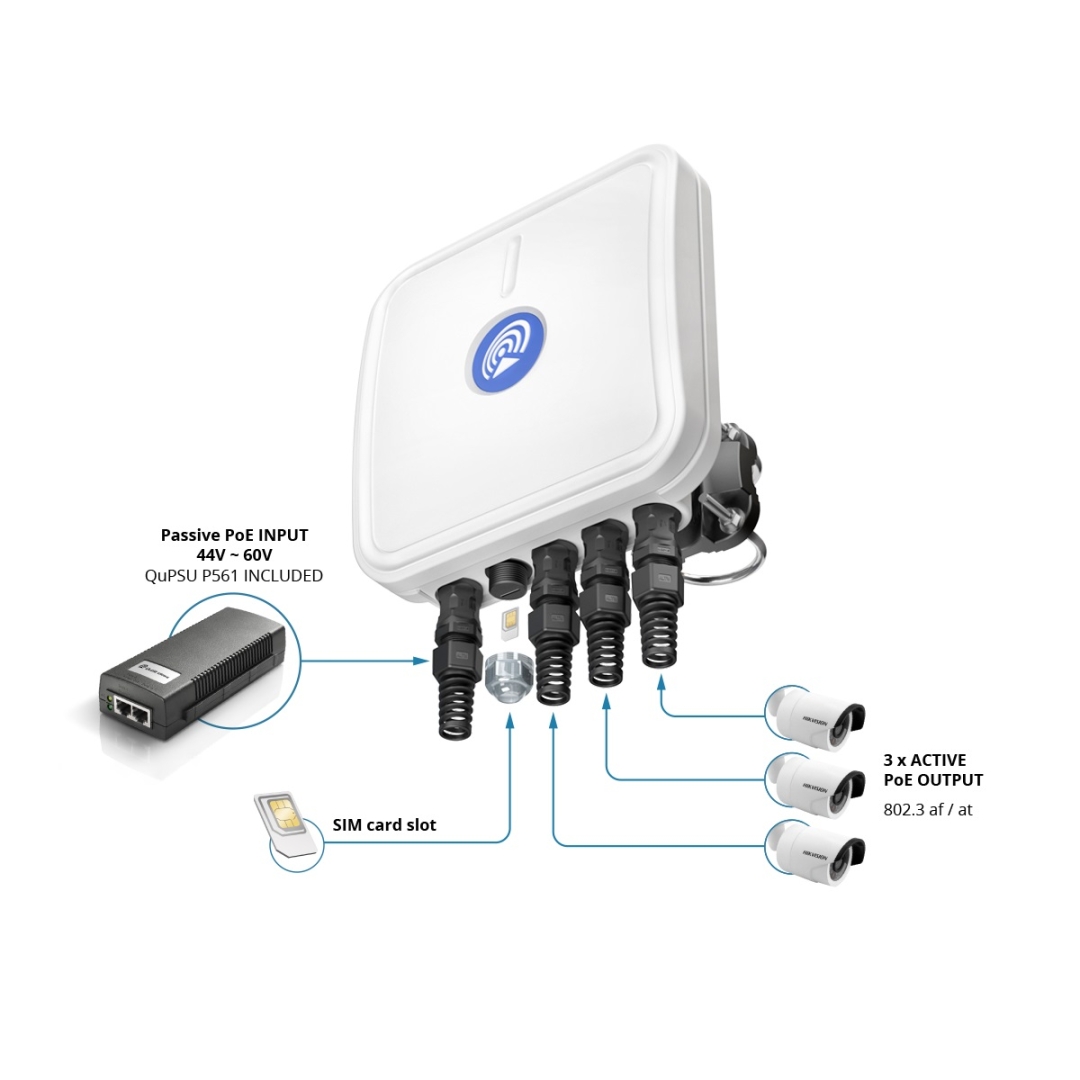

PoE Input 1x Passive PoE input 44-60V (LAN_5)
PoE Output 4x Active PoE 802.3af/at (LAN_1-4)
1x Passive PoE output 24V/7.2W (LAN_6)
PoE Output protection LAN_1-4: 0.75A, LAN_5: 1.25A (separate resettable fuses)
Passive PoE mode mode B (4,5+) (7,8-)
LEDs 1x Power on (white, on board), 6x Link (orange, on port), 6x Transmit (green, on port)
Operating temperature -10°C … +40°C
Installation 4x holes ⌀2.5mm
Dimensions 73mm x 145mm x 17mm (WxLxH)
Weight 69.5g
POWER SUPPLY ELECTRICAL INPUT SPECIFICATION
Input voltage 110 … 240VAC
Input frequency 50 … 60Hz
Input current max. 2A RMS
Inrush current max. 30A
AC leakage current max. 3.5mA
Efficiency min. 80% @ 100VAC, 84% @ 240VAC
Dielectric strength (primary to secondary) 2kVAC/5mA/1s
Input socket IEC320-C6
AC power cord 1.5m length, 3 pins EU or UK plug
POWER SUPPLY ELECTRICAL OUTPUT SPECIFICATION
Output voltage 56VDC
Min. load 0A
Max. load 1A
Peak load 1.46A
Output power 56W
Line regulation ± 3%
Load regulation ± 5%
Ripple 560mVpp
Turn on delay time max. 5s
Rise time max. 40ms
Hold up time min. 5ms
Overshoot max. 15%
Protecions Short circuit, over current (110 … 200% of DC output)
Ethernet ports Input (LAN): 1x RJ45 10/100Mbps
Output (PoE): 1x RJ45 10/100Mbps
PoE mode mode B: pins 4,5 + / pins 7,8 -
LEDs Green: Power supply is on, Orange: PoE device connected
POWER SUPPLY MECHANICAL SPECIFICATION
MTBF 30,000 operating hours confidence-level at 80% load, 25°C
Operating temperature -10°C … +45°C
Storage temperature -20°C … +85°C
Humidity 5% @ 0°C, 90% @ 40°C
Size 146 x 59 x 30mm (LxWxH)
Safety CE: EMC/LVD / FCC Part 15 Class B/ EN55022 Class B/ EN55024
