QuWireless QuMax antena Teltonika RUT240/230 maršrutizatoriui (QUMAX_RUT2XX)

Produkto savybės:

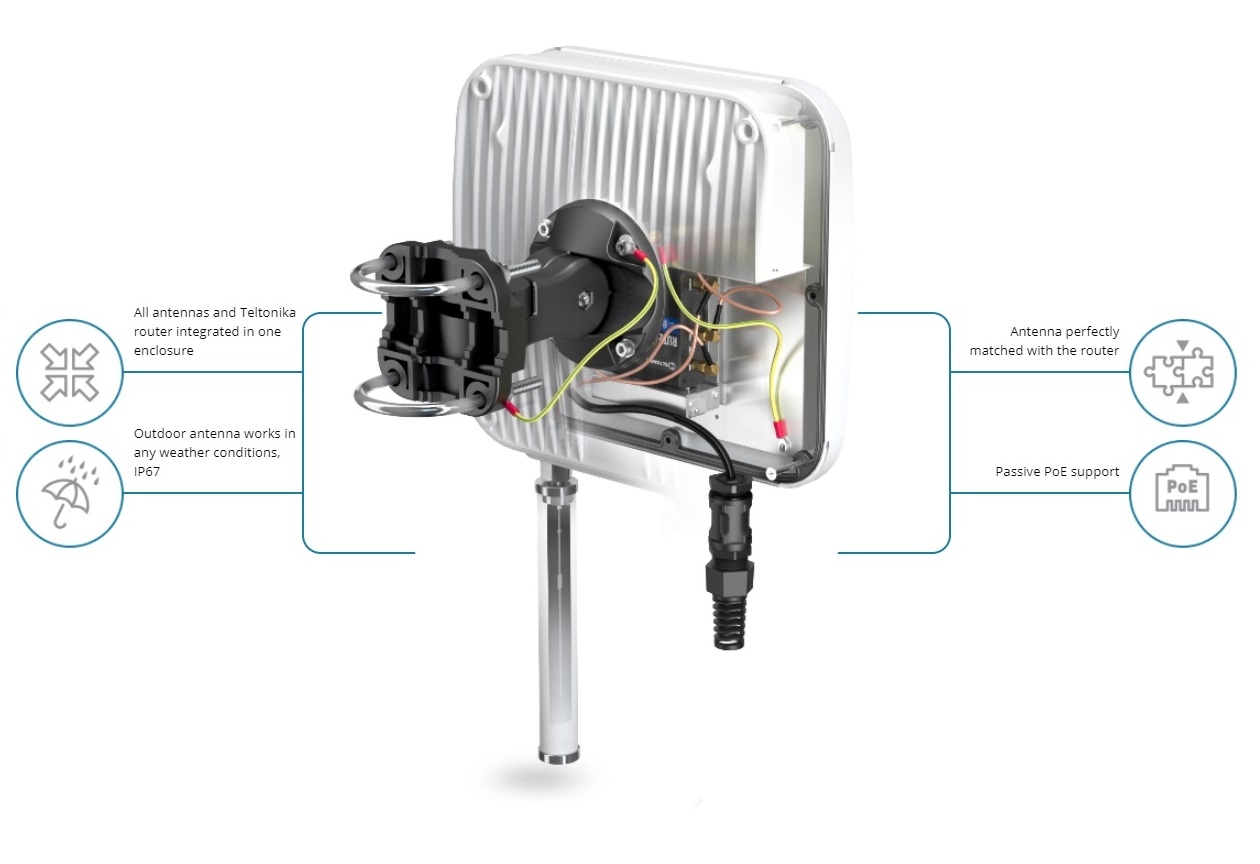

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240 or RUT230 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded outdoor Wi-Fi omni antennas.

NOTE: For RUT230 one LTE antenna is unplugged.

Produkto specifikacijos:

LTE Specifications:
• Frequency:
     * 0.694-0.96 GHz;
     * 1.7 - 2.2 GHz;
     * 2.2 - 2.7 GHz;
• Gain:
     * 4 dBi;
     * 5 dBi;
     * 6 dBi;
• VSWR:
     * <1.50, max <2.00;
     * <1.30, max <2.00;
     * <1.30, max <2.00;
• Beamwidth:
     * 90°/90° +/- 30;
     * 90°/90° +/- 30;
     * 90°/90° +/- 30;
• Polarization: Vertical;
• Impedence: 50 Ω.

Wi-Fi Specifications:
• Frequency:
     * 2.40-2.50 GHz;
     * 4.70 - 6.00 GHz;
• Gain:
     * 6 dBi;
     * 7 dBi;
• VSWR:
     * <1.70, max <2.00;
     * <1.70, max <2.00;
• Beamwidth:
     * 360°/25° +/- 5°;
     * 360°/25° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Mechanical Specification:
• Materials: ABS, aluminum, PTFE, Fiberglass;
• Ingress Protection: IP67;
• Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch);
• Weight: 1.8 kg (3.97 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
