QuWireless QuMax antena skirta Teltonika RUT360 Maršrutizatoriui (QUMAX_RUT360)
OEM kodas:
A360M
Kodas:
QUMAX_RUT360
ID:
#3541
EAN kodas:
5907772035641

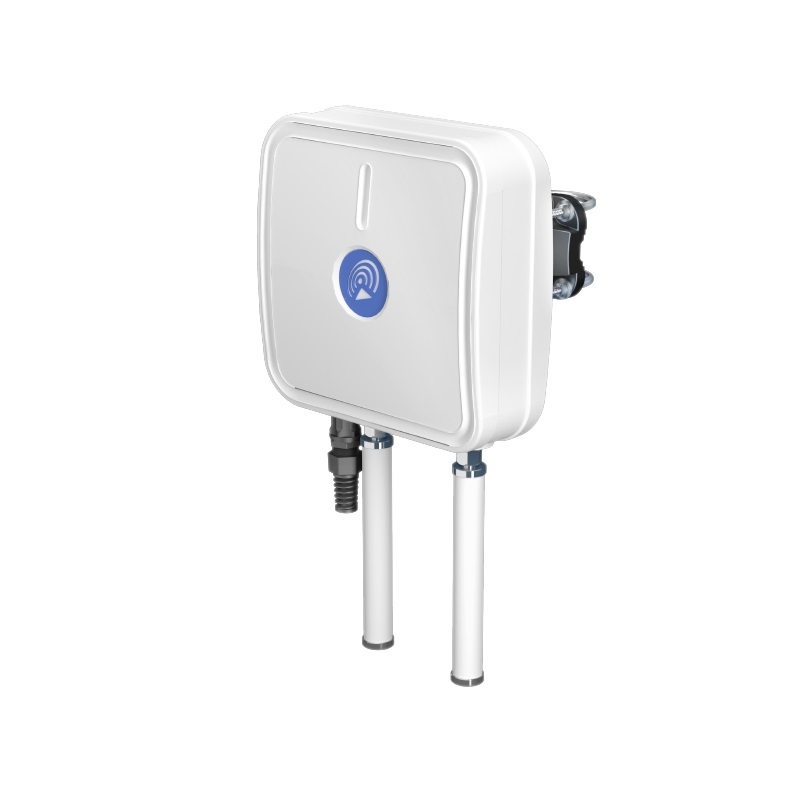

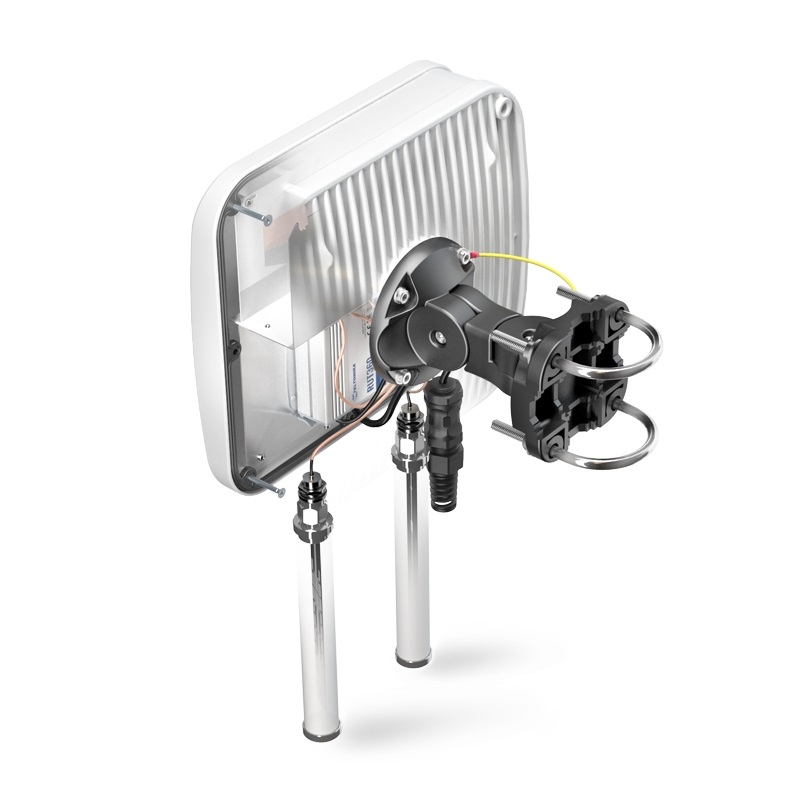

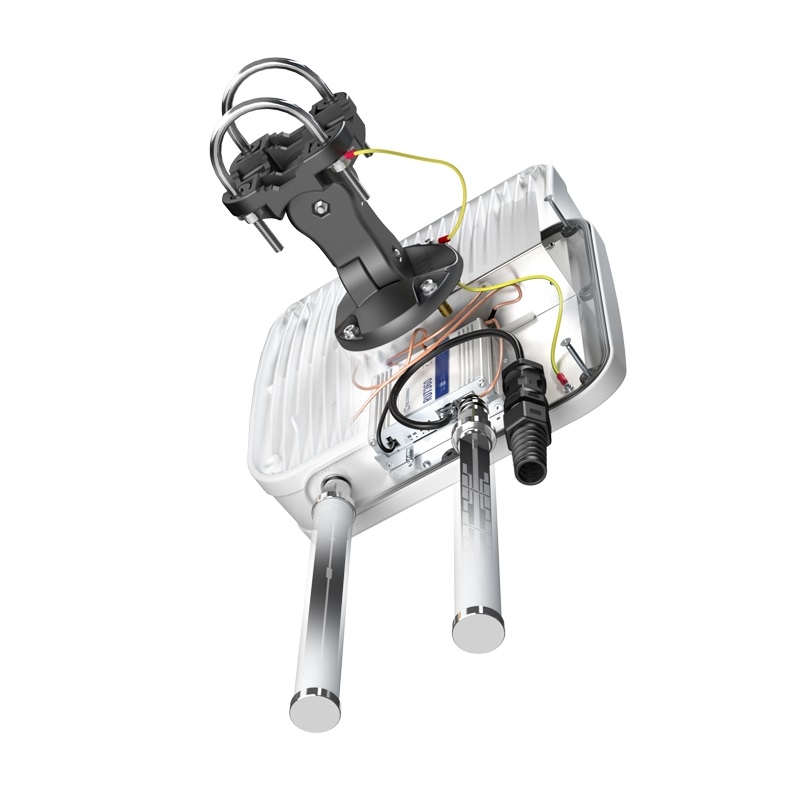

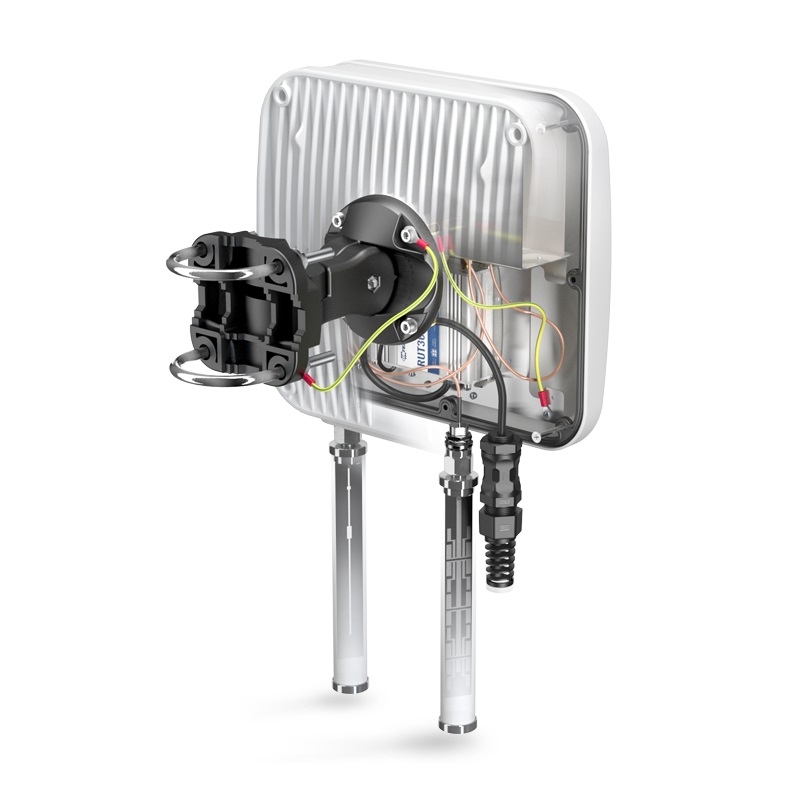

Integruota lauko multibandinė didelio galingumo LTE kryptinė antena + lauko Wi-Fi omnidirekcinė antena + vieta Teltonika RUT360 įrenginiui montuoti (Viskas viename)
išpardavimas
98.25€ su PVMKaina be PVM: 81.20€ |
Produkto savybės:
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Produkto specifikacijos:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi |
| Front-to-Back | >8 dB |
| VSWR | <1.30, max <1.80 |
| Beamwidth | 90°/90° ±30° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 + 2xNf + 2xNm in external omni wi-fi antenna |
| Ingress protection | IP67 |
| Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
| Weight | 1.8 kg 3.97 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
