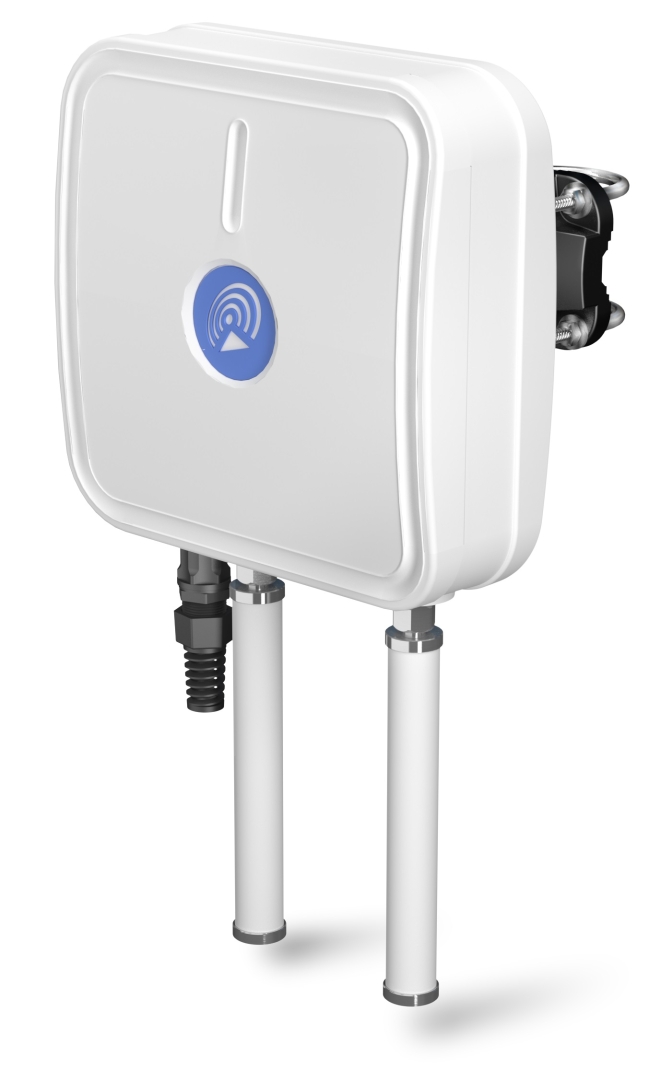

QuWireless QuMax antena Teltonika RUT950/900 maršrutizatoriui (QUMAX_RUT950)

Kodas: QUMAX_RUT950
ID: #1819

Integruota lauko sąlygų daugiajuostė, didelio galingumo LTE kryptinė antena + lauko sąlygų Wi-Fi omni antena + vieta Teltonika RUT950 arba 900 maršrutizatoriui (viskas viename)

108.54€ su PVM

Kaina be PVM: 89.70€

  Turime sandėlyje
Kiekis:


Produkto savybės:

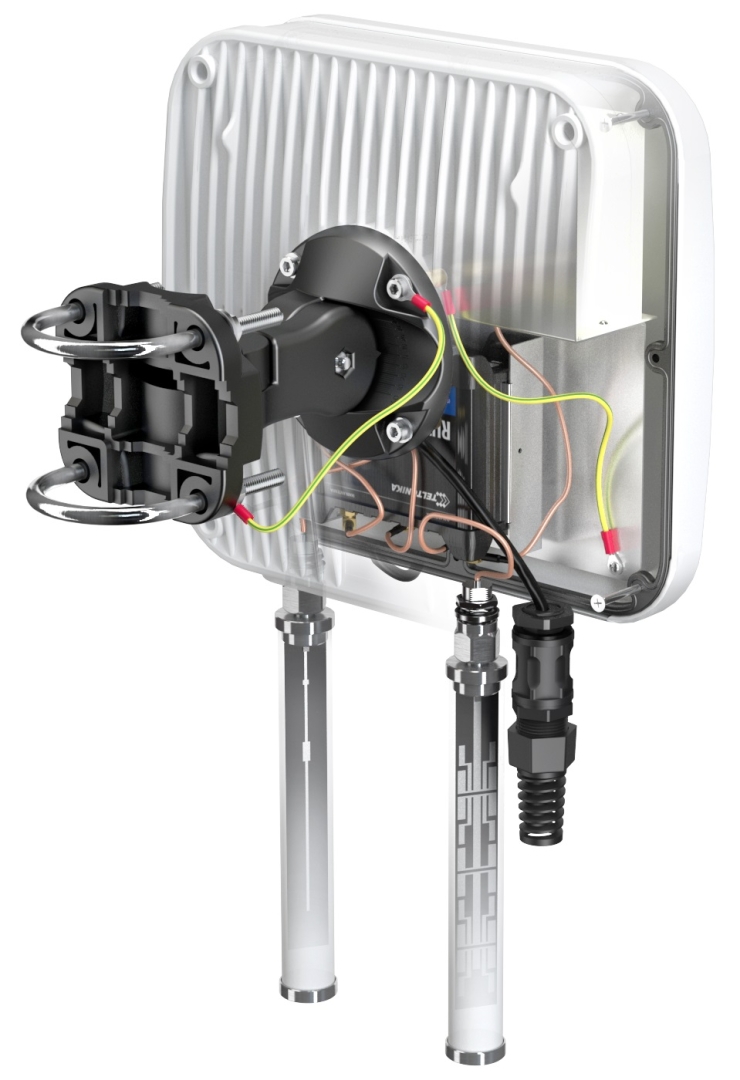

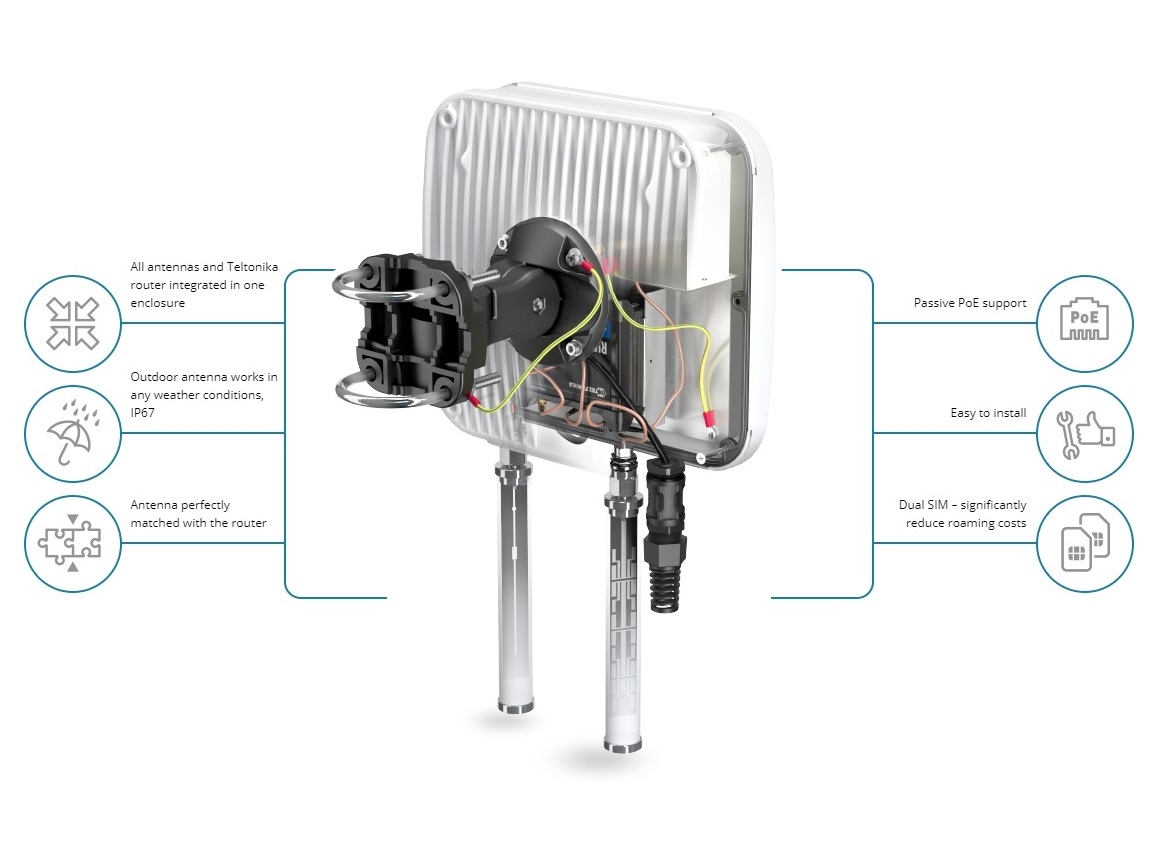

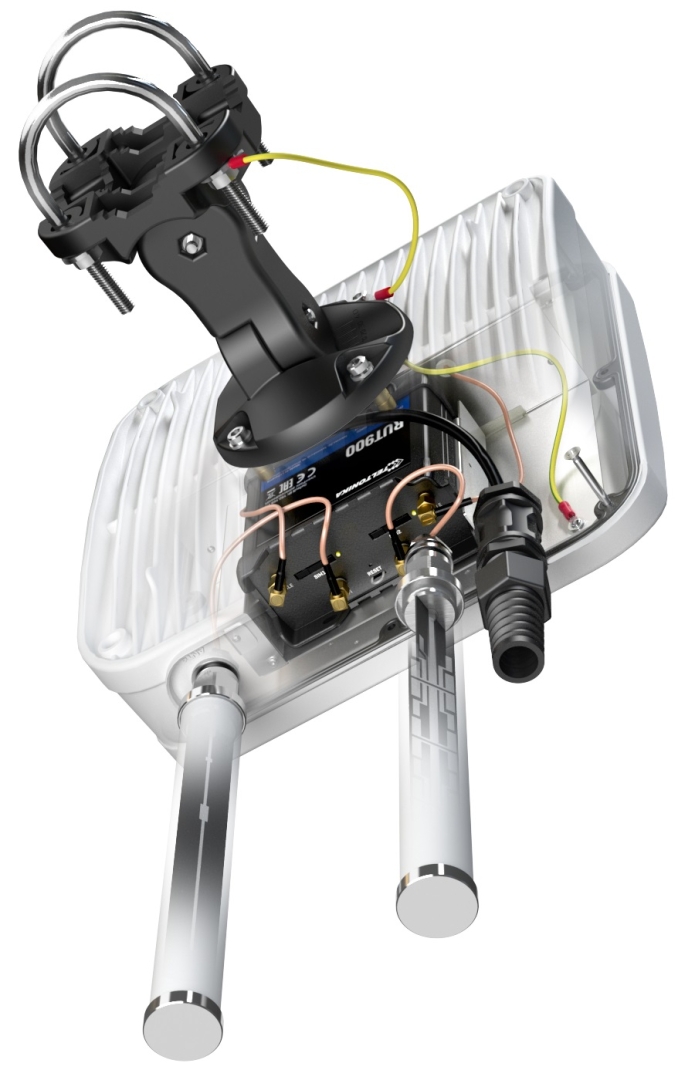

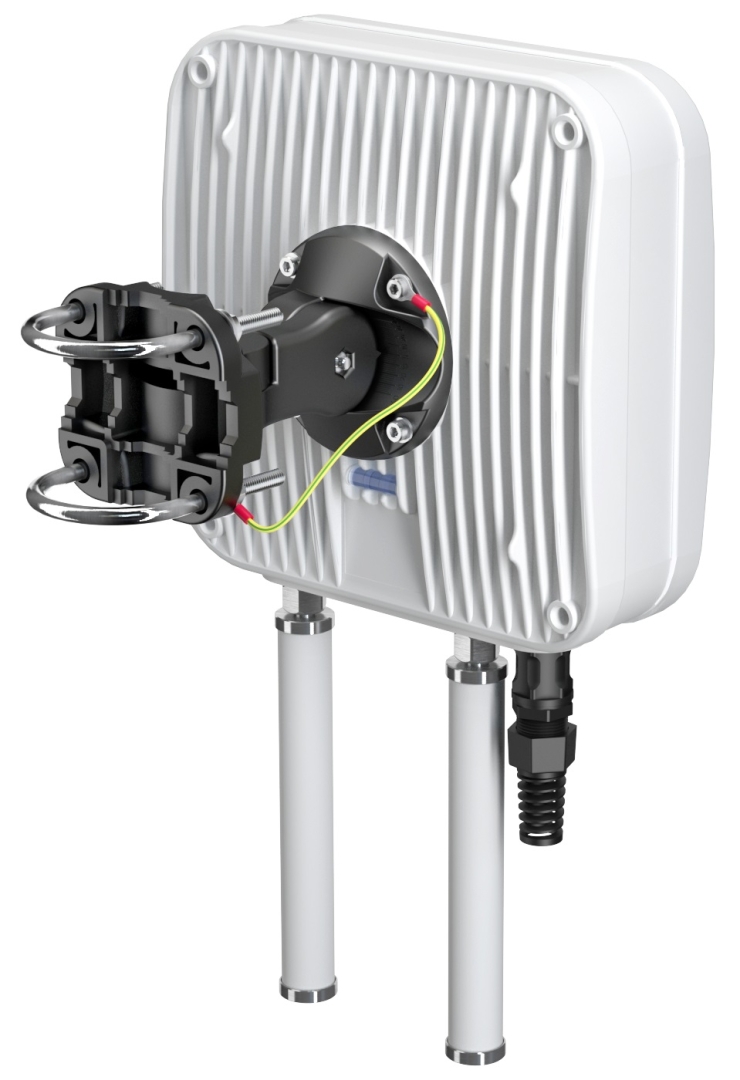

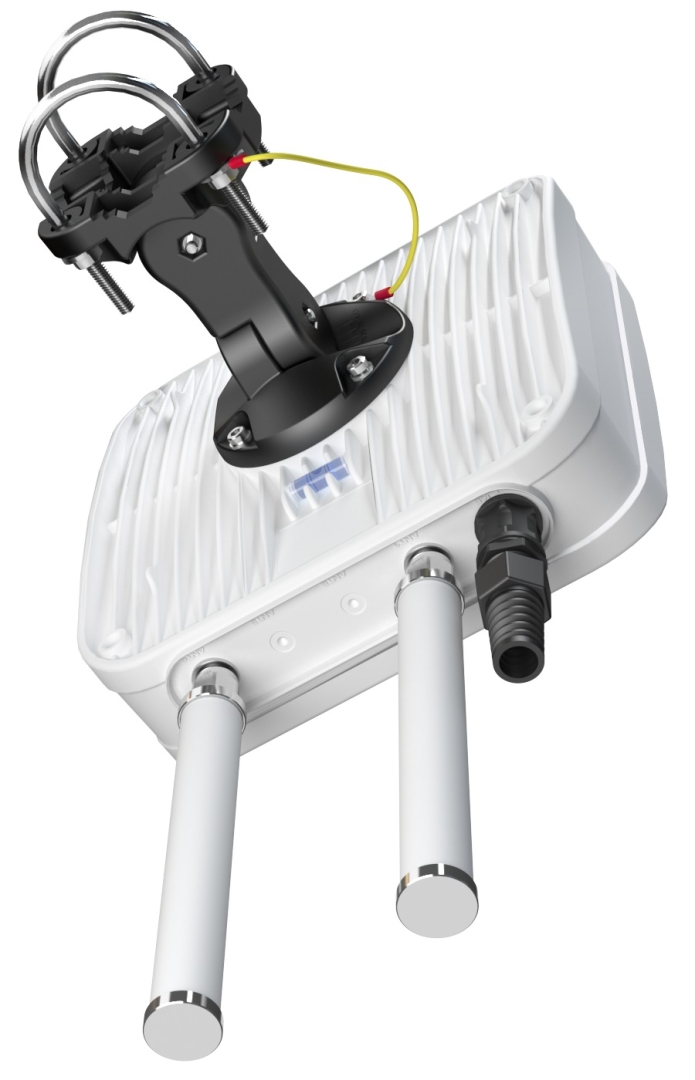

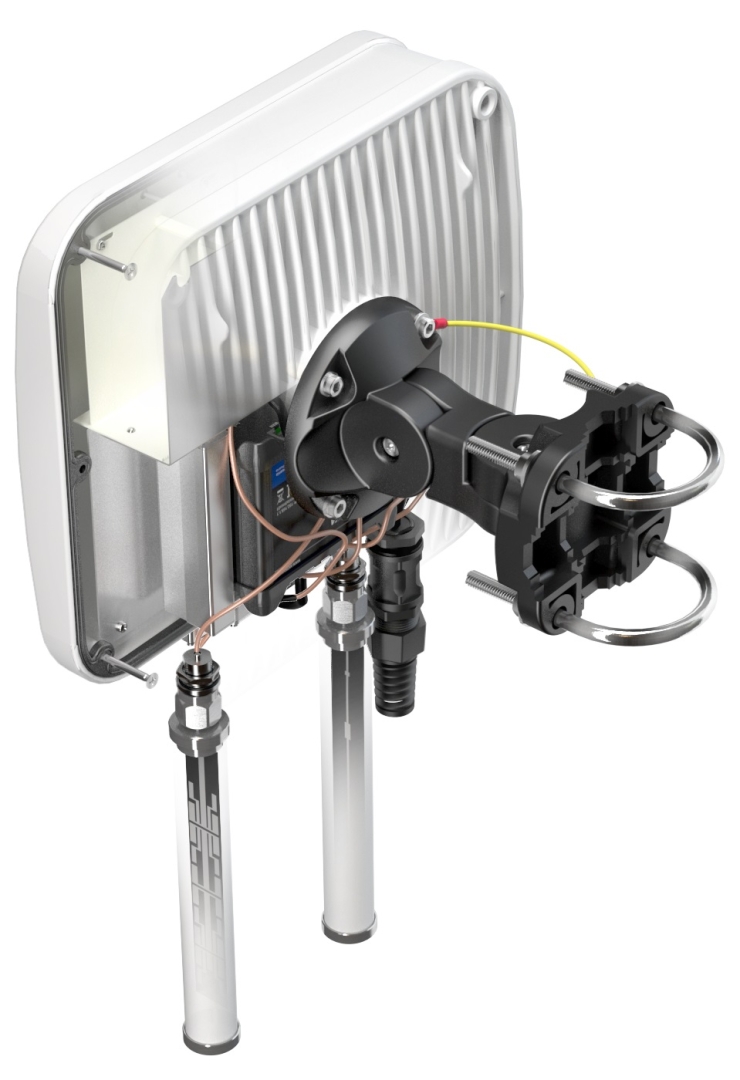

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT950 or RUT900 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.

Produkto specifikacijos:

LTE Specifications:
• Frequency:
     * 0.694-0.96 GHz;
     * 1.7 - 2.2 GHz;
     * 2.2 - 2.7 GHz;
• Gain:
     * 4 dBi;
     * 5 dBi;
     * 6 dBi;
• VSWR:
     * <1.50, max <2.00;
     * <1.30, max <1.60;
     * <1.30, max <1.60;
• Beamwidth:
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
• Polarization: Vertical;
• Impedence: 50 Ω.

Wi-Fi Specifications:
• Frequency:
     * 2.40-2.50 GHz;
     * 4.70 - 6.00 GHz;
• Gain:
     * 6 dBi;
     * 7 dBi;
• VSWR:
     * <1.70, max <2.00;
     * <1.70, max <2.00;
• Beamwidth:
     * 360°/25° +/- 5°;
     * 360°/25° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Mechanical Specification:
• Materials: ABS, aluminum, PTFE, Fiberglass;
• Ingress Protection: IP67;
• Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch);
• Weight: 1.8 kg (3.97 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
