QuWireless QuMax antena Teltonika RUTX09 maršrutizatoriui (QUMAX_RUTX09)

Kodas: QUMAX_RUTX09
ID: #1821

Integruotos lauko sąlygų kelių juostų, didelio galingumo LTE kryptinės antenos + GPS antena + vieta Teltonika RUTX09 maršrutizatoriui (viskas viename)

108.54€ su PVM

Kaina be PVM: 89.70€

  Turime sandėlyje
Kiekis:


Produkto savybės:

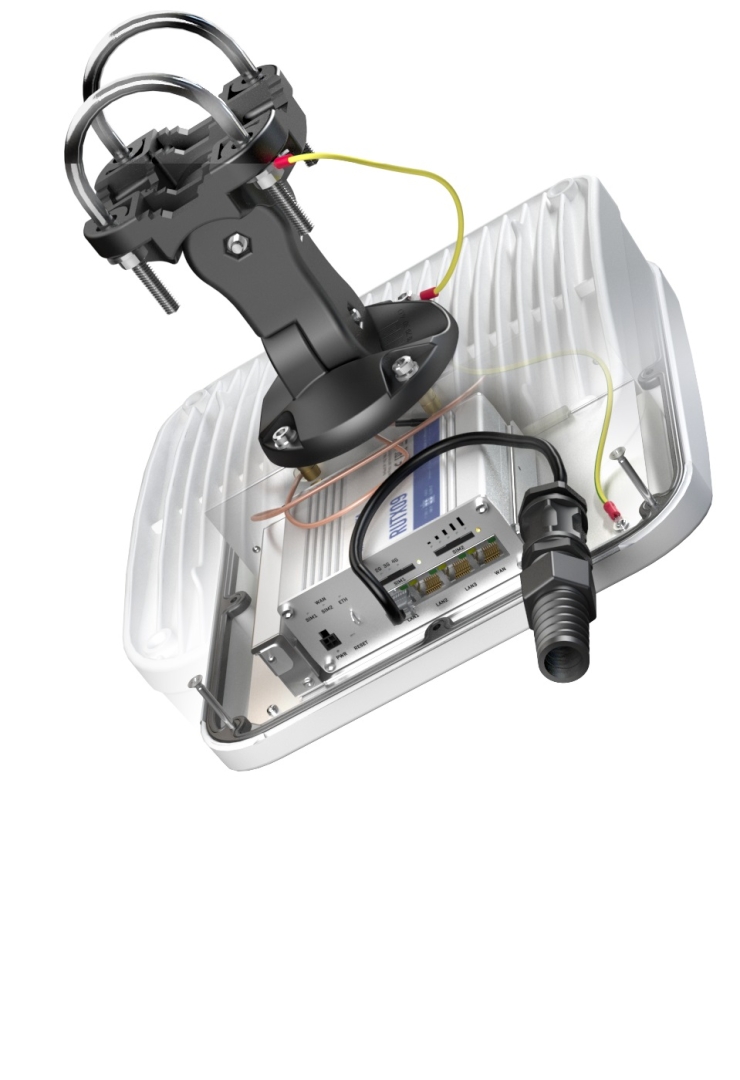

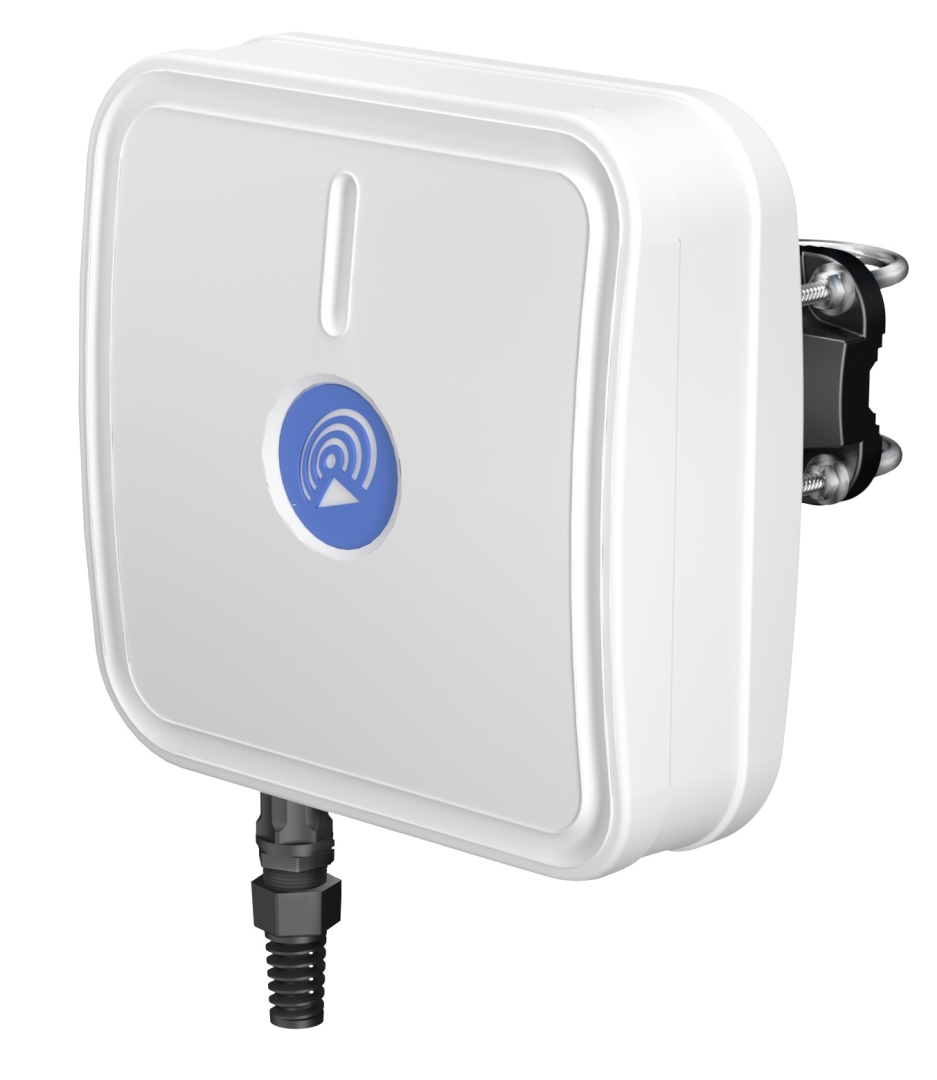

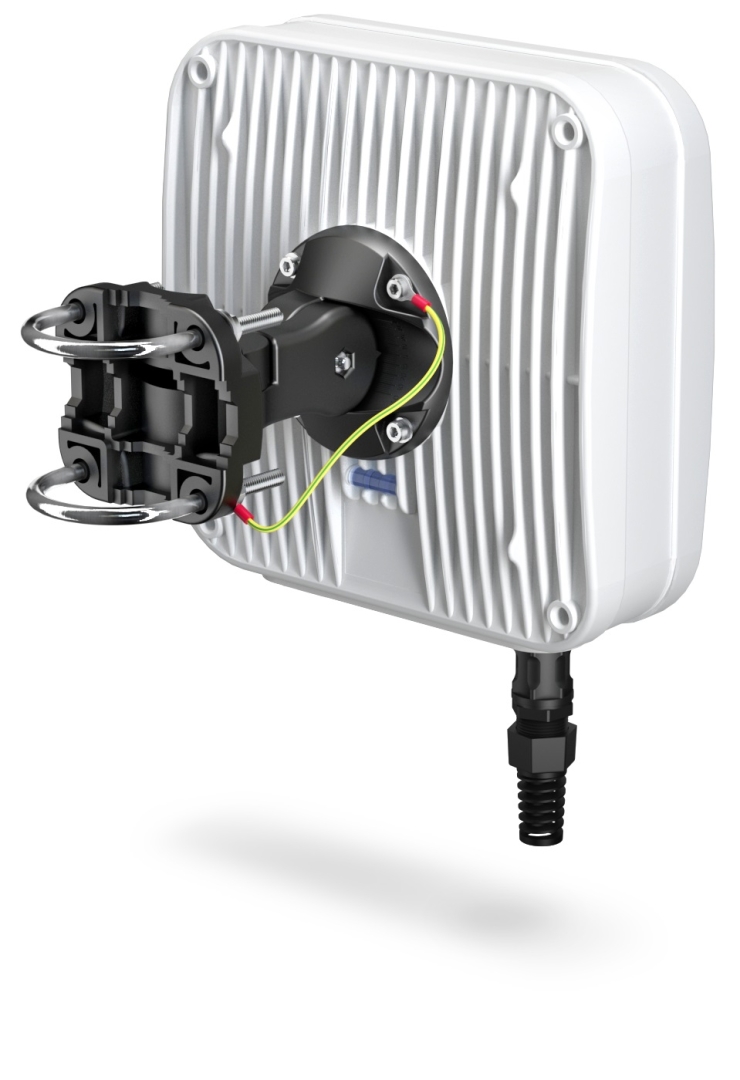

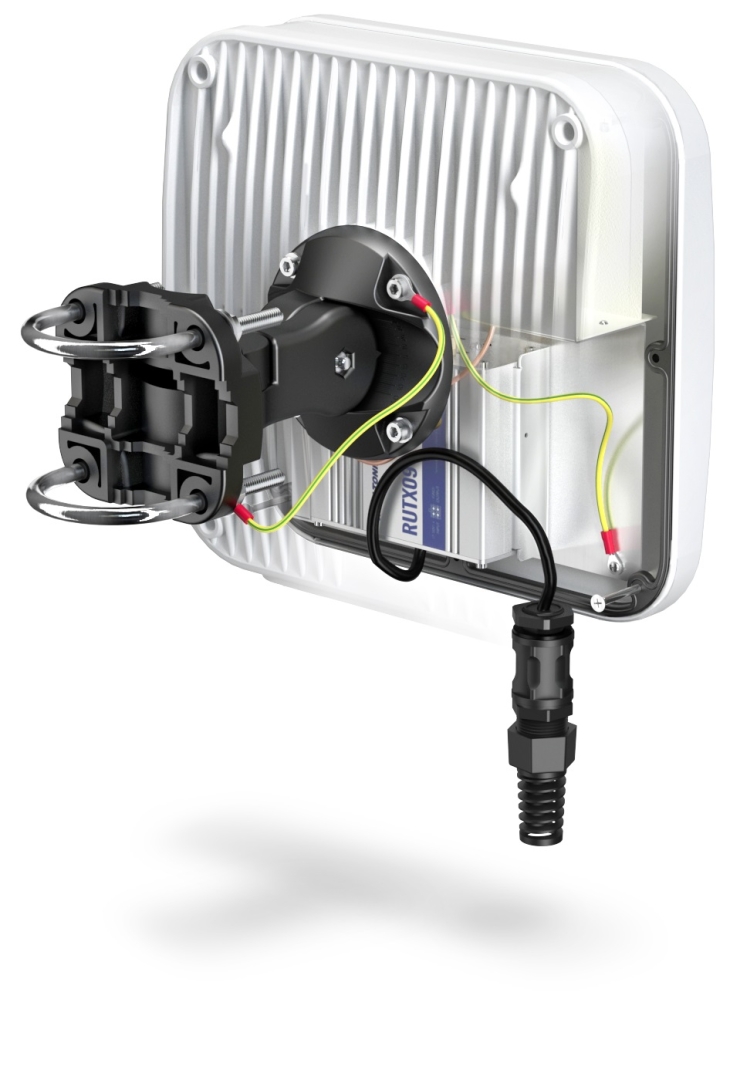

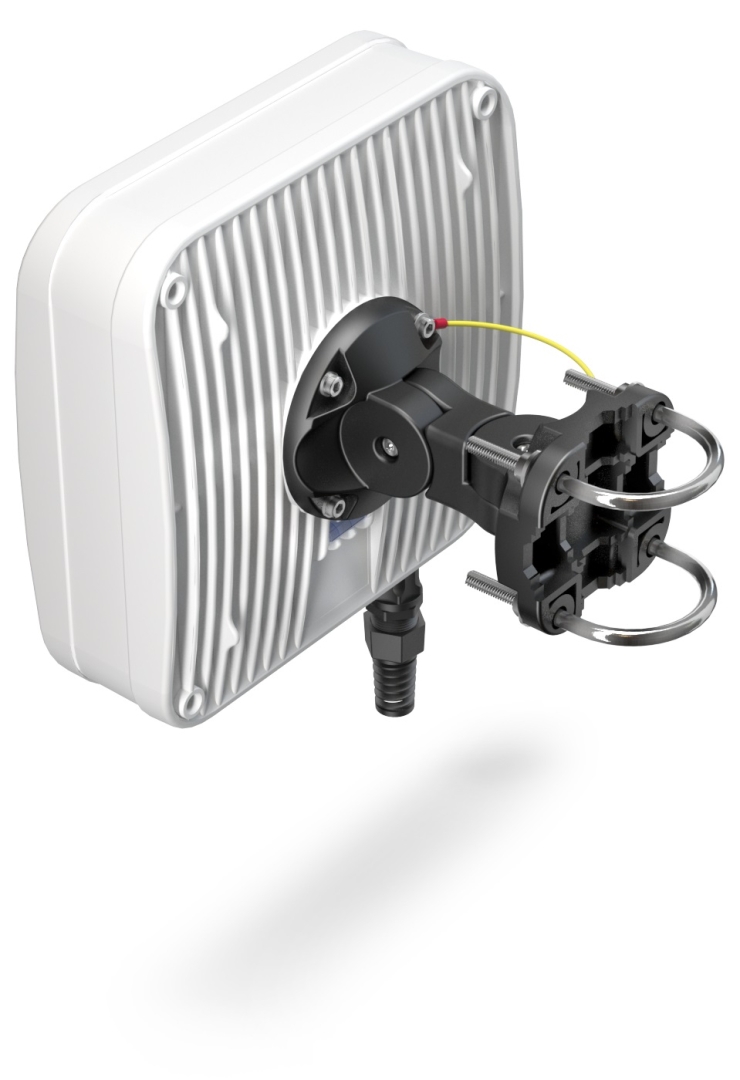

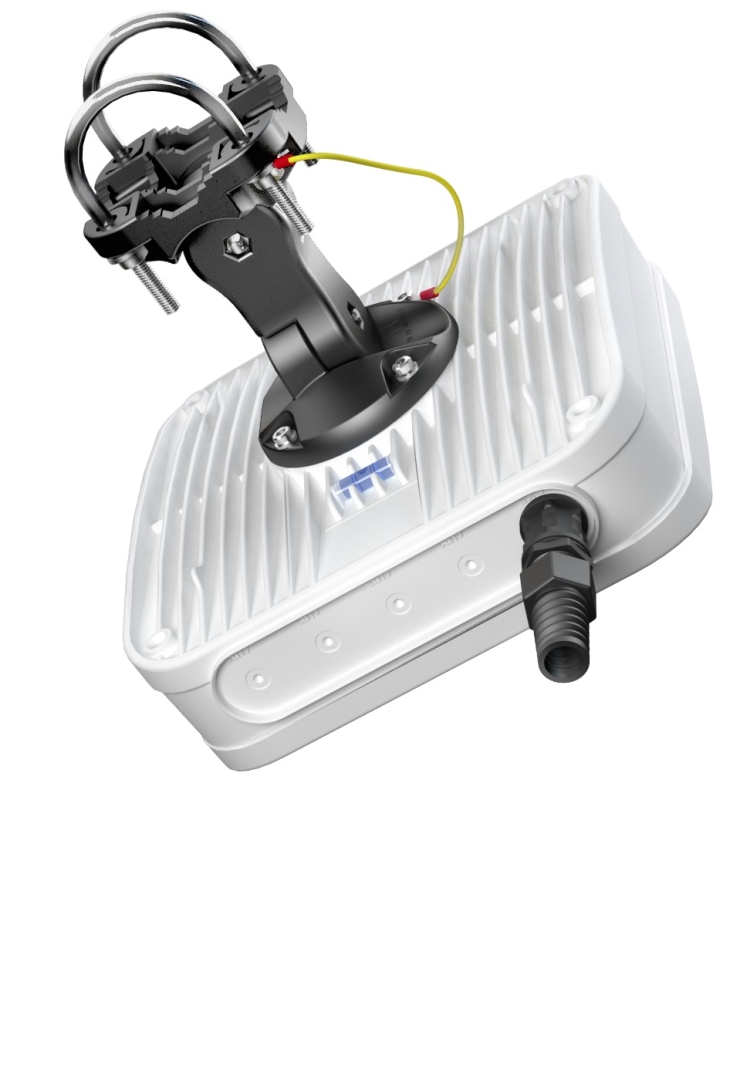

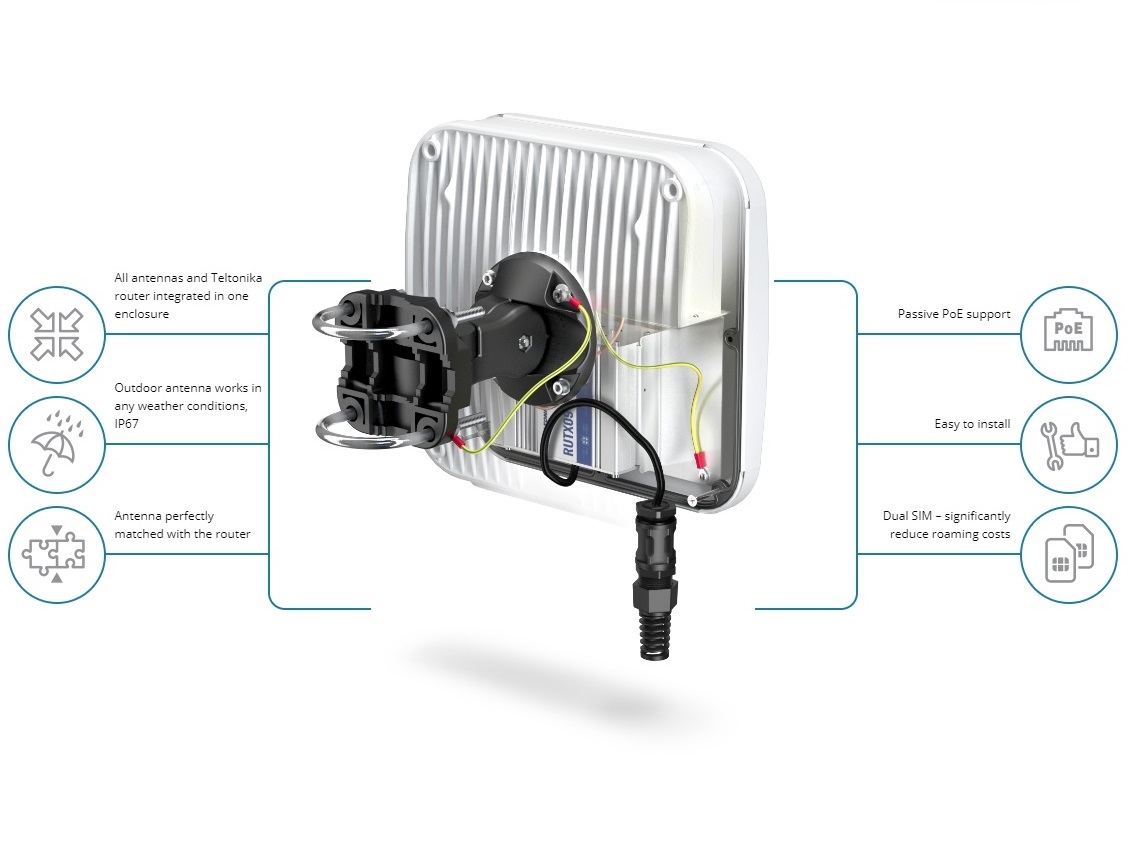

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.

Produkto specifikacijos:

LTE Specifications:
• Frequency:
     * 0.694-0.96 GHz;
     * 1.7 - 2.2 GHz;
     * 2.2 - 2.7 GHz;
• Gain:
     * 4 dBi;
     * 5 dBi;
     * 6 dBi;
• VSWR:
     * <1.50, max <2.00;
     * <1.30, max <1.60;
     * <1.30, max <1.60;
• Beamwidth:
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
• Polarization: Vertical;
• Impedence: 50 Ω.

Mechanical Specification:
• Materials: ABS, aluminum, PTFE, Fiberglass;
• Ingress Protection: IP67;
• Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch);
• Weight: 1.8 kg (3.97 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
