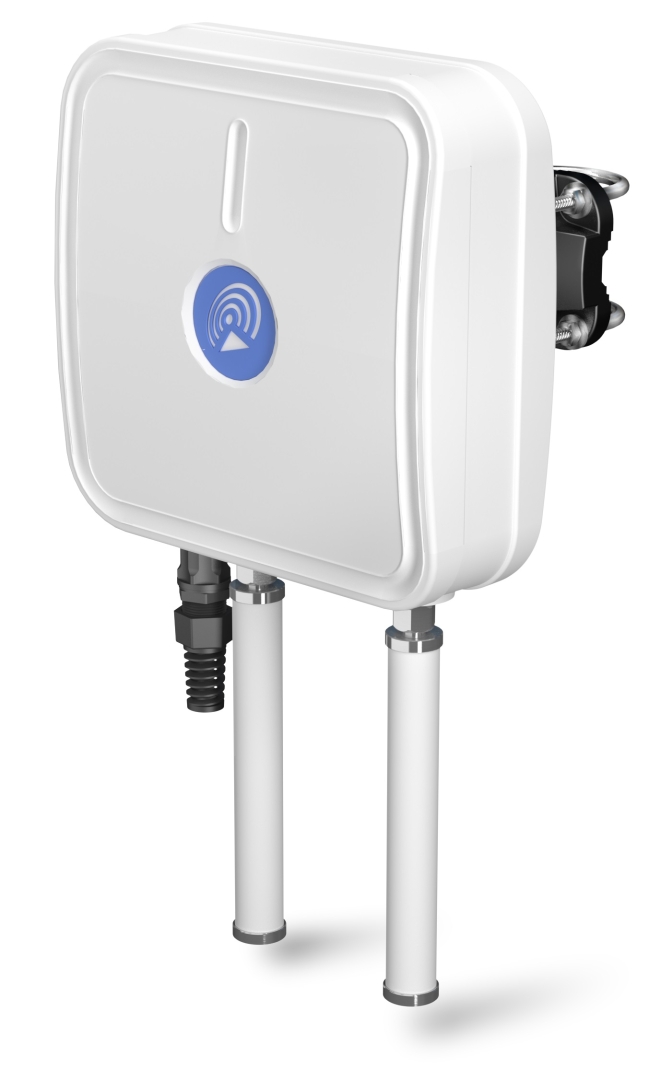

QuWireless QuMax antena skirta Teltonika RUTX11 maršrutizatoriui (QUMAX_RUTX11)

Kodas: QUMAX_RUTX11
ID: #1823

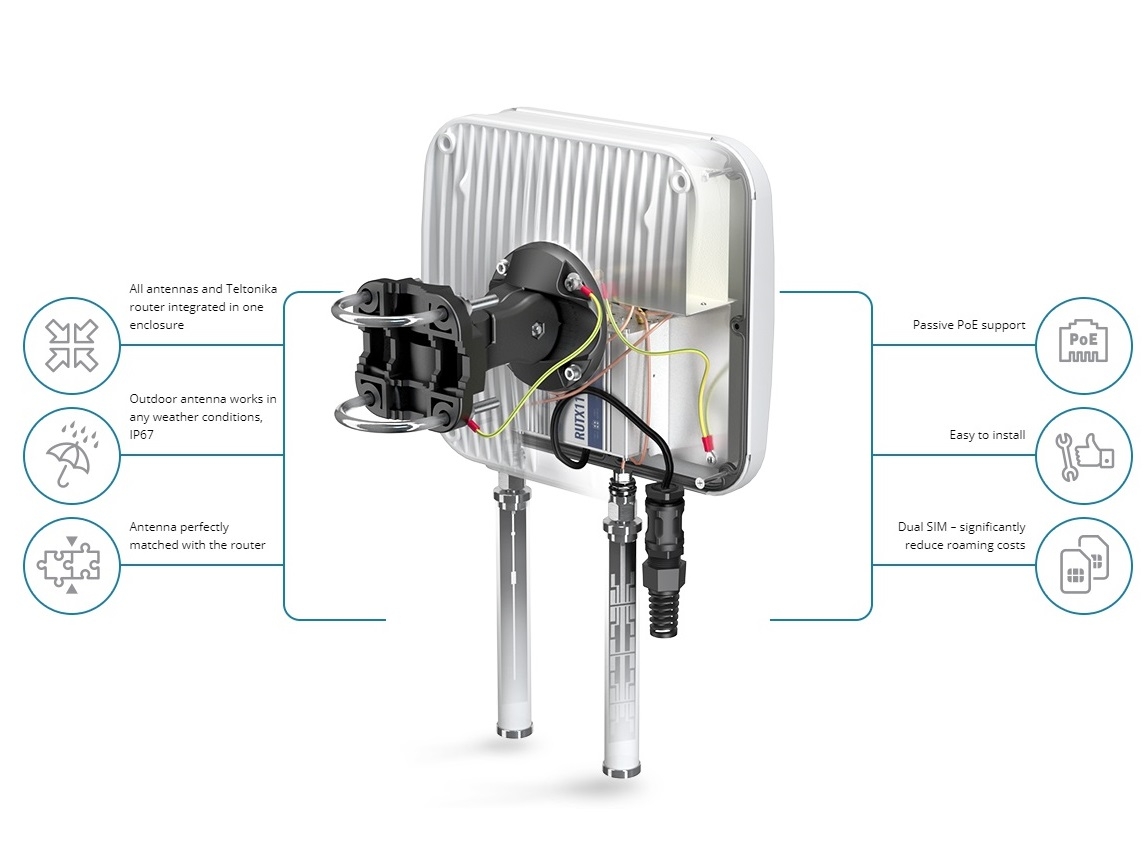

Integruota lauko sąlygų LTE didelio galingumo kryptinė antena + lauko sąlygų dvijuostė 2.4 ir 5 GHz Wi-Fi omni antena + Bluetooth antena + GPS antena + vieta Teltonika RUTX11 maršrutizatoriui (viskas viename)

121.06€ su PVM

Kaina be PVM: 100.05€

  Turime sandėlyje
Kiekis:


Produkto savybės:

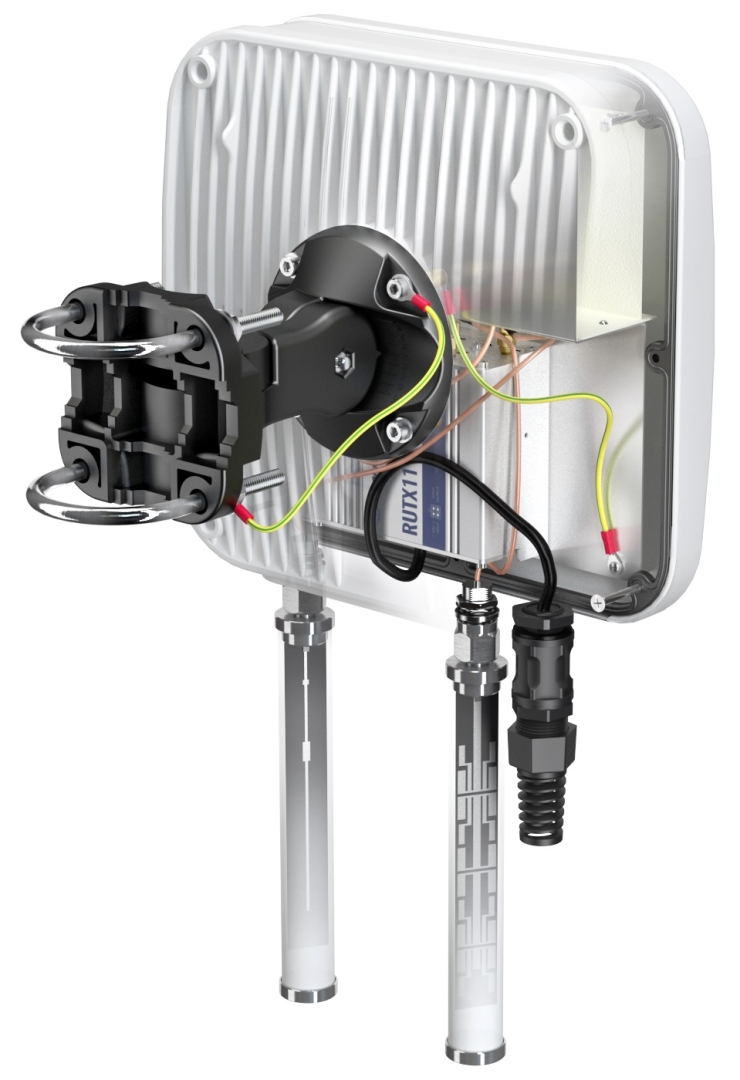

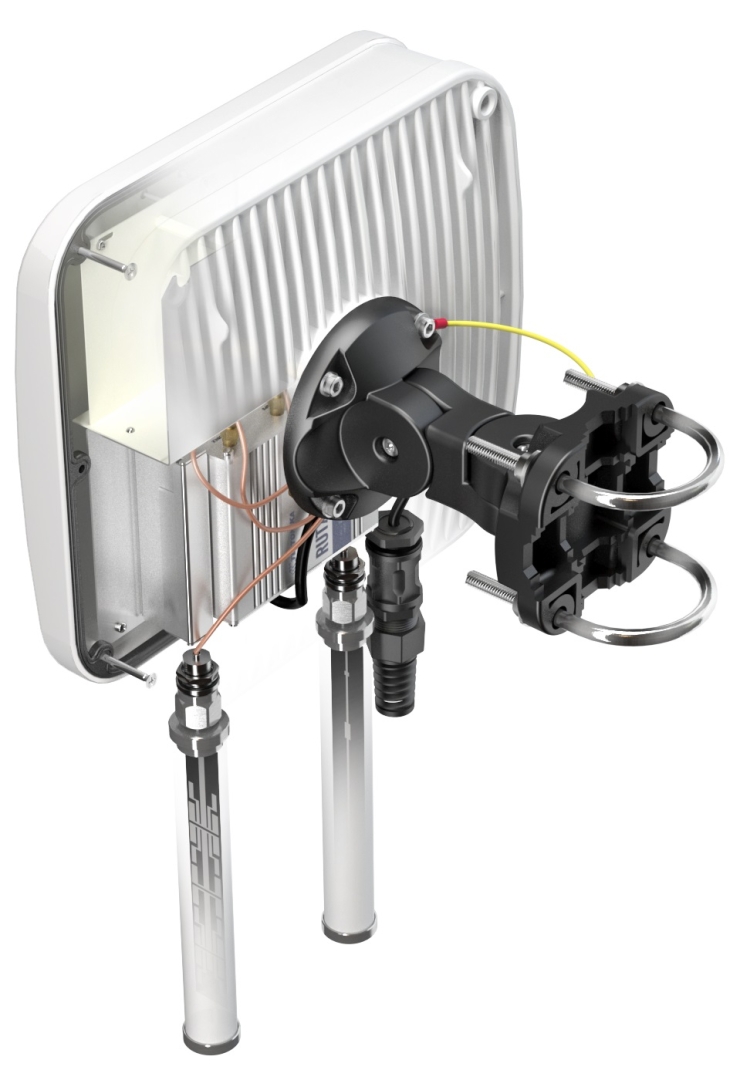

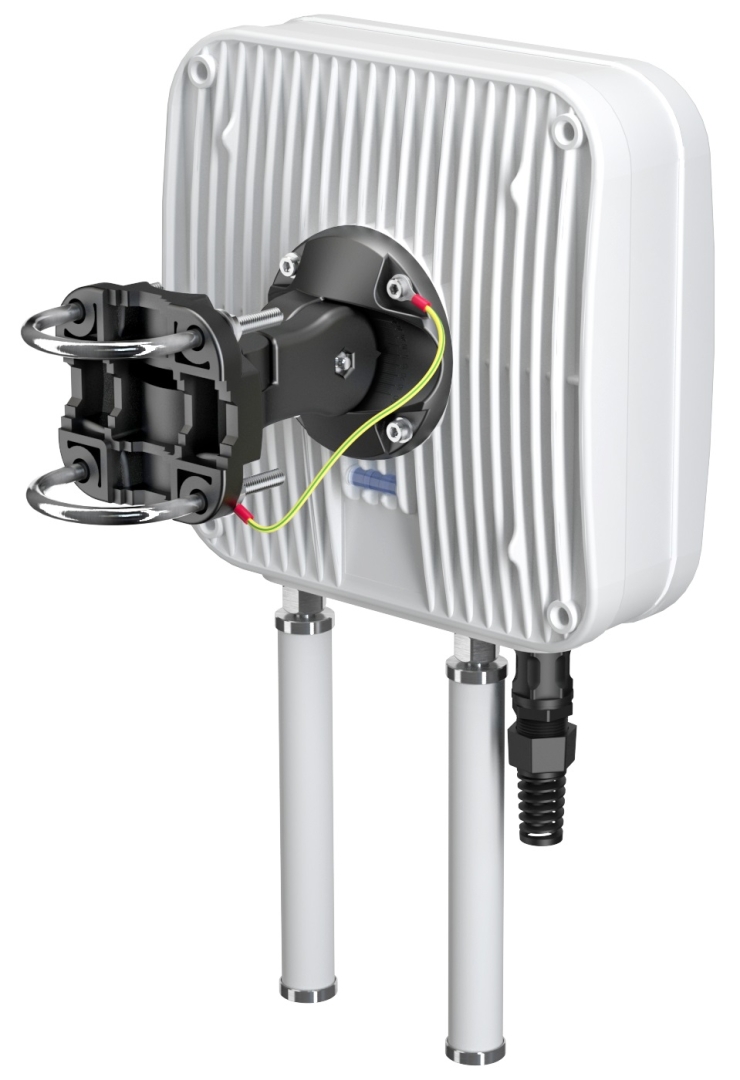

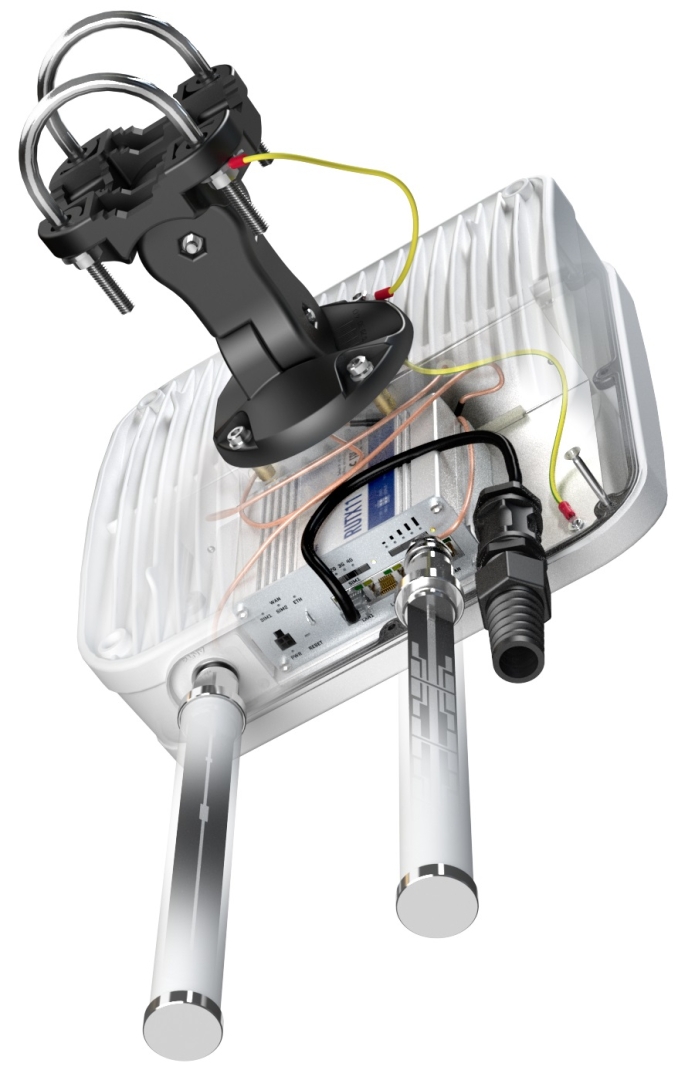

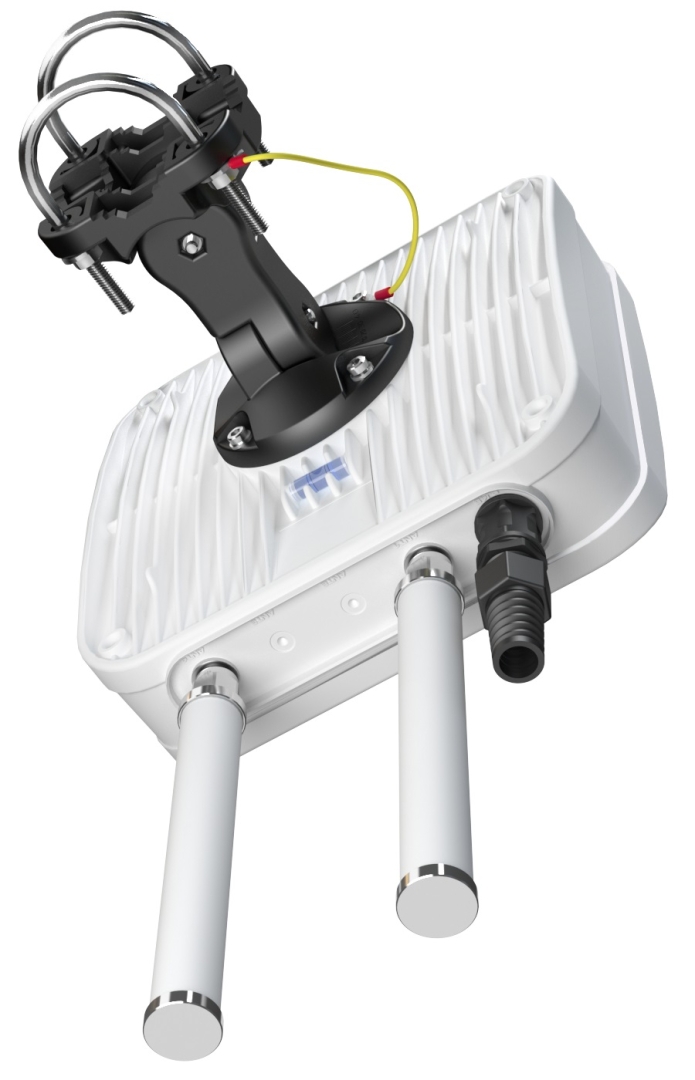

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.

Produkto specifikacijos:

LTE Specifications:
• Frequency:
     * 0.694-0.96 GHz;
     * 1.7 - 2.2 GHz;
     * 2.2 - 2.7 GHz;
• Gain:
     * 4 dBi;
     * 5 dBi;
     * 6 dBi;
• VSWR:
     * <1.50, max <2.00;
     * <1.30, max <1.60;
     * <1.30, max <1.60;
• Beamwidth:
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
     * 90°/90° +/- 30°;
• Polarization: Vertical;
• Impedence: 50 Ω.

Wi-Fi Specifications:
• Frequency:
     * 2.40-2.50 GHz;
     * 4.70 - 6.00 GHz;
• Gain:
     * 6 dBi;
     * 7 dBi;
• VSWR:
     * <1.70, max <2.00;
     * <1.70, max <2.00;
• Beamwidth:
     * 360°/25° +/- 5°;
     * 360°/25° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Mechanical Specification:
• Materials: ABS, aluminum, PTFE, Fiberglass;
• Ingress Protection: IP67;
• Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch);
• Weight: 1.8 kg (3.97 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
