QuWireless QuMax XR2 dvikryptis antenų rinkinys Teltonika RUTX12 maršrutizatoriui (QUMAX_RUTX12_XR2)

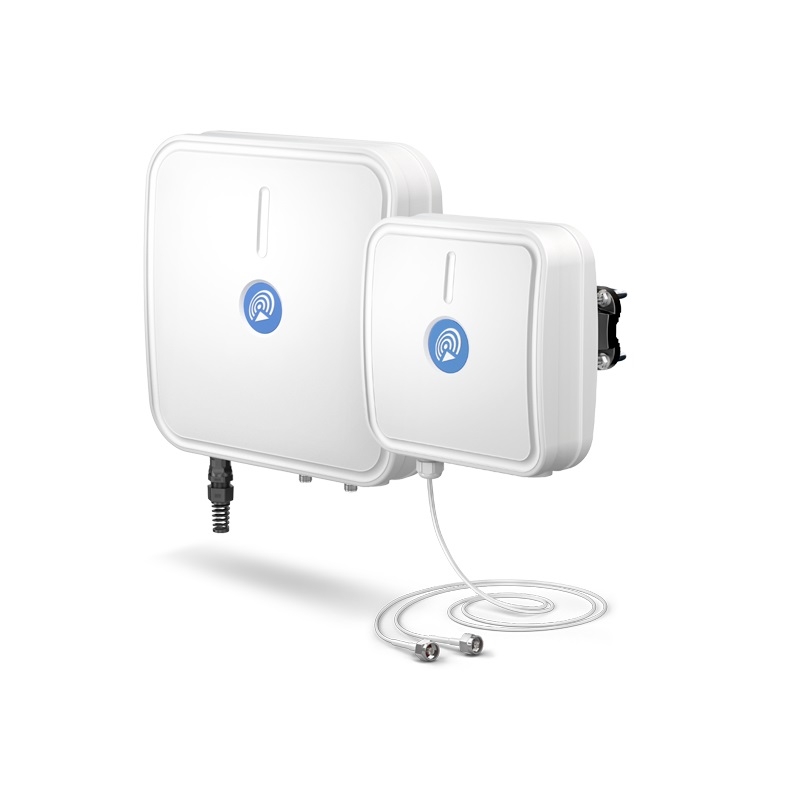

Dviejų atskirų eXtra Range LTE kryptinių antenų rinkinys dviejų krypčių ryšiui su dviem skirtingais LTE baziniais bokštais. Pagrindinė antena taip pat turi integruotas dviejų juostų Wi-Fi, GPS, Bluetooth antenas ir vietą Teltonika RUTX12 įrenginiui montuoti. Antroji antena yra tik kryptinė LTE XR antena.
207.64€ su PVMKaina be PVM: 171.60€ |
Produkto savybės:

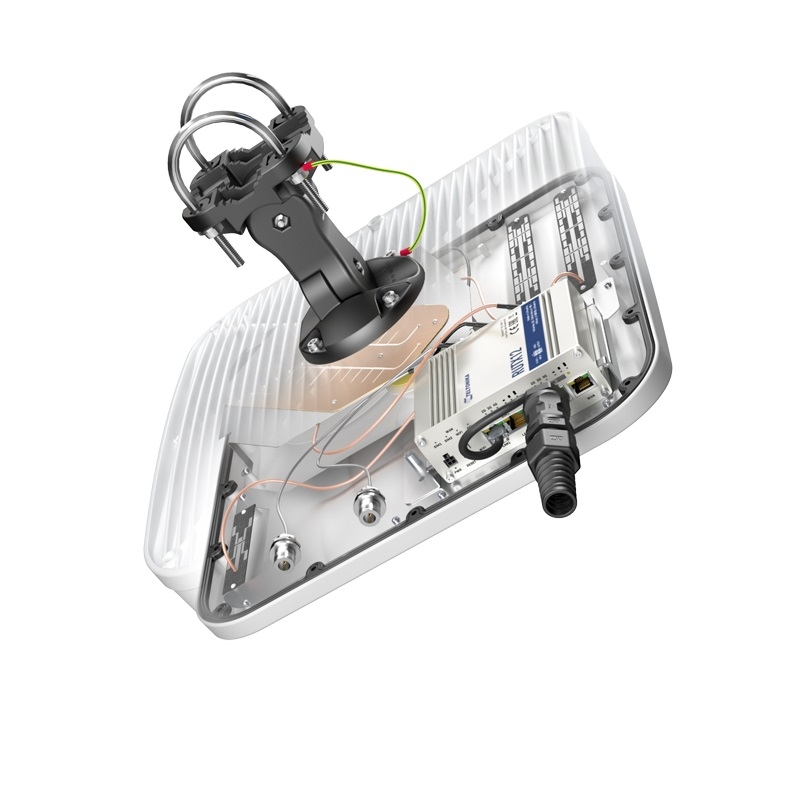

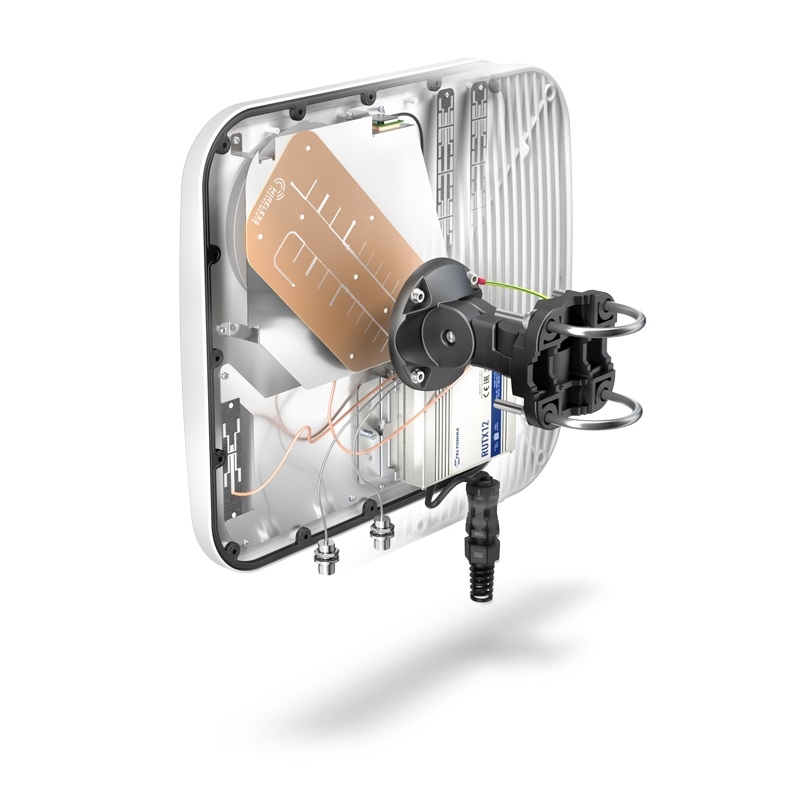

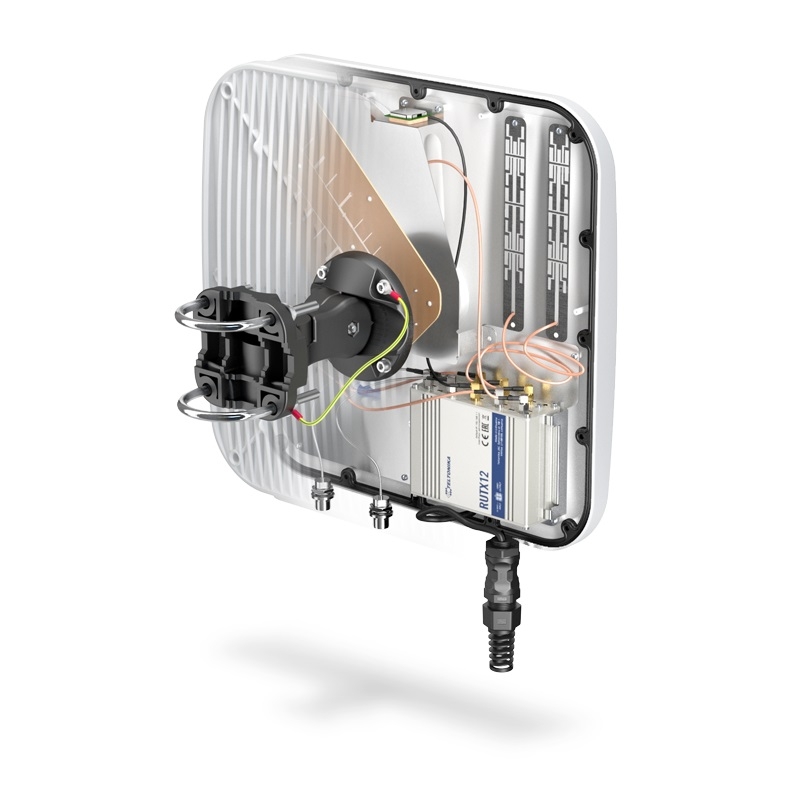

The QuMax XR2 is a bi-directional LTE eXtra Range antenna set (two separate antenna) two connect to two different LTE base station (it can also be connected to one base station in order to obtain a greater share of the transfer from that base station). The main antenna additionally has built-in Wi-Fi dual band, GPS and Bluetooth antennas, 2x Nf connectors for the second LTE antenna and a space to install the RUTX12 router inside antenna enclosure. The second antenna is LTE Extra Range directional antenna only and is in smaller enclosure. The QuMax XR2 set is dedicated to long-range connections from the LTE base station, also to two different base stations, which gives optimal use of functions such as load balancing and carrier aggregation.
Produkto specifikacijos:
| LTE ANTENNA SPECIFICATION (master & slave) | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 70°/70° ±15° |
| Polarization | Dual polarized X-Pol |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz 4.70 - 6.00 GHz |
| Gain | 2.40 - 2.50 GHz : 6 dBi 5.00 - 6.00 GHz : 4 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| BLUETOOTH ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz |
| Gain | 2.40 - 2.50 GHz : 3 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION (master) | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 + 2x Nf |
| Ingress protection | IP67 |
| Dimensions | 392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch |
| Weight | 3.7 kg 8.16 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| MECHANICAL SPECIFICATION (slave) | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |
| Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
| Weight | 1.8 kg 3.97 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| Cable length | 70cm |
| Cable type | LMR195 white |
| Connector type | 2x Nm plug |
