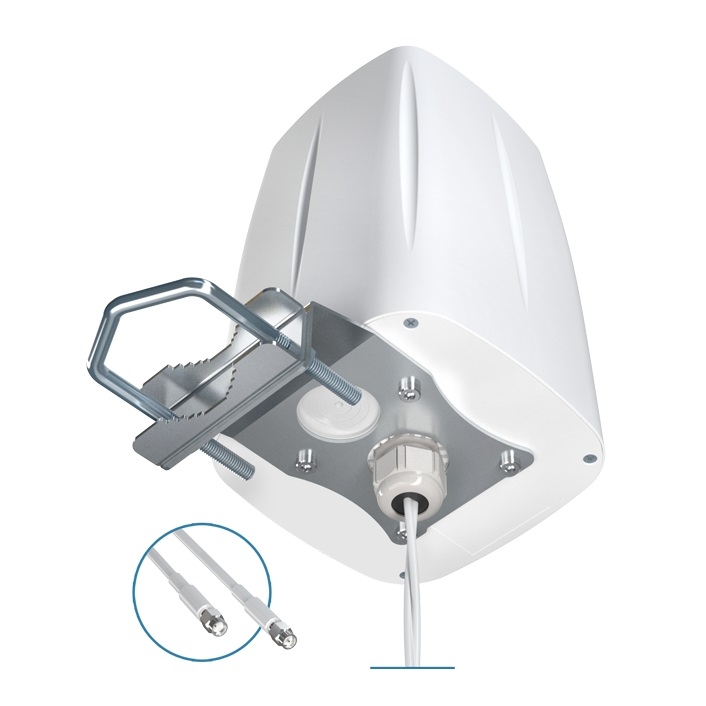

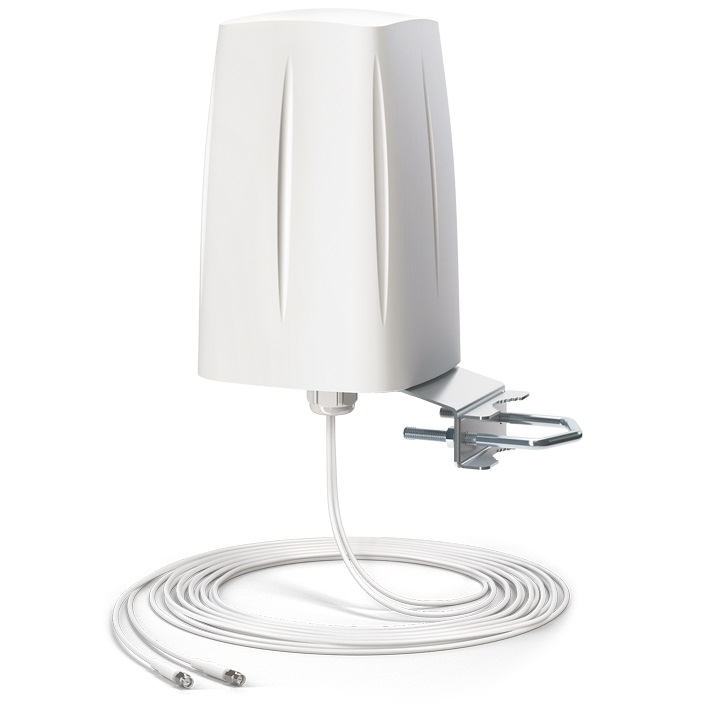

QuWireless QuPanel Lauko Sąlygų LTE MIMO 2x2 antena su 5m kabeliais (QUOMNI_MIMO2)
OEM kodas:
AOLM2
Kodas:
QUOMNI_MIMO2
ID:
#2301
EAN kodas:
5907772035320
Omnidirekcinė multibandinė LTE MIMO 2x2 antena | 4 dBi stiprinimas | 694–2700 MHz dažniai | 2x SMA male jungtys | 2x 5 m LMR195 kabeliai
85.16€ su PVMKaina be PVM: 70.38€ |
Produkto savybės:
QuOmni LTE omnidirectional MIMO 2x2 LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.
Produkto specifikacijos:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Gain | 0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE |
| Ingress protection | IP67 |
| Dimensions | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight | 1.5 kg 3.31 lbs |
| Wires length | 5 meters |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
