QuWireless QuPanel Lauko Sąlygų LTE HP SISO 5m kabeliu (QUPANEL_SISO_HP)
OEM kodas:
APLS1-H
Kodas:
QUPANEL_SISO_HP
ID:
#2302
EAN kodas:
5907772035313
Kryptinė didelio galingumo multibandinė LTE SISO antena | 7 dBi stiprinimas | 694–2700 MHz dažniai | 1x SMA male jungtis | 1x 5 m LMR195 kabelis
79.32€ su PVMKaina be PVM: 65.55€ |
Produkto savybės:

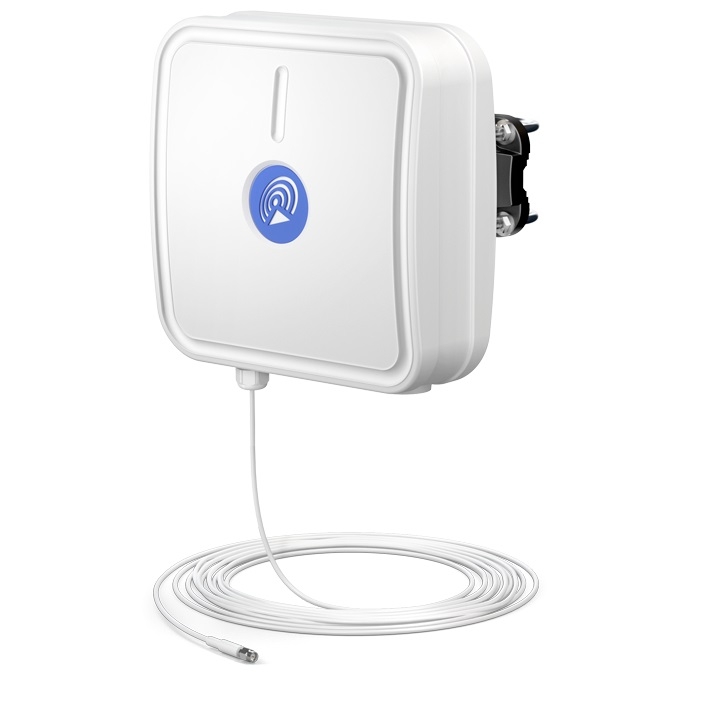

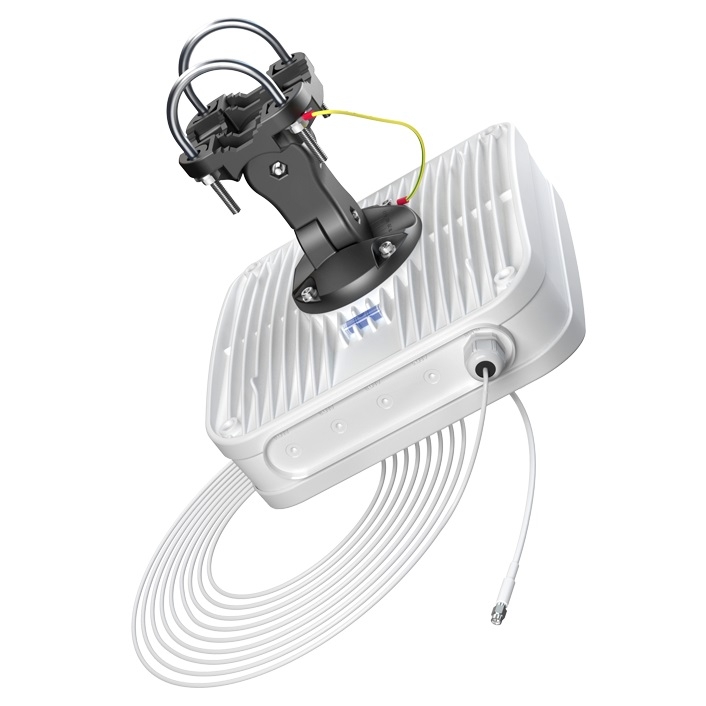

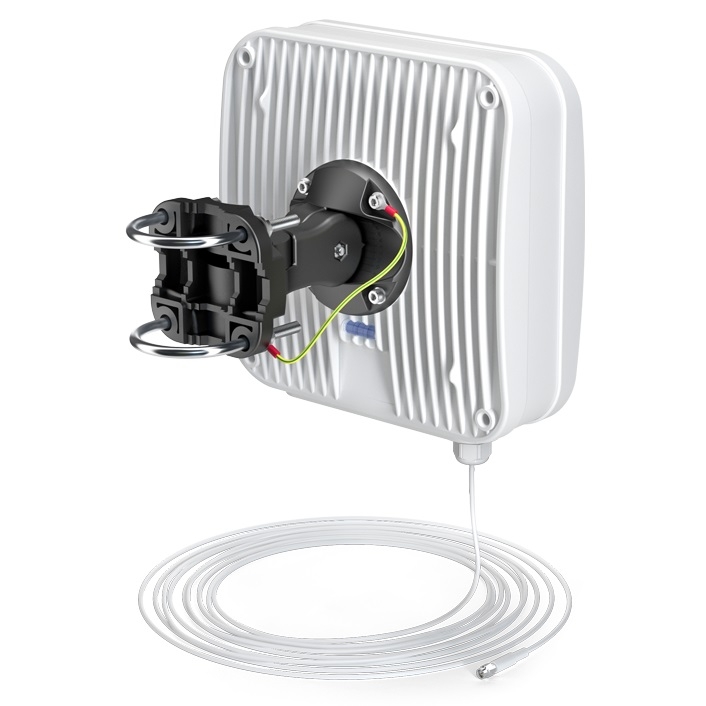

QuPanel LTE HP directional high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.
Produkto specifikacijos:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Gain | 0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 70°/70° ±15° |
| Polarization | ±45° |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |
| Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
| Weight | 1.8 kg 3.97 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
