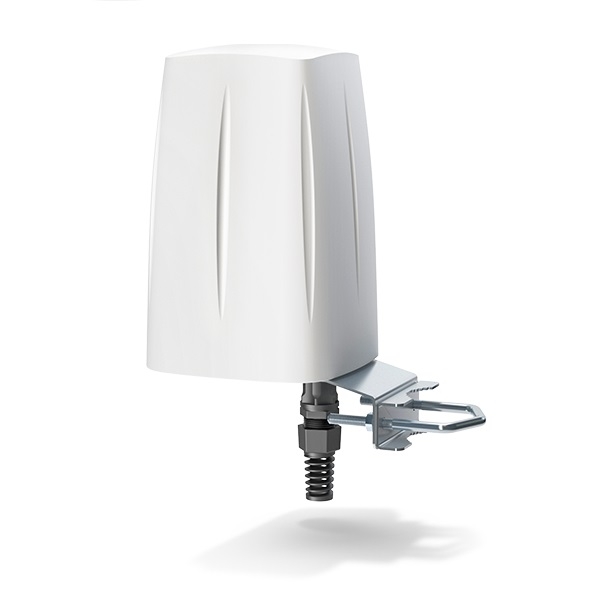

QuWireless QuSpot antena skirta Teltonika RUT360 Maršrutizatoriui (QUSPOT_RUT360)
OEM kodas:
A360S
Kodas:
QUSPOT_RUT360
ID:
#3393
EAN kodas:
5907772035634

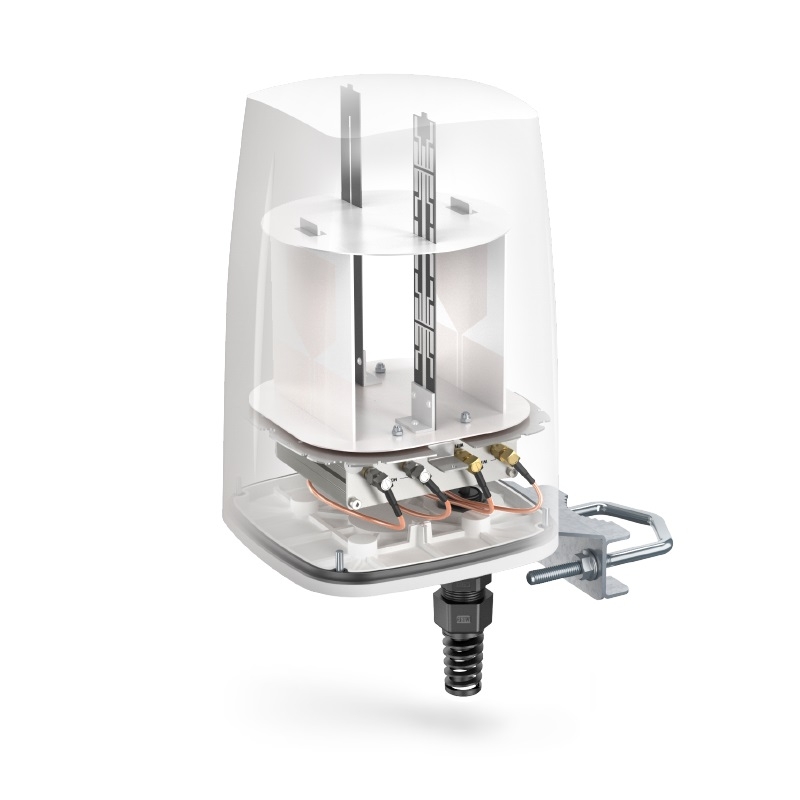

Integruotos multibandinės LTE omnidirekcinės antenos + Wi-Fi omnidirekcinės antenos + vieta Teltonika RUT360 įrenginiui montuoti (Viskas viename)
išpardavimas
86.52€ su PVMKaina be PVM: 71.50€ |
Produkto savybės:
QuSpot omni LTE antenna for Teltonika RUT360 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT360 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Produkto specifikacijos:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| Ingress protection | IP67 |
| Dimensions | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight | 1.5 kg 3.31 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
