QuWireless QuSpot antena Teltonika RUTX09 maršrutizatoriui (QUSPOT_RUTX09)
Integruota lauko sąlygų daugiajuostės LTE omni antenos + GPS antena + vieta Teltonika RUTX09 maršrutizatoriui (viskas viename)
Produkto savybės:

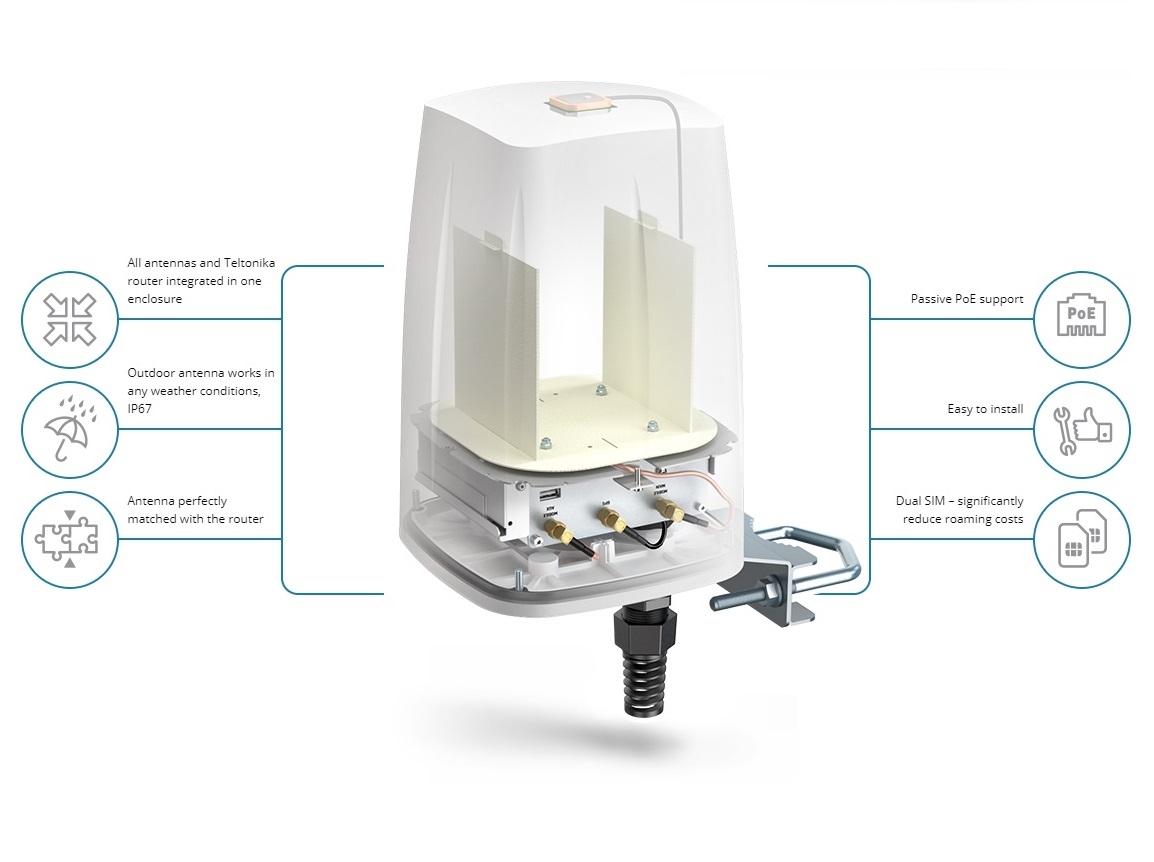

QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Produkto specifikacijos:
LTE Specifications:
• Frequency:
* 0.694-0.96 GHz;
* 1.7 - 2.2 GHz;
* 2.2 - 2.7 GHz;
• Gain:
* 2 dBi;
* 2 dBi;
* 4 dBi;
• VSWR:
* <1.70, max <2.00;
* <1.60, max <2.00;
* <1.60, max <2.00;
• Beamwidth:
* 360°/35° +/- 5°;
* 360°/35° +/- 5°;
* 360°/35° +/- 5°;
• Polarization: Vertical;
• Impedence: 50 Ω.
Mechanical Specification:
• Materials: ABS, aluminum, PTFE;
• Ingress Protection: IP67;
• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch);
• Weight: 1.5 kg (3.31 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
