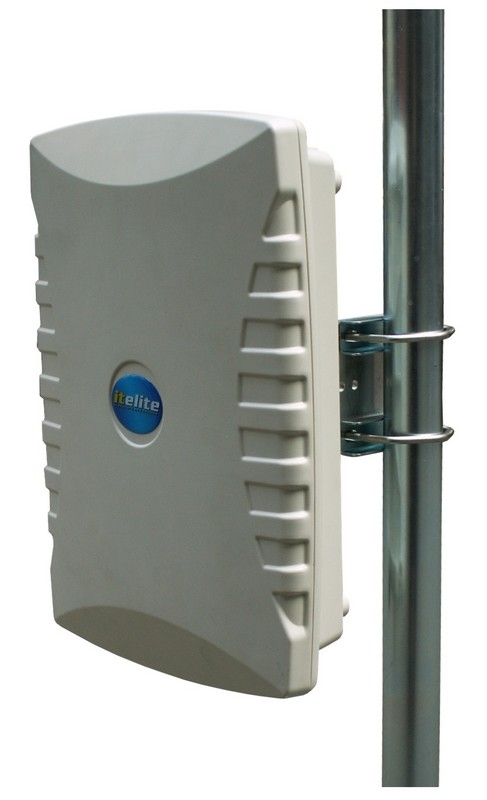

ITELITE SRA50016V Sector Antenna

Produkto savybės:

- 16dBi 4.9-6.0Ghz Sectoral Gain
- Beamwidth deg horizontal 90°, Beamwidth deg vertical 10°
- Integrated Weatherproof Enclosure for any equipment (RBs, APs, etc)
- MMCX pigtail included
- High Quality Construction
- Aesthetically Pleasing
- Vertical Polarization
- Great Impedance Matching
- ULTRA LOW SIDELOBES (RSLL) technology
- Heavy-Duty Mounting Elements
- Input Connector RJ-45 with waterproof PoE

Produkto specifikacijos:

Electrical Properties:
Frequency 4900 – 6000 MHz
Gain 16 dBi
Polarization Vertical
Beamwidth deg horizontal 90°
Beamwidth deg vertical 10°
VSWR < 1.4
Impedance 50 Ohm
Sidelobe suppresion > 20 dB
Front to back ratio > 25 dB

Mechanical Properties:
Technology Microstrip
Antenna Connector MMCX Pigtail included (U.FL pigtail under request)
Input Connector RJ-45 with waterproof PoE
Outside Dimensions 385x385x80mm / 15.15x15.15x3.15"
Inside Dimensions 320x320x50mm / 12.6x12.6x2"
Weight 2.4kg
Radome material ABS
Color Gray
Construction All – weather operation
Mounting Kit 50.8 mm
