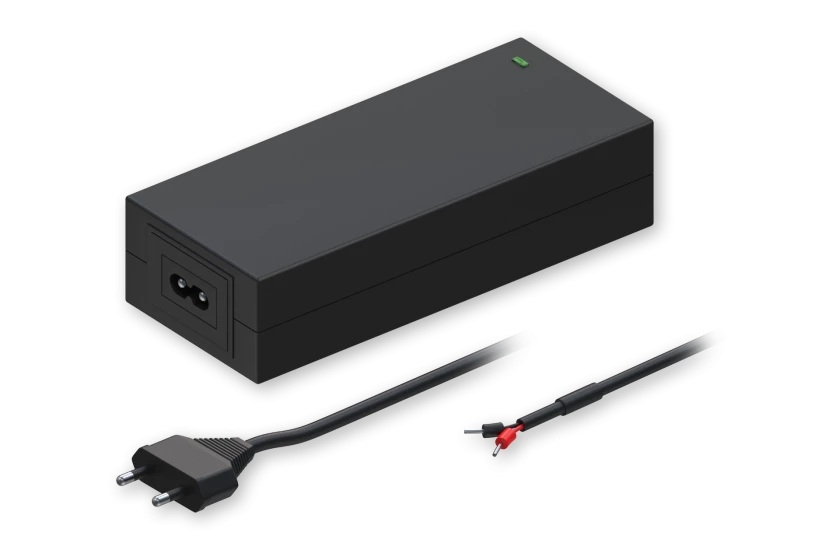

TELTONIKA 2 kontaktų, 62W Maitinimo Šaltinis, EU tipo (PR317EUA)
Jungtis 2 kontaktų, Įtampa: 48V, Srovė: 1.3A, Galia: 62W. Kištukas EU tipo. Tinkamas naudoti su TSW200, TSW202, TSW212 komutatoriais.
Produkto savybės:
Compatible with TSW040, TSW200, TSW202 TSW212 switches.
Produkto specifikacijos:
GENERAL
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 1.5 A
Input connector: EU (Type C)
Output voltage: 48 VDC
Output current: 1.3 A
Output connector: 2-pin, with cord end terminals
Weight: 305 g
ADDITIONAL
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 50 A
Output voltage maximum deviation: 45.6 – 50.4 VDC
Short circuit protection: Yes
HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
MTBF: 50000 h
Certification:
Safety: EN 61558-1:2005/A1:2009, EN 61558-2-16:2009/A1:2013 (CB Scheme)
EMC: EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015
