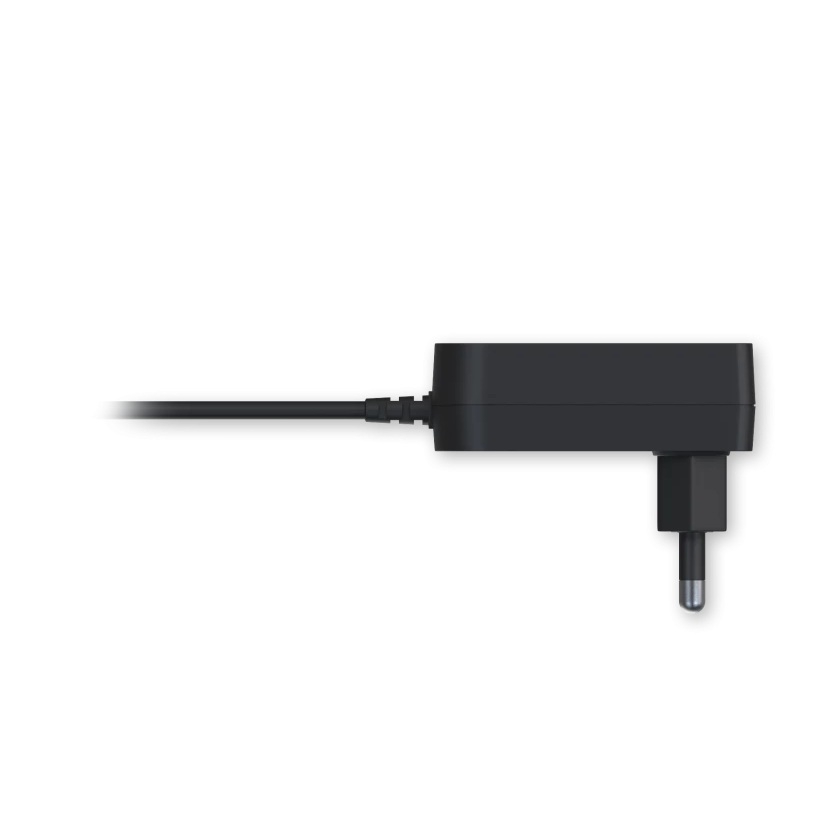

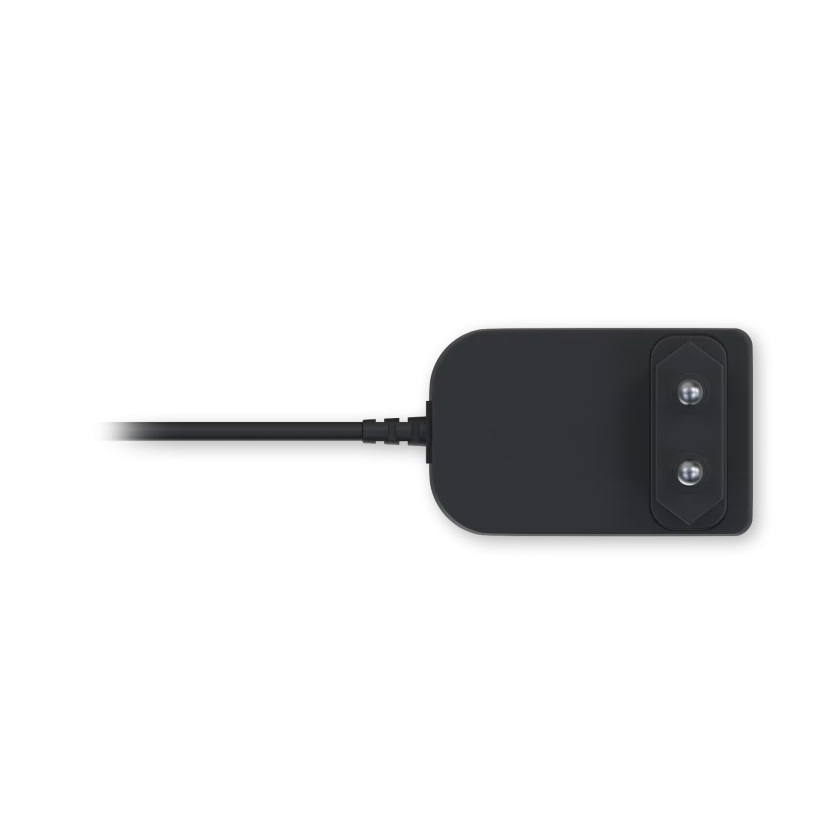

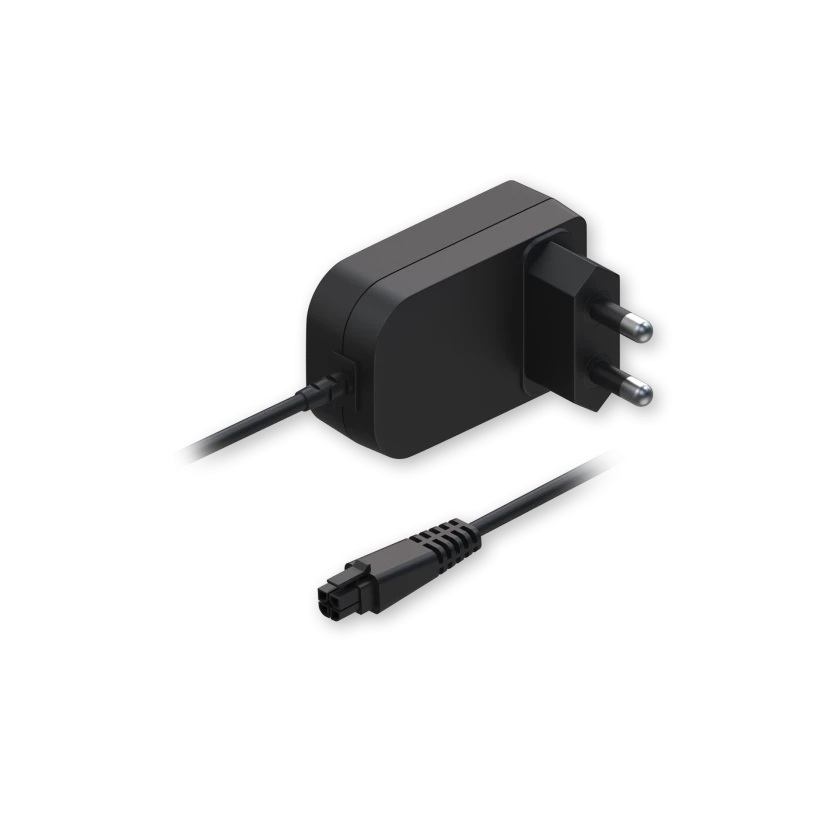

TELTONIKA 4 Kontaktų 24W Maitinimo šaltinis Teltonikos Maršrutizatoriams, EU tipo (PR3P2EU3)

Produkto savybės:

Suderinama su RUTC50, RUTX12, RUTX14 maršrutizatoriais. BAT120

Produkto specifikacijos:

GENERAL

Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 0.8 A
Input connector: EU (Type C)
Output voltage: 12 VDC
Output current: 2.0 A
Output connector: 4-pin, 3 mm pitch
Weight: 115 g

ADDITIONAL

Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 60 A
Output voltage maximum deviation: 1.4 – 12.6 VDC
Short circuit protection: Yes
HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
MTBF: 30000 h
PSU efficiency standard:DoE Level VI
Certification:
    Safety: EN 62368-1:2014+A11:2017
    EMC: EN 55032:2015, Class B, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013
    Energy efficiency: EN 50563:2011+A1:2013, EN 50564:2011, 10 CFR 430 Appendix Z: 2015
