TELTONIKA 4-Pin Kontaktų maitinimo adapteris su I/O Prieiga (PR5MEC21)
OEM kodas:
PR5MEC21
Kodas:
PR5MEC21
ID:
#3437

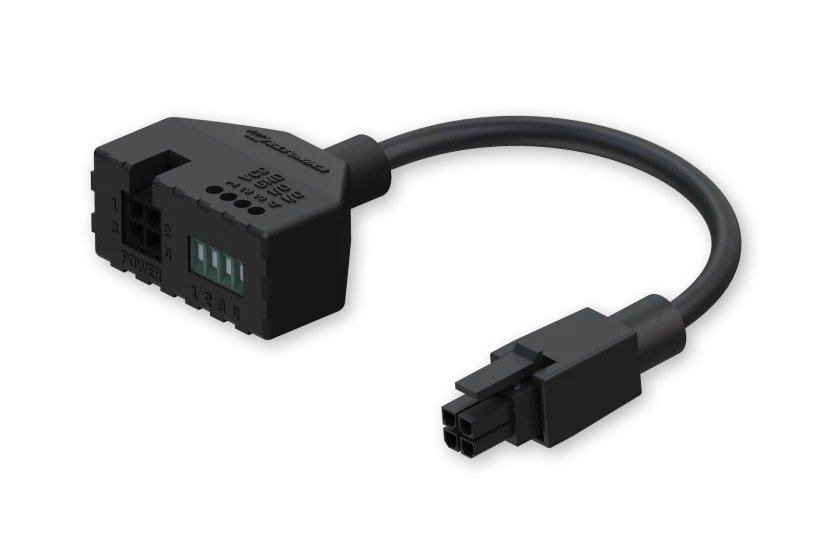

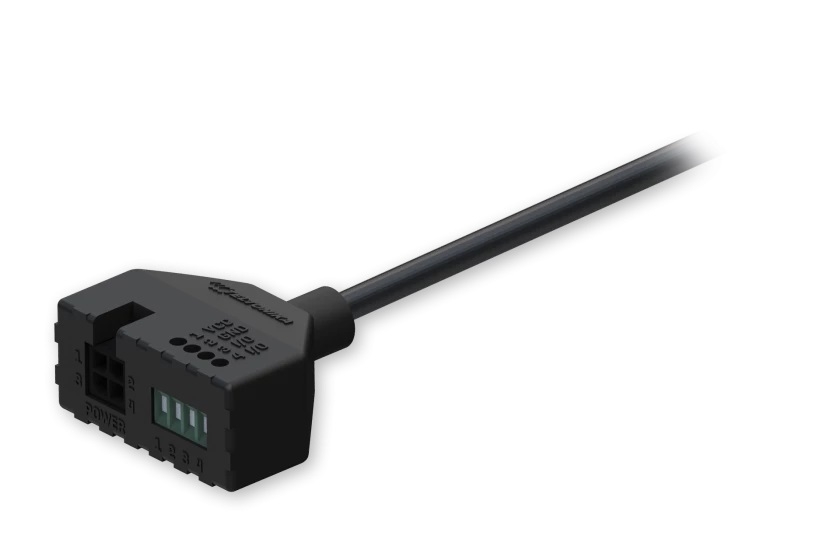

Šis 4-PIN Kontaktų maitinimo adapteris leidžia lengvai įgyti I/O funkcionalumą su suderinamais Teltonika Networks įrenginiais
8.99€ su PVMKaina be PVM: 7.43€ |
Produkto savybės:
It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
Produkto specifikacijos:
| TECHNICAL DATA | |
|---|---|
| GENERAL | |
| Input connector | 4-pin, 3 mm pitch and 4-way screw terminal block |

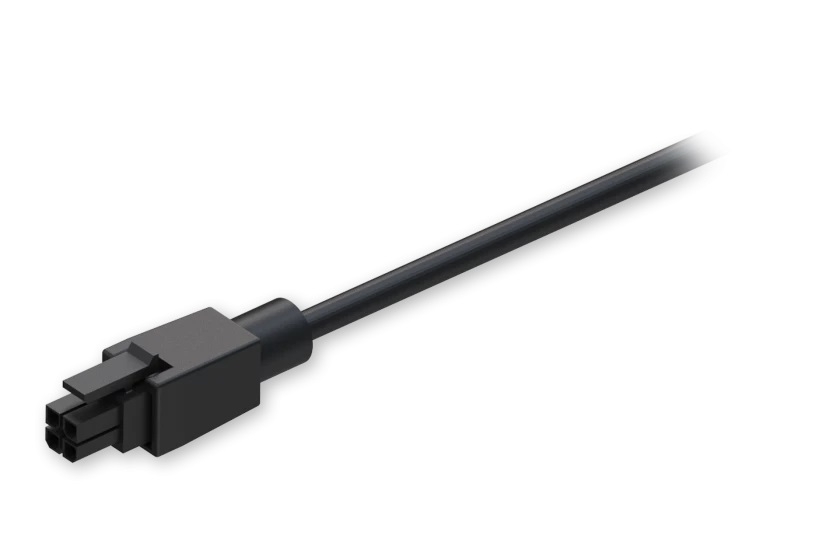

| Output connector | 4-pin, 3 mm pitch |
| Cable | 4 x 0.20 mm² (24 AWG), 100 mm |
| Screwdriver type | Micro slotted |
| Weight | 15 g. |
| *CONNECTION DATA | |
| Conductor cross section solid / flexible | 0.14 - 0.50 mm² (26 - 20 AWG) |
| Conductor cross section flexible, with ferrule, with plastic sleeve | 0.25 - 0.30 mm² (23 - 22 AWG) |
| Pinout | 1 Pin: Power + 2 Pin: Ground - 3 Pin: Input/Output 4 Pin: Input/Output |
*Connection data for 4-way screw terminal block
