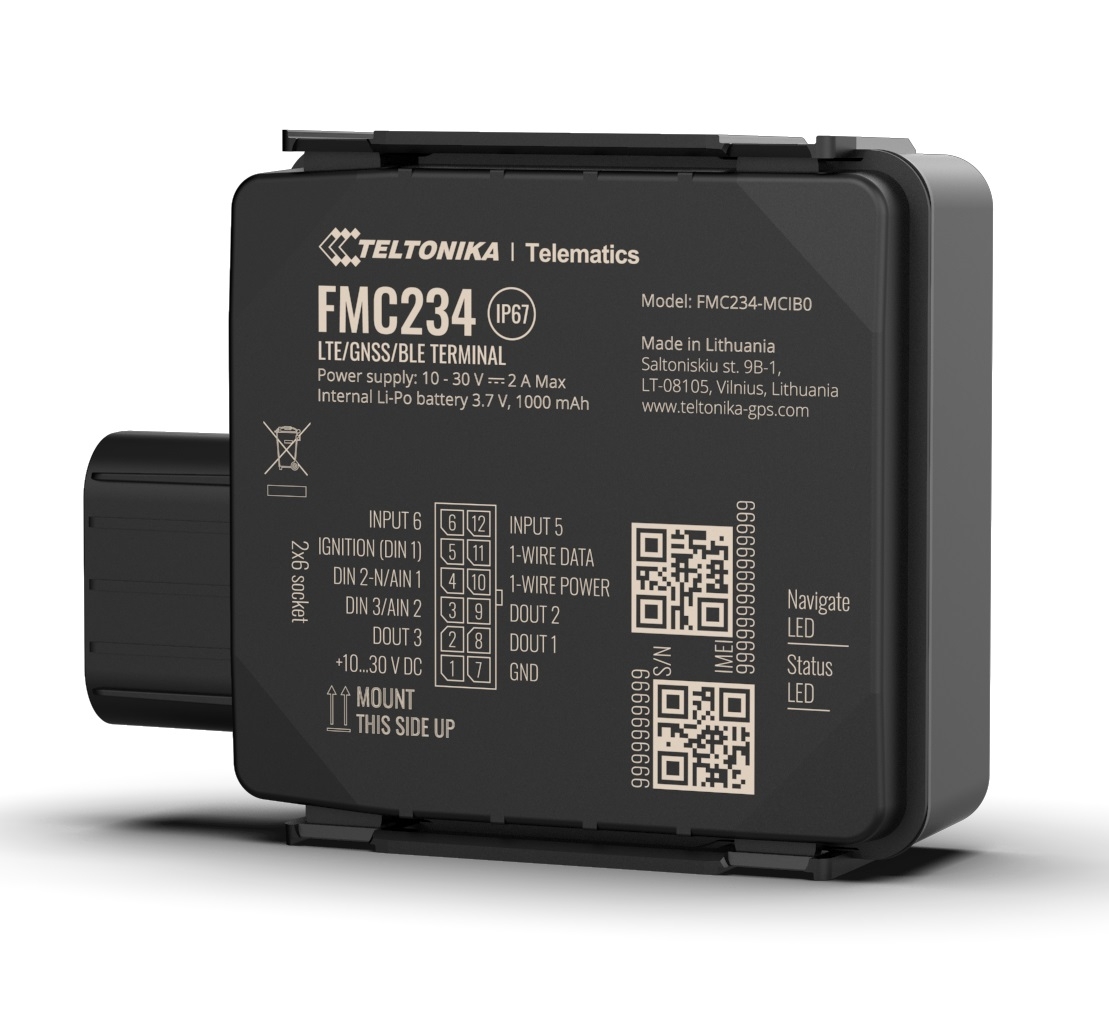

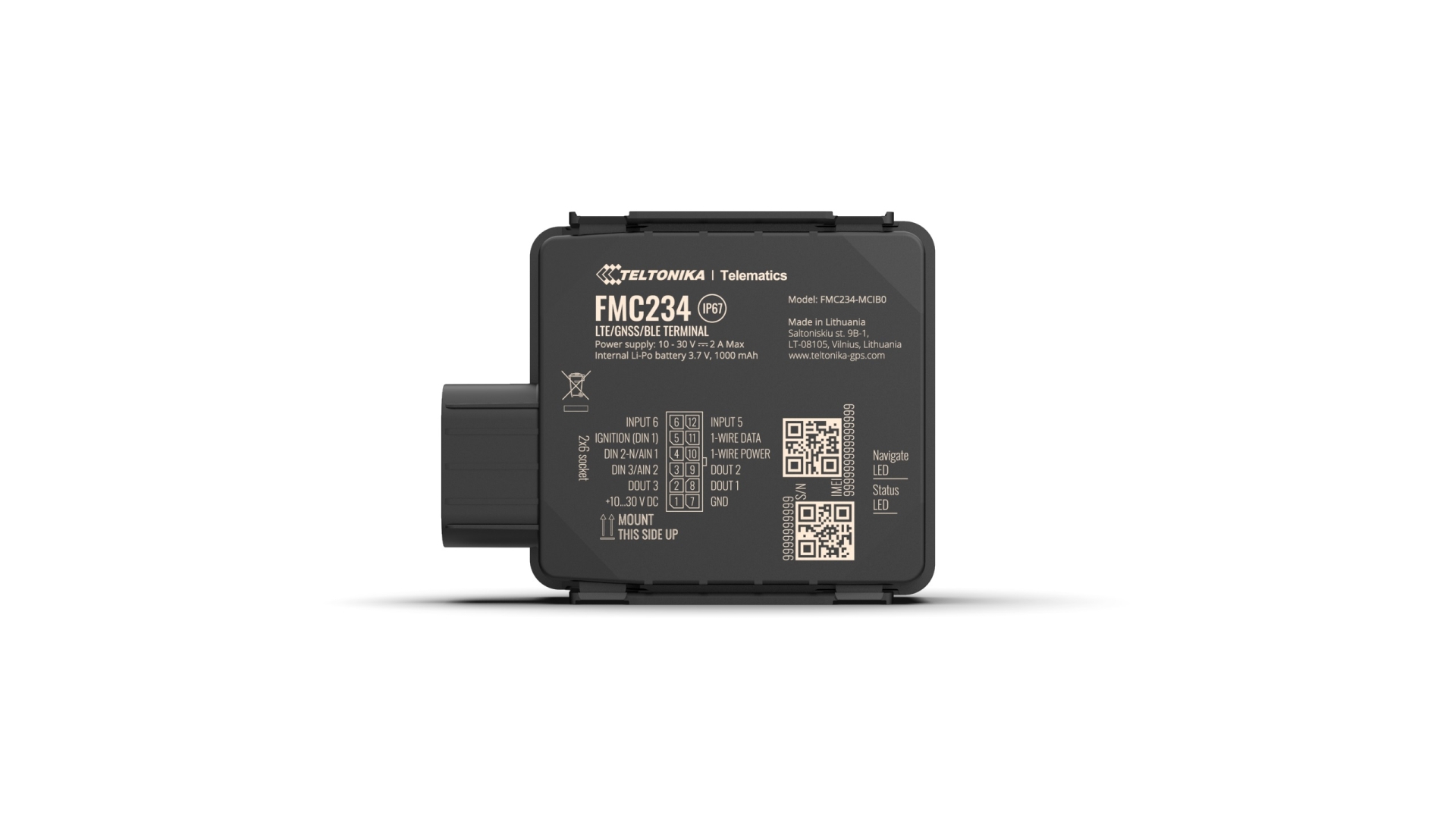

TELTONIKA Vandeniui atsparus 4G LTE Cat 1 sekimo įrenginys su didelės talpos baterija (FMC234)

Produkto savybės:

Puikiai tinka pavogtų transporto priemonių atgavimui
Įrenginio veikimas iki 8 dienų, net jei prarandamas išorinis maitinimas, padaro jį idealiu sprendimu pavogtų transporto priemonių atgavimui.

Ilgalaikis autonominis naudojimas
Didelės talpos 1 000 mAh Li-Po vidinė atsarginė baterija užtikrina ilgesnį įrenginio veikimo laiką.

Nereikia papildomų įrankių
Inovatyvus „click-type“ dviejų fazių uždarymas, nereikalaujantis papildomų įrankių.

Apsauga nuo dulkių ir vandens
Tvirtas IP67 apsaugos laipsnio korpusas suteikia patikimą apsaugą nuo dulkių ir atsparumą vandeniui.

Produkto specifikacijos:

Module
Name: FMC234-MBIB0: MeiG SLM320-E with Teltonika TM2500
Technology: LTE(CAT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: LTE Cat 1, GSM
2G bands: GSM: B2/B3/B5/B8
4G LTE Cat 1 bands: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
Data transfer
    LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
    LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
    GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support: SMS (text/data)

Power
Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery: 1000 mAh Li-Po rechargeable 3.7 V battery (3.7 Wh)
Internal fuse: 3A, 125V
Power consumption:
    At 12V < 3 mA (Ultra Deep Sleep)
    At 12V < 5 mA (Deep Sleep)
    At 12V < 16 mA (Online Deep Sleep)
    At 12V < 18 mA (GPS Sleep)
    At 12V < 33 mA (nominal with no load)
    At 12V < 2 A Max. (with full Load / Peak)

Bluetooth
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Physical specification
Dimensions:
    70,5 x 67,0 x 25,6 mm (L x W x H)
    85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Weight: 91,8 g

Operating environment
Operating temperature (without battery): -20 °C to +85 °C
Storage temperature (without battery): -20 °C to +85 °C
Operating temperature (with battery): -20 °C to +60 °C
Storage temperature (with battery): -20 °C to +60 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP67
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
    -20 °C to +45 °C for 1 month
    -20 °C to +35 °C for 6 months

Interface
Digital Inputs: 3
Negative Inputs: 1 (Digital Input 2)
Impuls Inputs: 2 (Digital Input 1, Digital Input 2)
Digital Outputs: 3
Analog Inputs: 2
CAN Adapter Inputs: 1
1-Wire: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal GSM High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM or eSIM
Memory: 128MB internal flash memory

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®), FMBT mobile application (Configuration)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certification & approvals
Regulatory:
