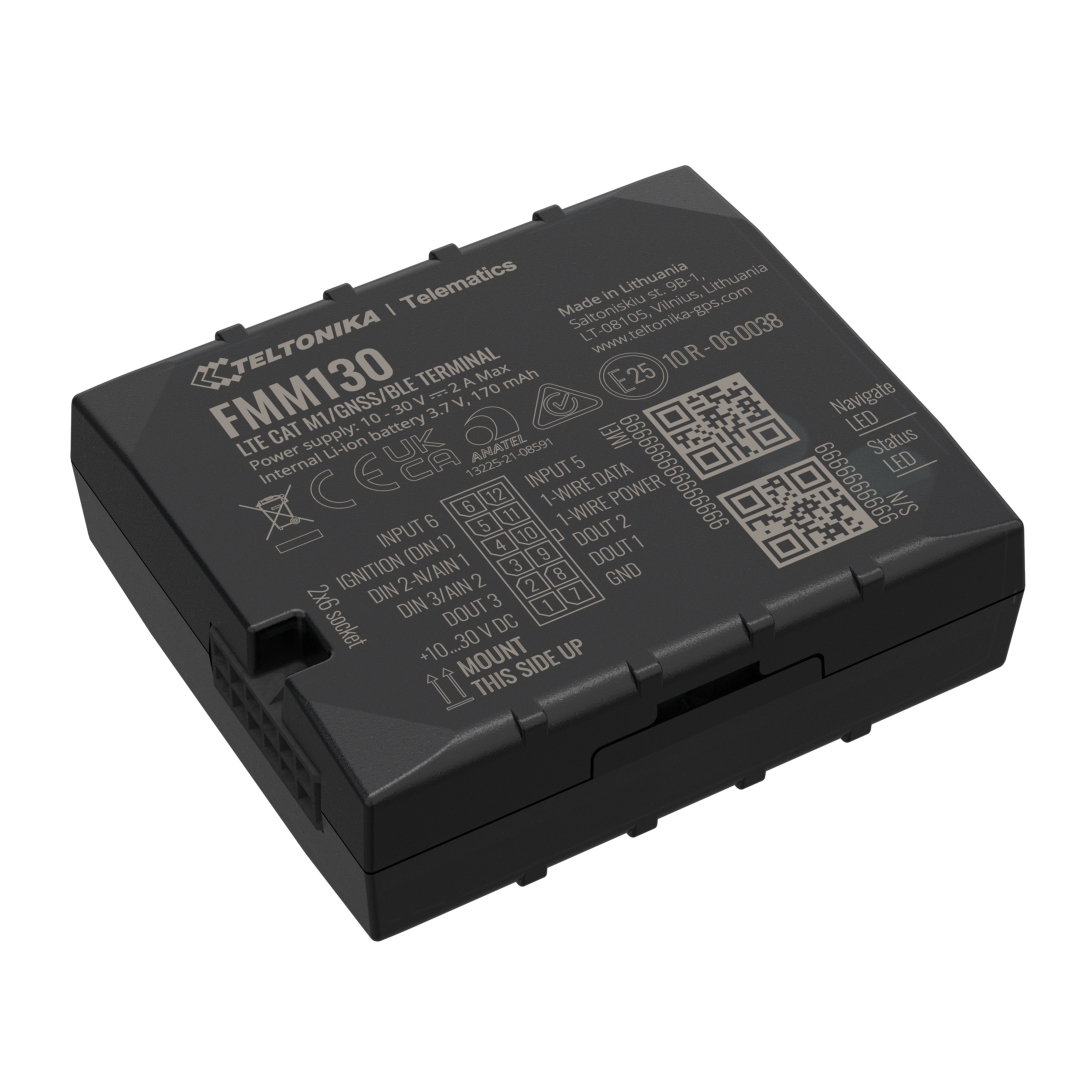

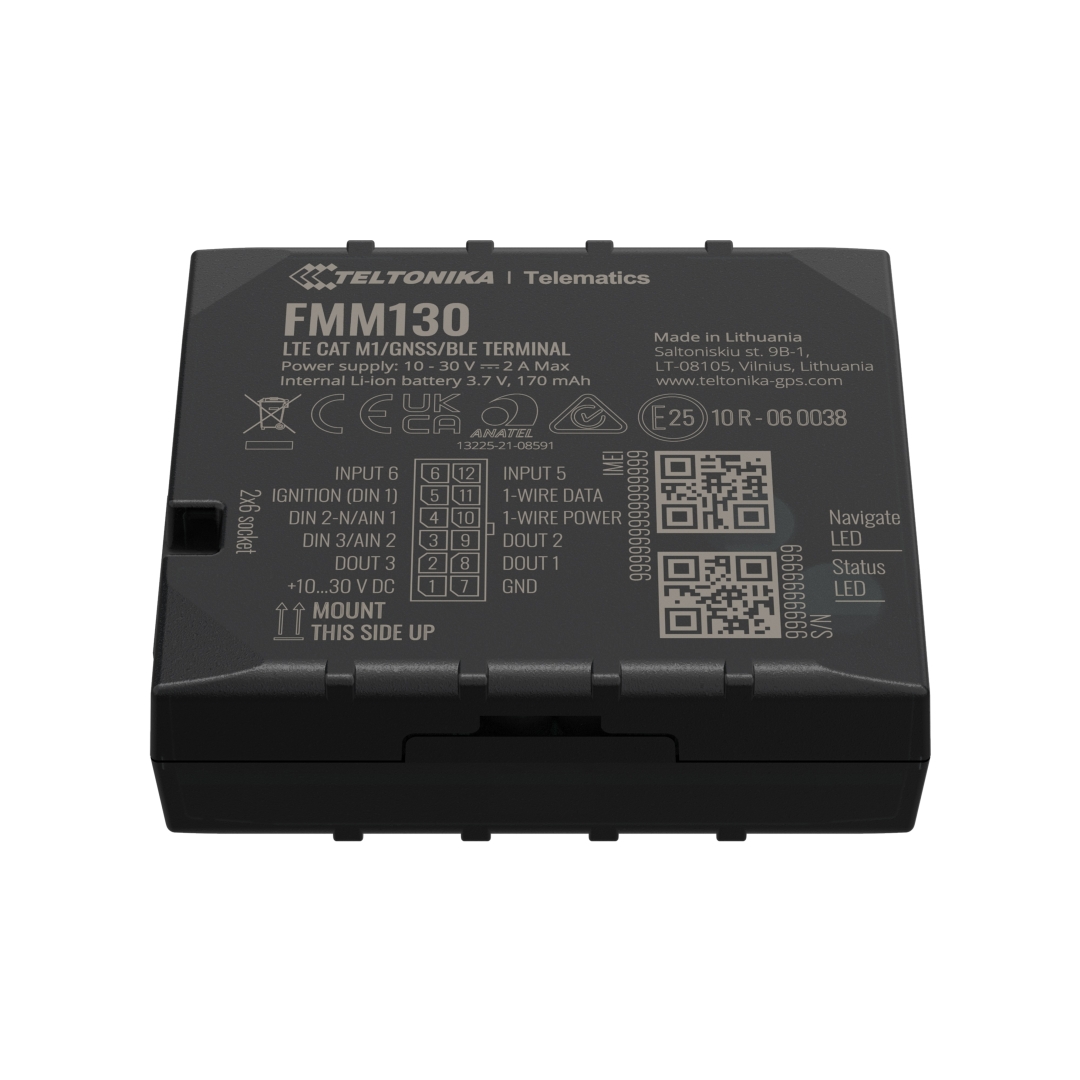

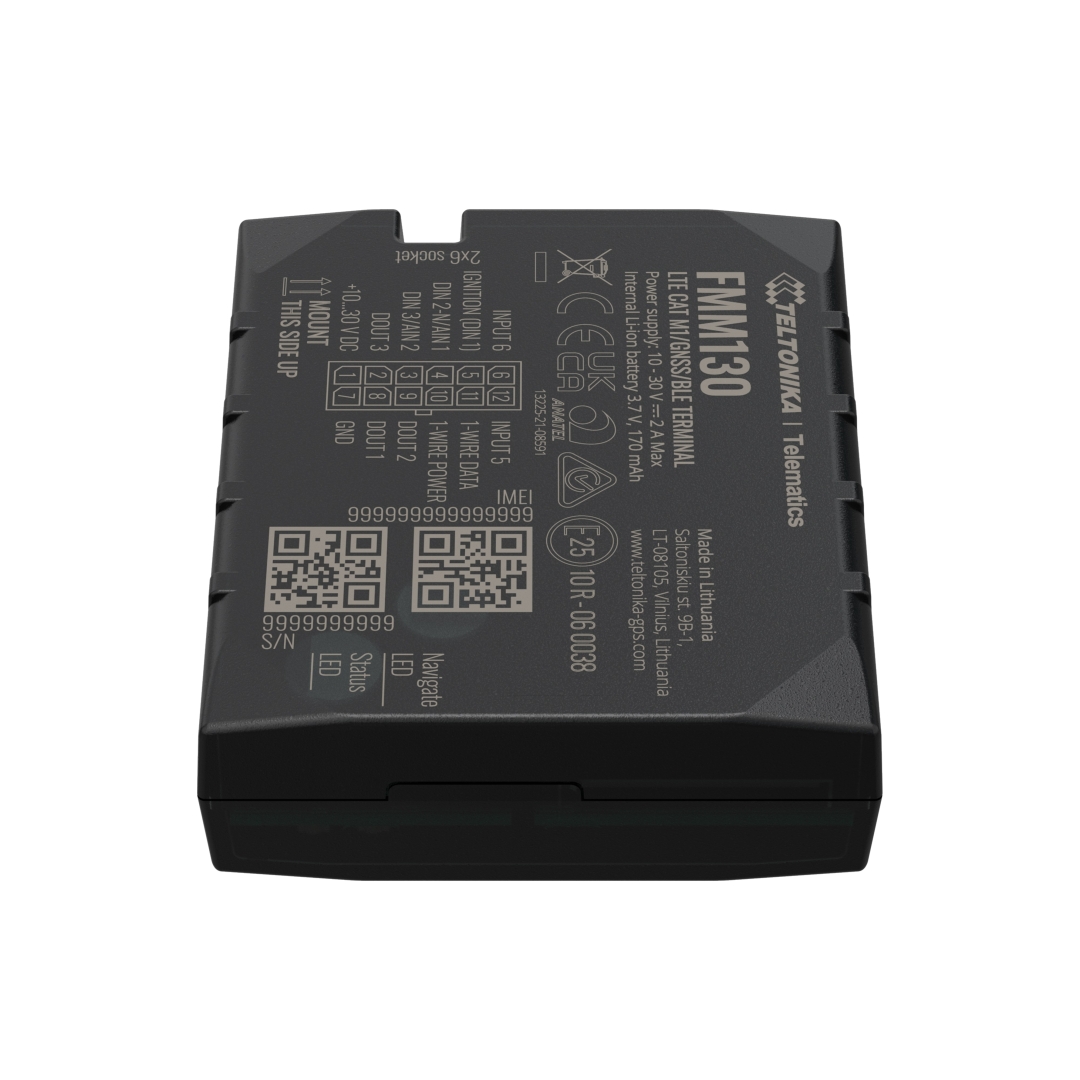

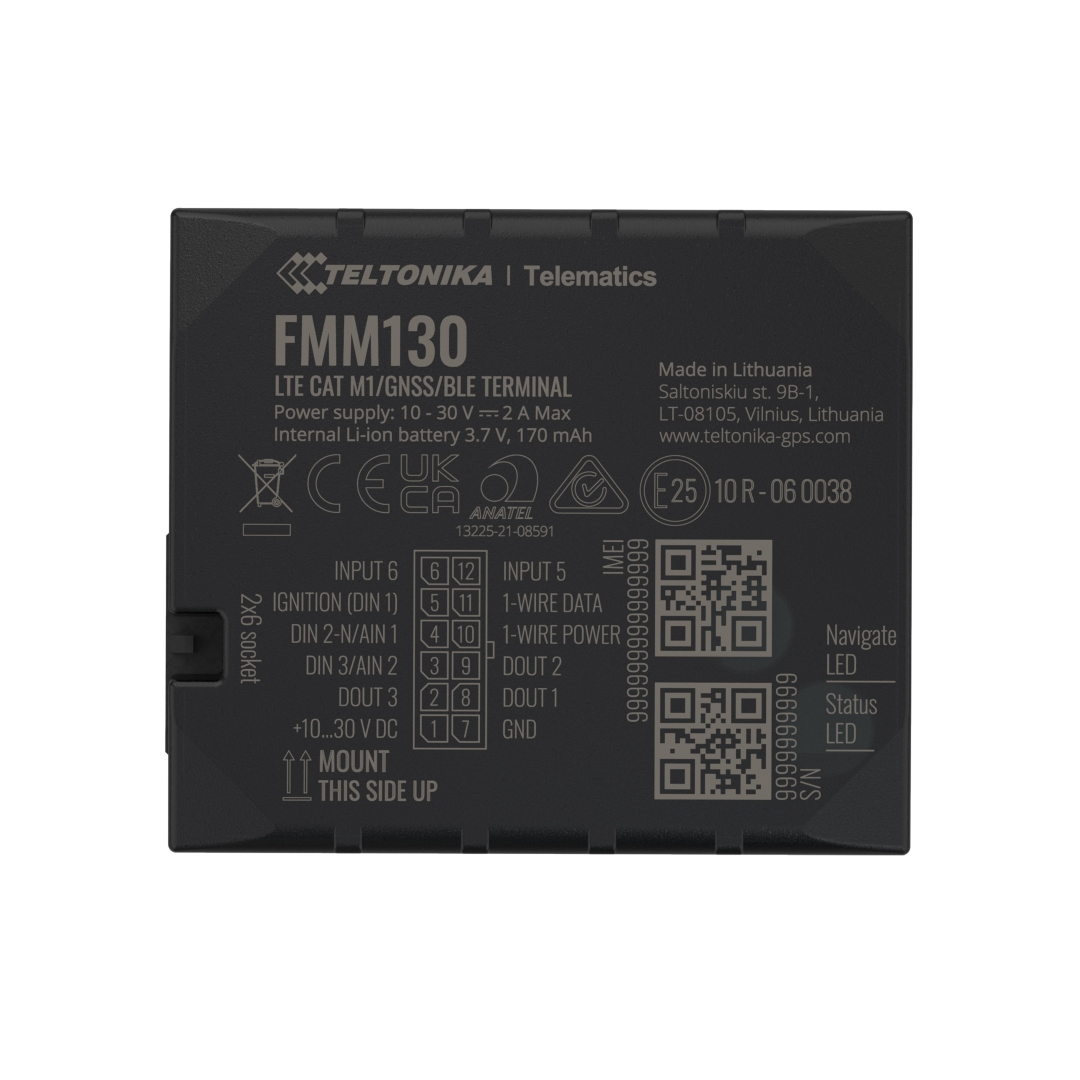

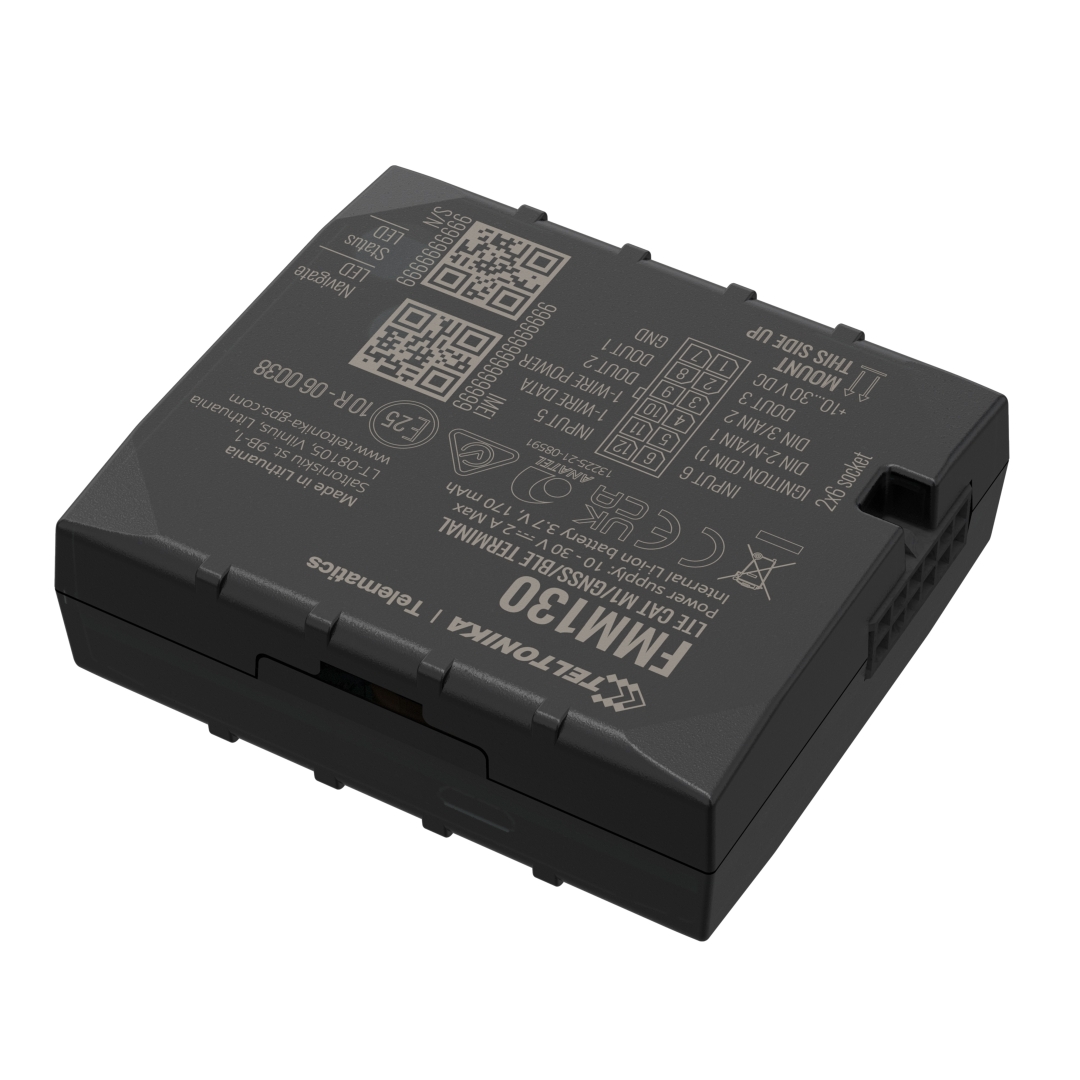

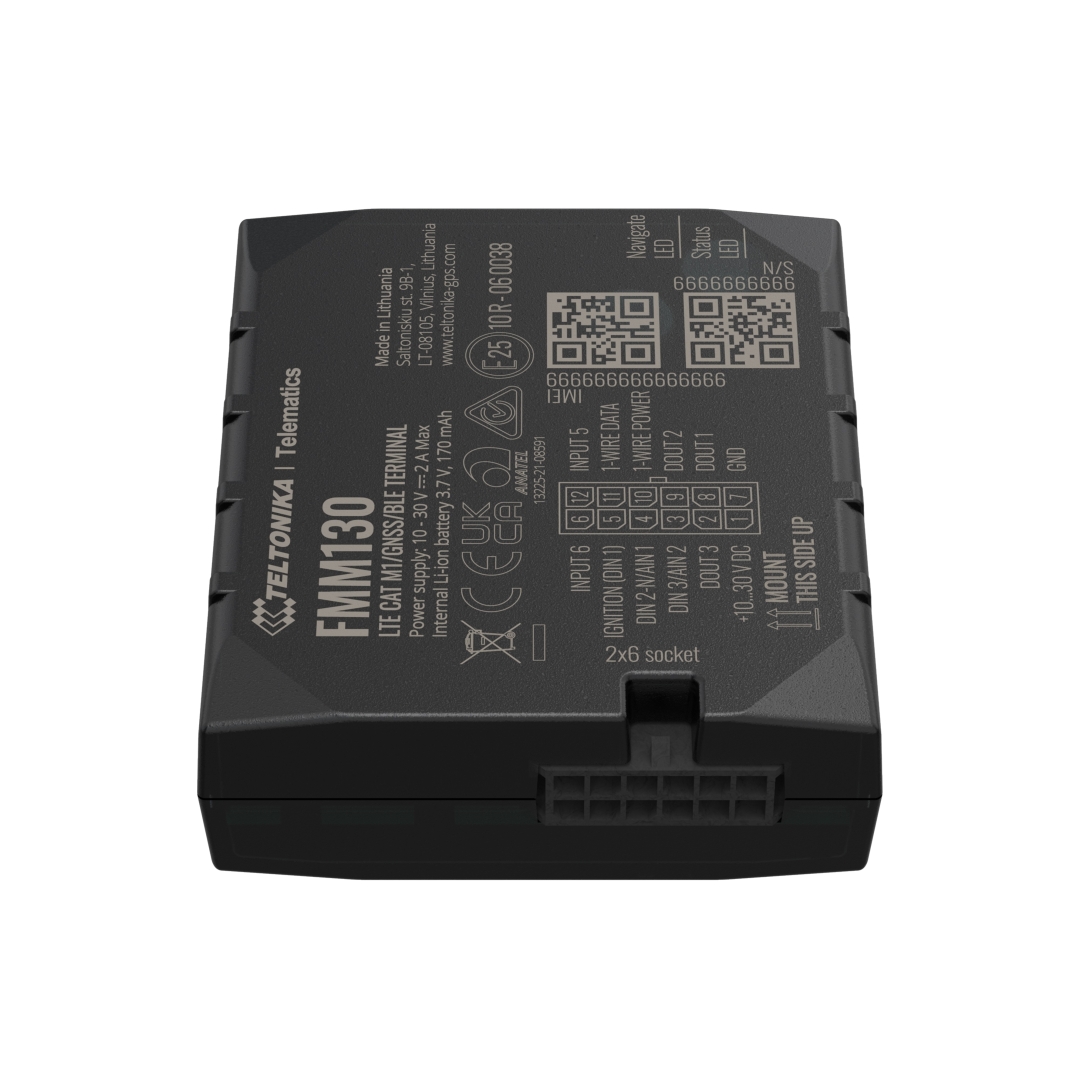

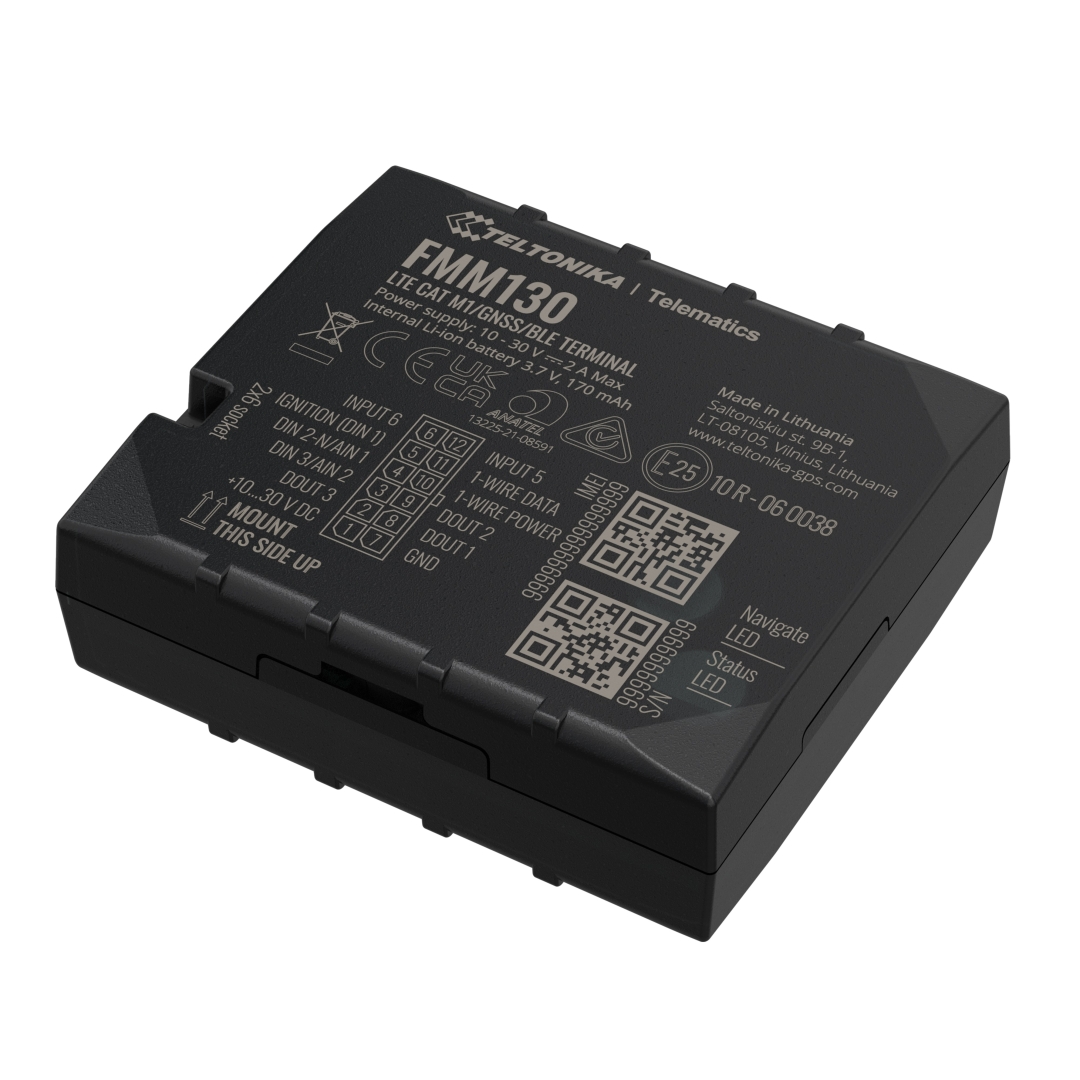

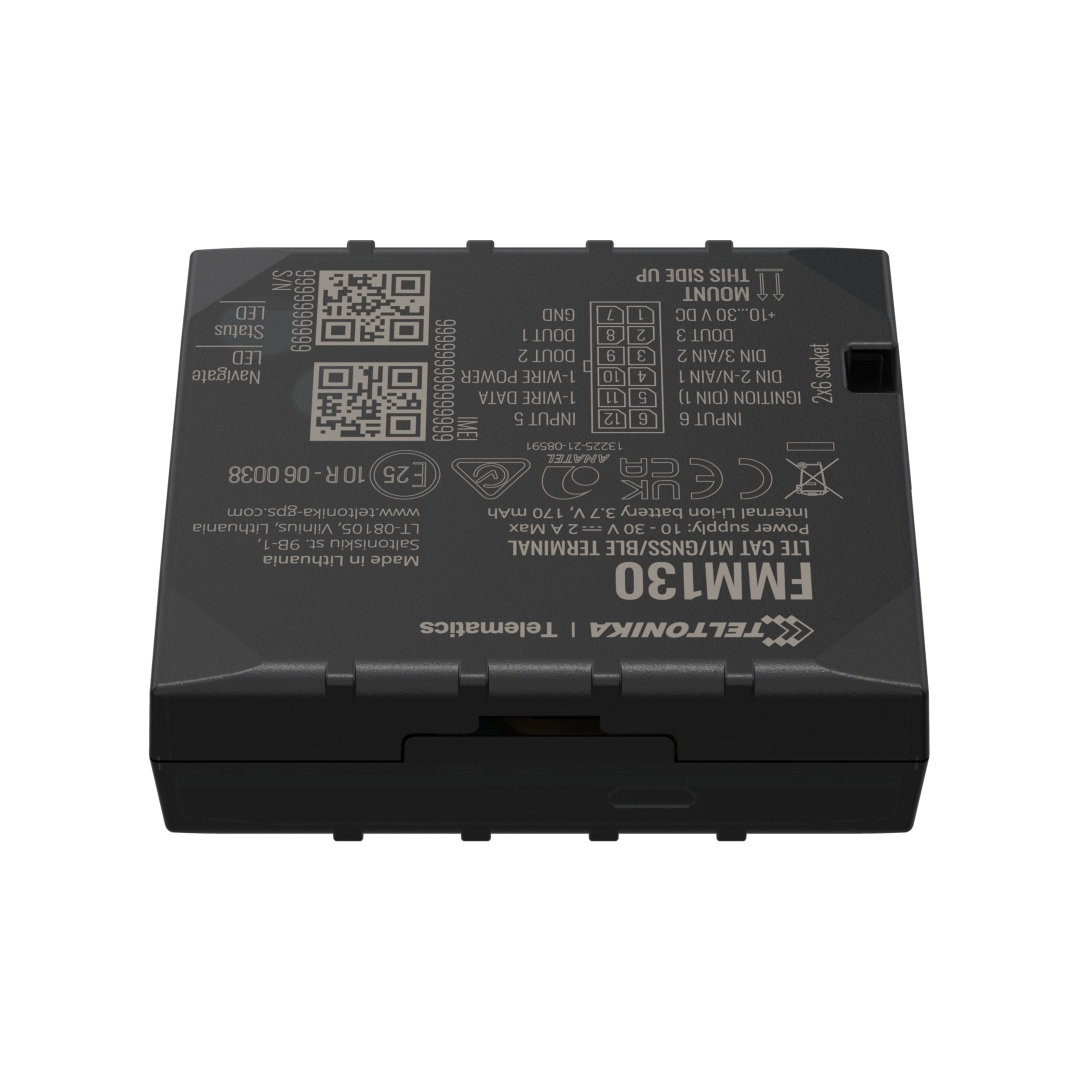

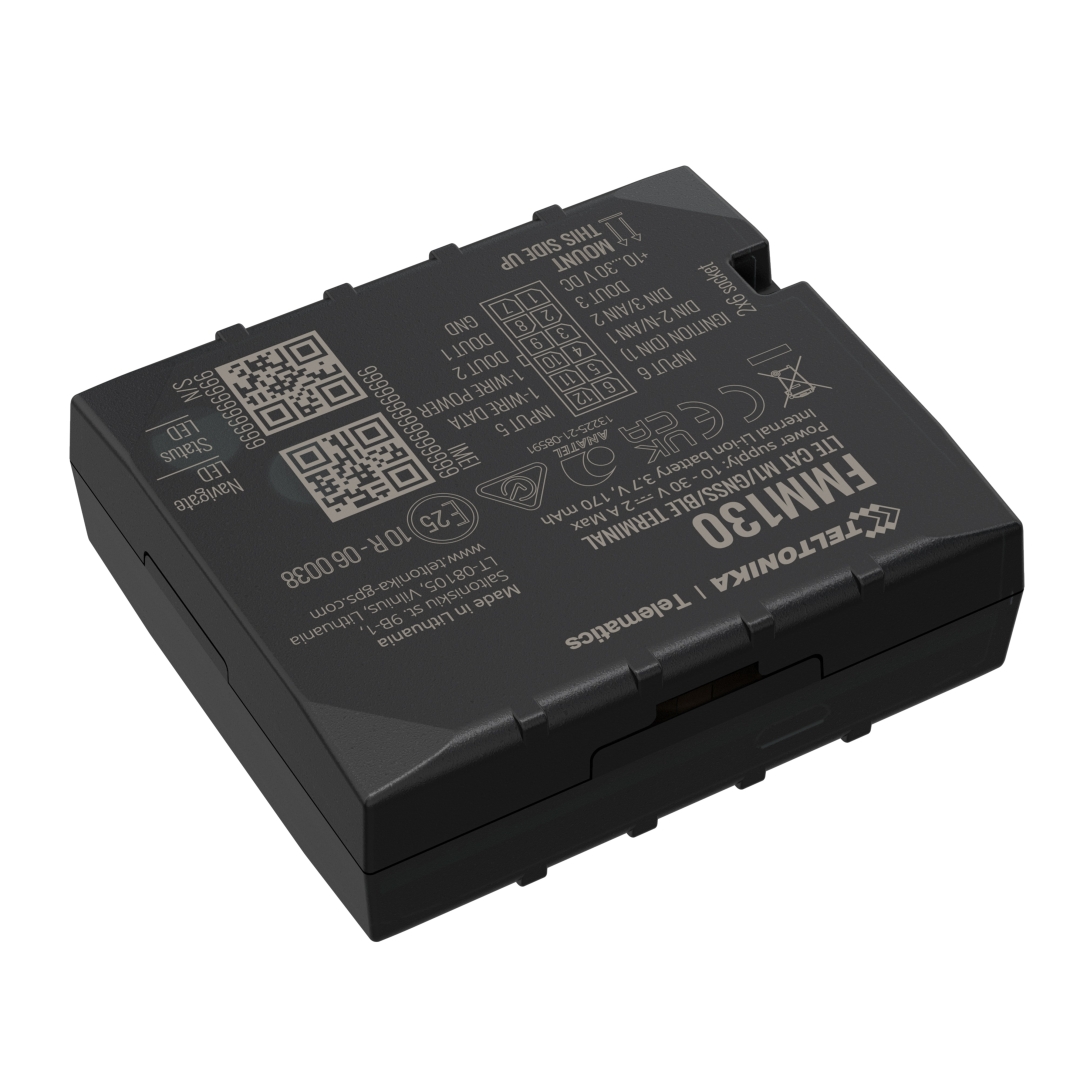

TELTONIKA Pažangus 4G LTE Cat M1 sekimo įrenginys su lanksčiomis prijungimo galimybėmis (FMM130)
OEM kodas:
FMM130
Kodas:
FMM130
ID:
#3602
EAN kodas:
4779027312347
Įrenginys palaiko tiek LTE M1, tiek NB IoT ryšį | Konfigūruojami DIN/AIN jungtys lanksčiam nuotoliniam stebėjimui ir valdymui | CAN duomenų nuskaitymas iš transporto priemonių ir specializuoto transporto (naudojant CAN adapterį) | Leidžia įrenginiui dirbti be išorinio maitinimo šaltinio | Neigiamas įvestis palengvins priedų diegimą | Impulsų įvestys kuro srautų matuoklių duomenų nuskaitymui
55.56€ su PVMKaina be PVM: 45.92€ |
Produkto savybės:
FMM130 yra kompaktiškas ir profesionalus realaus laiko sekimo terminalas su GNSS ir LTE CAT-M1/NB-IoT/GSM ryšiu bei atsargine baterija. Įrenginys aprūpintas GNSS/Bluetooth ir LTE CAT-M1/NB-IoT moduliais, su galimybe pereiti į 2G tinklą, vidinėmis GNSS ir LTE antenomis, konfigūruojamomis skaitmeninėmis, analoginėmis įvestimis ir skaitmeninėmis išvestimis, neigiamą įvestį, impulsų įvestimis. Jis puikiai tinka taikymams, kuriuose reikalingas nuotolinių objektų vietos nustatymas: transporto parkų valdymui, automobilių nuomos įmonėms, taksi įmonėms, viešajam transportui, logistikos įmonėms, asmeniniams automobiliams ir kt..
Produkto specifikacijos:
| MODULE | |
| Name | Quectel BG95-M3, Quectel BG96, Teltonika TM2500 |
| Technology | LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Velocity accuracy | <0.1m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE CAT M1/NB-IoT/GSM |
| 2G bands | BG95: B2/B3/B5/B8 BG96: B2/B3/B5/B8 |
| 4G bands | BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 BG96: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (for CAT M1 only) |
| Data transfer | BG95: LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL) BG96: LTE: Max. 375Kbps (DL)/Max.375Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL) |
| Transmit power | Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal fuse | 3 A, 125 V |
| Power consumption | At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 11 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 34 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak) |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 65 x 56.6 x 20.6 mm (L x W x H) |
| Weight | 55 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) |
-20 °C to +85 °C |
| Storage temperature (without battery) |
-20 °C to +85 °C |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
