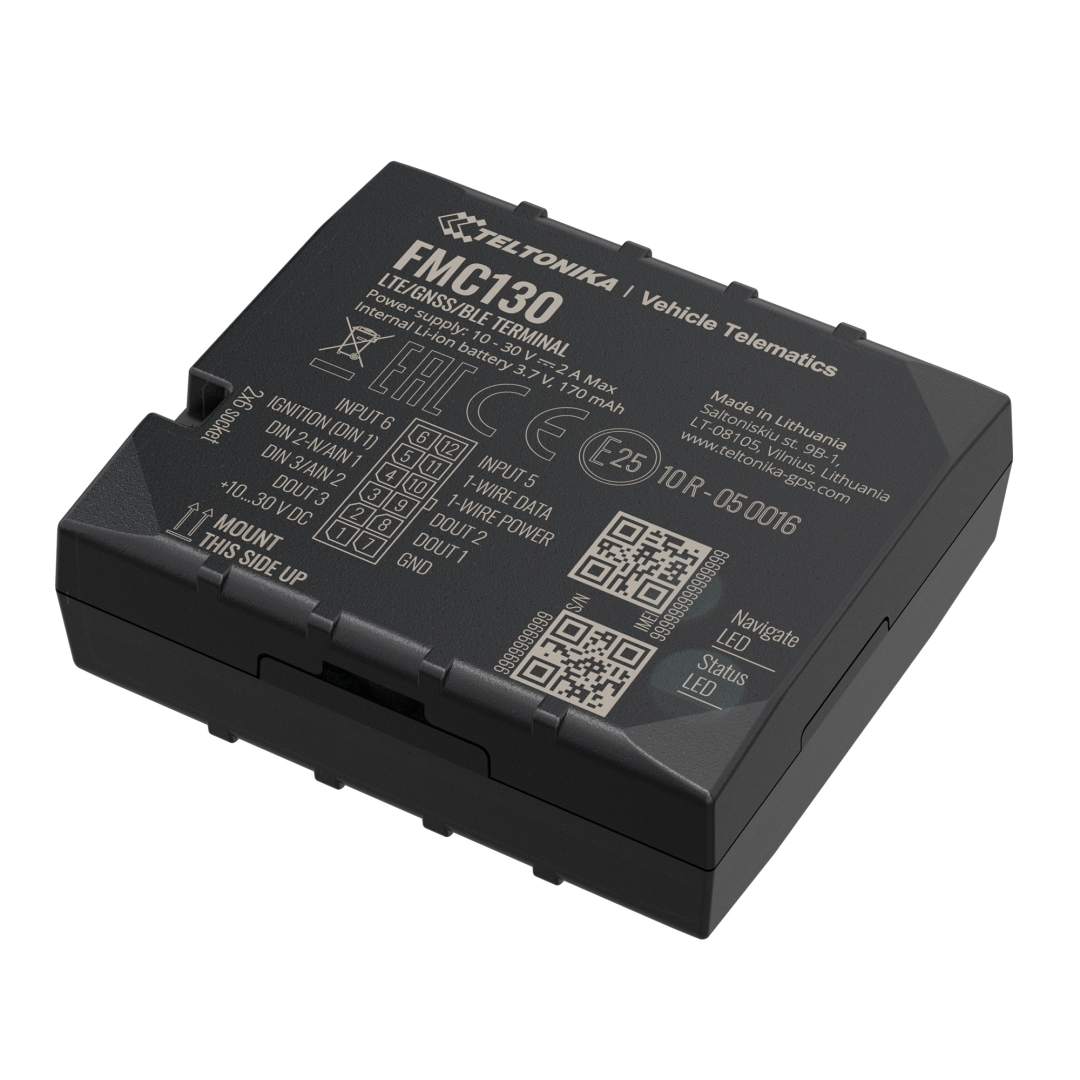

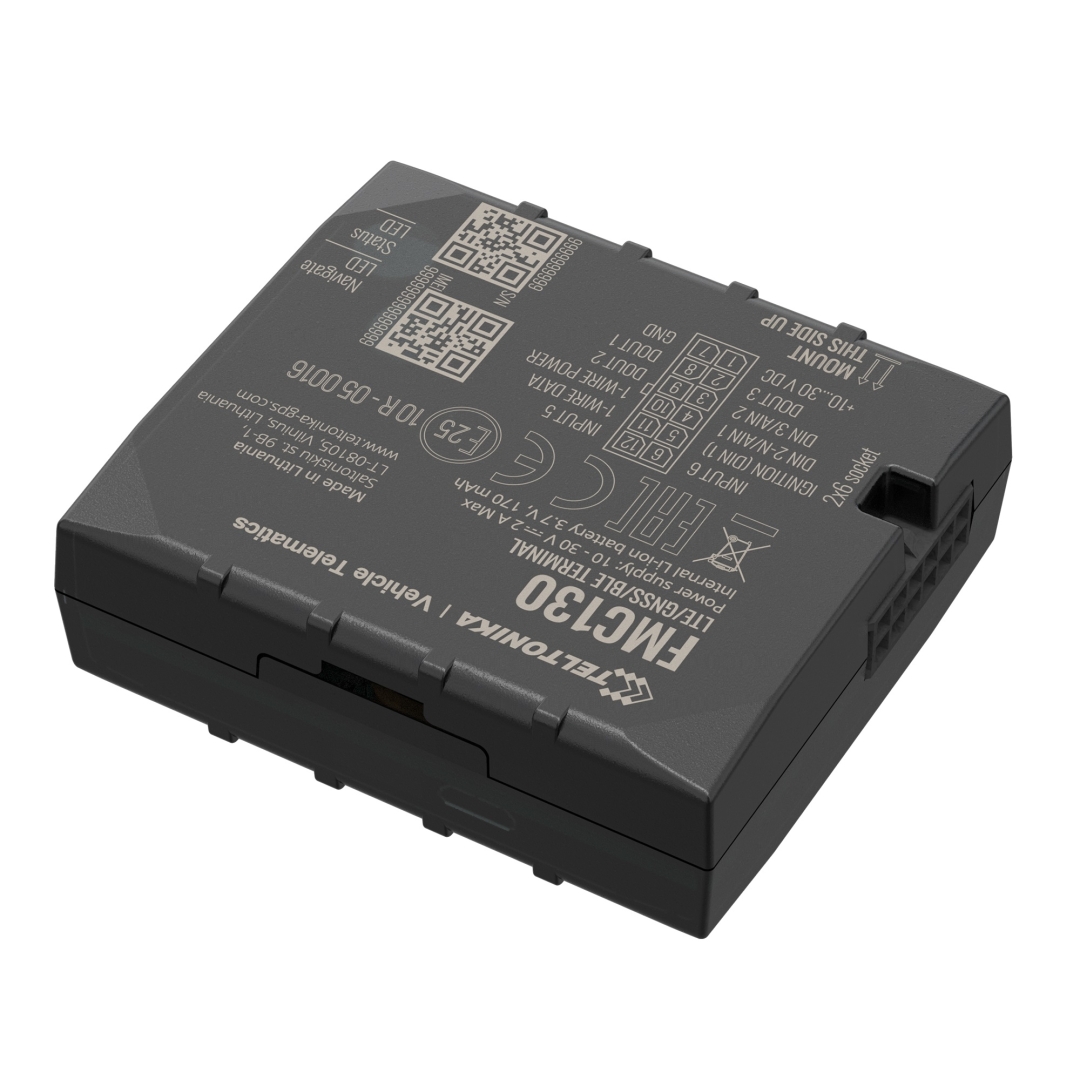

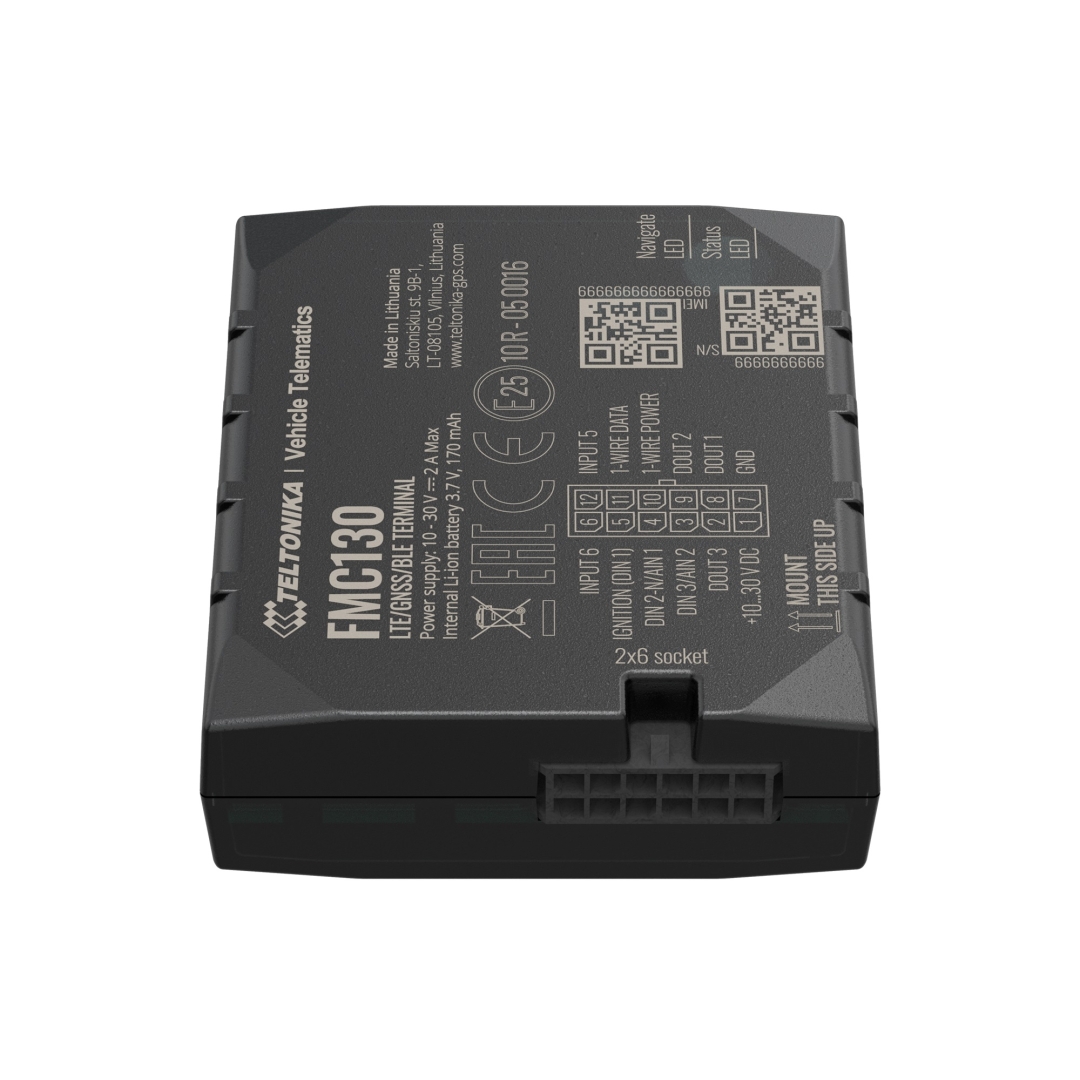

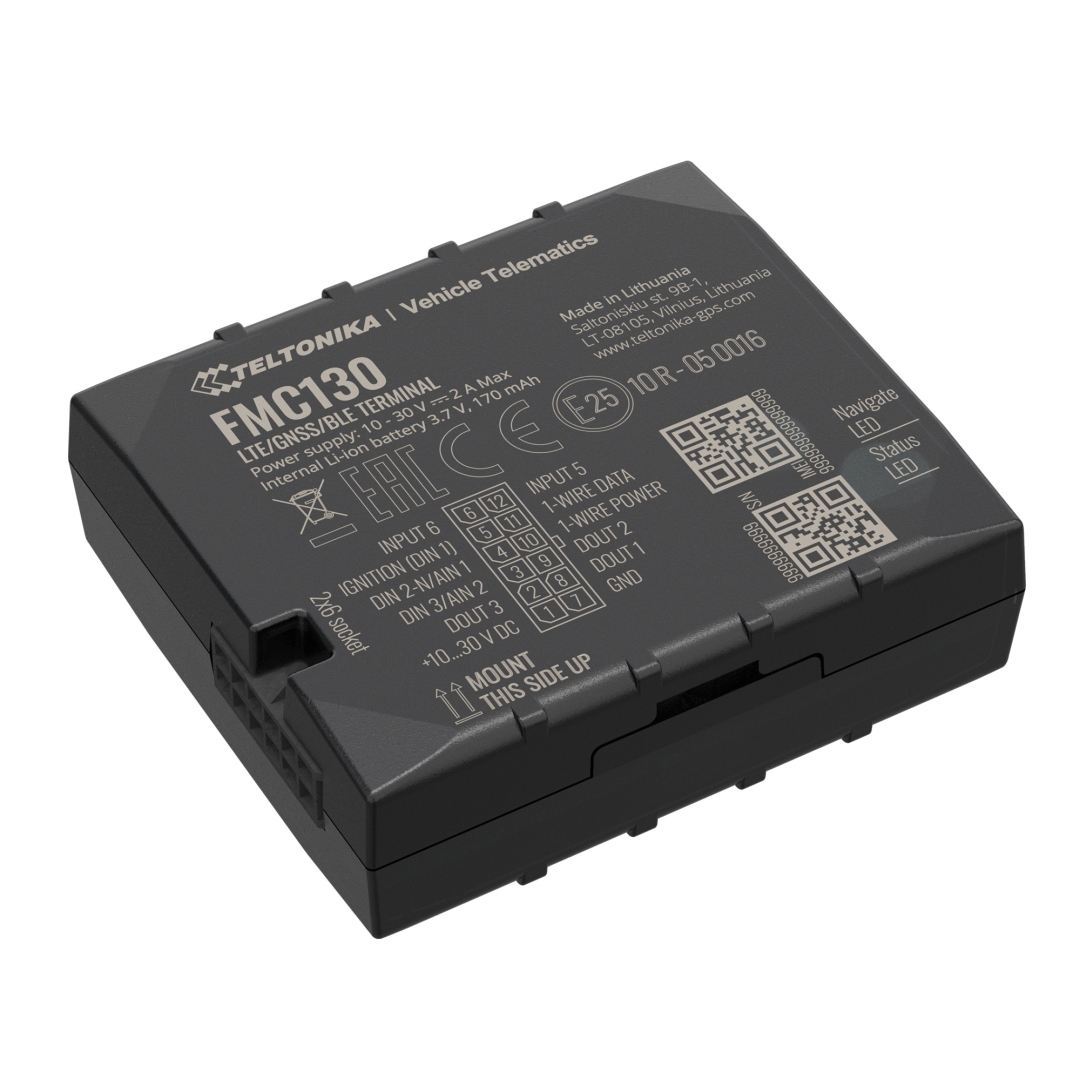

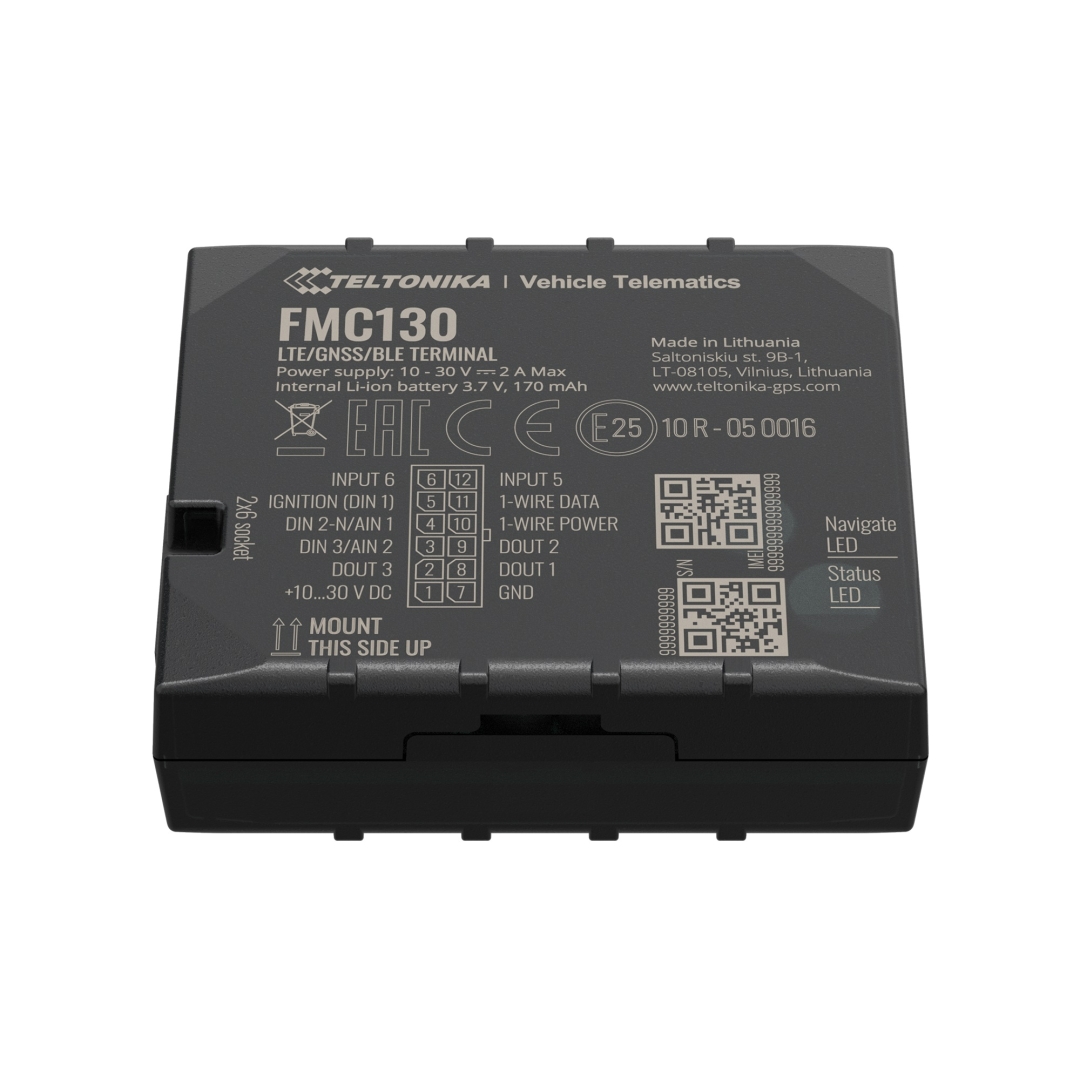

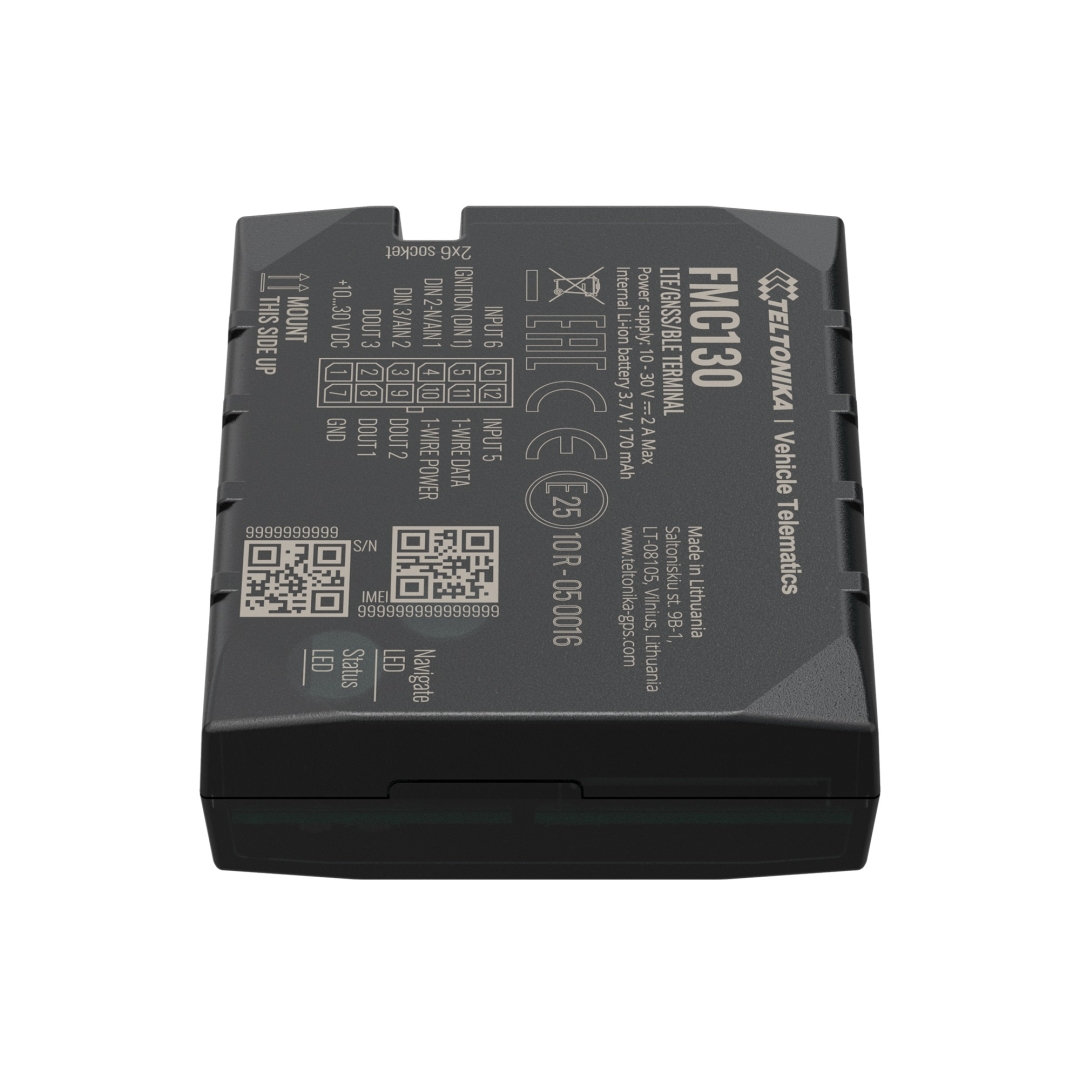

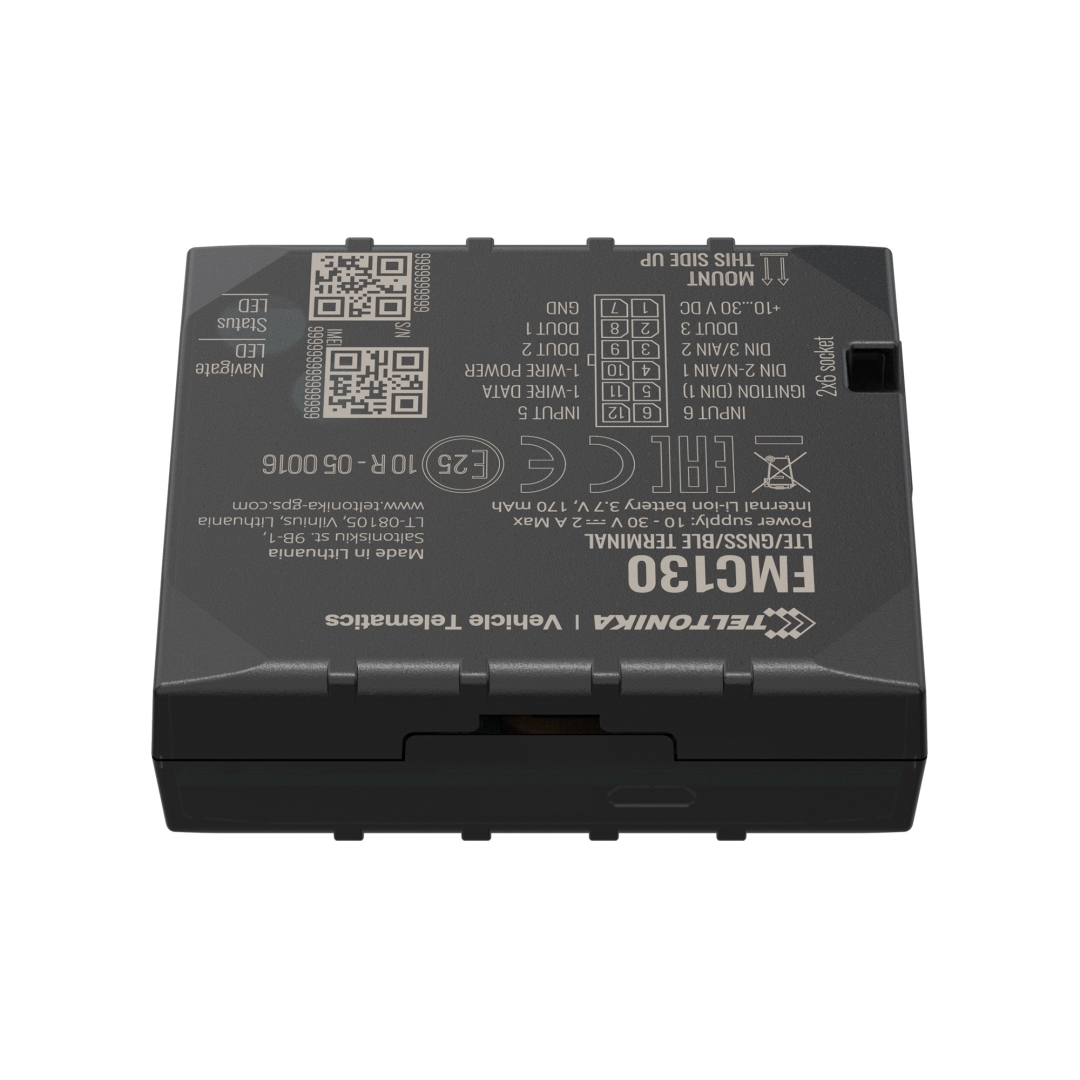

TELTONIKA Advanced LTE terminal with flexible inputs configuration (FMC130)

Kodas: FMC130
ID: #3036

Small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility

65.05€ su PVM

Kaina be PVM: 53.76€

Kiekis:


Produkto savybės:

Newly introduced FMC130 is a small ADVANCED series device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery.

FMC130 developed on the existing Teltonika FMB platform, therefore it keeps all of the functionalities from FMB130 and builds on top of them with its industry-leading connectivity coverage.

For starters, FMC130 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC130 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Programmable inputs, 3 different configurable DOUT scenarios (immobilizer, buzzer, alarm lights, door lock and other scenarios) together with 4G (LTE Cat 1) compatibility including the 3G (UMTS) and 2G (GSM) fallback compatibility make this one of our most flexible devices ever.

Produkto specifikacijos:

MODULE
Name Quectel EC21-AU, Quectel EC21-EC, Teltonika TM2500
Technology LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology LTE Cat 1, UMTS, GSM
2G bands EC21-AU:GSM: B2/B3/B5/B8
EC21-EC:GSM: B3/B8
3G bands EC21-AU:WCDMA: B1/B2/B5/B8
EC21-EC:WCDMA: B1/B8
4G bands EC21-AU:LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
EC21-EC:LTE FDD: B1/B3/B7/B8/B20/B28A
Data transfer LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)
UMTS:WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM:GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter inputs 1
1-Wire 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Package contains

  • FMC130 tracker
  • Input/output power supply cable (0.9 m)
