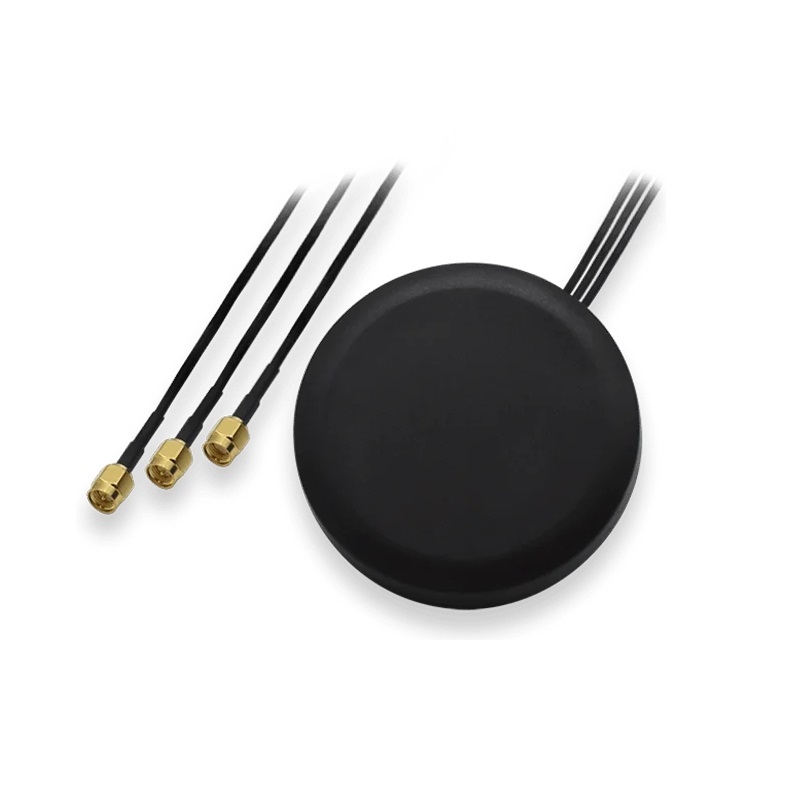

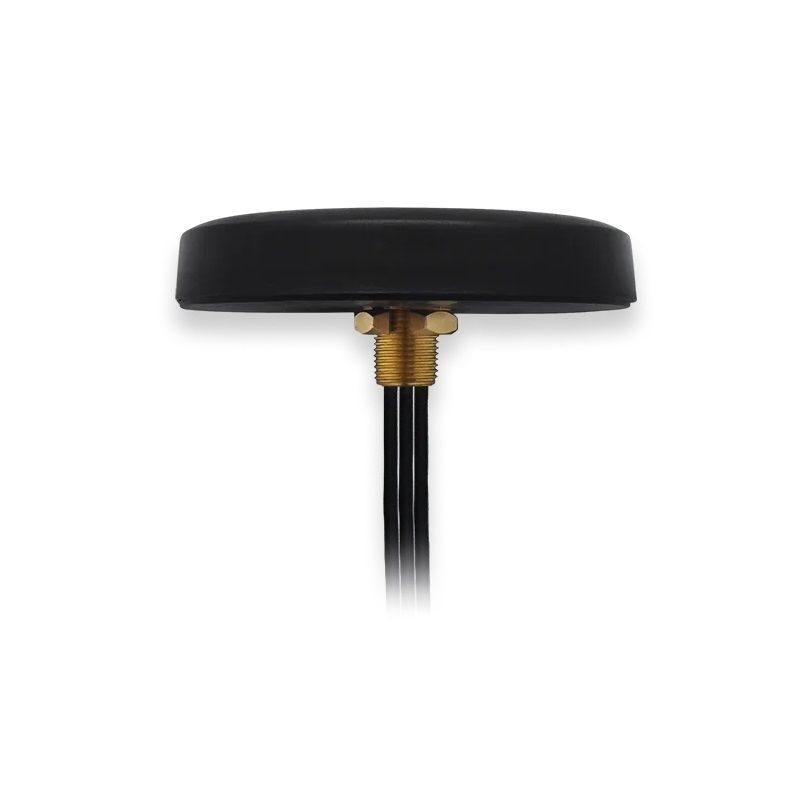

TELTONIKA COMBO SISO Mobile/GNSS/WiFi ROOF SMA Antenna (003R-00254)

OEM kodas: 003R-00254
Kodas: 003R-00254
ID: #1686

All-in-One: 28 dB gain GNSS, 3.5 dBi gain LTE and 2.5 dBi gain WiFi waterproof antenna

23.81€ su PVM

Kaina be PVM: 19.68€

  Turime sandėlyje
Kiekis:


Produkto savybės:

Compatible with RUTX09, RUT230, RUT240, RUT900, RUT950, RUT955 and some other Teltonika products

Produkto specifikacijos:

GNSS Antenna

Frequency Range: 1575.42-1610 MHz
Polarization: RHCP
Impedance: 50 Ω
LNA Gain: 28 dB
LNA Noise Figure: < 1.5 dB
Supply Voltage: 2.7-5 ±0.5 VDC
Current Consumption: < 15 mA
LNA V.S.W.R: <1.65
Connector: SMA Male

LTE Antenna

Frequency Range: 850/900/1800/1900/2170 MHz
Bandwidth/: ±90/280 MHz
Polarization: Vertical
Gain: 3.5 dBi
V.S.W.R: <1.5:1
Impedance: 50 Ω
Connector: SMA Male

WiFi Antenna

Frequency Range: 2350-2500 MHz
Bandwidth: ±100 MHz
Polarization: Vertical
Gain: 2.5 dBi
V.S.W.R: <1.5:1
Impedance: 50 Ω
Connector: RP SMA Male

Mechanical/Environmental

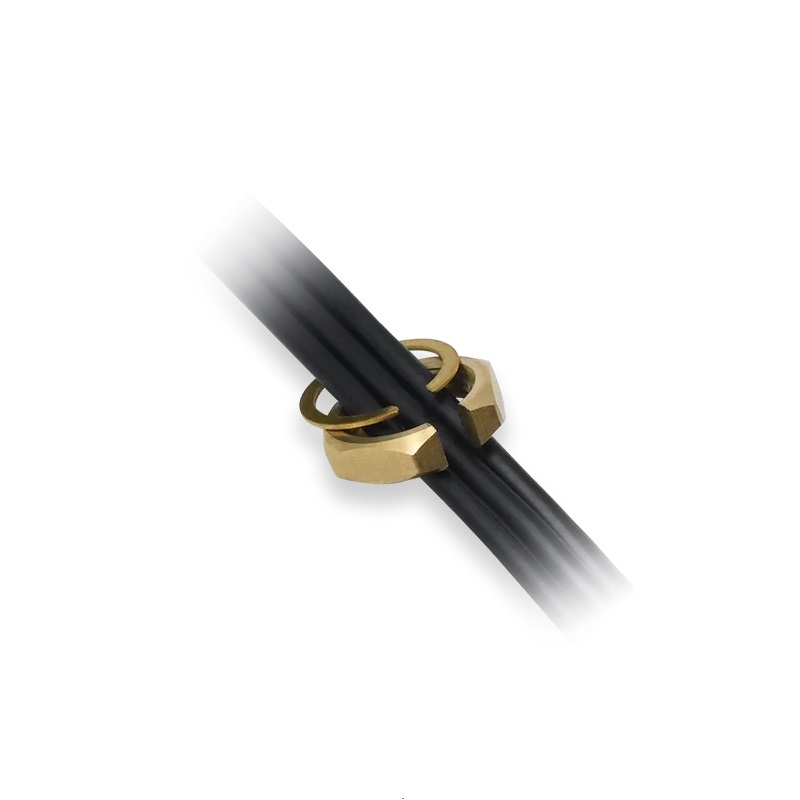

Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <250g
Housing Dimensions: Ø 80x15 mm
Cable: 3x RG174, 3000 mm
RoHS Compliant: Yes

Papildoma informacija apie produktą:

Link to manufacturer product page
Datasheet
