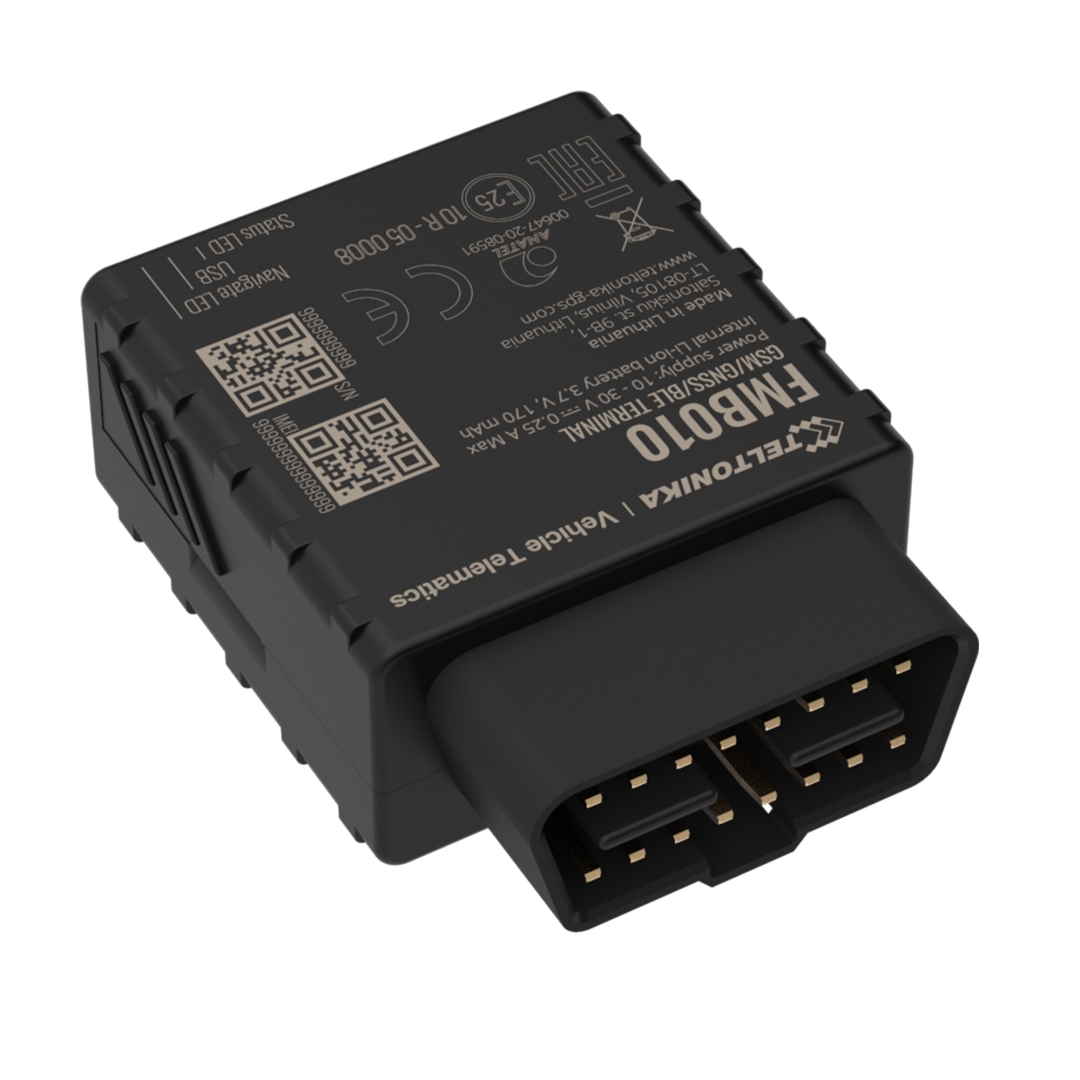

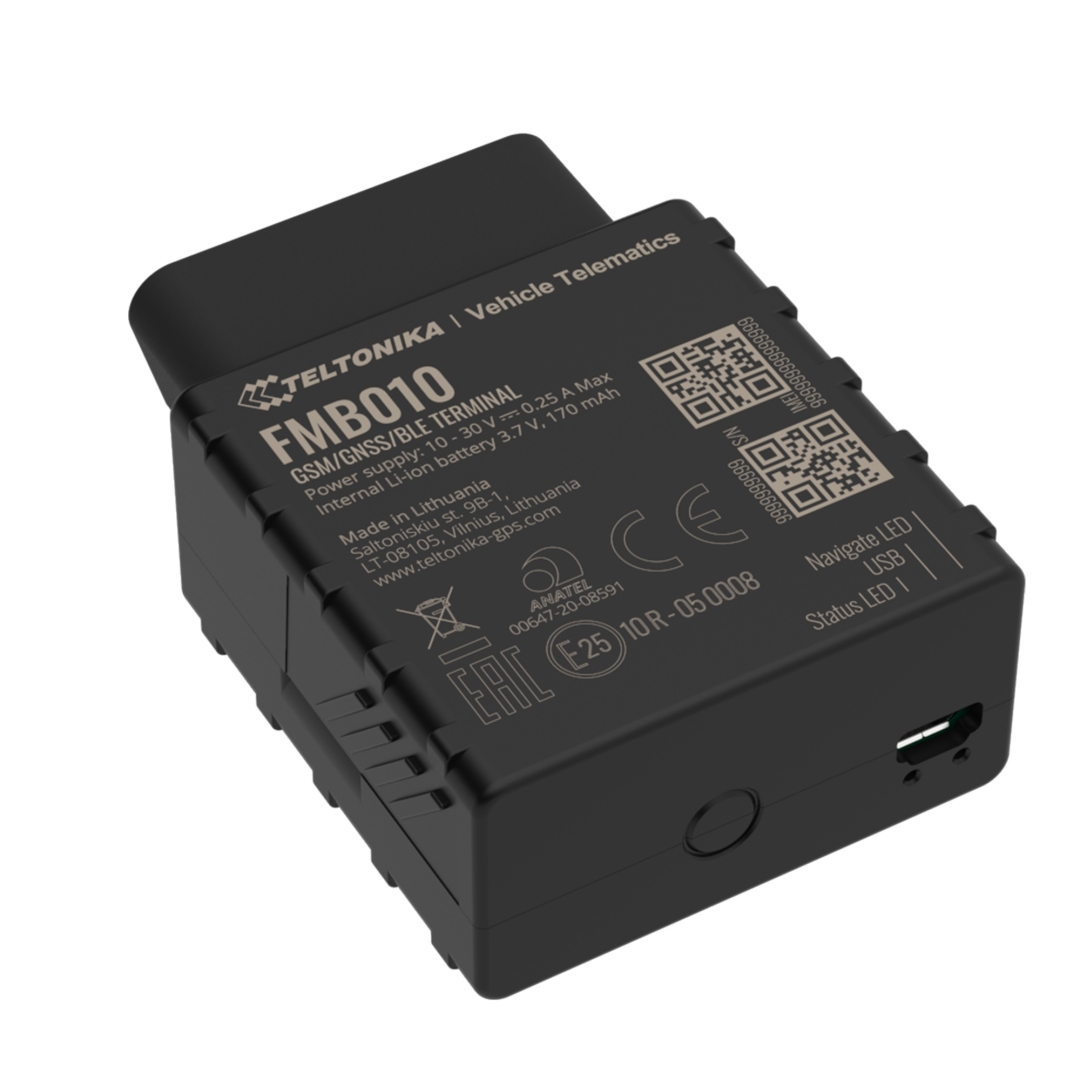

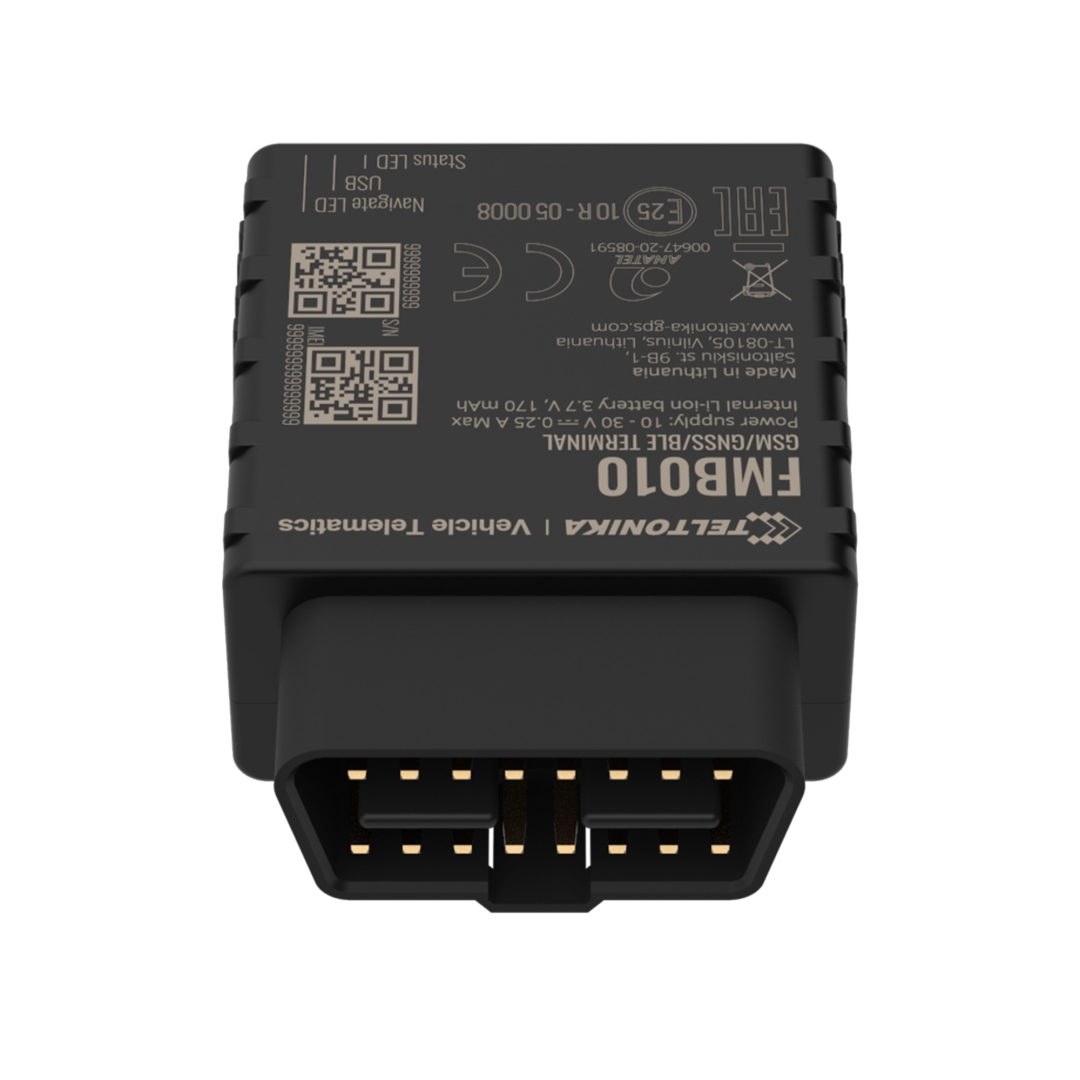

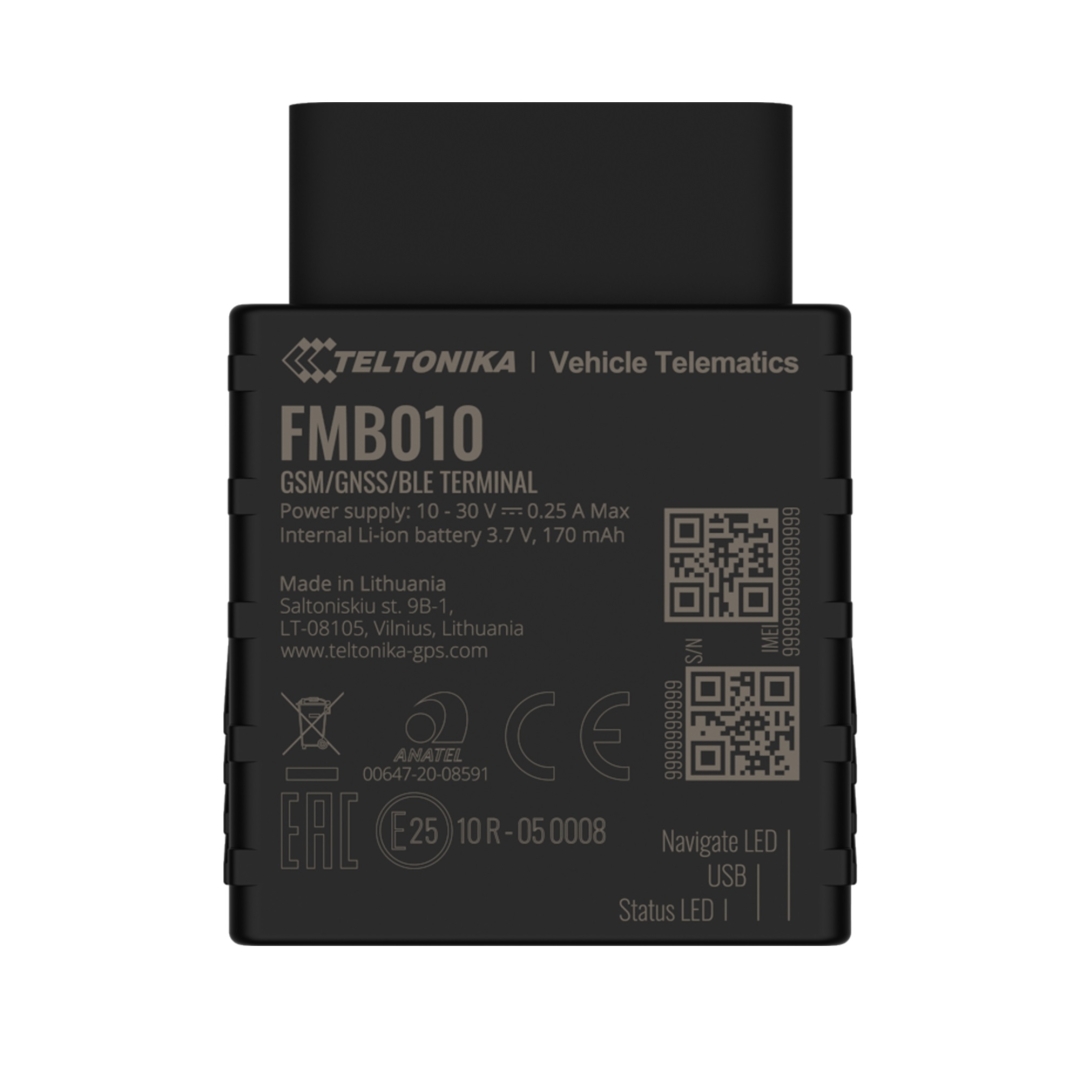

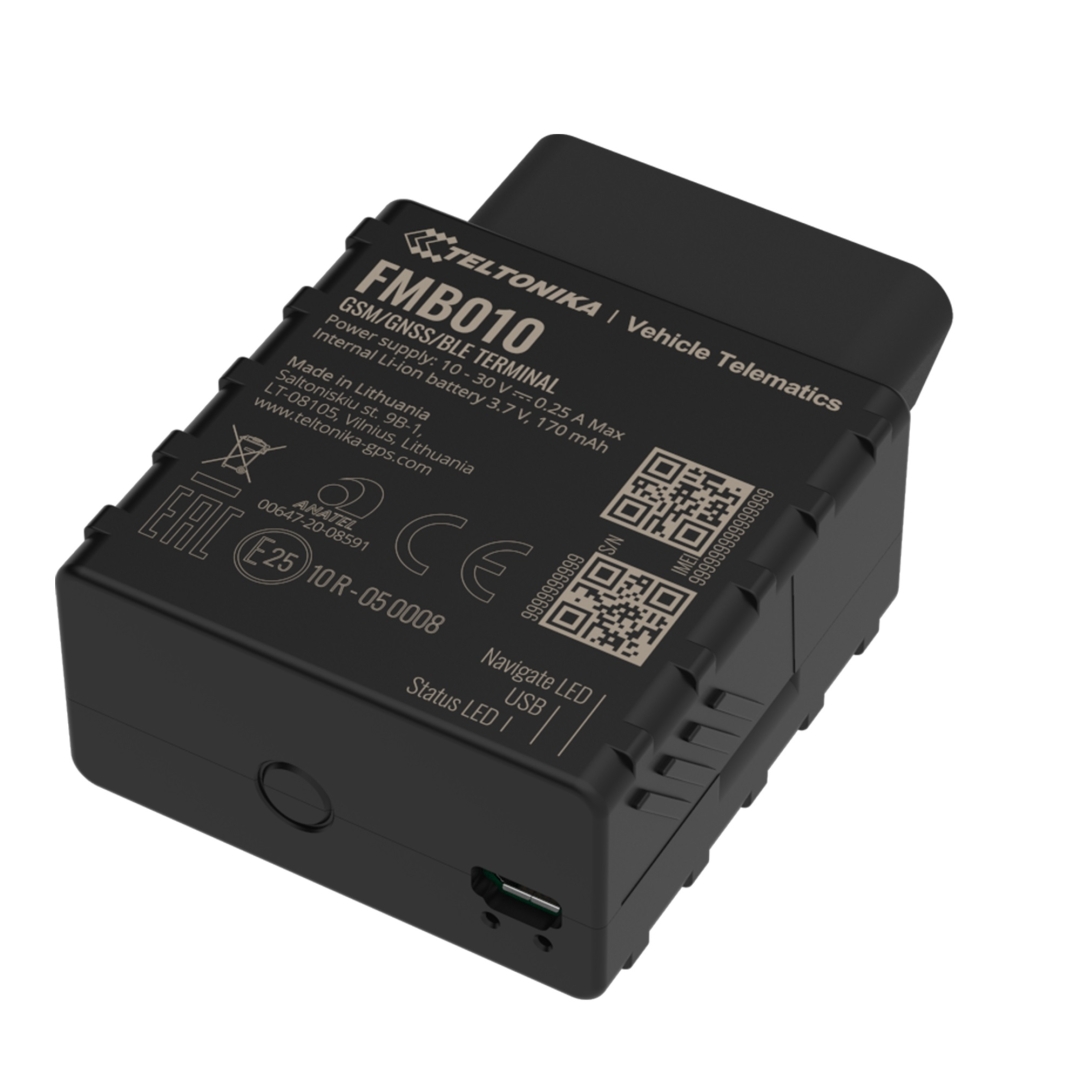

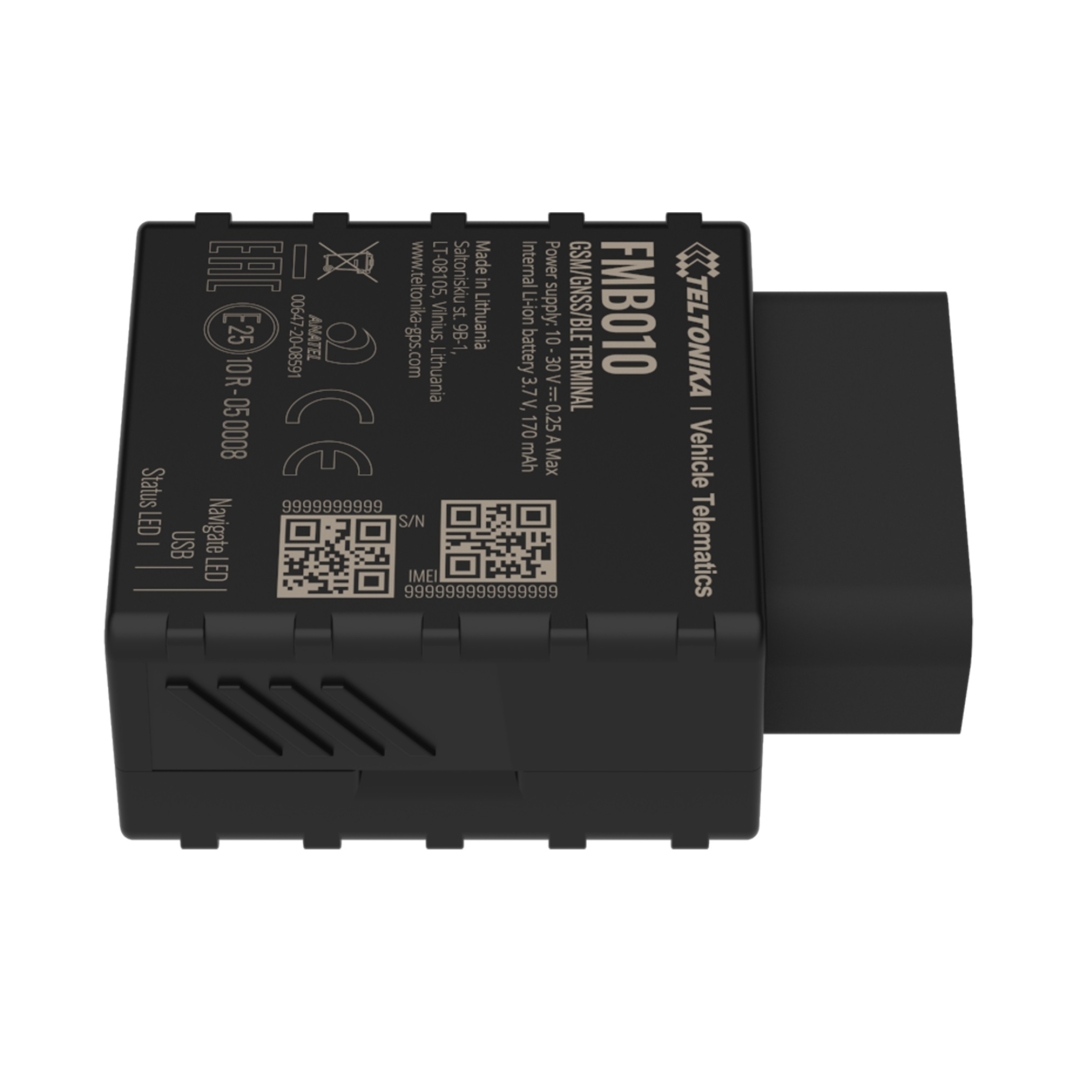

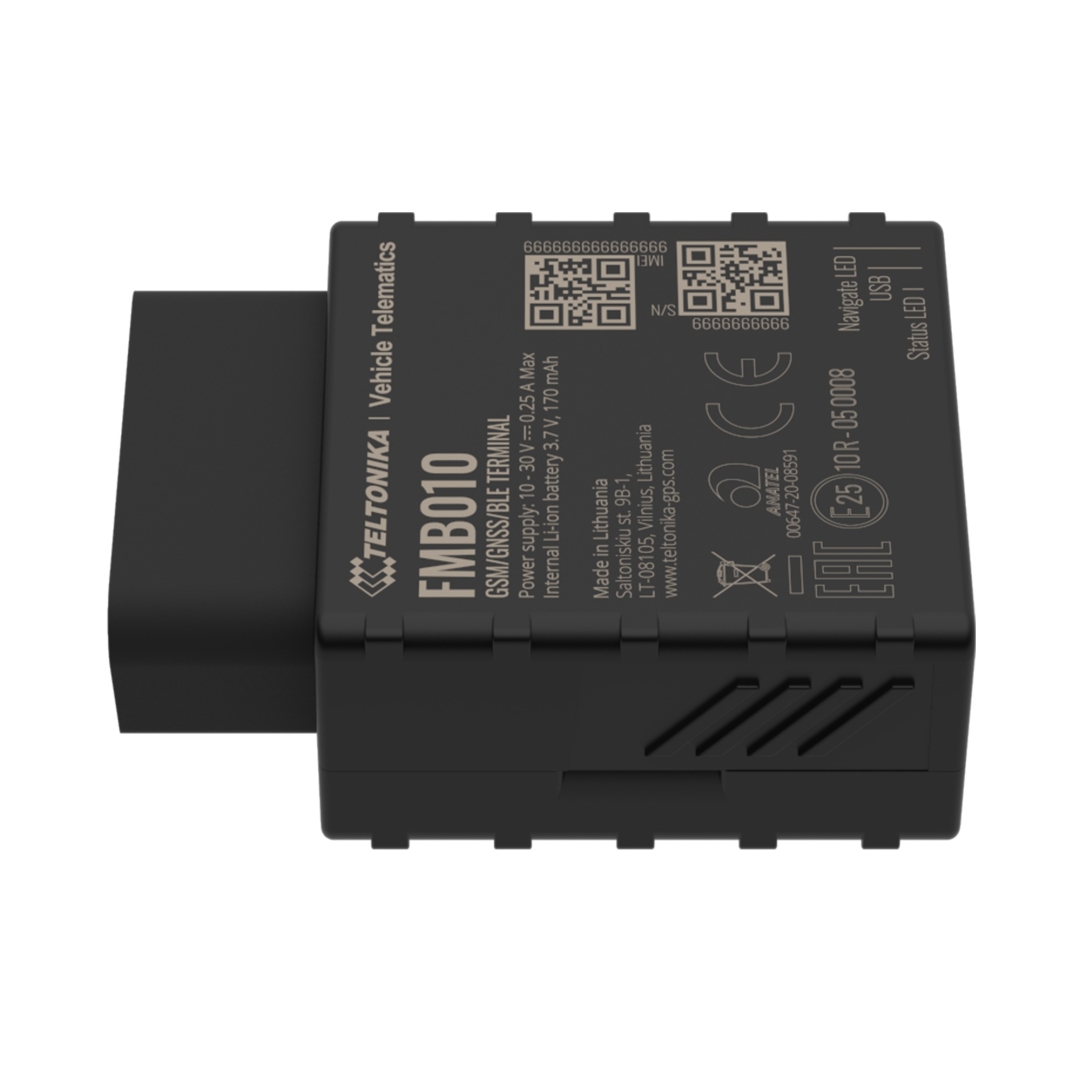

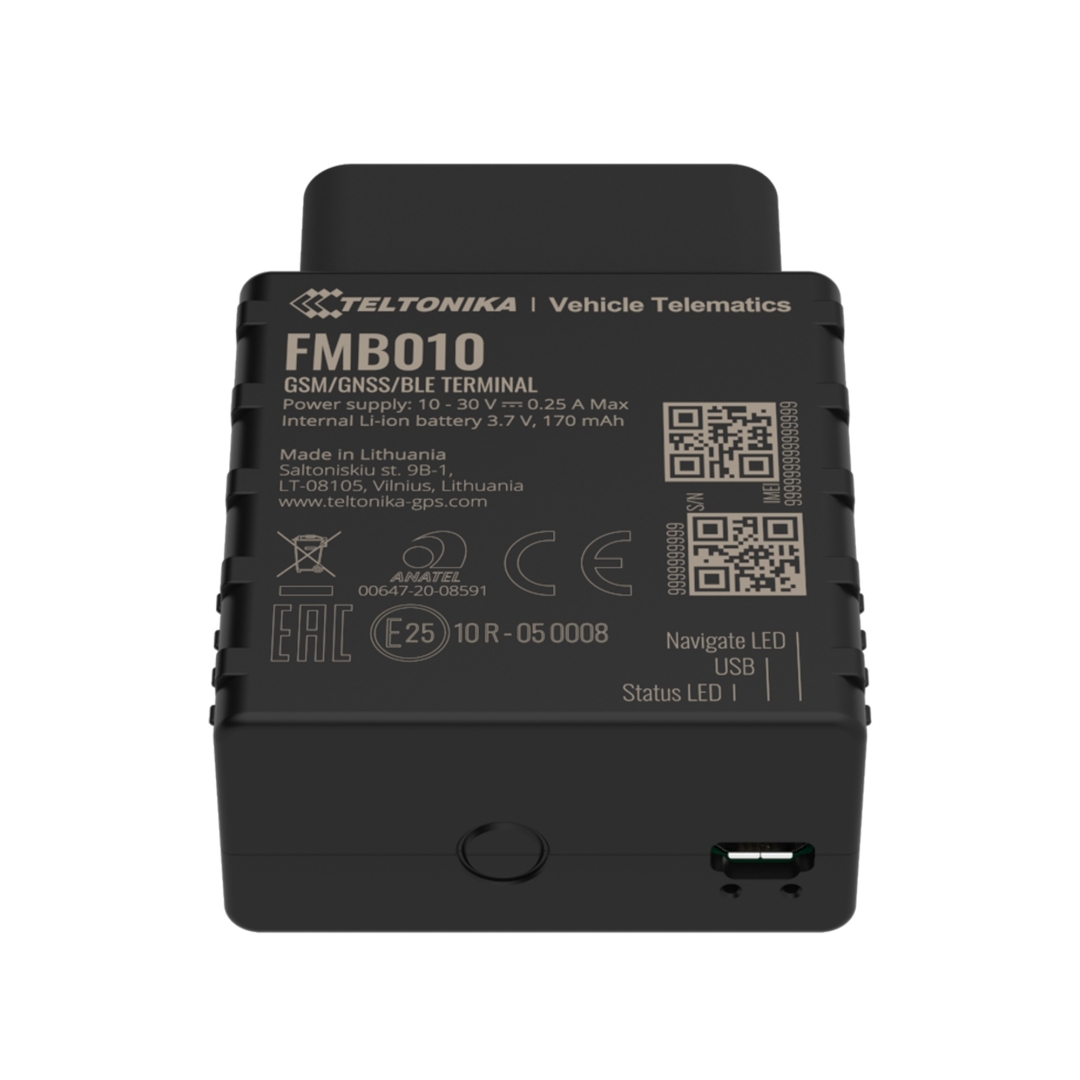

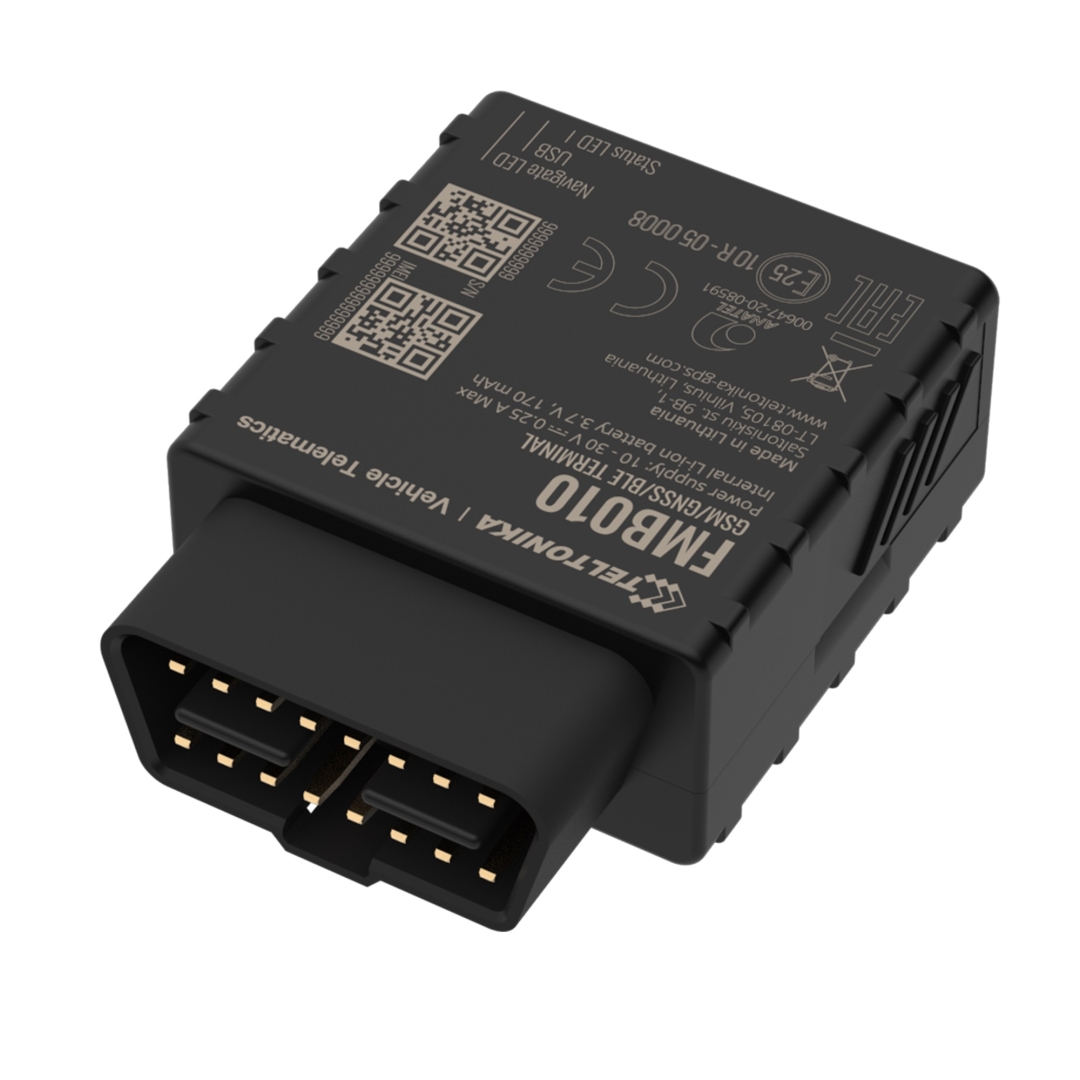

TELTONIKA 2G, OBDII „Plug & Play“ tipo sekimo įrenginys su atsargine baterija ir su GNSS, GSM, Bluetooth ryšio galimybėmis (FMB010)
OEM kodas:
FMB010H0HG01
Kodas:
FMB010
ID:
#2365
EAN kodas:
4779027311722
Įrenginys veikia be išorinio maitinimo šaltinio | Papildoma Baterija 170 mAh | Avarijos aptikimo funkcionalumas, veikiantis pagal akselerometro duomenis | Bluetooth LE ryšys išorinėms įrenginiams ir žemos energijos jutikliams | Leidžia skaityti CAN duomenų magistralės duomenis iš transporto priemonės ECU
36.59€ su PVMKaina be PVM: 30.24€ |
Produkto savybės:
FMB010 yra lengvai naudojamas OBDII "Plug and Play" sekiklis su GNSS, GSM ir „Bluetooth“ ryšio galimybėmis. FMB010 puikiai tinka lengvųjų transporto priemonių sekimui tokioms programoms kaip kurjerių pristatymo paslaugos, automobilių nuoma ir leasingas, draudimo telematika ir daugelis kitų, kur reikalingas paprastas integravimas. Šis įrenginys palaiko temperatūros/drėgmės jutiklius, laisvų rankų įrangą, programinės įrangos ir konfigūracijos atnaujinimus per „Bluetooth“.
Produkto specifikacijos:
| MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 1 |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 50,7 x 49,6 x 25 mm (L x W x H) |
| Weight | 63 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -25 °C to +55 °C |
| Storage temperature (without battery) | -40 °C to +70 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |
