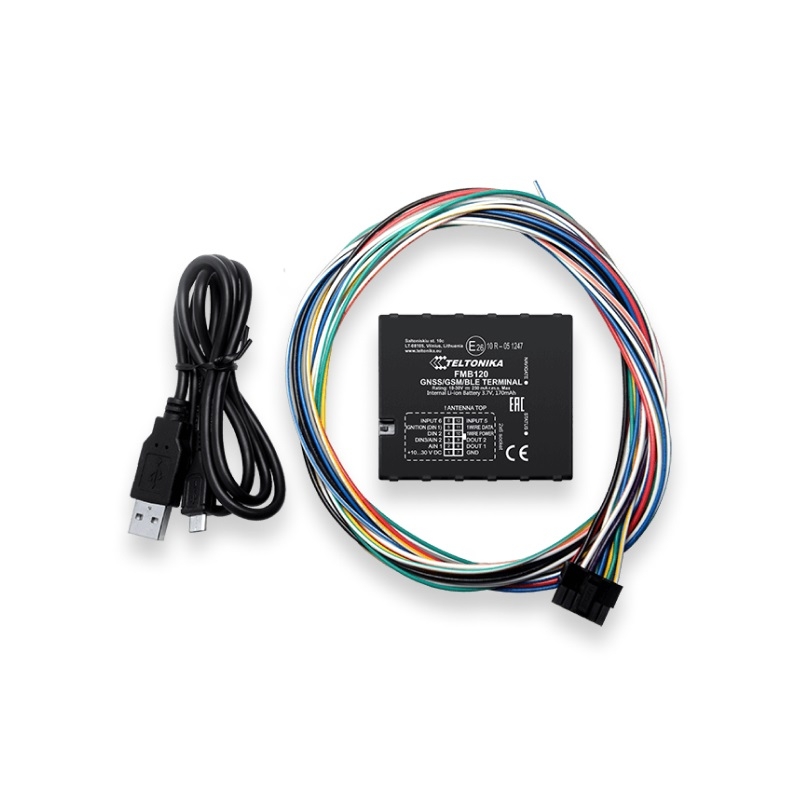

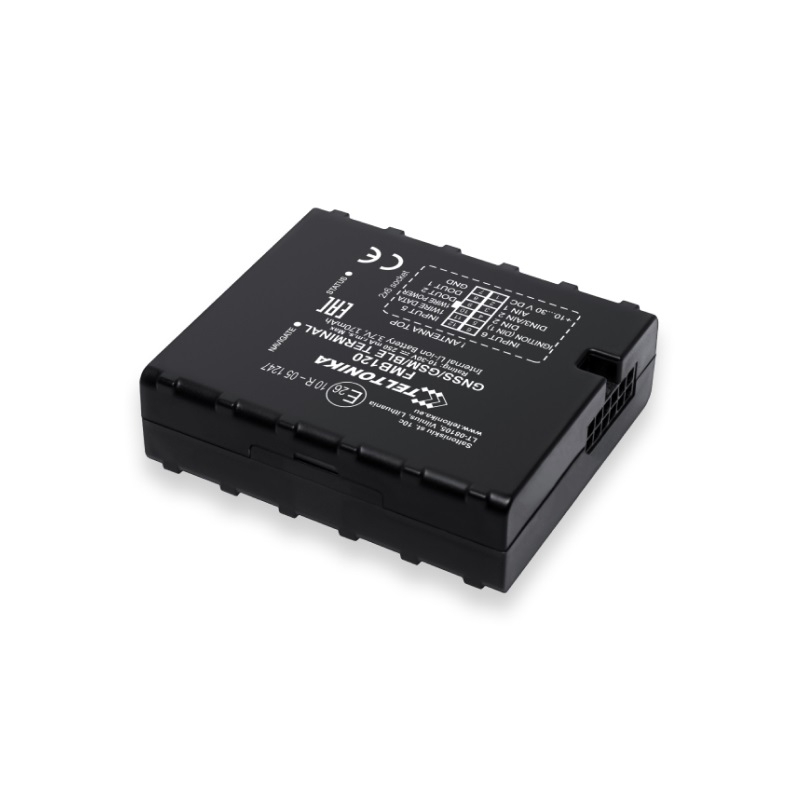

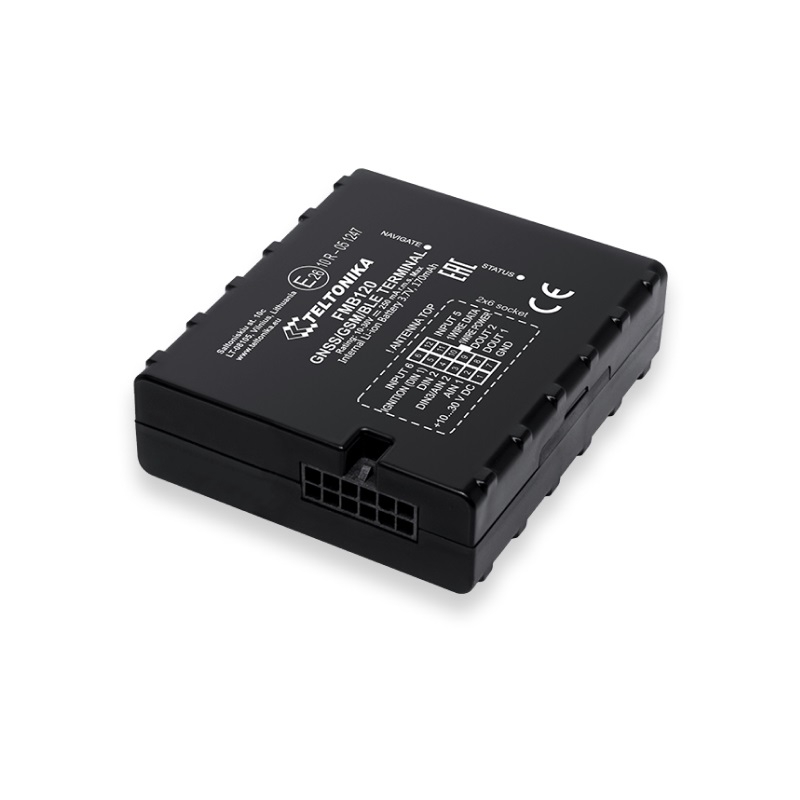

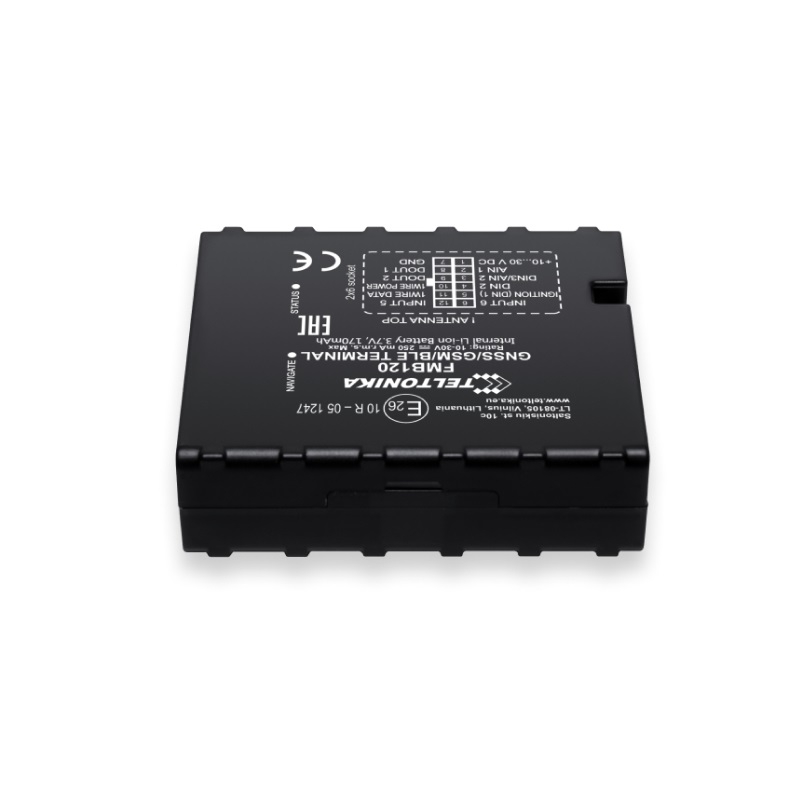

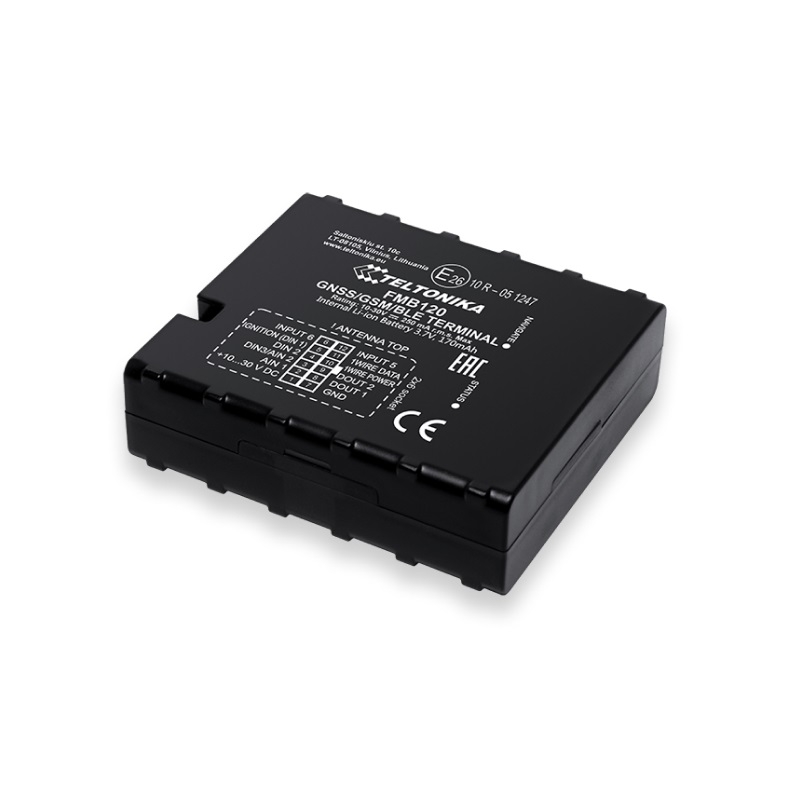

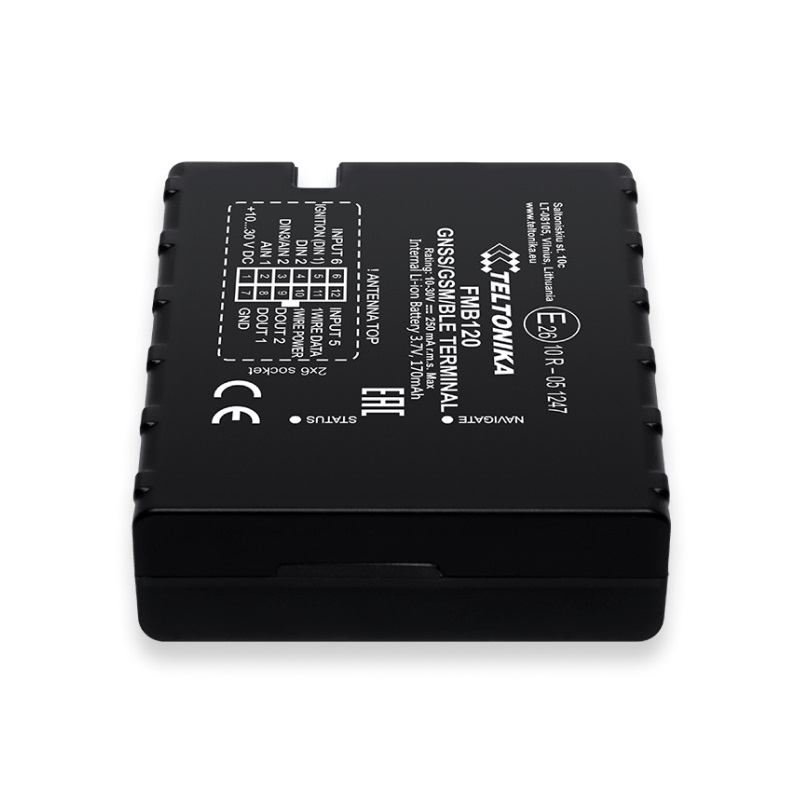

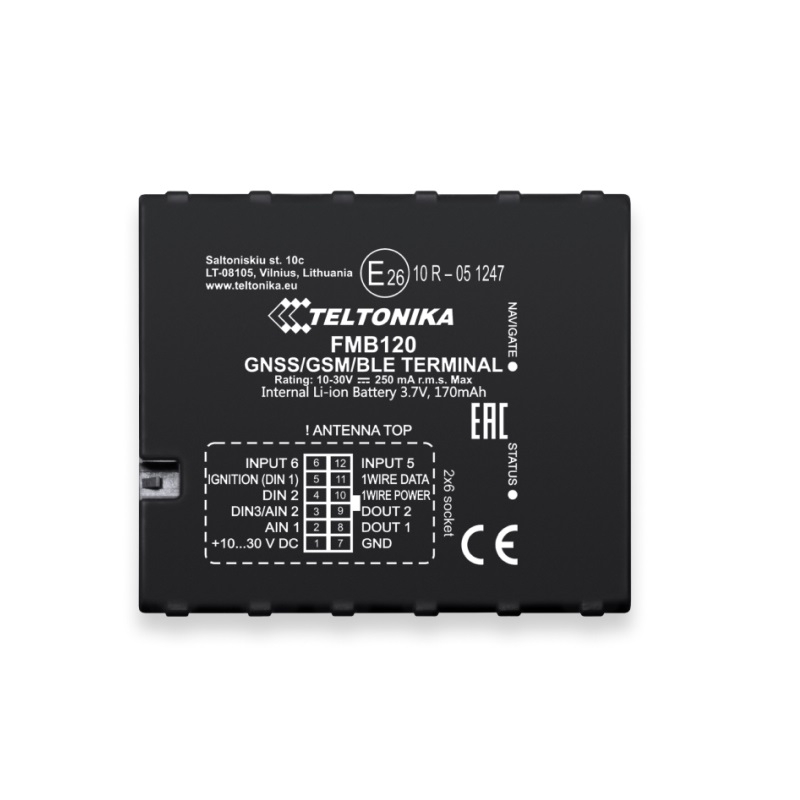

TELTONIKA FMB120 GNSS/GSM/Bluetooth tracker with internal GNSS/GSM antennas and internal battery (FMB120)

OEM kodas: FMB120B6XW01
Kodas: FMB120
ID: #1666

Digital Input/Output for remote monitoring and control, 1-Wire® interface to monitor temperature data and RFID/iButton tags, Allows device to work without external power source, Bluetooth for exchanging data over short distances

49.22€ su PVM

Kaina be PVM: 40.68€

  Turime sandėlyje
Kiekis:


Produkto savybės:

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

Produkto specifikacijos:

Module
Name: TM2500
Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)

Power
Input voltage range: 10 - 30 V DC with overvoltage protection
Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption:
   At 12V < 6 mA (Ultra Deep Sleep)
   At 12V < 8 mA (Deep Sleep)
   At 12V < 11 mA (Online Sleep)
   At 12V < 20 mA (GPS Sleep)
   At 12V < 35 mA (nominal)

Bluetooth
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

Interface
Digital Inputs: 3
Digital Outputs: 2
Analog Inputs: 2
CAN Adapter inputs: 1
1-Wire: 1
GNSS antenna: Internal High Gain
GSM antenna: Internal High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM + eSIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 65 x 56,6 x 18,9 mm (L x W x H)
Weight: 55 g

Operating environment
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP41
Battery charge temperature: -0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:
   -20 °C to +45 °C for 1 month
   -20 °C to +35 °C for 6 months

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GPS, NITZ, NTP
Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Certification & Approvals
Regulatory: CE/RED, E-Mark, EAC, RoHS, REACH

Papildoma informacija apie produktą:

Quick Manual
Link to manufacturer product page
Product Wiki Page
