TELTONIKA Pramoninis 4G Cat4 Modemas (TRM200)
Ryšiai: 4G Cat 4, 3G, 2G | Micro USB
Produkto savybės:

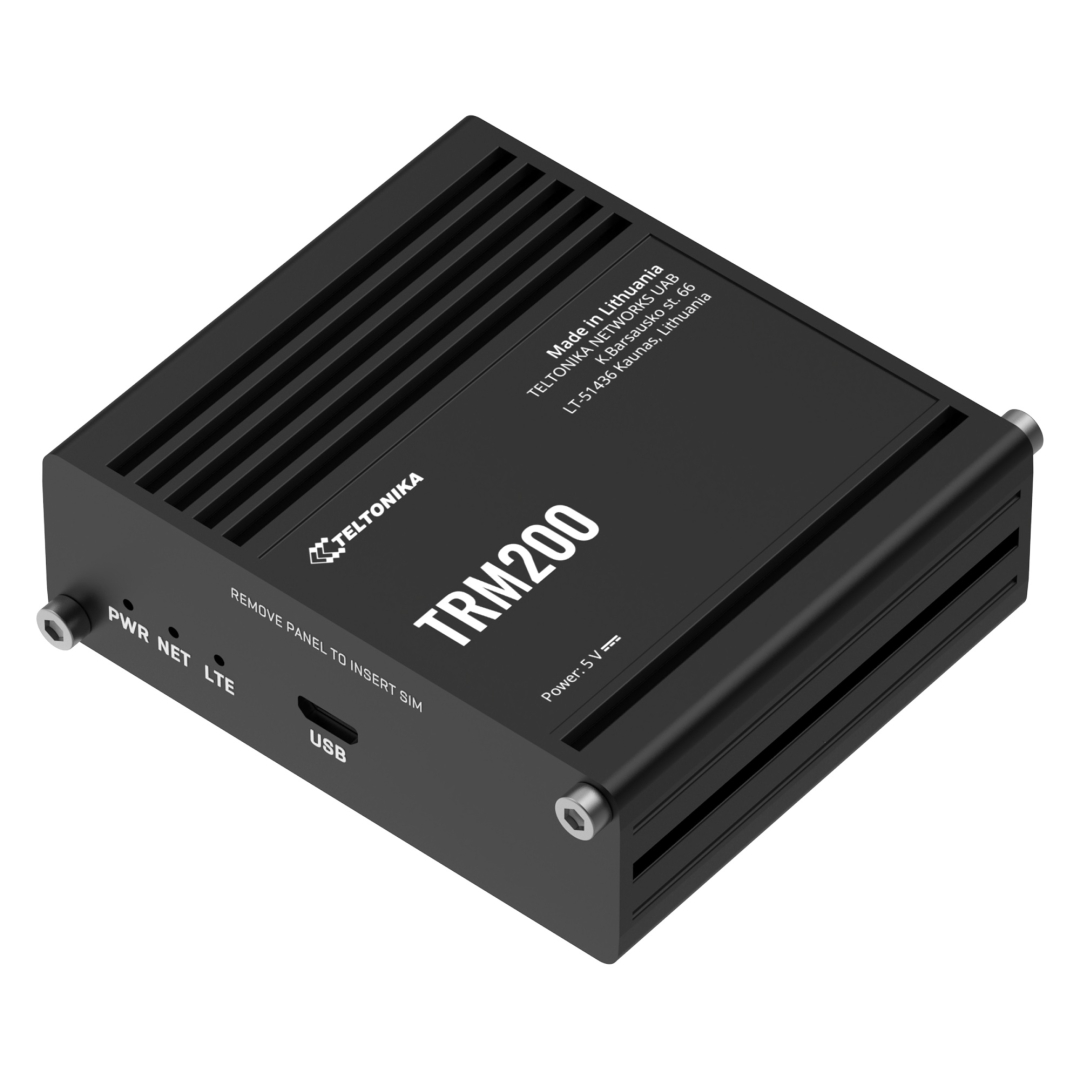

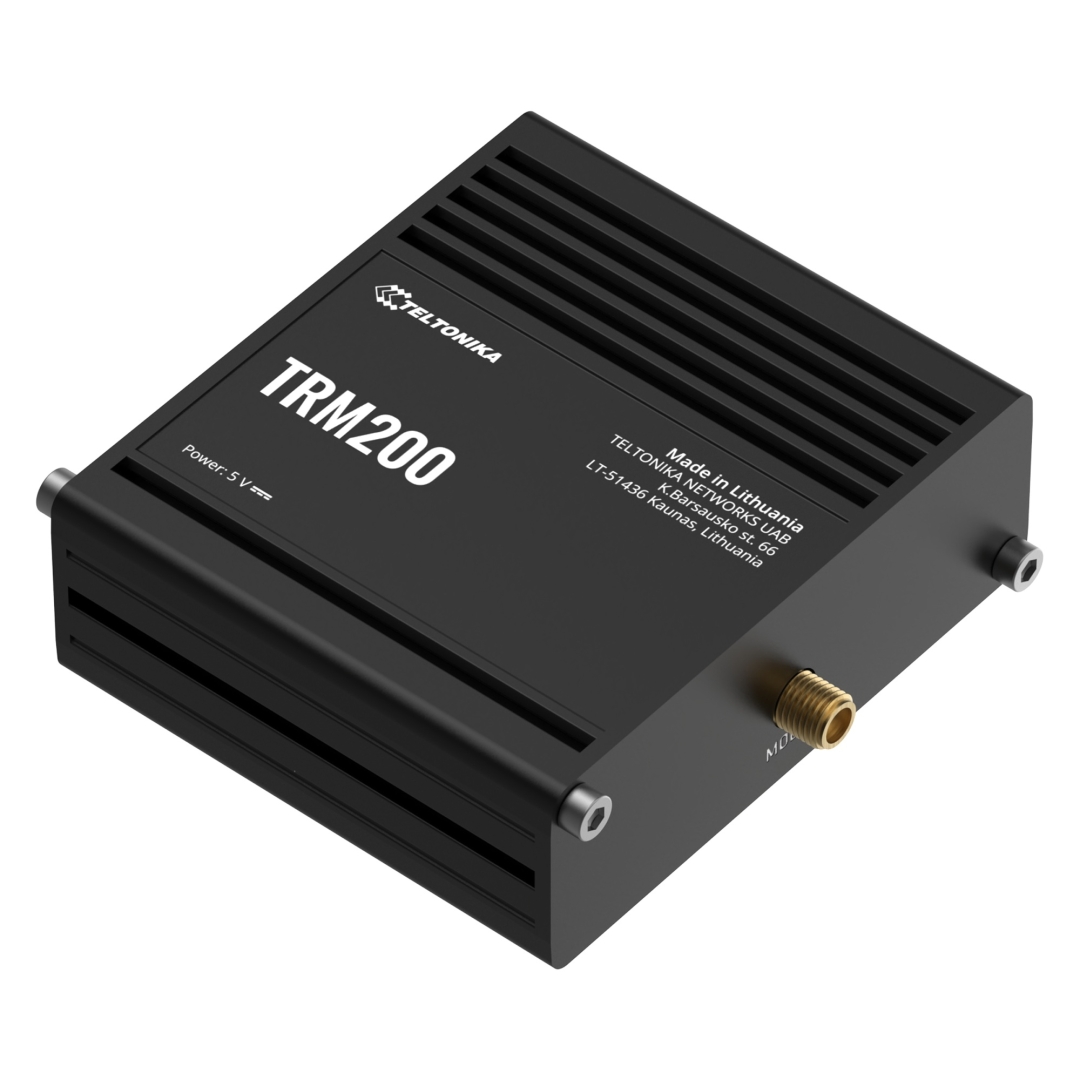

TRM200 yra pramoninės klasės LTE Cat 4 modemas, užtikrinantis patikimą 4G ryšį su visišku atgaliniu suderinamumu 3G ir 2G tinklų palaikymui, užtikrinant sklandų veikimą įvairiose aplinkose. Su mikro USB jungtimi ir išorine antena, šis tvirtas modemas yra ekonomiškas sprendimas, leidžiantis pramoninei įrangai suteikti LTE ryšį.
Produkto specifikacijos:
Mobile
Mobile module: 4G – Cat 4 up to 75 DL/50 UL Mbps, 3G – Up to 42 DL/5.76 UL Mbps, 2G – Up to 236.8 DL/ 236.8 UL kbps
3GPP Release: Release 9
Power
Connector: microUSB
Input voltage range: 5V - powered via microUSB
Power consumption: Idle: < 0.9 W, Max: < 3.2 W
Physical Interfaces

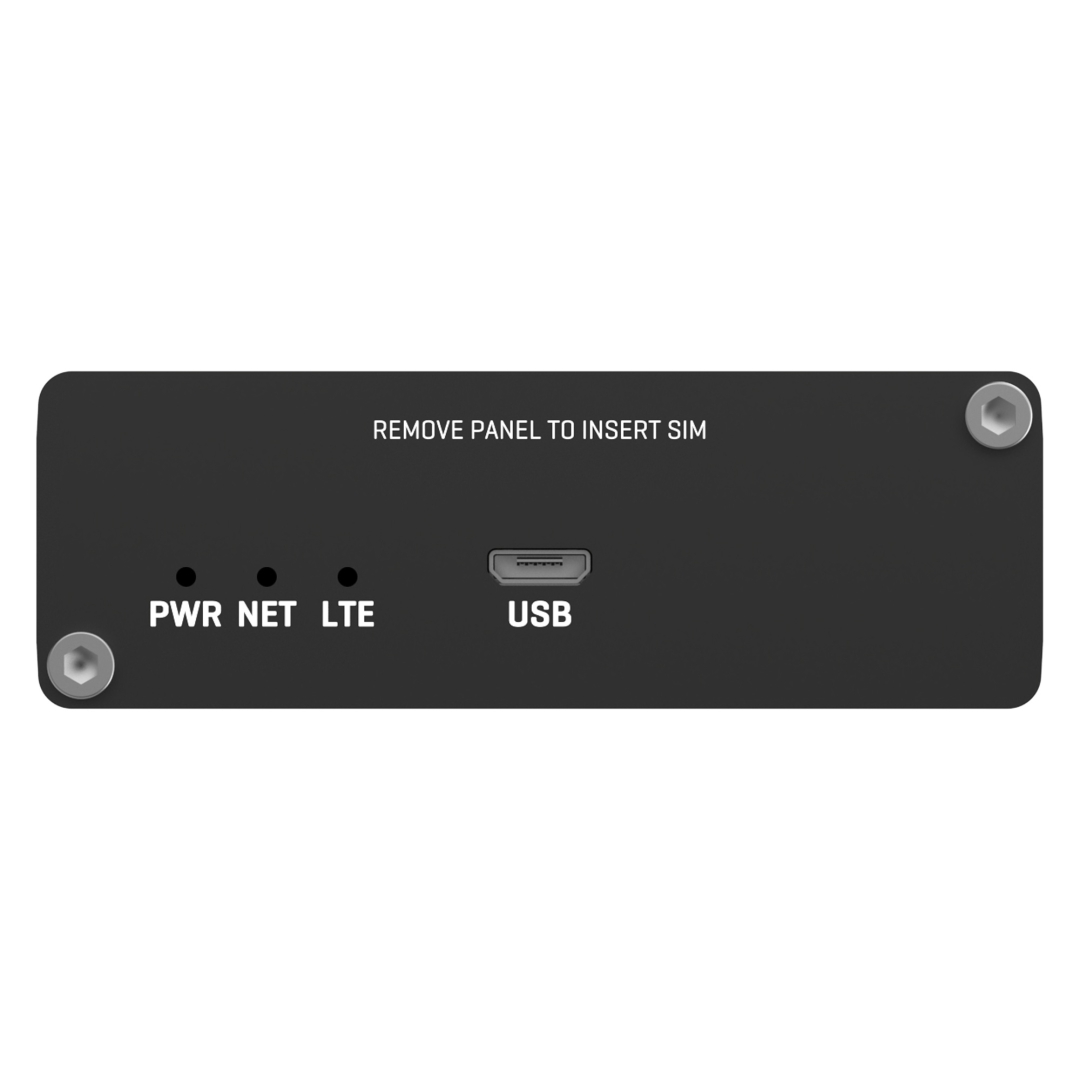

Status LEDs: 1 x Power LED, 1 x Network LED, 1 x Mobile LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power: 1x microUSB

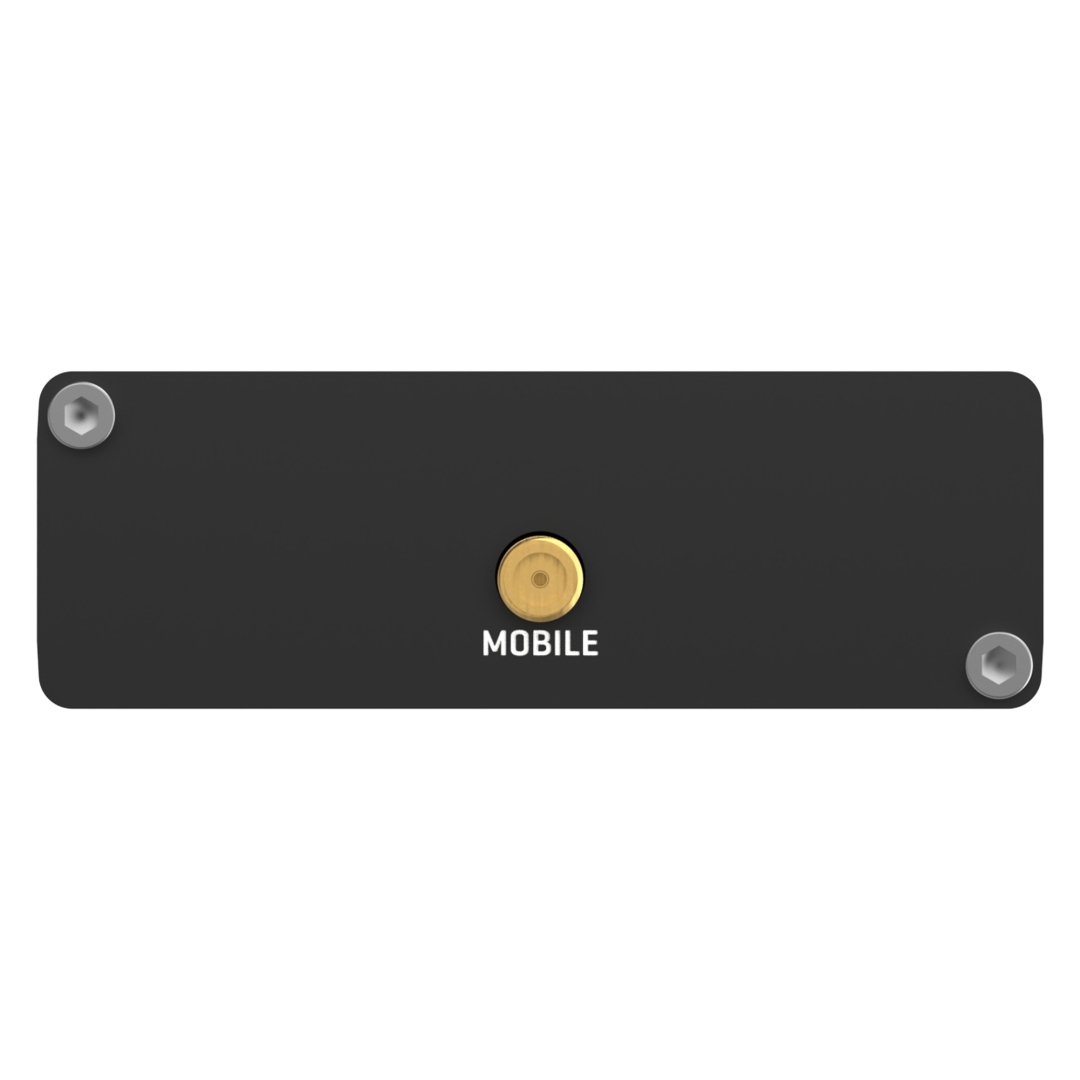

Antennas: 1 x SMA for Mobile
Physical Specification
Casing material: Aluminium housing
Dimensions (W x H x D): 74.5 x 25 x 64.5 mm
Weight: 274 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
TRM Software
TRM SOFTWARE USB Driver RUT#03: Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0
NDIS Driver: Windows 7/8/8.1/10
Regulatory & Type Approvals
Regulatory: CE, UKCA, CB, EAC, UCRF, WEEE
Standard package:
- TRM200
- 1x Mobile antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1x hex key
- QSG (Quick Start Guide)
- Packaging box
