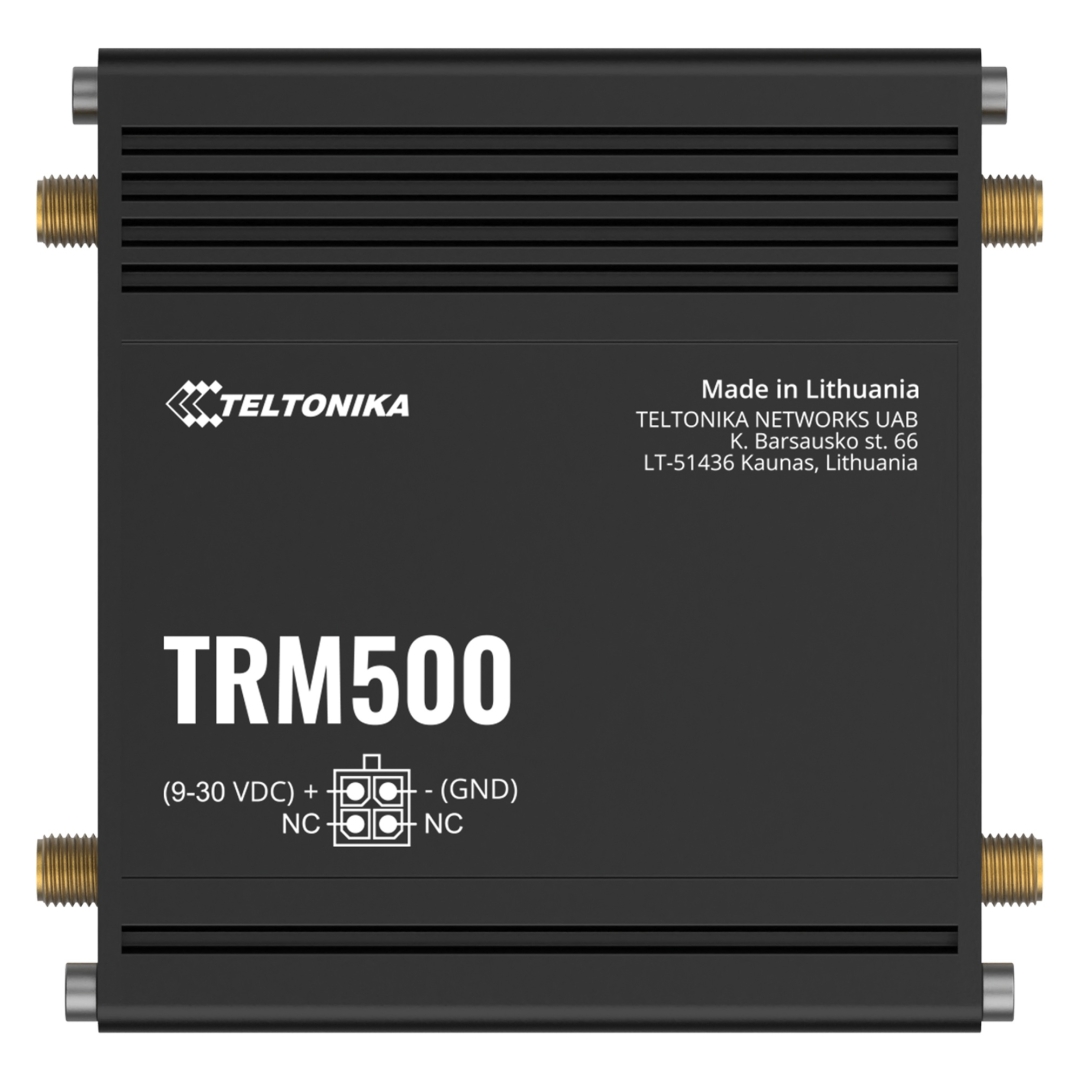

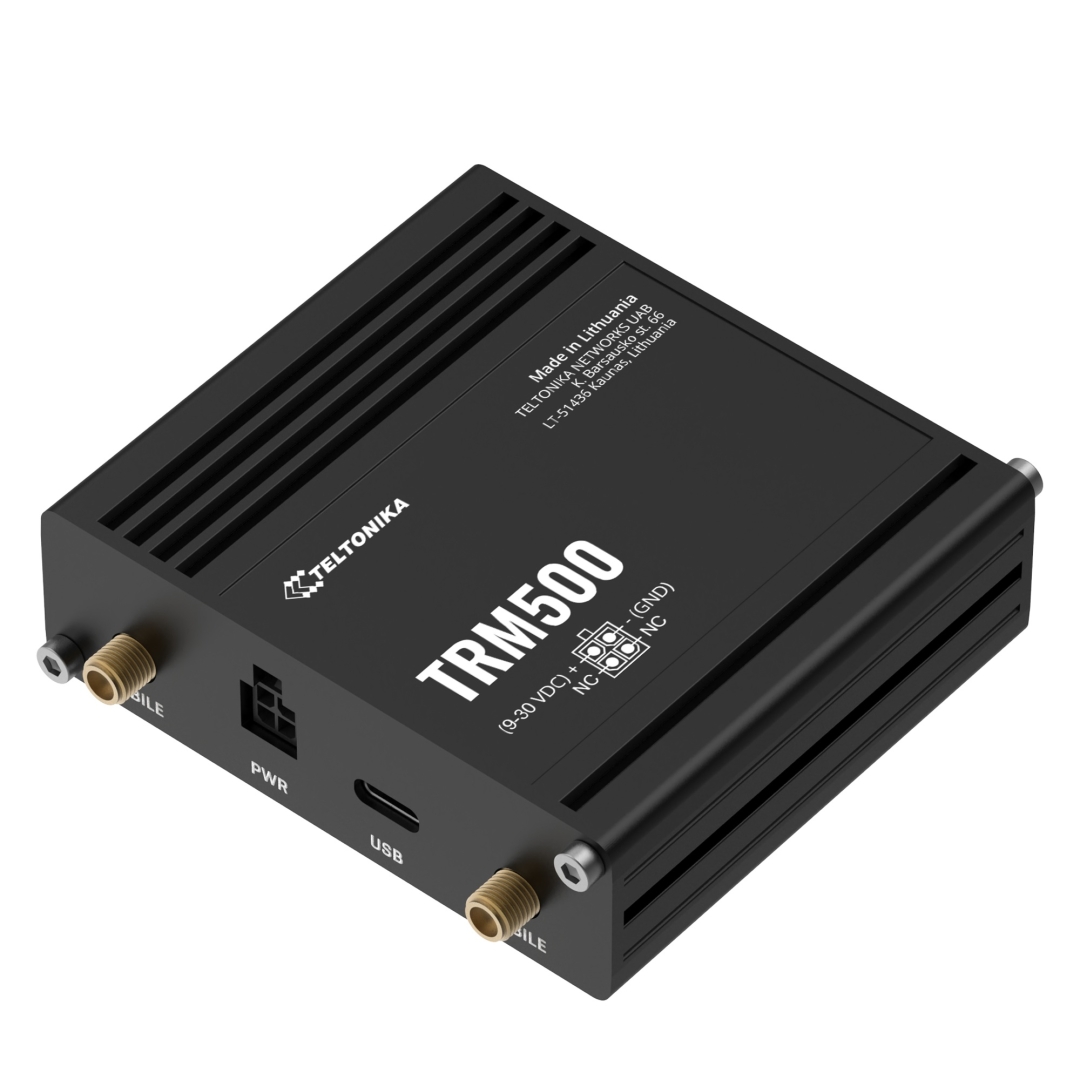

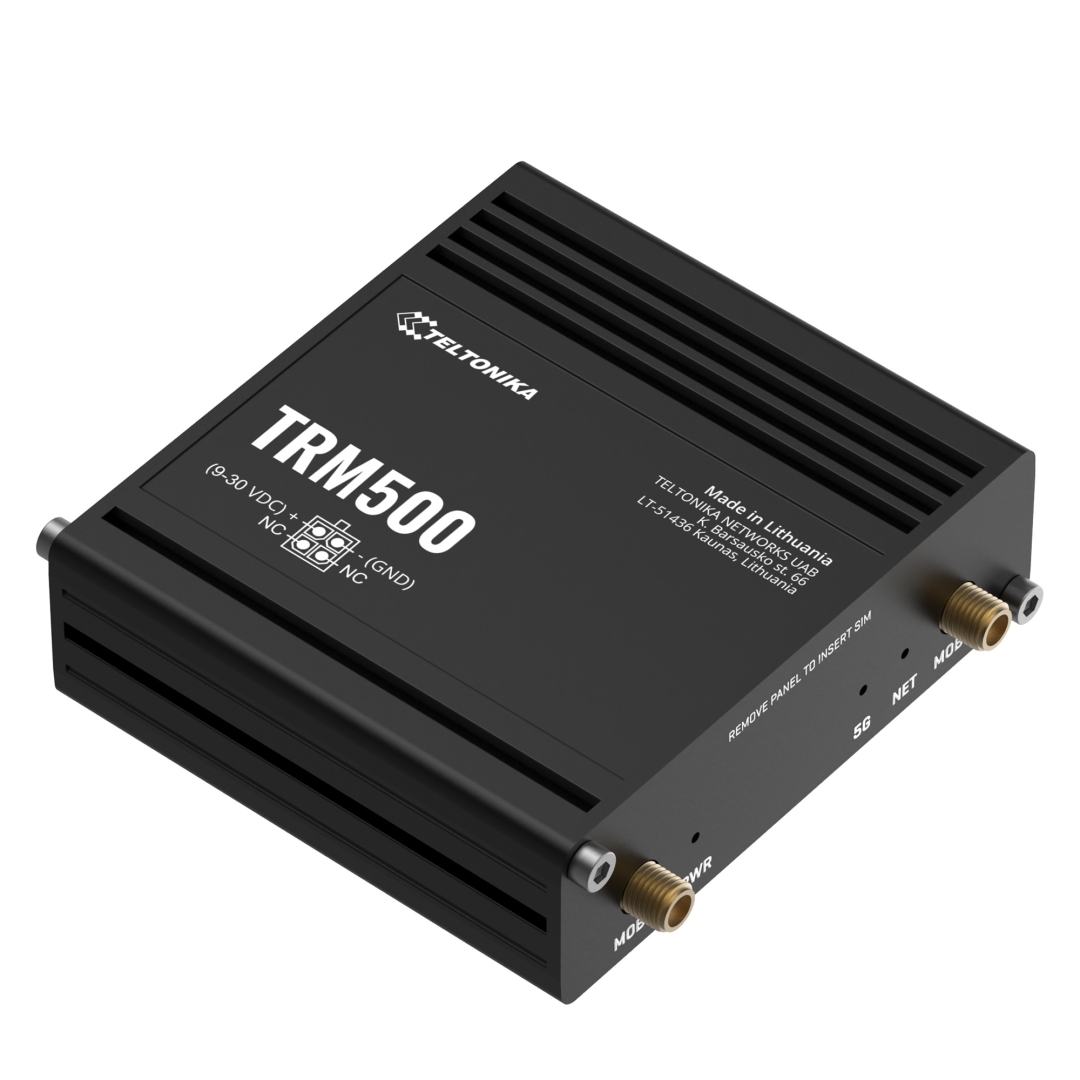

TELTONIKA Pramoninis 5G Modemas su Type-C Jungtimi (TRM500)
Ryšiai: 5G, 4G Cat 19 ir 3G | USB Type-C
Produkto savybės:
TRM500 yra kompaktiškas ir lengvas 5G modemas, pasižymintis itin didele, iki 3,4 Gbps, mobiliojo ryšio sparta. Šis pramoninis 5G modemas palaiko 4G (Cat 19) ir 3G tinklų ryšį bei turi keturias SMA antenas didesnei padengčiai užtikrinti. TRM500 gali būti montuojamas ant DIN bėgelio ir turi USB Type-C sąsają, per kurią vienu metu galima perduoti tinklo duomenis ir tiekti maitinimą.
Produkto specifikacijos:
Mobile
Mobile module: 5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL)
3GPP Release: Release 16
Power

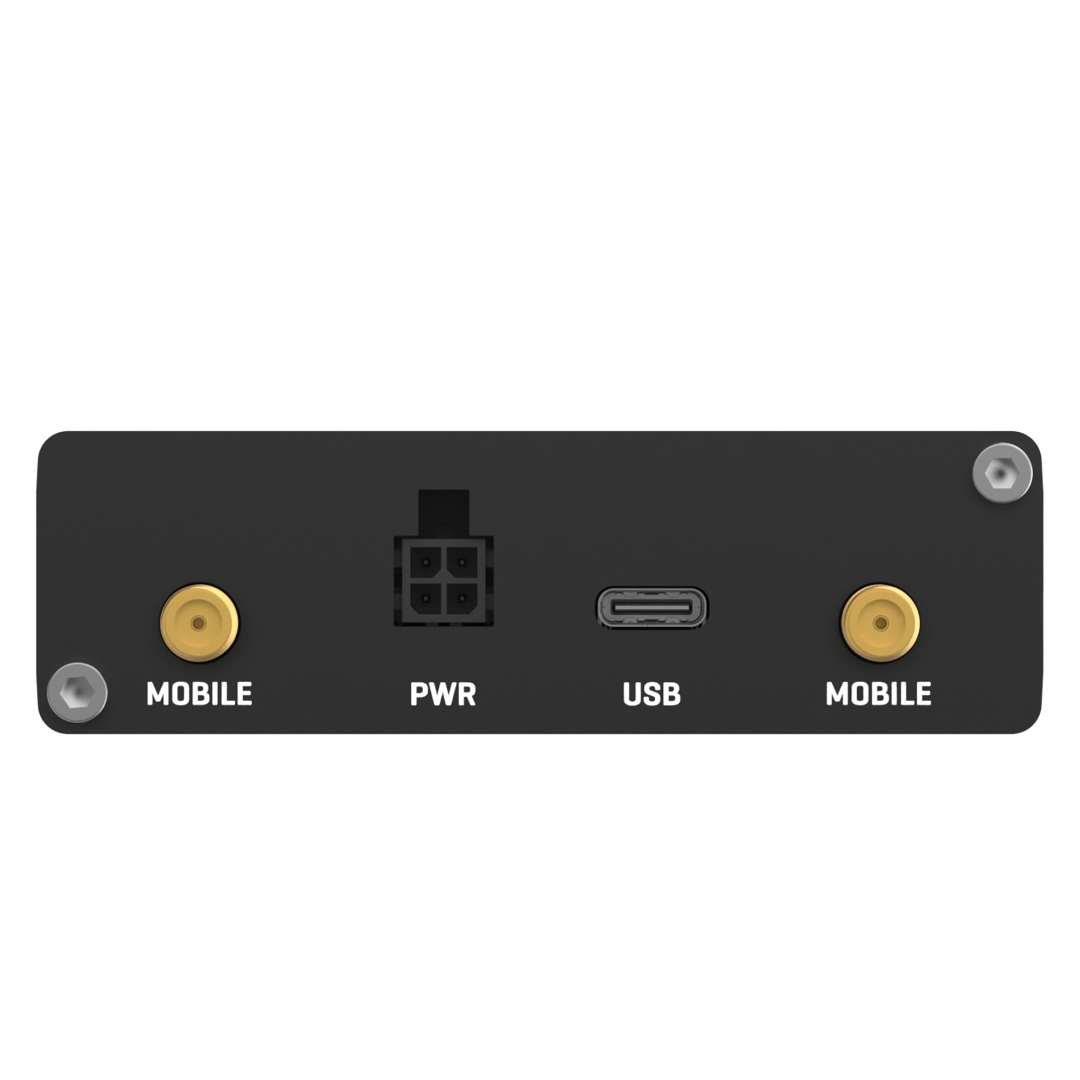

Connector:
1 x 4-pin industrial DC power socket
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Input voltage range:
4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max
USB Type-C: 5 VDC
Power consumption: Idle: < 5 W, Max: < 12 W
Physical Interfaces

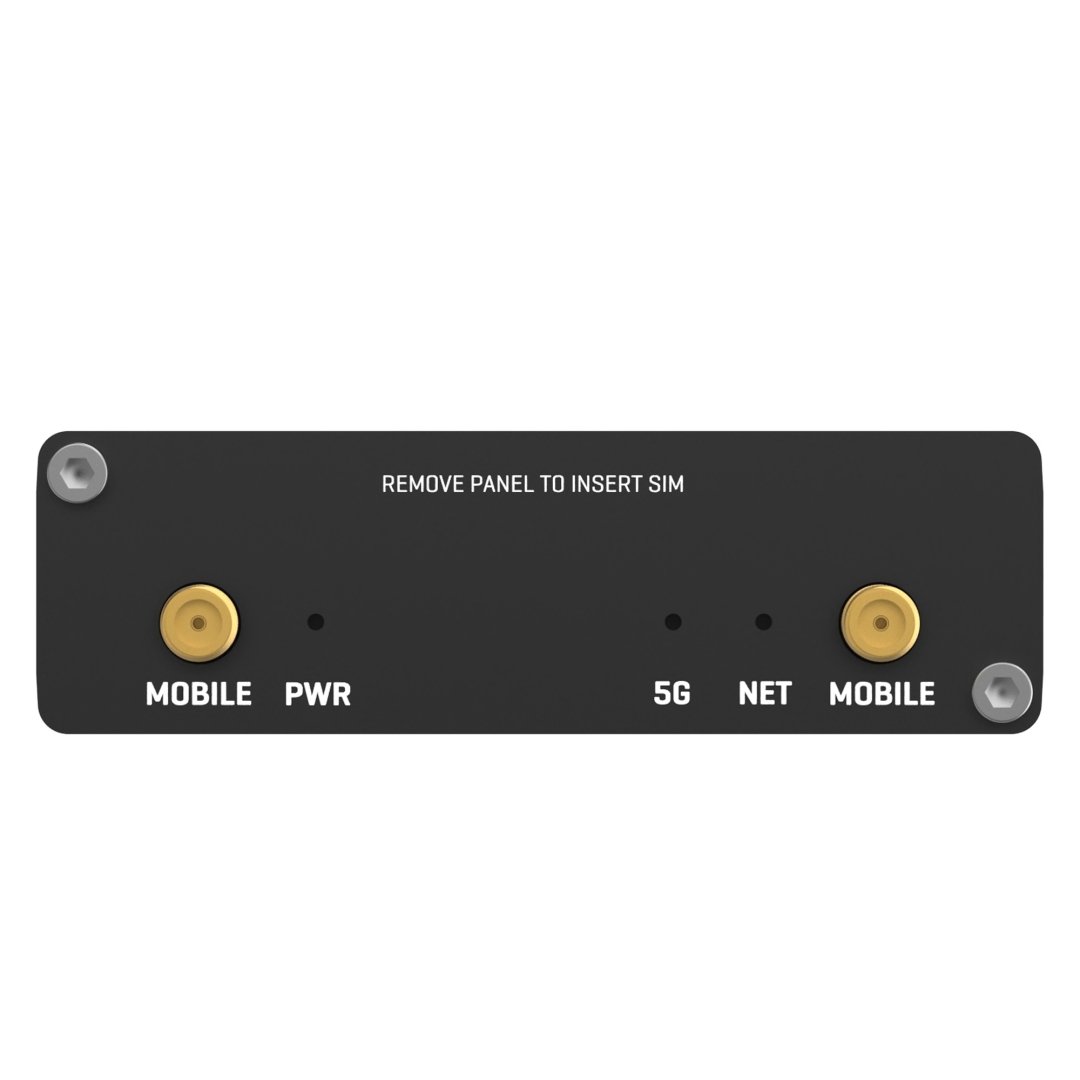

Status LEDs: 1 x Power LED, 1 x 5G LED, 1 x Network LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power:
1 x 4-pin power connector
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Antennas: 4 x SMA for Mobile
Other: 1 x Virtual network interface via USB Type-C (For power and network data)
Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 83 x 25 x 85.4 mm
Weight: 94.5 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
TRM Software
Management Software: Windows Connection Manager, Modem Manager (Linux)
USB Serial Driver: Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13
GNSS Driver: Android 4.x ~ 13
RIL Driver: Android 4.x ~ 13
NDIS Driver: Windows 7/8/8.1/10/11
MBIM Driver: Windows 8/8.1/10/11, Linux 3.18~6.3
Gobinet Driver: Linux 2.6/3.x/4.1~4.14
QMI_WWAN Driver: Linux 3.4~6.3
Regulatory & Type Approvals
Regulatory: CE, UKCA, RCM, CB, WEEE
EMC Emissions & Immunity
Standards:
EN 55032:2015+A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
AS/NZS CISPR 32:2015+A1:2020
ESD: EN 61000-4-2: 2009
Radiated Immunity: EN IEC 61000-4-3: 2020
EFT: EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5: 2014+A1: 2017
CS: EN 61000-4-6: 2014
DIP: EN IEC 61000-4-11:2020
RF
Standards:
EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1
EN 301 908-25 V15.1.1
AS/CA S042.1:2022
AS/CA S042.4:2022
AS/CA S042.5:2022+A1:2022
FCC Part 22
Draft EN 301 908-25 V15.1.1_0.0.21
Safety
Standards:
CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
RCM: AS/NZS CISPR 32: 2015+A1:2020
CB: EN IEC 62368-1:2020+A11:2020
Standard package:
- TRM500
- 9 W PSU
- 4x 5G Mobile antenna (swivel, SMA male)
- 1x hex key
- SIM Adapter kit
- QSG (Quick Start Guide)
- USB Type-C cable (0.8 m)
- Packaging box
