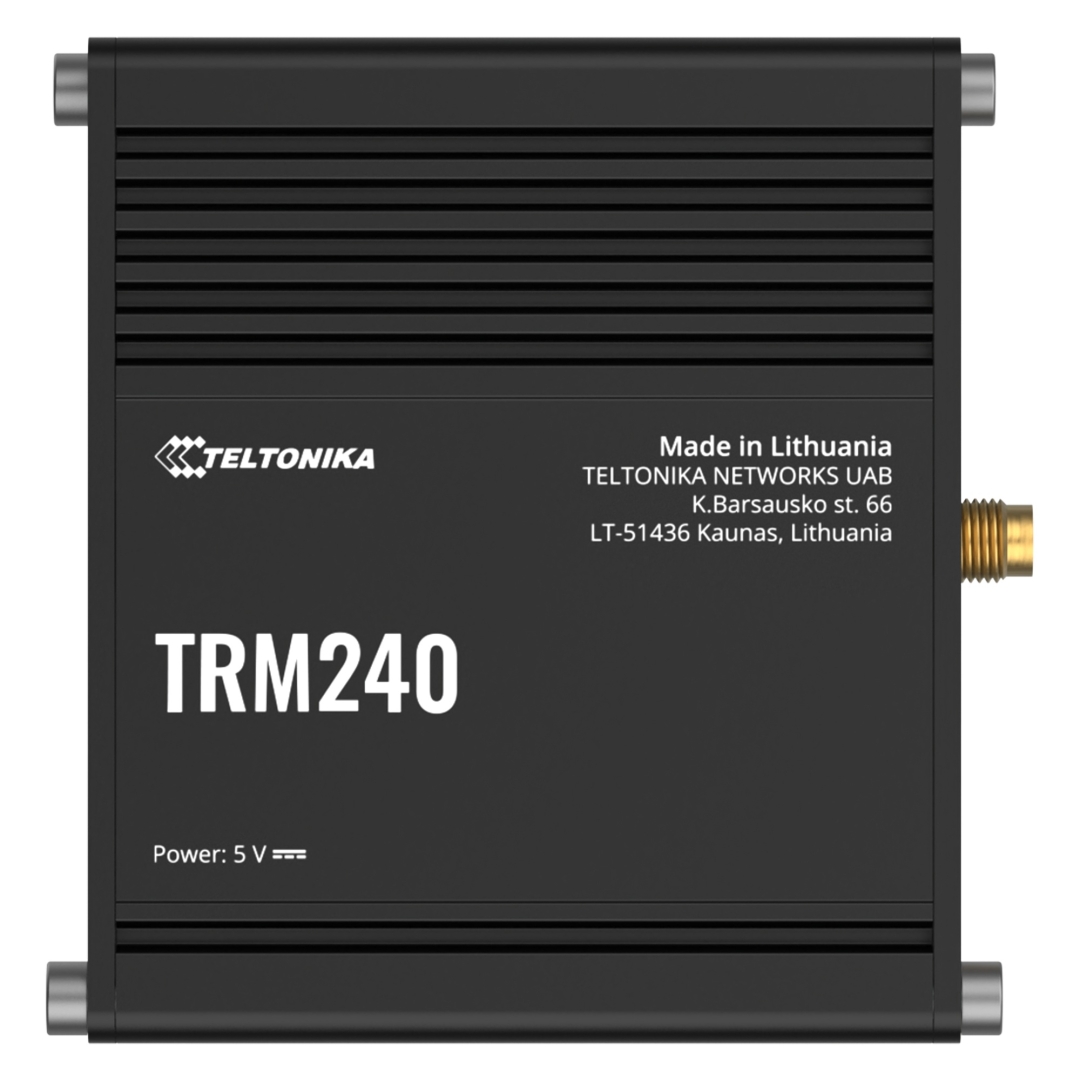

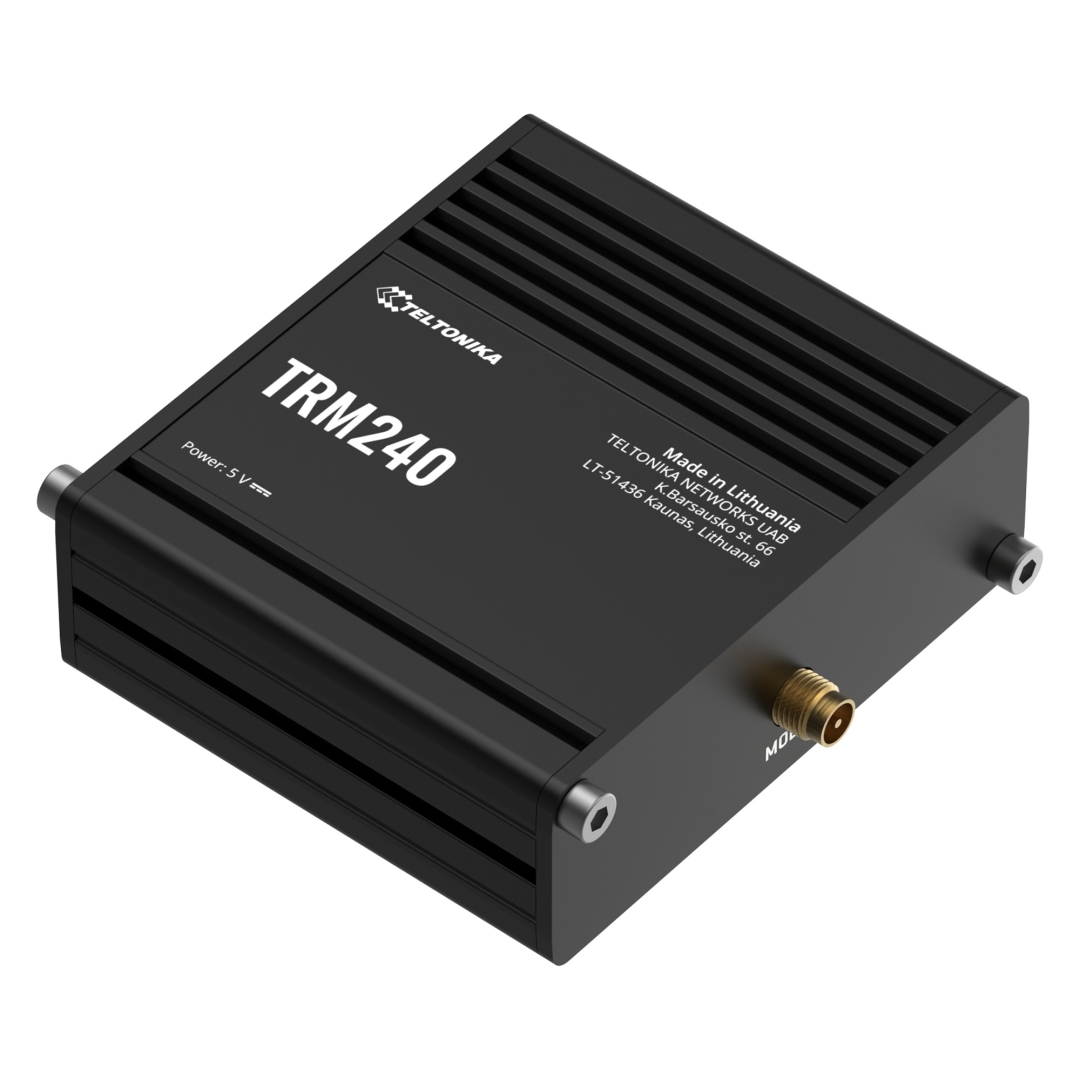

TELTONIKA Industrial Cellular modem (TRM240)
Connectivity: 4G Cat 1, 3G, 2G | Micro USB
93.17€ su PVMKaina be PVM: 77.00€ |
Produkto savybės:
TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
Produkto specifikacijos:
Mobile
Mobile module: 4G LTE Cat 1 up to 10 DL/5 UL Mbps
3GPP Release: Release 12
Power
Connector: microUSB
Input voltage range: 5V - powered via microUSB
Power consumption: 3.2 W Max
Physical Interfaces

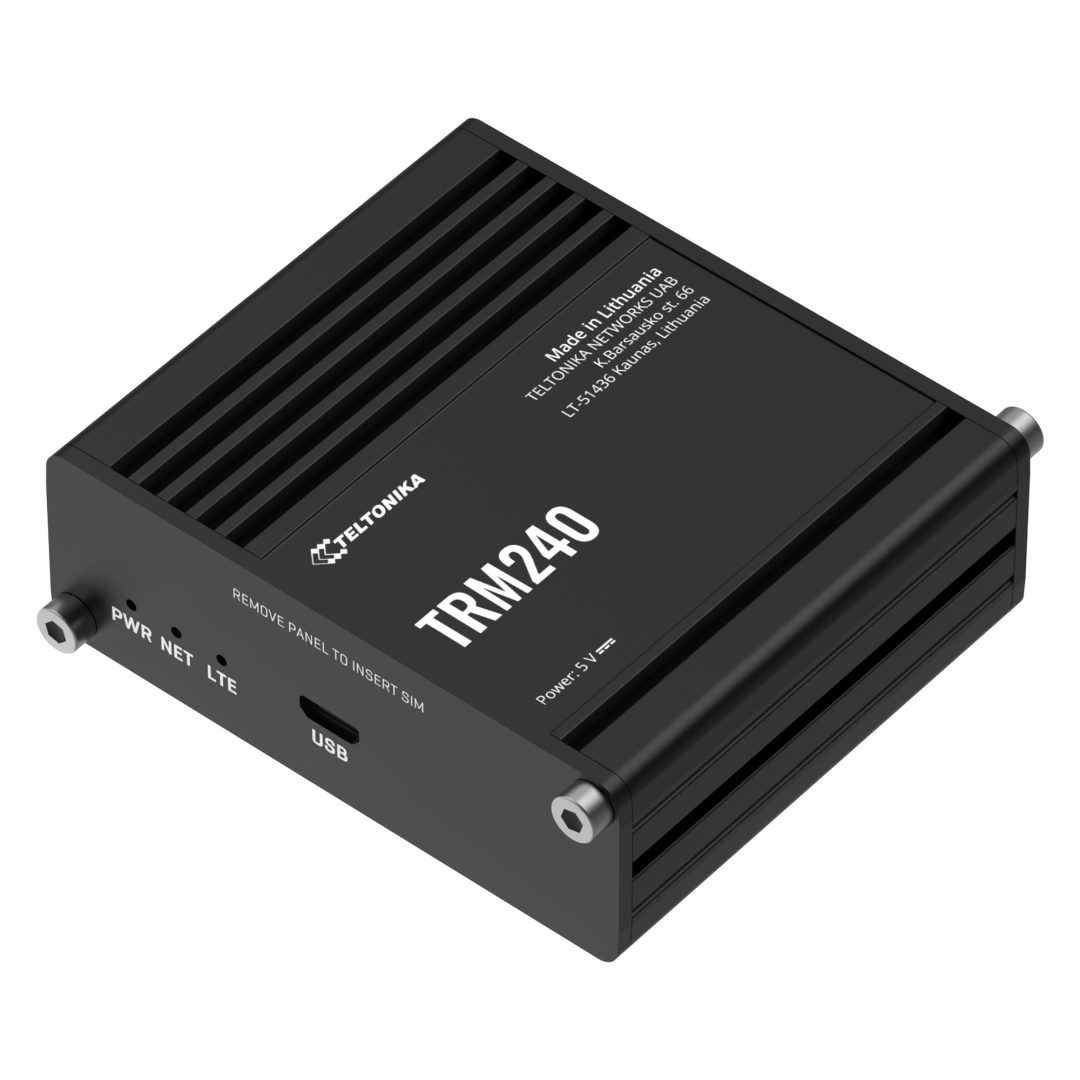

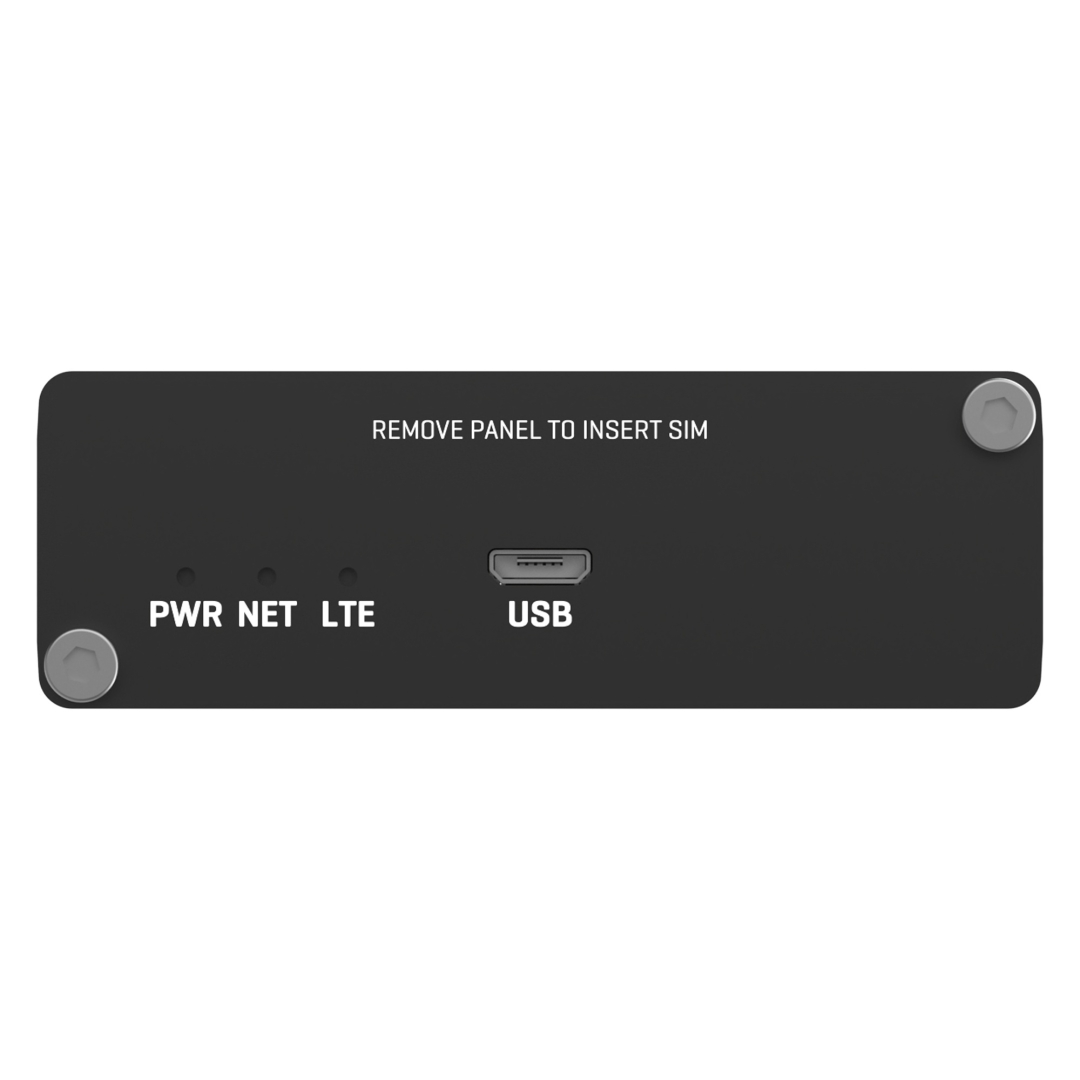

Status LEDs: 1 x Power LED, 1 x Network LED, 1 x Mobile LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power: 1x microUSB

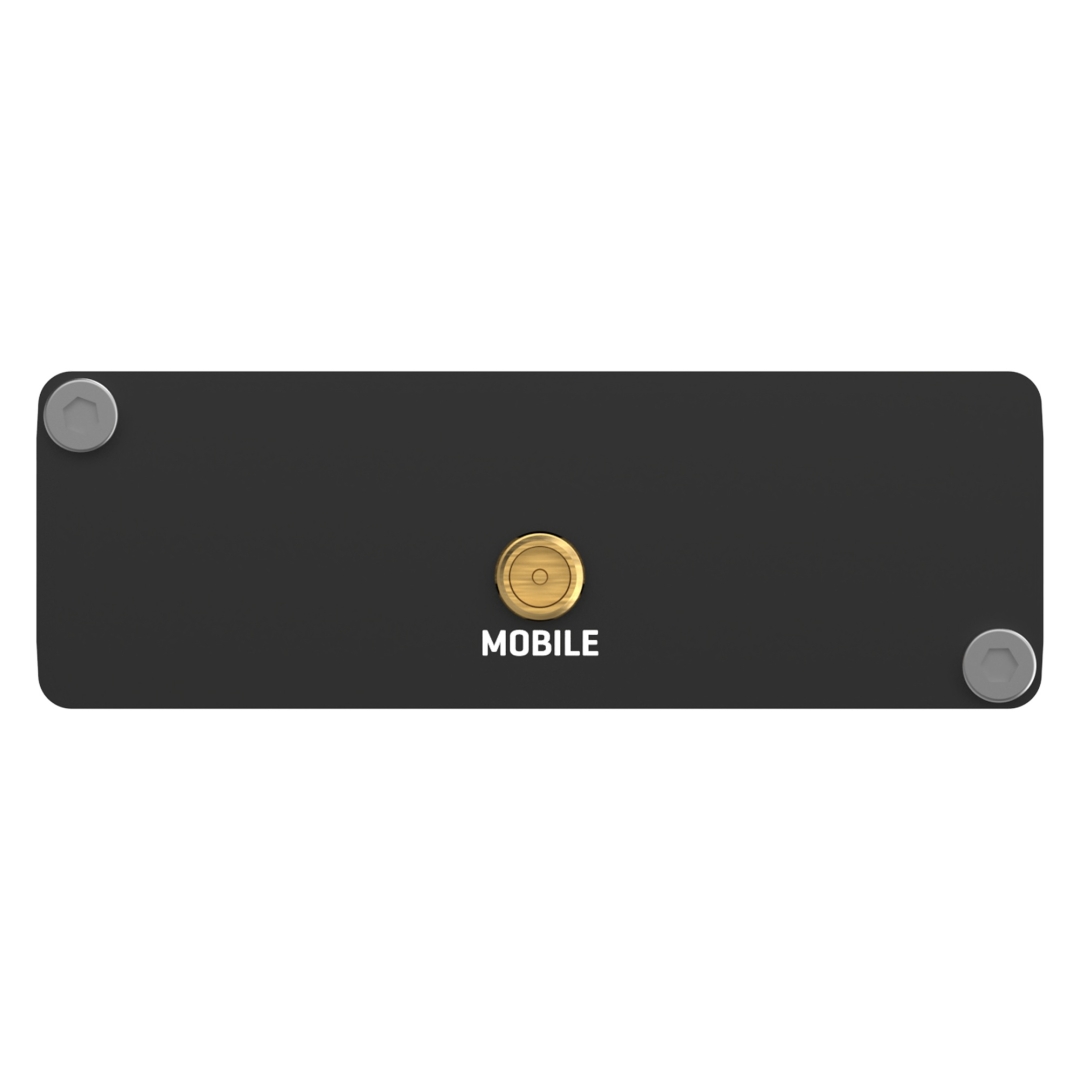

Antennas: 1 x SMA for LTE
Physical Specification
Casing material: Aluminium housing
Dimensions (W x H x D): 74.5 x 25 x 64.5 mm
Weight: 131 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
TRM Software
Management Software: Windows Connection Manager (NDIS driver)
USB DriverL Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver: Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver: Windows 7/8/8.1/10
Gobinet Driver: Linux 2.6/3.x/4.1~4.14
Linux Driver: 3.x (3.4 and later)/4.1~4.14
Regulatory & Type Approvals
Regulatory: CE, UKCA, EAC, UCRF, Kenya, ICASA
EMC Emissions & Immunity
Standards: Draft EN 303 446-1 V1.1.0
ESD: EN 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
RF
Standards:
EN 301 511 V12.5.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
Safety
Standards: CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
Standard package:
- TRM240
- 1x Mobile antenna (swivel, SMA male)
- Micro-USB cable (0.8 m)
- 1x hex key
- QSG (Quick Start Guide)
- Packaging box
