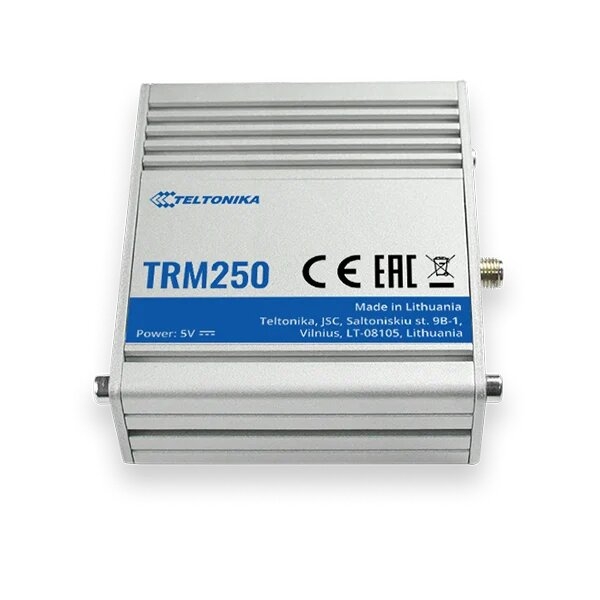

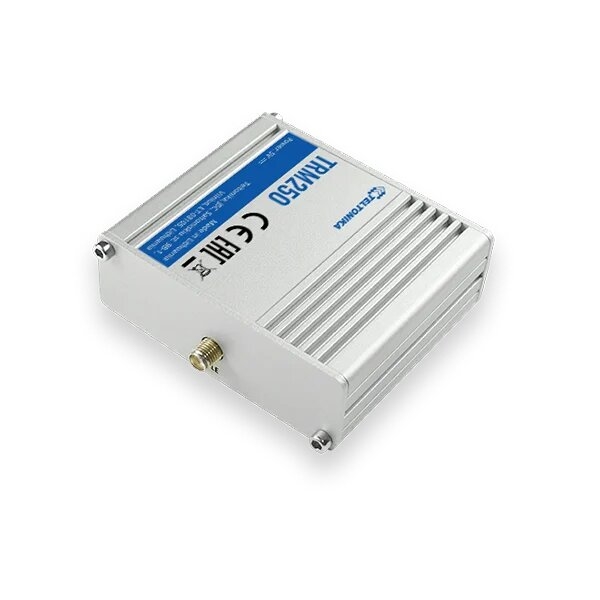

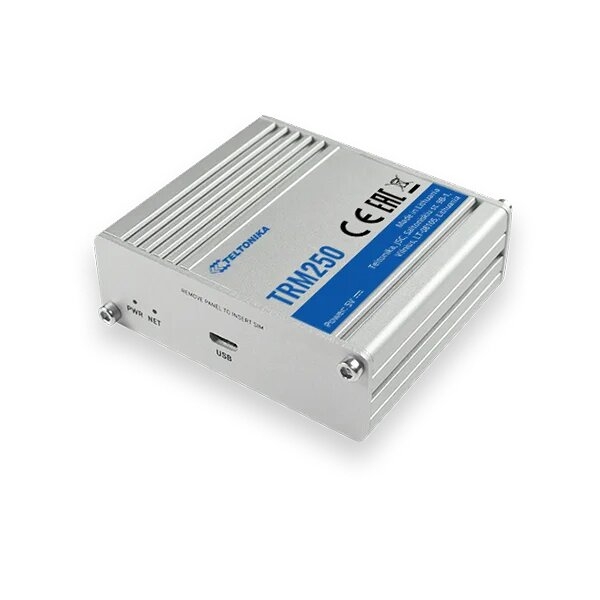

TELTONIKA PRAMONINIS USB, LTE Cat-M1/NB-IoT/EGPRS MOBILAUS RYŠIO MODEMAS (TRM250)
TRM250 yra pramoninis USB, LTE Cat-M1/NB-IoT/EGPRS modemas su tvirtu korpusu ir išorine antena geresnei signalo aprėpčiai. Šis produktas puikiai tinka užtikrinti ekonomišką interneto ryšį nuotolinio stebėjimo programose.
Produkto savybės:
The Industrial Cellular Modem TRM250 is a rugged, compact and extremely versatile connectivity device is able to provide cellular capabilities to equipment across IoT and Industrial IoT applications. This futureproof product features both NB-IoT and LTE Cat-M1 LPWAN communication options and is backwards compatible with 2G. This means that you can upgrade your existing infrastructure with a cost-efficient and reliable connectivity device which will adapt to the changing telecommunications environment and will enable you to use the best cellular M2M technologies for many years to come. Easy to deploy, easy to use and even easier to maintain, TRM250 comes with a USB interface for power & communication, drivers supporting all relevant platforms and one SMA connector for an external antenna to obtain better signal coverage.
Produkto specifikacijos:
HARDWARE | |
Mobile | LTE (Cat-M1) / NB-IoT / EGPRS |
SIM slot | Mini SIM (2FF) |
Antenna connector | 1 x SMA |
Operating Voltage | 5V - powered via microUSB |
Power consumption | 3.6 W Max |
Configuration interface | microUSB |
LED indicators | Power and Network status LEDs |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10 % to 90 % non-condensing |
Casing material | Aluminium housing |
Ingress Protection Rating | IP30 |
Dimensions | 74,5 x 64,5 x 25mm |
Weight | 130 g |
SOFTWARE | |
Management software | Windows Connection Manager (NDIS driver) |
USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x |
RIL Driver | Android 4.x/5.x/6.x/7.x/8.x |
NDIS Driver | Windows 7/8/8.1/10 |
Gobinet Driver | Linux 2.6/3.x/4.1~4.14 |
Linux qmi wwan Driver | 3.x (3.4 and later)/4.1~4.14 |
Protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
INTERFACES | |
Management interface | AT Commands (3GPP TS27.007, 3GPP TS27.005) Hayes AT Command set Enhanced AT Commands |
