TELTONIKA Pramoninis Gigabitinis Nevaldomas Šakotuvas su DIN Bėgelio Laikikliu (TSW114)

Produkto savybės:

// TSW114 is an affordable way to simplify your connectivity with its integrated DIN-rail bracket and plug-n-play nature.
// 5 x Gigabit Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices.
// Compact size, front-facing ports, and integrated DIN rail bracket enable easy installation across many industrial environments.
// Rugged anodized aluminum housing and a wide power supply voltage range of 9-30 V make this unmanaged switch perfect for industrial solutions.

Produkto specifikacijos:

Ethernet
LAN: 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad

Performance Specifications
Bandwidth (Non-blocking): 10 Gbps
Packer buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

Power
Connector: 2-pin industrial DC power socket
Input voltage range: 9 – 30 VDC
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
Power consumption: Idle: 0.3 W / Max: 2.3 W

Physical Interfaces

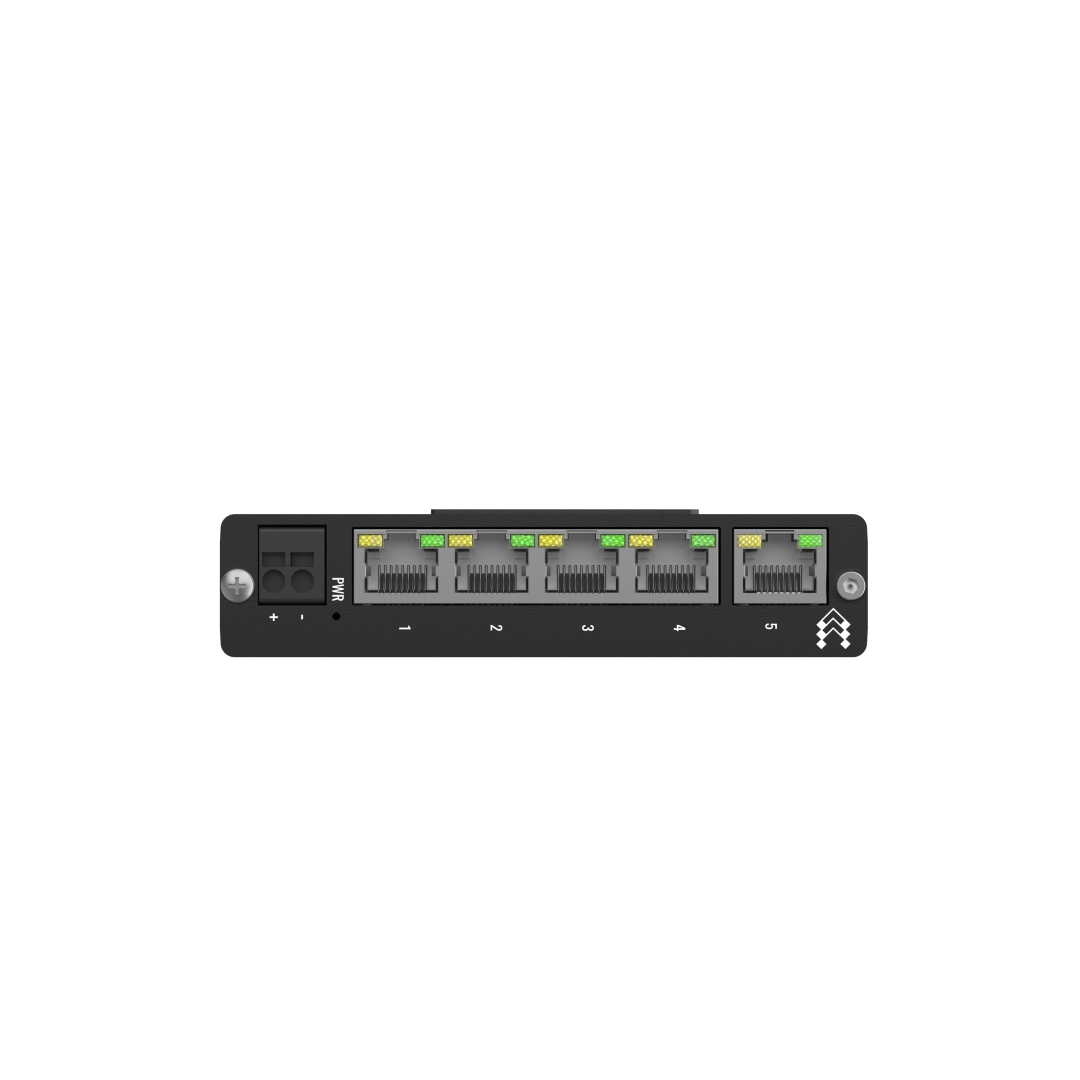

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
Weight: 174 g

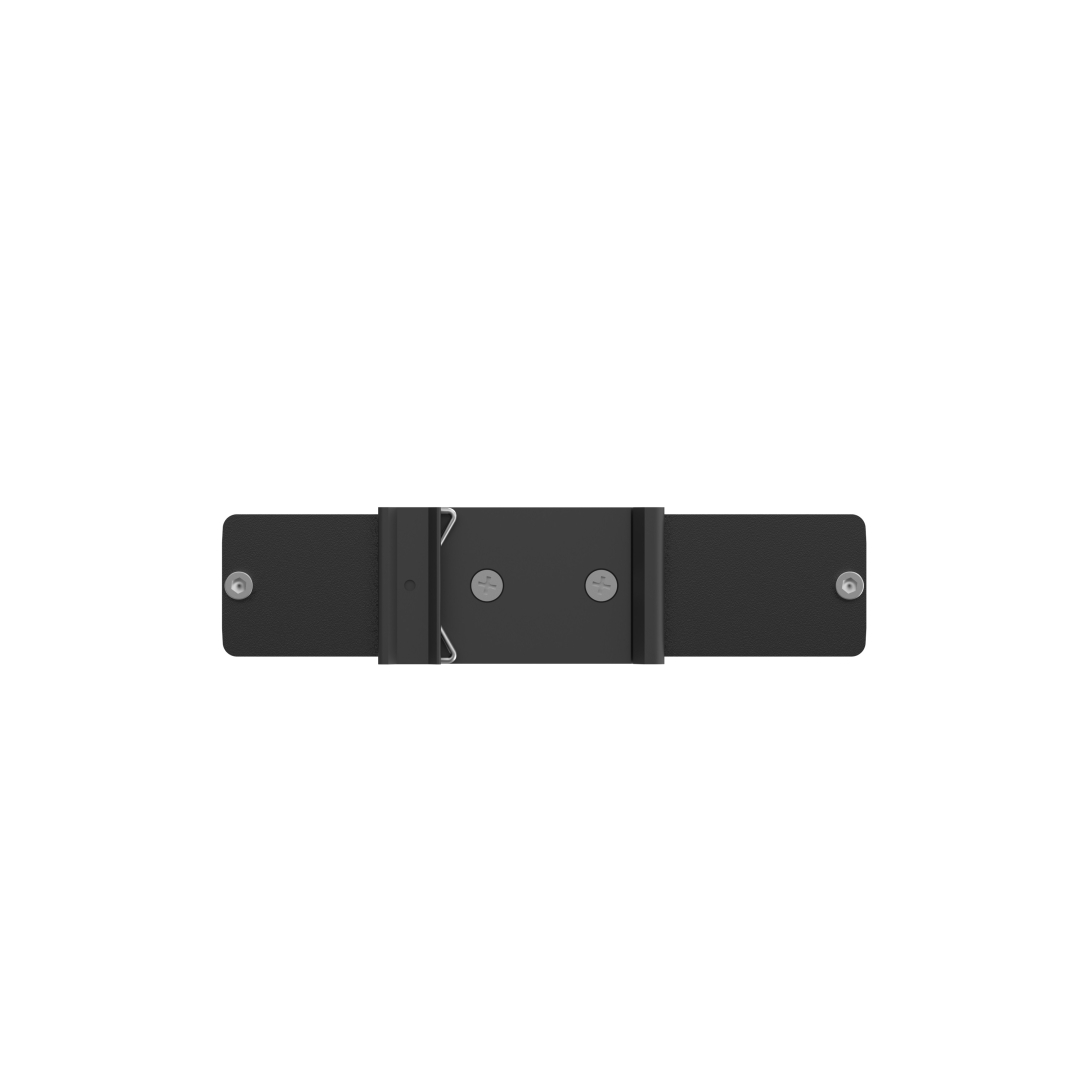

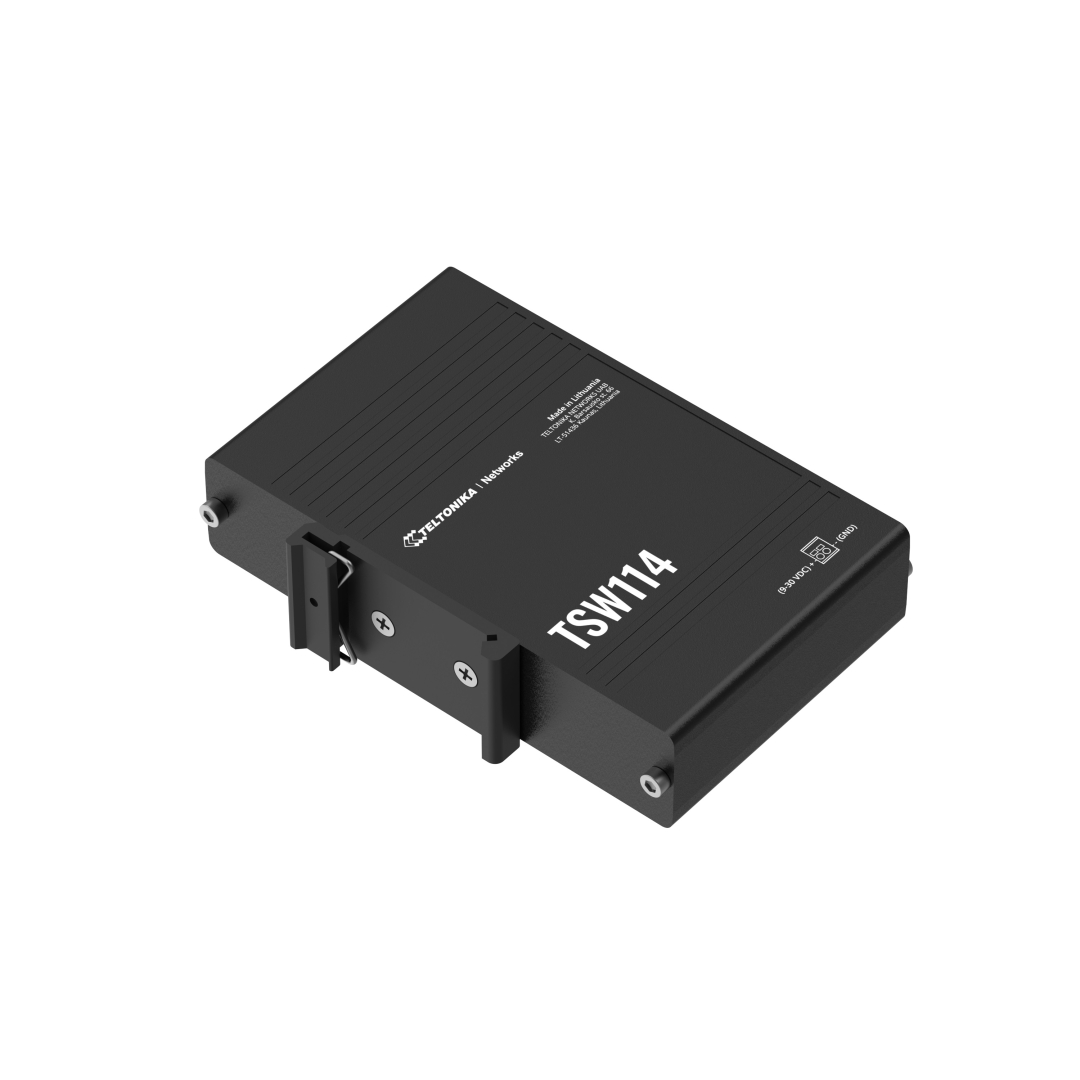

Mounting options:Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement

Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety
Standards: EN IEC 62368-1:2020+A11:2020
