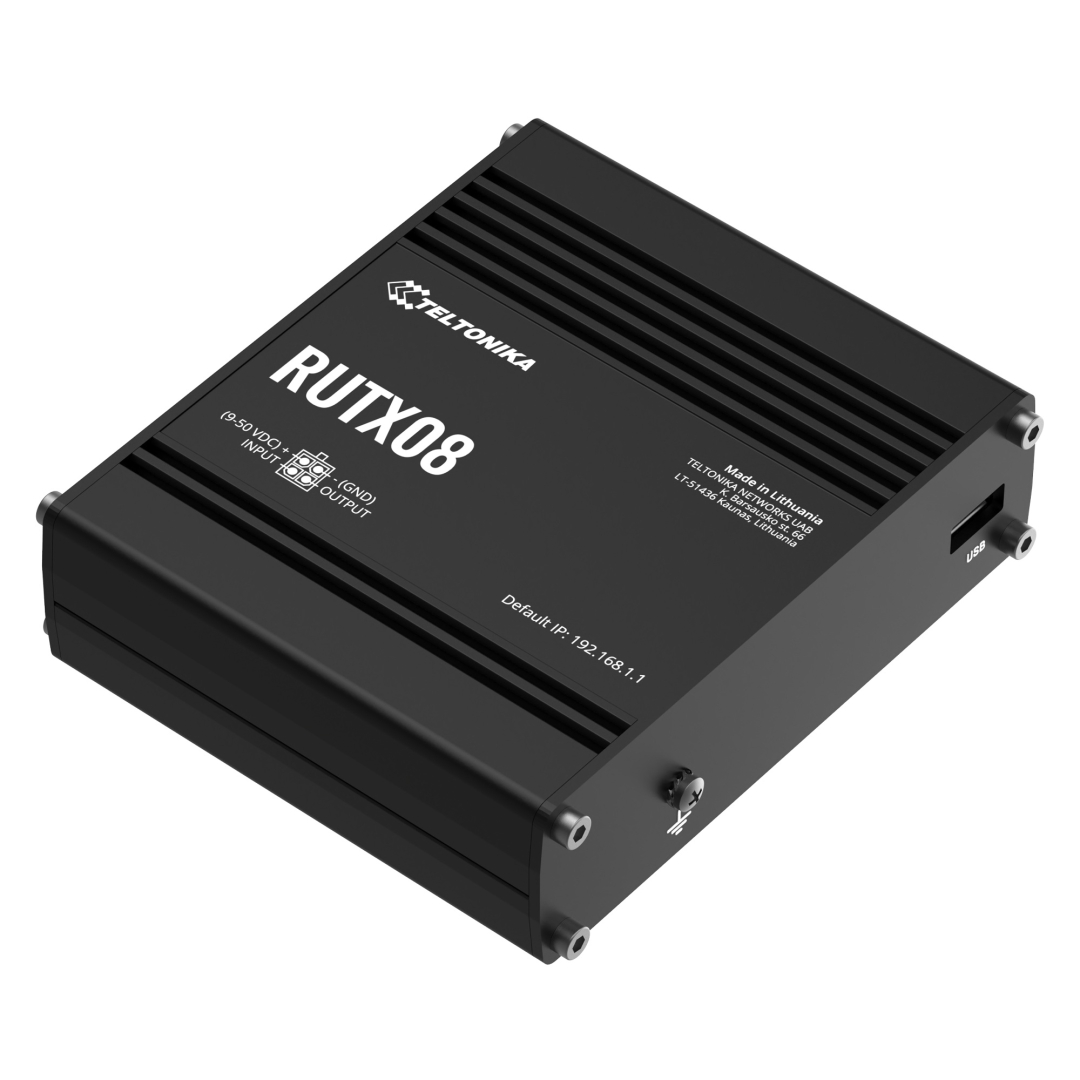

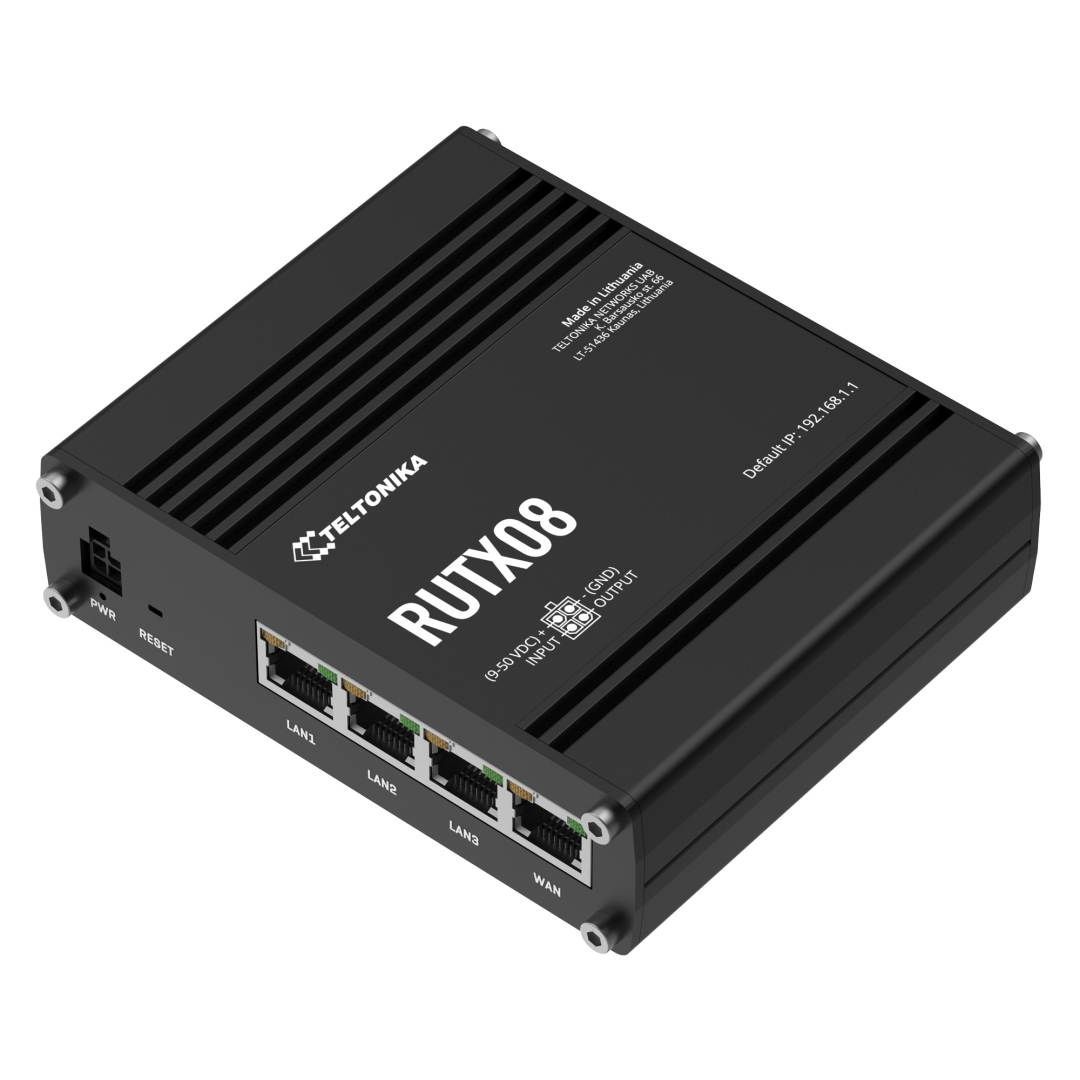

TELTONIKA pramoninis VPN maršrutizatorius (RUTX08)

OEM kodas: RUTX08
Kodas: RUTX08
ID: #1677

4x gigabito LAN, keturių branduolių „ARM Cortex A7“ centrinis procesorius, 717 MHz, tvirtas ir galingas pasirinkimas su VPN, ugniasiene ir daugybe apdorojimo galios pritaikytoms programoms „OpenWrt“ pagrindu sukurtoje „RutOS“ sistemoje

148.83€ * su PVM

Kaina be PVM: 123.00€

* Kreipkitės dėl nuolaidų didesniam kiekiui
Kiekis:


Produkto savybės:

Durable and powerful Ethernet-to-Ethernet router with advanced OpenWrt based RutOS and embedded Firewall and VPN functionality. Gigabit Ethernet interfaces, rugged aluminum housing and industrial networking protocol support makes RUTX08 a perfect choice for professional applications. Learn more on wiki page

- Gigabit Ethernet with speeds up to 1000 Mbps
- Easy to use, secure and feature rich OpenWrt based Operating System
- Teltonika Remote Management System compatible
- Multiple secure VPN services
- Quad core ARM Cortex A7 CPU, 717 MHz
- Wide range of power supply voltages for simpler integration

Produkto specifikacijos:

ETHERNET

WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT
VoIP passthrough support: H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relayd
QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: VRRP
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port based and tag based VLAN separation
WEB filter:    Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code

MONITORING & MANAGEMENT

WEB UI: HTTP, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
MQTT: MQTT Broker, MQTT publisher
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
JSON-RPC: Management API over HTTP/HTTPS
MODBUS: MODBUS TCP status/control
RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU: Quad-core ARM Cortex A7, 717 MHz
RAM: 256 MB, DDR2
FLASH memory: 256 MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with built environment provided

USB

Data rate: USB 2.0
Applications: Samba share, custom scripts
External devices: Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats: FAT, FAT32, NTFS

POWER

Connector: 4 pin industrial DC power socket
Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption: 11 W Max

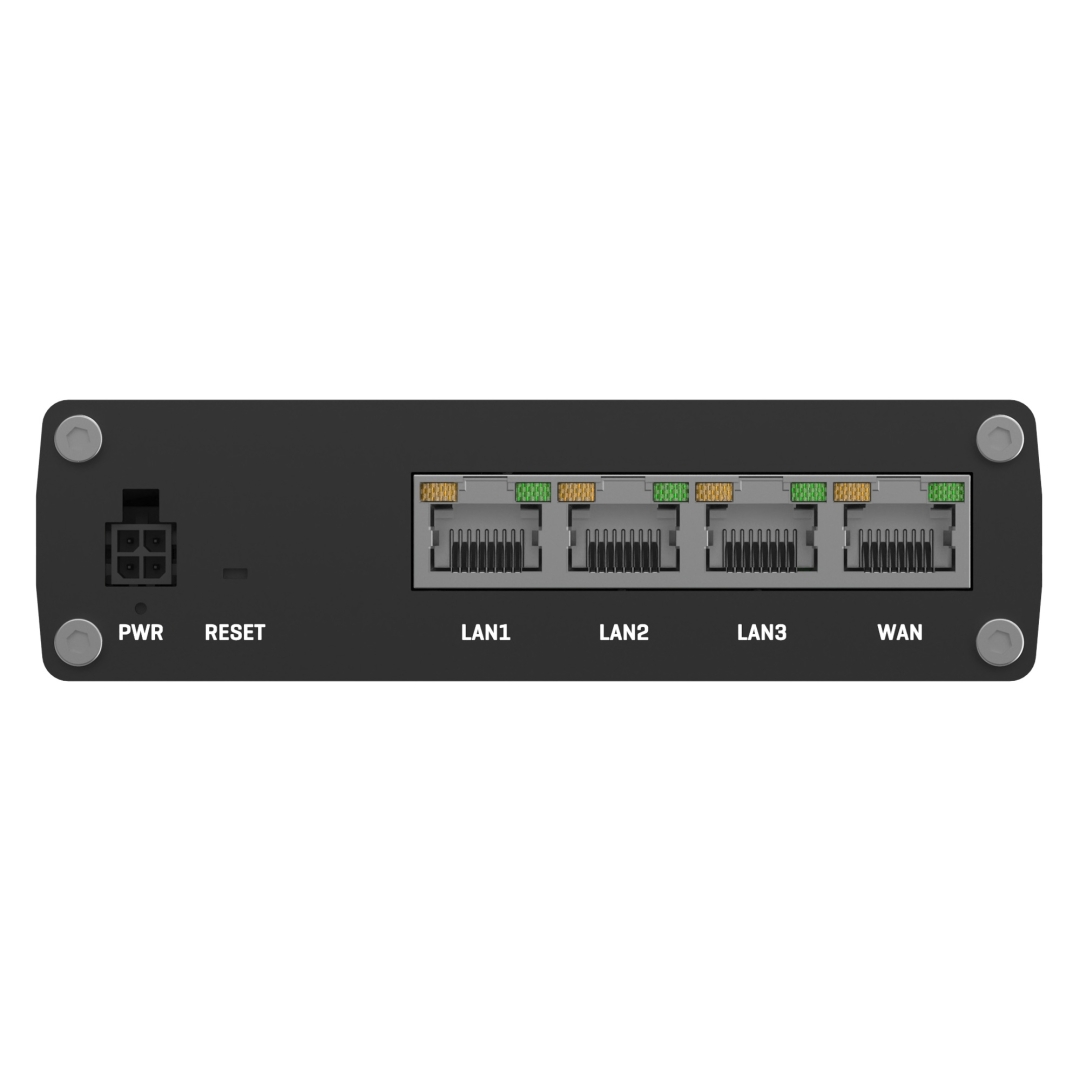

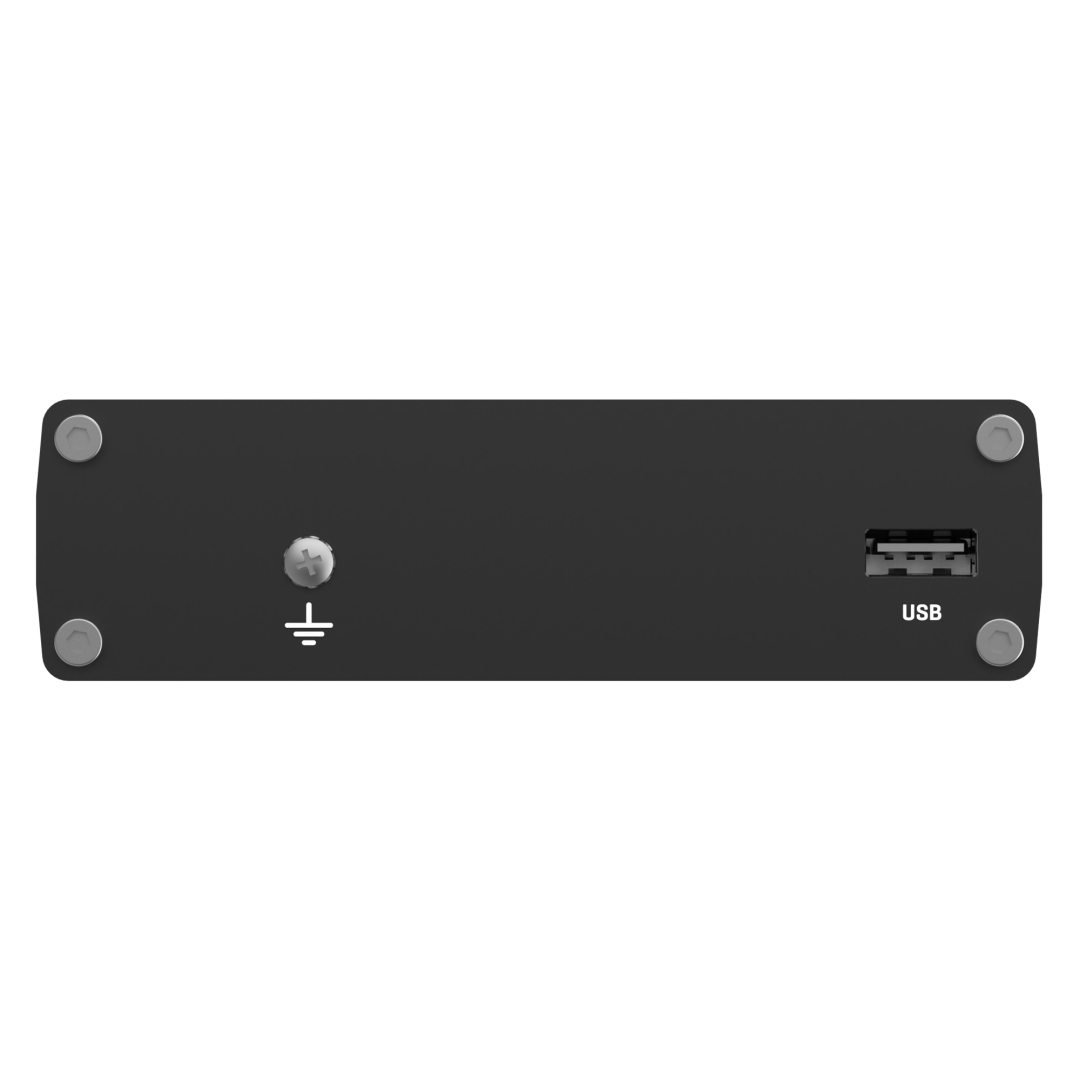

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)

Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 8 x LAN status LEDs, 1 x Power LED
Power: 4 pin industrial DC power socket
USB: USB A port for external devices
Reset: Reset/restore to default button

PHYSICAL SPECIFICATION

Casing material: Full aluminium housing
Dimensions: 115 mm x 95 mm x 32 mm (H x W x D)
Weight: 357 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature: -40 C to 75 C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
