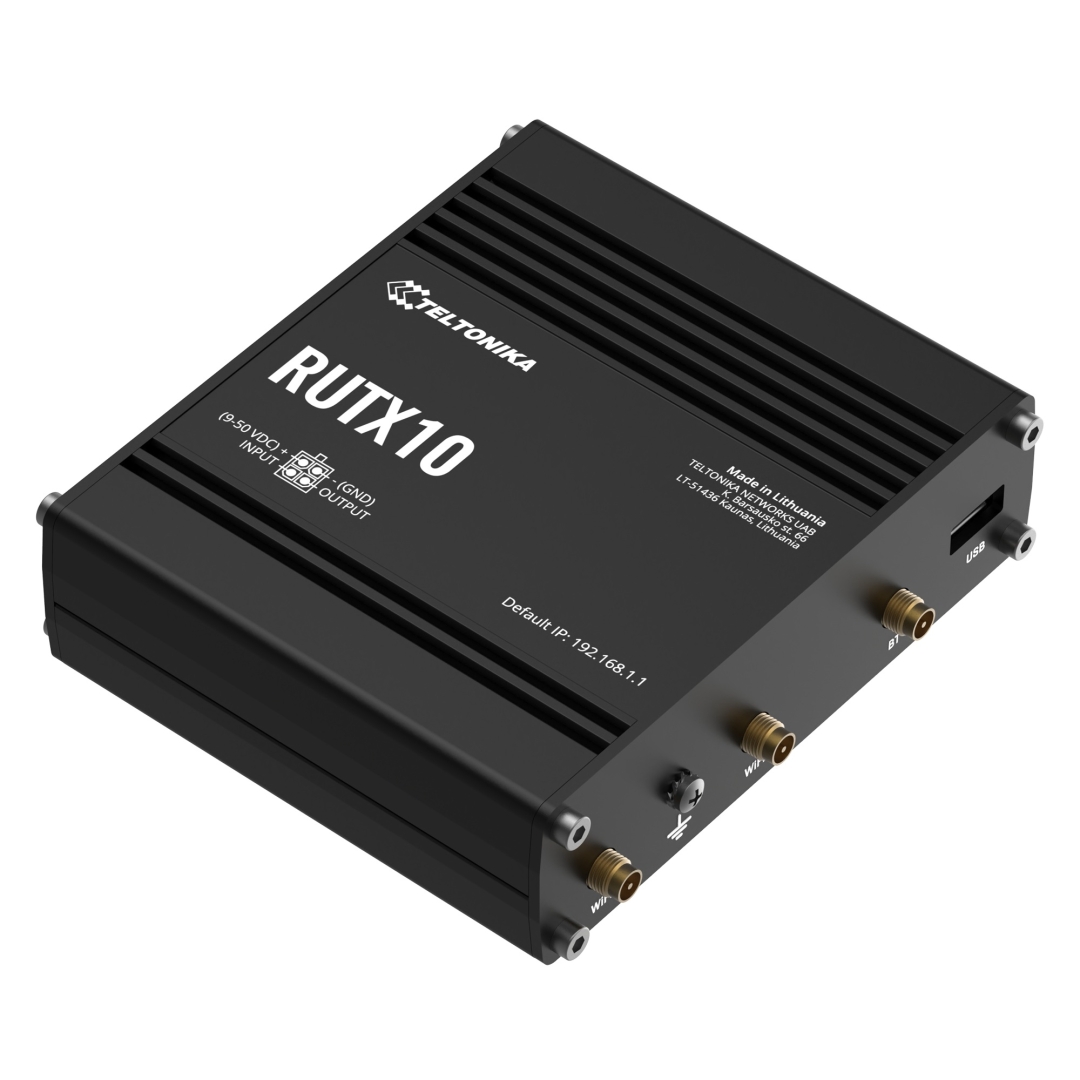

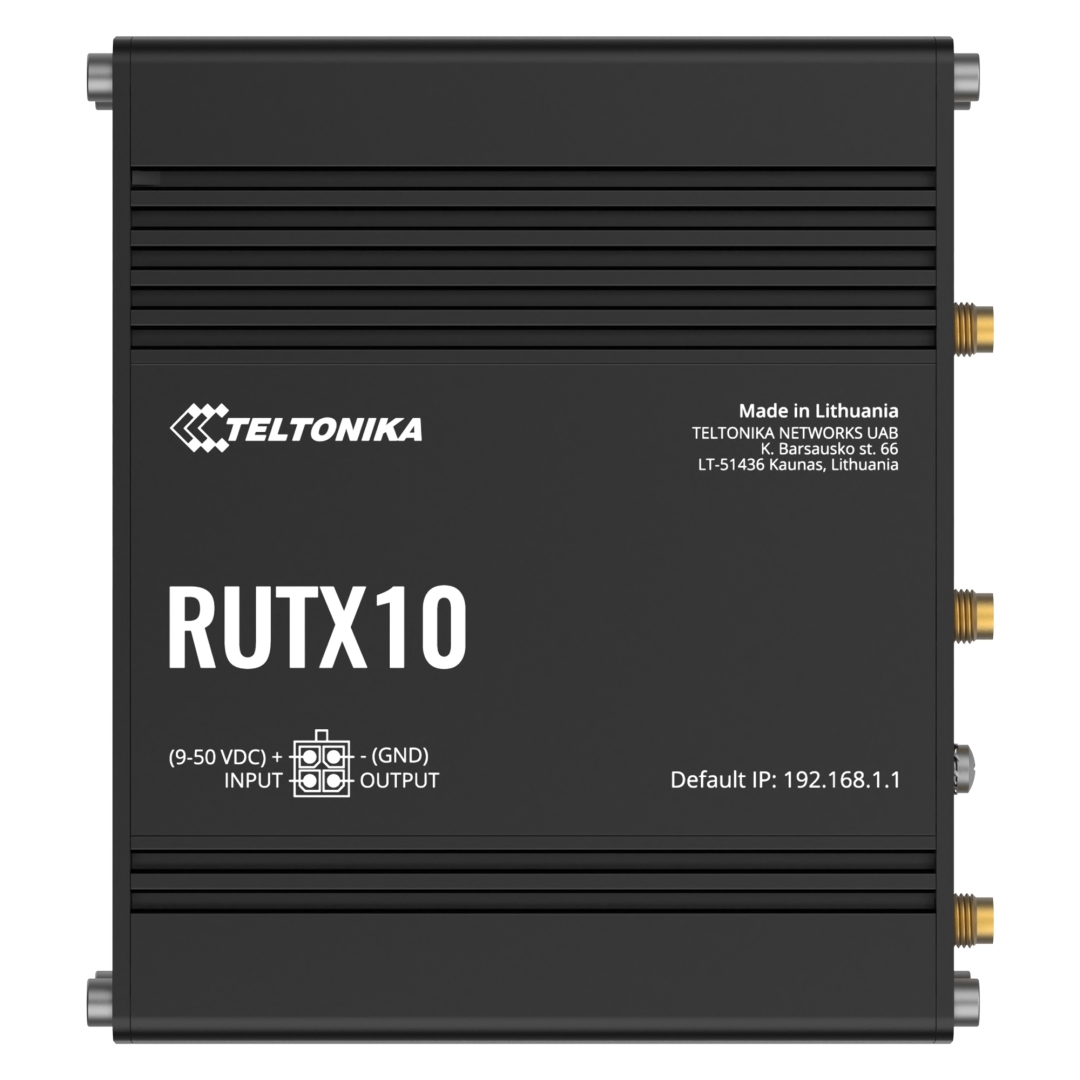

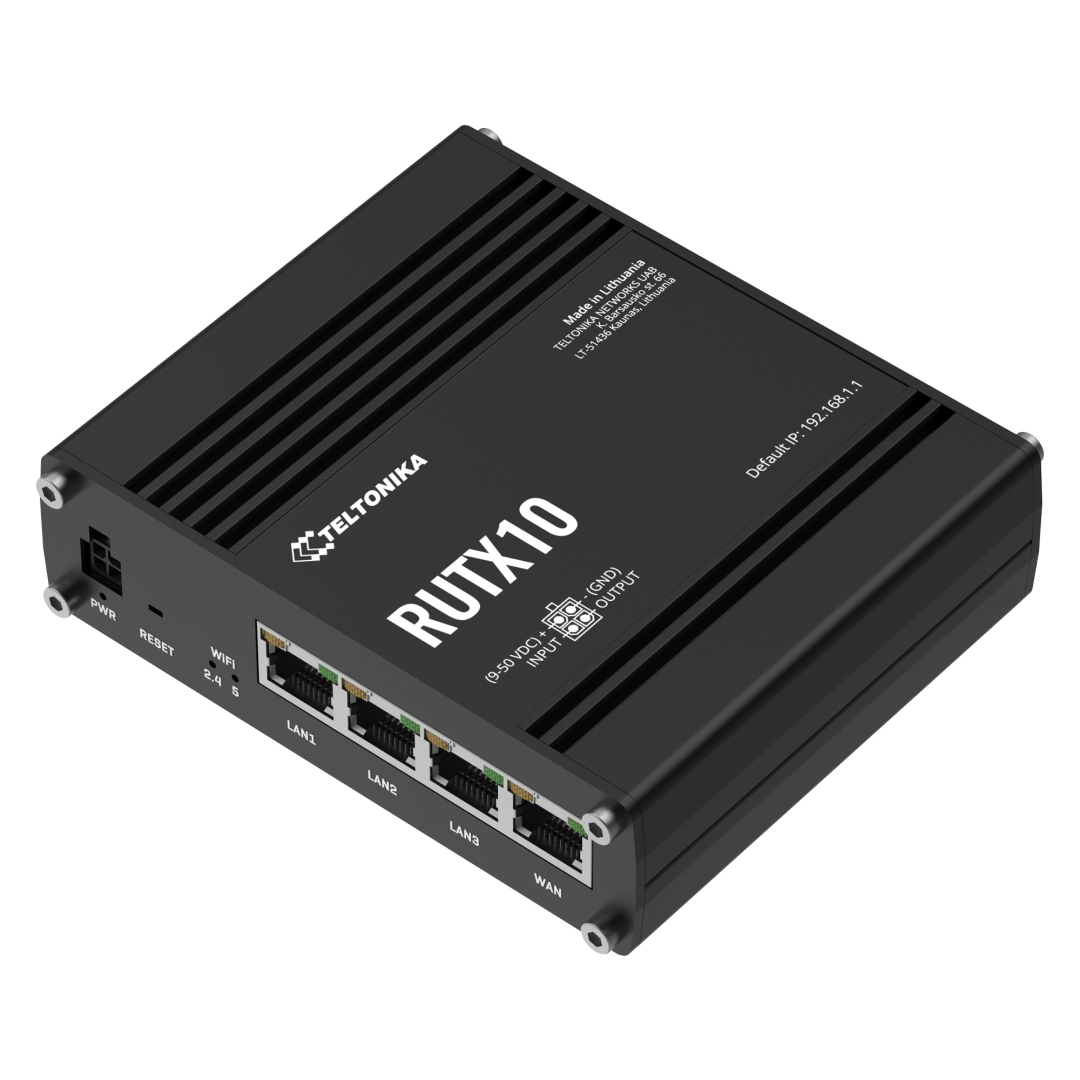

TELTONIKA pramoninis VPN Wi-Fi maršrutizatorius (RUTX10)

OEM kodas: RUTX10
Kodas: RUTX10
ID: #1797

4x Gigabit LAN prievadai, Wave-2 802.11ac Dual-band Wi-Fi su sparta iki 867 Mbps, keturių branduolių ARM Cortex A7 CPU, 717 MHz, Bluetooth LE, patikimas pasirinkimas naudojantiems VPN, EU tipo maitinimo šaltinis

153.67€ su PVM

Kaina be PVM: 127.00€


Produkto savybės:

Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.

Learn more on wiki page

Produkto specifikacijos:

• WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover;
• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover;

• Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA);
• WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation;
• ESSID: ESSID stealth mode.

• Bluetooth LE: Bluetooth low energy (LE) for short range communication.

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP);
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP (planed), SSL v3, TLS, ARP, VRRP (planed), PPP, PPPoE, UPNP, SSH, SNMP, DHCP, Telnet (optional), MQTT;
• VoIP passthrough support: H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets;
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection;
• Firewall: Port forwards, traffic rules, custom rules;
• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd;
• QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e;
• DDNS: Supported >25 service providers, others can be configured manually;
• Network backup: VRRP (planed);
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW).

• Authetication: Pre-shared key, digital certificates, X.509 certificates;
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T;
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks);
• VLAN: Port based and tag based VLAN separation;
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only;
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter.

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods;
• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256);
• GRE: GRE tunnel;
• PPTP, L2TP: Client/Server services can run simultaneously;
• Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code;
• DMVPN: Method of building scalable IPsec VPNs.

Monitoring & Management:
• WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log;
• FOTA: Firmware update from server, automatic notification;
• SSH: SSH (v1, v2);
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem;
• MQTT: MQTT Broker, MQTT publisher;
• JSON-RPC: Management API over HTTP/HTTPS;
• Modbus (planed): Modbus TCP status/control, master and slave modes;
• RMS: Teltonika Remote Management System (RMS).

System Characteristics:
• CPU: Quad-core ARM Cortex A7, 717 MHz;
• RAM: 256 MB, DDR3;
• FLASH memory: 256 MB SPI Flash.

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup;
• FOTA: Update FW/configuration from server;
• RMS: Update FW/configuration for multiple devices;
• Keep settings: Update FW without losing current configuration.

Firmware Customization:
• Operating system: RutOS (OpenWrt based Linux OS);
• Supported languages: Busybox shell, Lua, C, C++;
• Development tools: SDK package with build environment provided (planed).

• Data rate: USB 2.0;
• Applications: Samba share (planed), custom scripts (planed);
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer;
• Storage formats: FAT, FAT32, NTFS.

• Input: 1 x Digital Input;
• Output: 1 x Digital Output;
• Events: SMS, Email, RMS.

• Connector: 4 pin industrial DC power socket;
• Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection;
• PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards;
• Power consumption: 11 W Max.

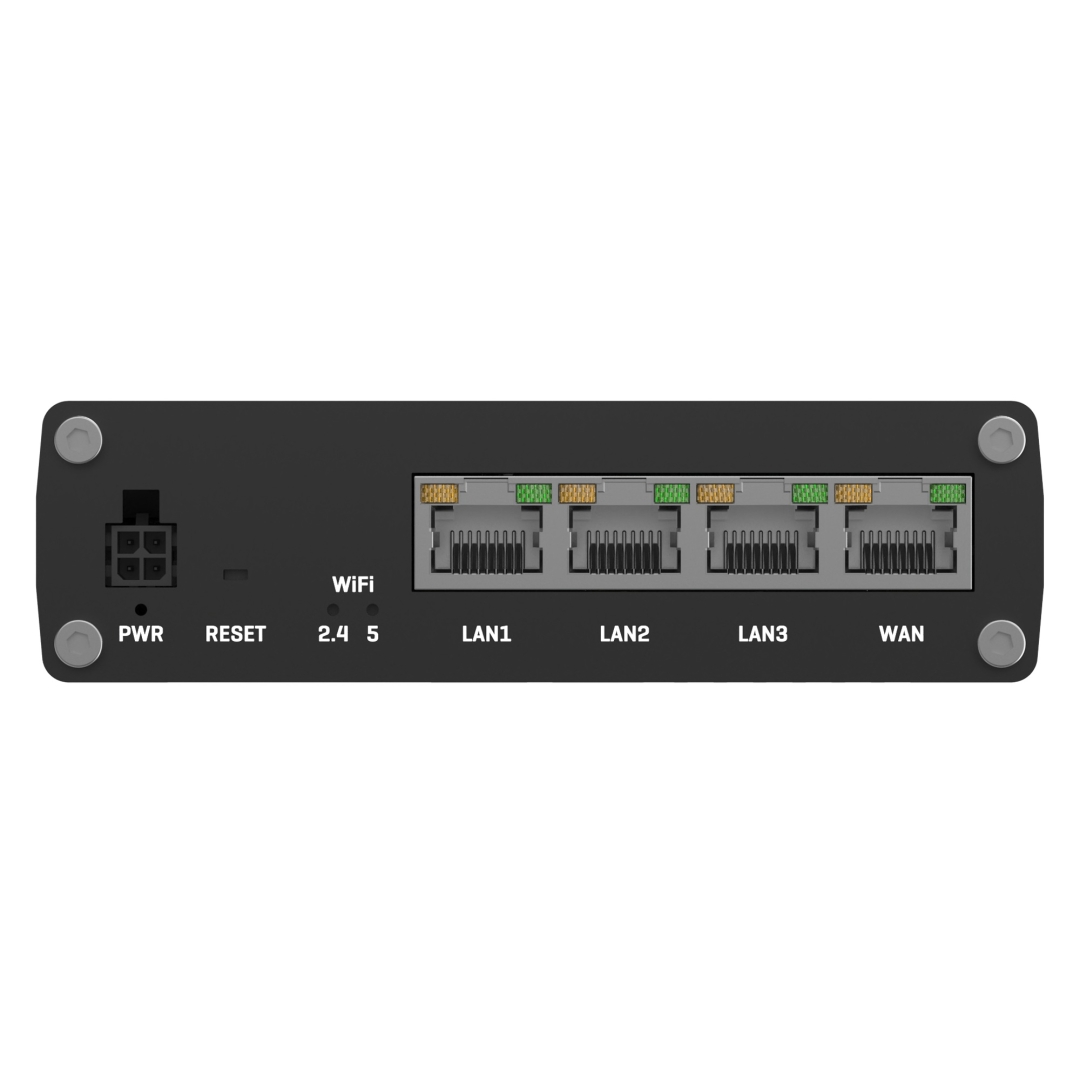

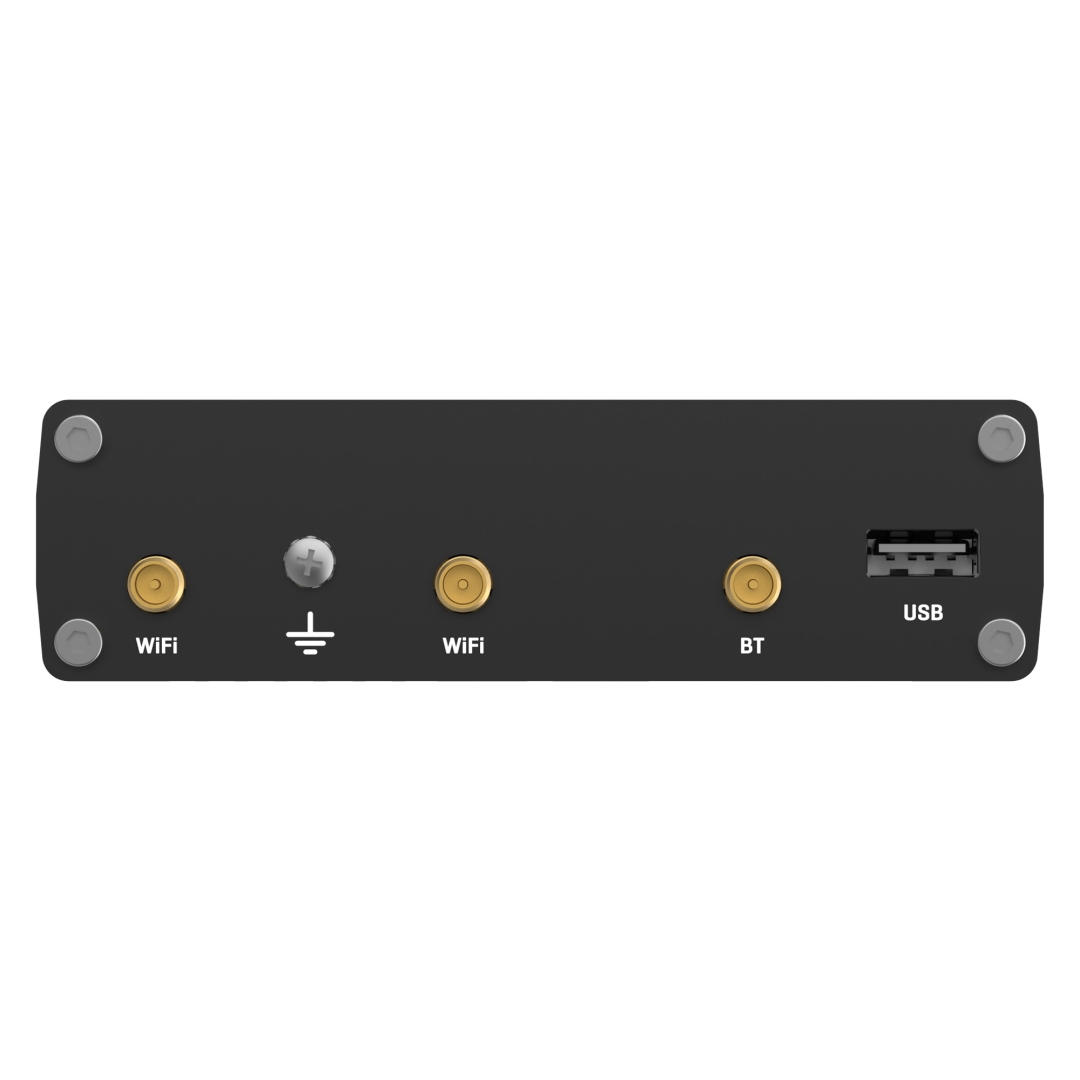

Physical Interfaces (ports, leds, buttons):
• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps;
• I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector;
• Status LEDs: 8 x LAN status LEDs, 1 x Power LED;
• Power: 4 pin DC connector;
• Antennas: 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth;
• USB: USB A port for external devices;
• Reset: Factory reset button.

Physical Specifications:
• Casing material: Full aluminium housing;
• Dimensions: 115 mm x 95 mm x 32 mm (H x W x D);
• Weight: 357 g;
• Mounting options: DIN rail (can be mounted on two sides), flat surface placement.

Operating Environment:
• Operating temperature: -40 C to 75 C;
• Operating humidity: 10 % to 90 % non-condensing;
• Ingress Protection Rating: IP30.
