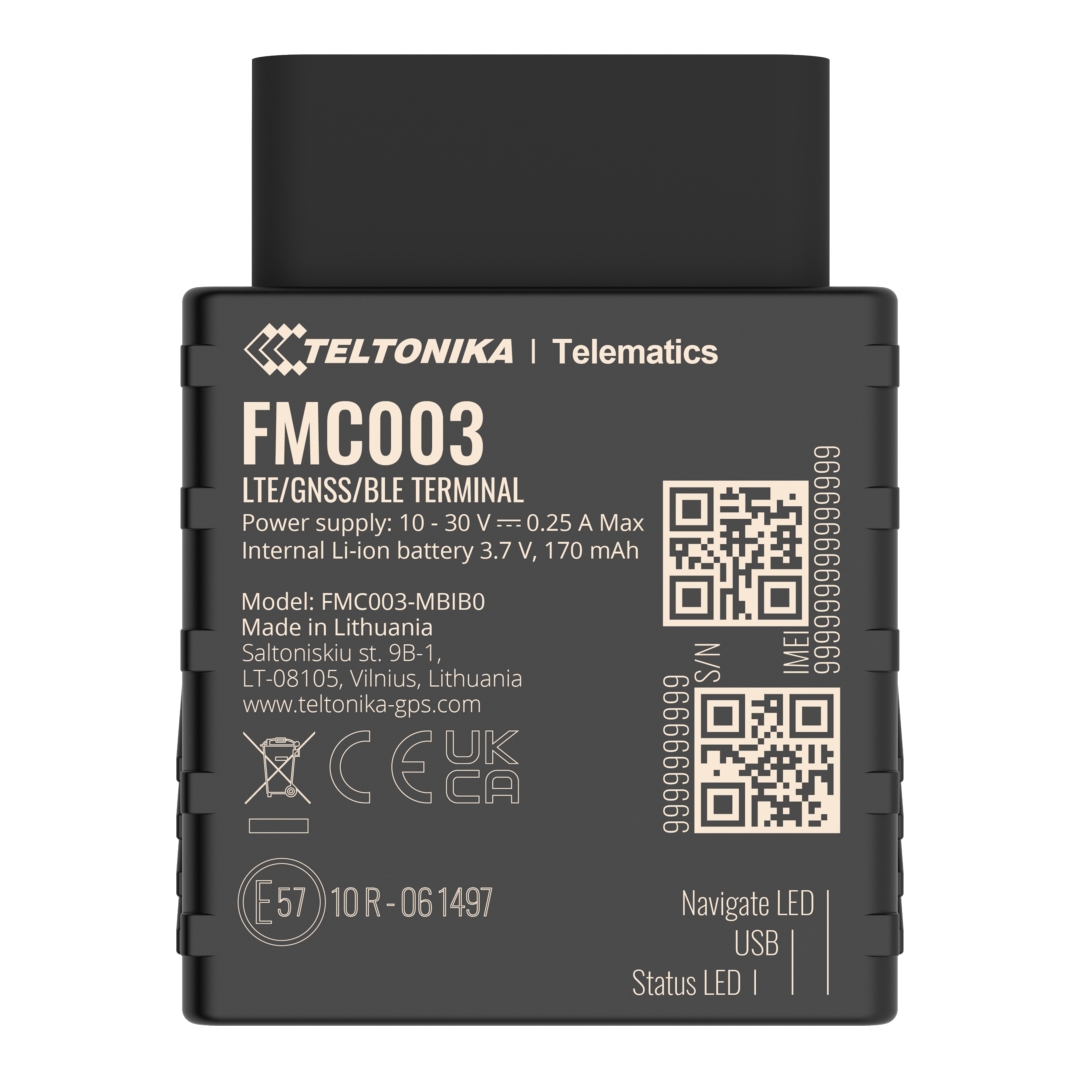

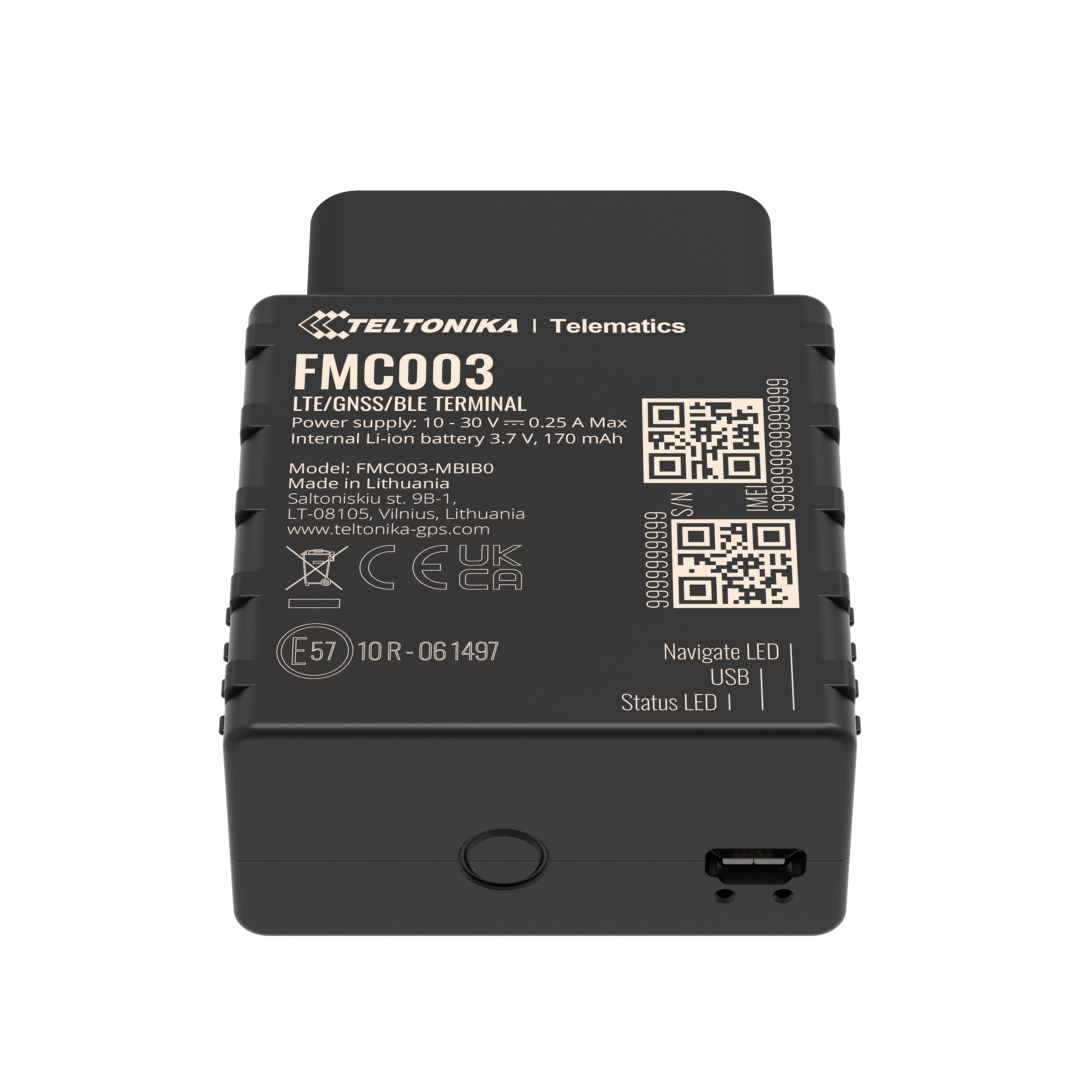

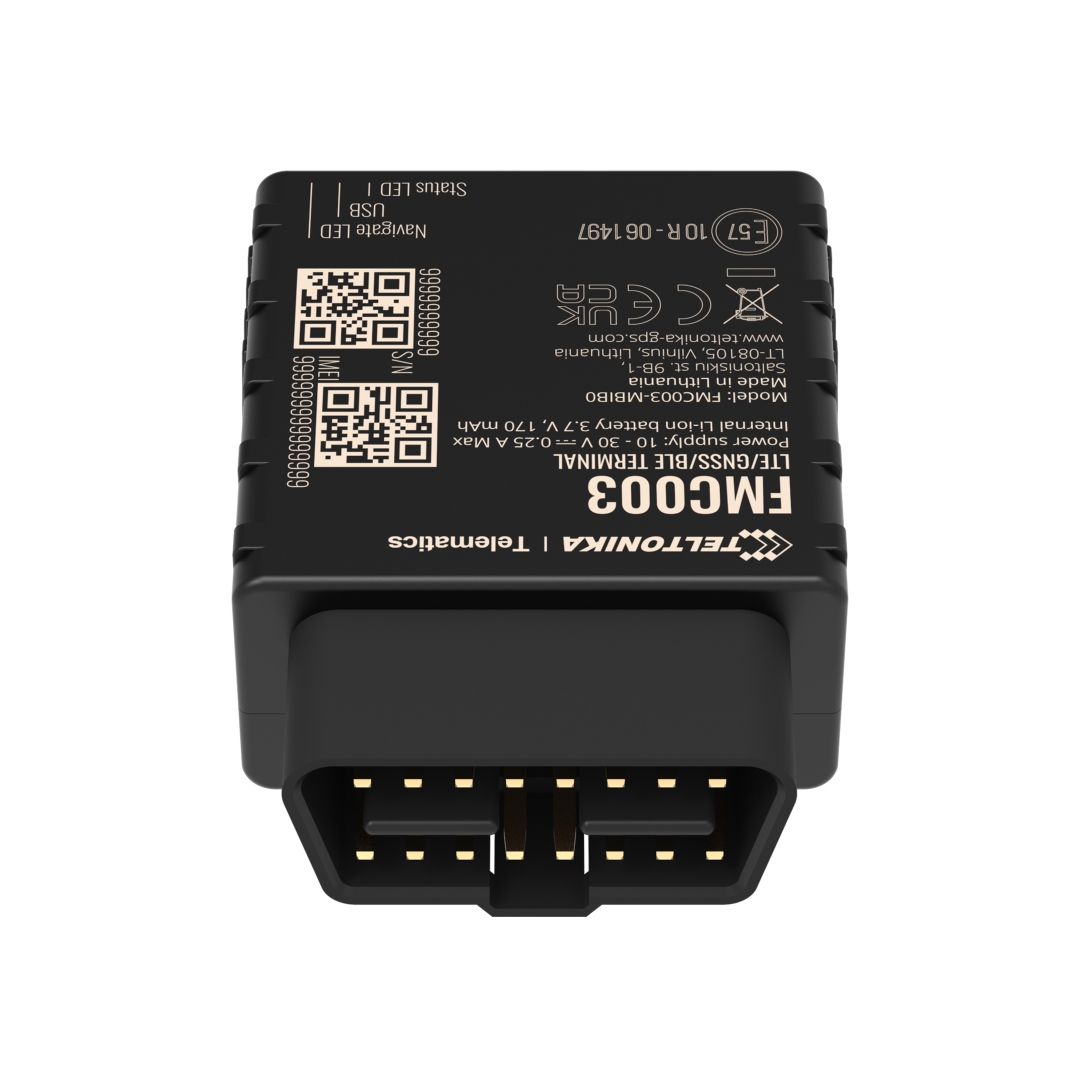

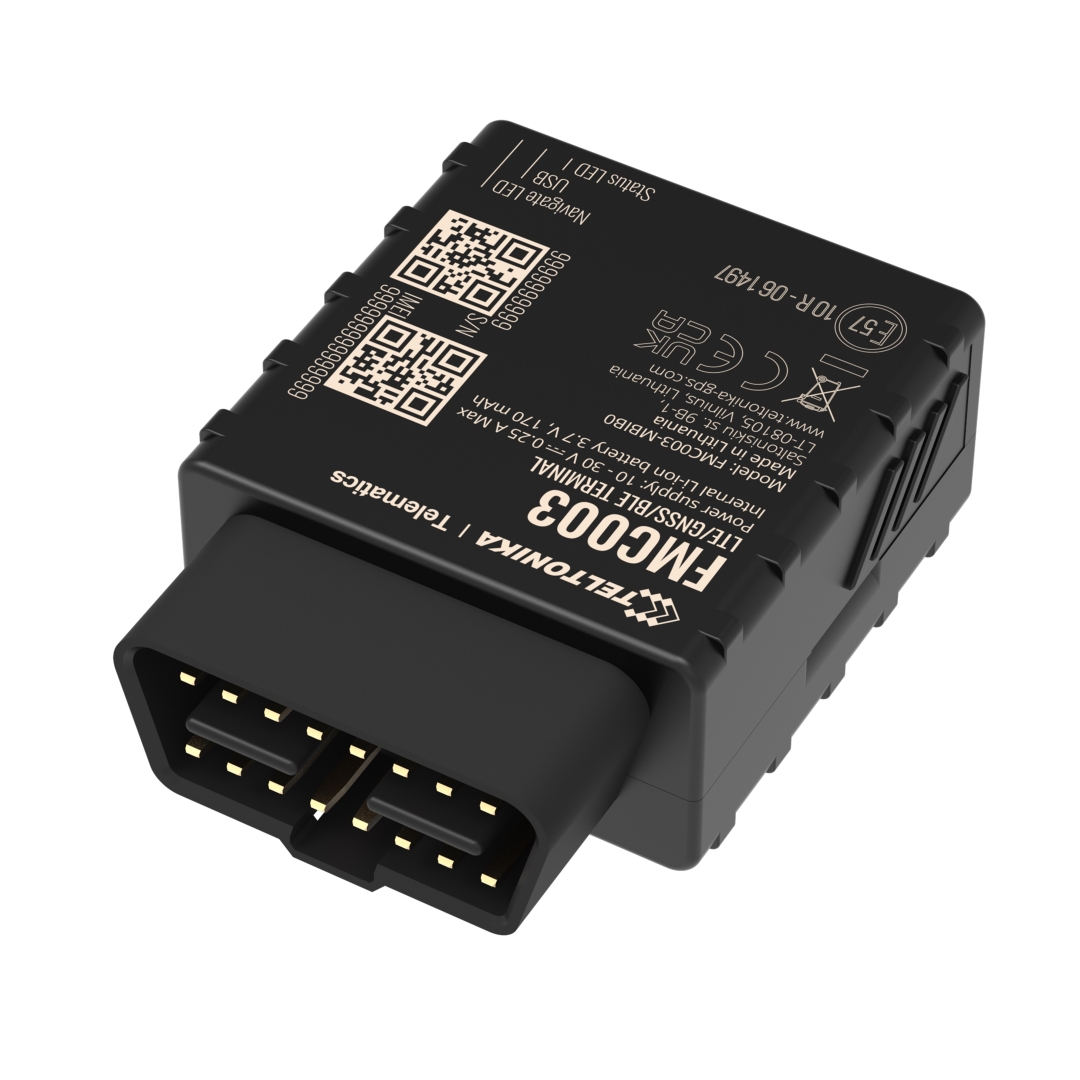

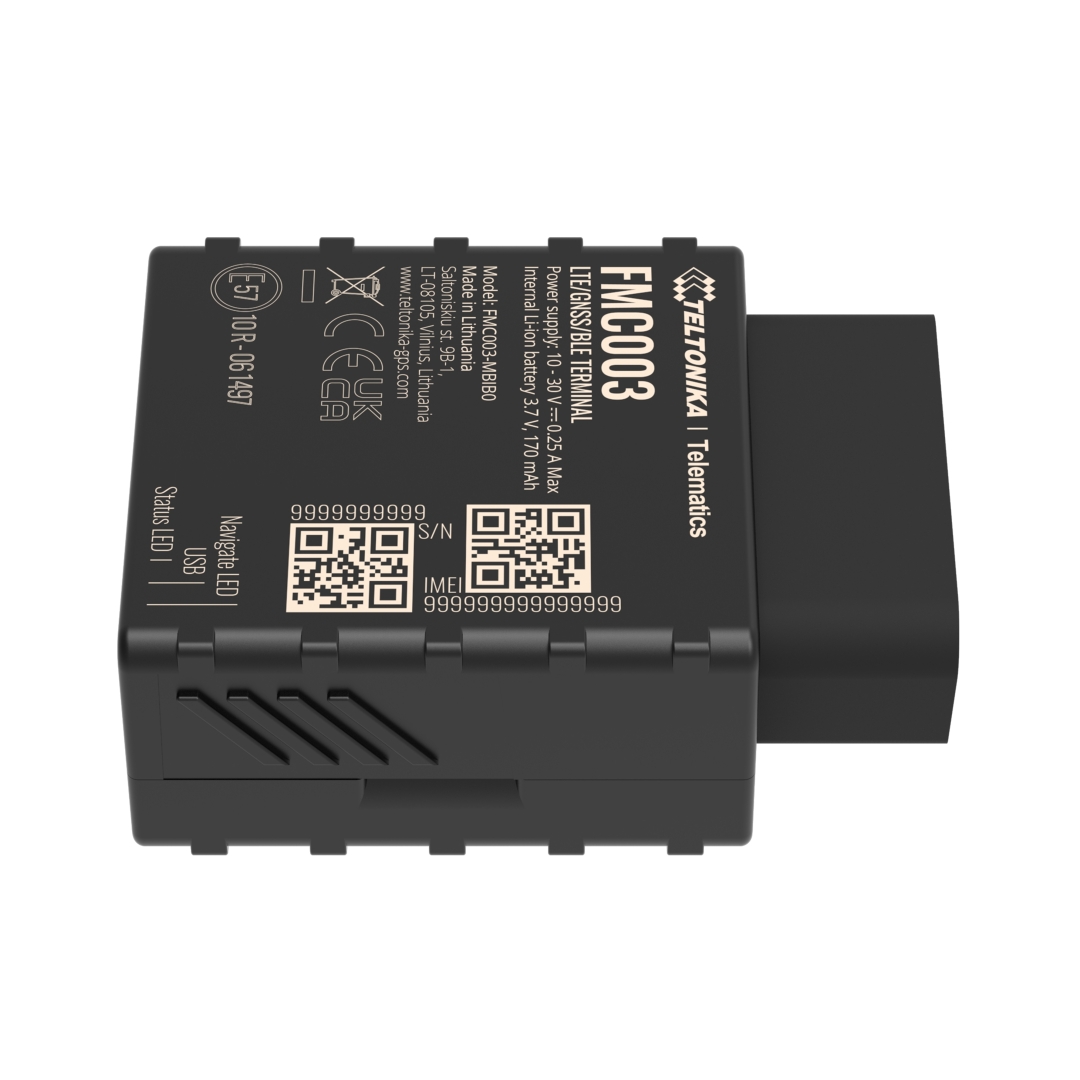

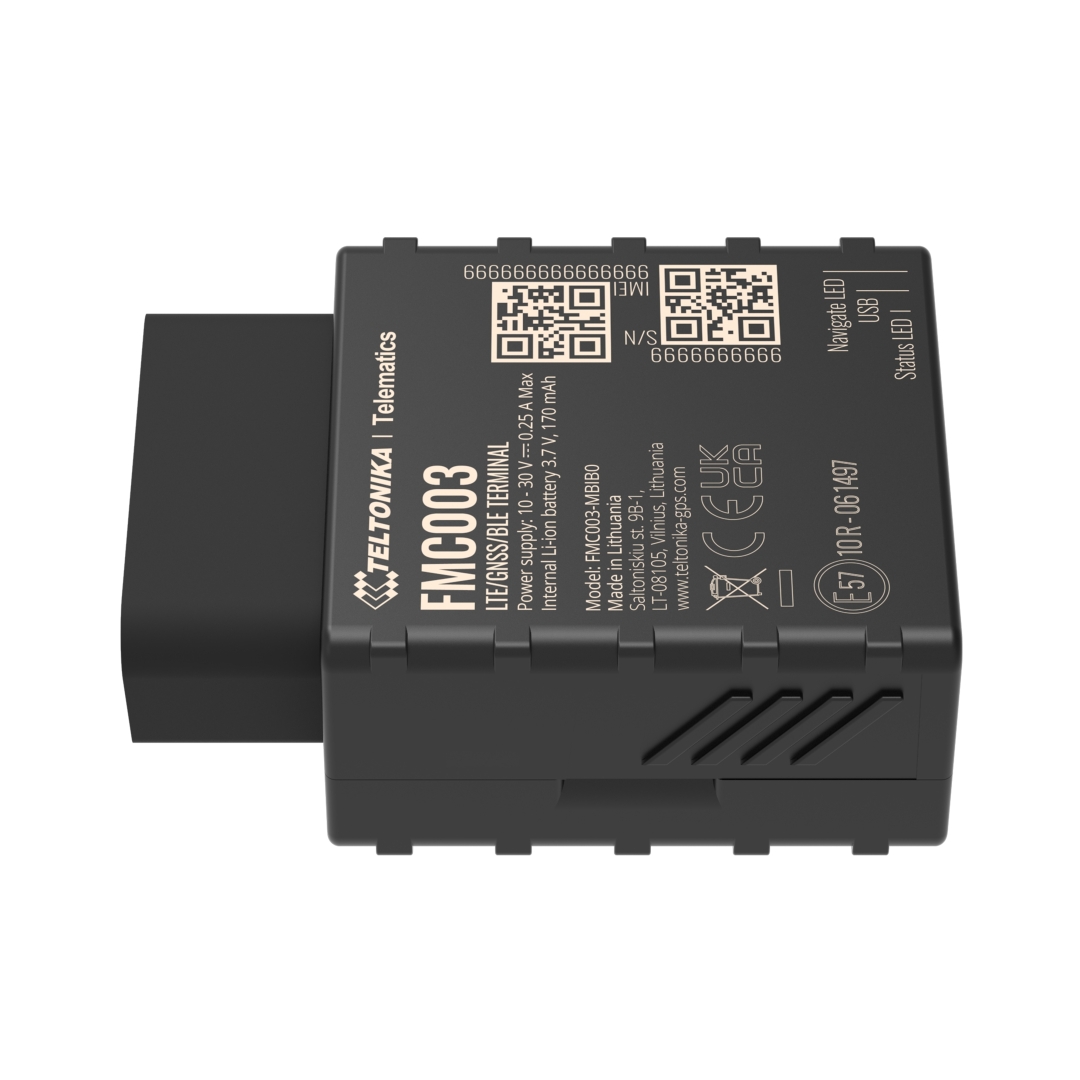

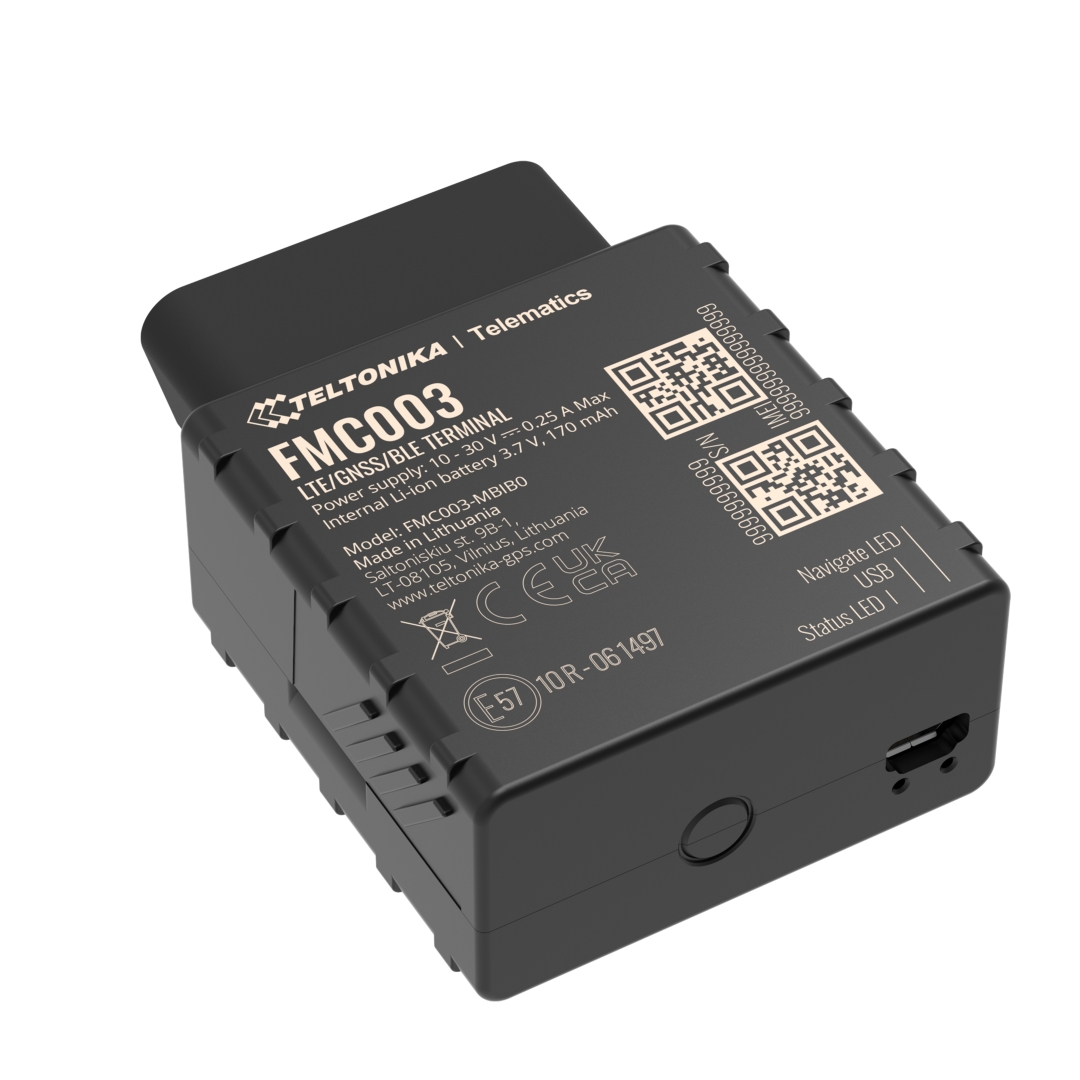

TELTONIKA 4G LTE Cat 1 sekimo įrenginys, nuskaitantis OBD OEM duomenis (FMC003)
OEM kodas:
FMC003
Kodas:
FMC003
ID:
#3894
EAN kodas:
4779027310244
4G LTE Cat 1 | OEM OBDII Duomenų nuskaitymas | Bluetooth 4.0
85.38€ su PVMKaina be PVM: 70.56€ |
Produkto savybės:
FMC003 yra pažangus „plug and play“ LTE CAT1 įrenginys, skirtas naujos kartos OBD taikymams. Pagrindinė FMC003 savybė – galimybė nuskaityti OEM parametrus (PID) per OBD jungtį. Naudodami šį įrenginį, galėsite nuskaityti tikrus odometro ir tikro kuro lygio duomenis. Be to, mūsų įrenginys pateikiamas su palaikomų transporto priemonių ir duomenų sąrašu, todėl nebebus reikalinga spėlioti – dabar žinosite, kokius duomenis galite nuskaityti iš konkrečios transporto priemonės. Tai puikus sekiklis įvairiems naudojimo atvejams – įskaitant lengvųjų komercinių transporto priemonių parkų valdymą, vairuotojo žurnalą, draudimo telematiką (UBI), automobilių nuomą ir lizingą bei kt.
Produkto specifikacijos:
| MODULE | |
| Name | Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA |
| Technology | LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
| Data transfer | LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Supply voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD INTERFACE | |
| Data | K-Line, CAN bus data |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| INTERFACE | |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 67,2 x 49,6 x 25 mm (L x W x H) |
| Weight | 63 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | +10 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
