TELTONIKA Dvigubo SIM lizdo 4G LTE Cat4 Wi-Fi 4 Pramoninis Maršrutizatorius su RS232 ir RS485 Serijinėmis sąsajomis (RUT206)

Produkto savybės:

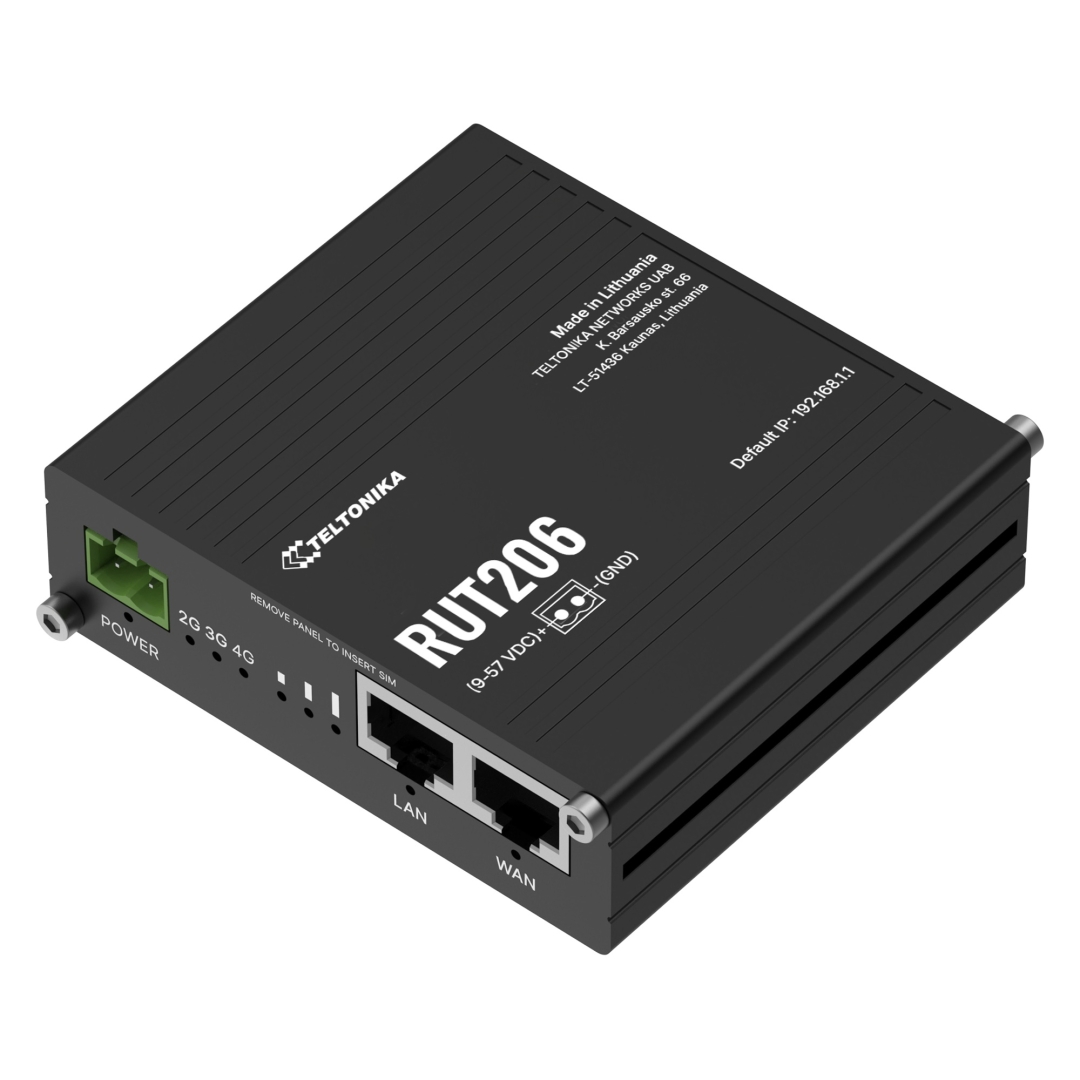

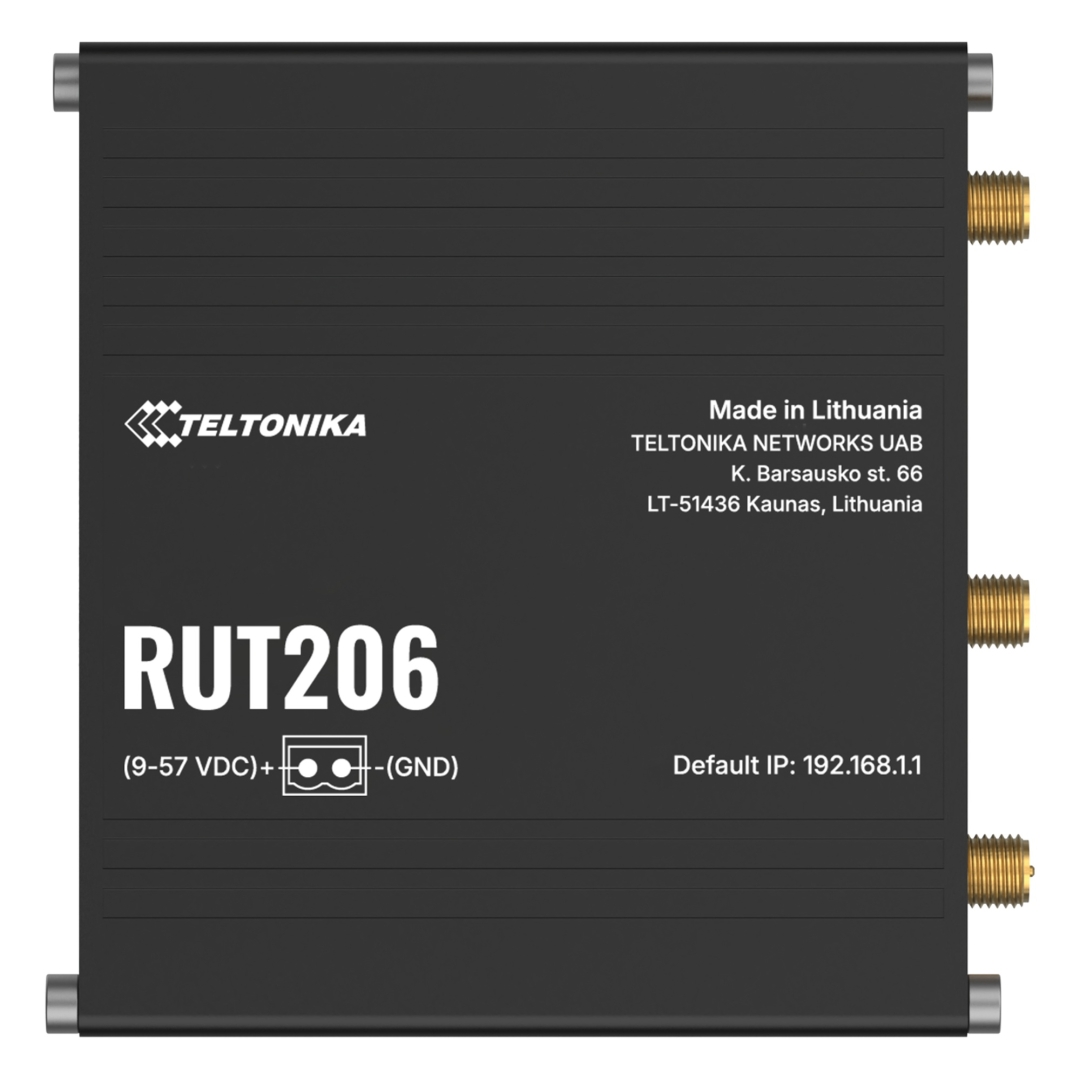

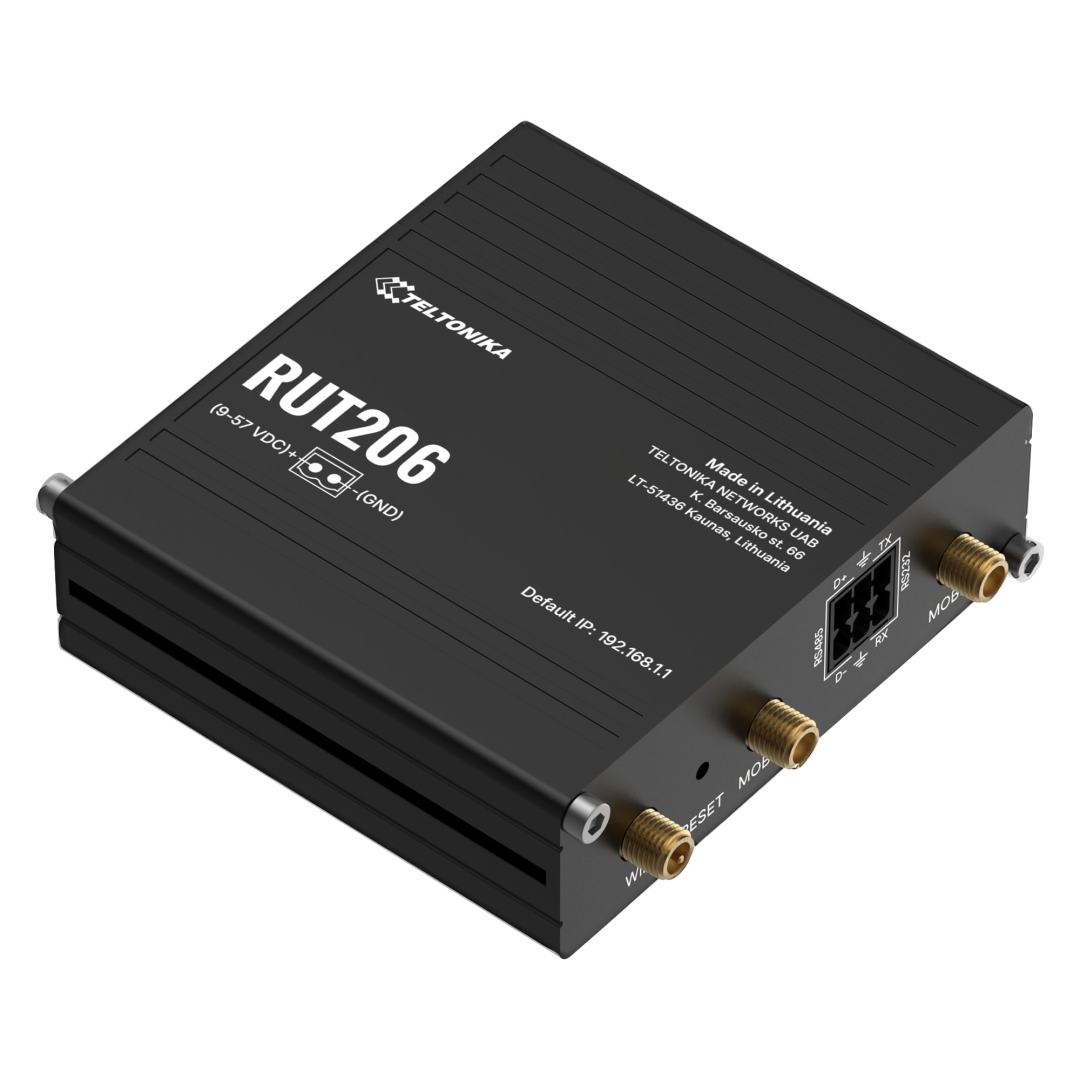

RUT206 yra kompaktiškas pramoninis maršrutizatorius, palaikantis RS232 ir RS485 serijinės komunikacijos sąsajas bei aktyvaus ir pasyvaus PoE įvestis. Dėl savo tvirto dizaino, dviejų kontaktų maitinimo įvesties ir galimybės išplėsti duomenų saugyklą per microSD, jis yra puikus pasirinkimas įvairioms daiktų intreneto ir M2M programoms. Šis 4G Cat 4 maršrutizatorius veikia su atvirojo kodo RutOS programine įranga ir palaiko svarbiausius pramoninius protokolus, tokius kaip Modbus, DNP3 ir DLMS

Produkto specifikacijos:

Mobile
    Mobile module:    4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
    3GPP Release:    Release 9
    SIM switch:    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
    Status:    IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
    SMS:    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
    USSD:    Supports sending and reading Unstructured Supplementary Service Data messages
    Black/White list:    Operator black/white list (by country or separate operators)
    Band management:    Band lock, Used band status display
    SIM idle protection service:    When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
    SIM PIN code management:    SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
    APN:    Auto APN
    Bridge:    Direct connection (bridge) between mobile ISP and device on LAN
    Passthrough:    Router assigns its mobile WAN IP address to another device on LAN

Wireless
    Wireless mode:    802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
    Wi-Fi security:    WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
    SSID/ESSID:    SSID stealth mode and access control based on MAC address
    Wi-Fi users:    Up to 50 simultaneous connections
    Wireless Connectivity Features:    Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
    Wireless MAC filter:    Allowlist, blocklist
    Wireless QR code generator:    Once scanned, a user will automatically enter your network without needing to input login information
    TravelMate:    Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
    WAN:    1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    LAN:    1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
    Routing:    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
    Network protocols:    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
    VoIP passthrough support:    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
    Connection monitoring:    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
    Firewall:    Port forward, traffic rules, custom rules, TTL target customisation
    Firewall status page:    View all your Firewall statistics, rules, and rule counters
    Ports management:    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
    Network topology:    Visual representation of your network, showing which devices are connected to which other devices
    DHCP:    Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
    QoS / Smart Queue Management (SQM):    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
    DDNS:    Supported >25 service providers, others can be configured manually
    DNS over HTTPS:    DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
    Network backup:    Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
    Load balancing:    Balance Internet traffic over multiple WAN connections
    Hotspot:    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
    Hotspot 2.0:    Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
    SSHFS:    Possibility to mount remote file system via SSH protocol
    Traffic Management:    Real-time monitoring, wireless signal charts, traffic usage history

Security
    Authentication:    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
    Firewall:    Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
    Attack prevention:    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    VLAN:    Port and tag-based VLAN separation
    Mobile quota control:    Mobile data limit, customizable period, start time, warning limit, phone number
    WEB filter:    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
    Access control:    Flexible access control of SSH, Web interface, CLI and Telnet
    SSL certificate generation:    Let's Encrypt and SCEP certificate generation methods
    802.1x:    Port-based network access control server

VPN
    OpenVPN:    Multiple clients and a server can run simultaneously, 27 encryption methods
    OpenVPN Encryption:    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
    IPsec:    XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
    GRE:    GRE tunnel, GRE tunnel over IPsec support
    PPTP, L2TP:    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
    Stunnel:    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
    DMVPN:    Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
    SSTP:    SSTP client instance support
    ZeroTier:    ZeroTier VPN client support
    WireGuard:    WireGuard VPN client and server support
    Tinc:    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET
    Supported modes:    Router
    Supported connection types:    RS485, TCP

OPC UA
    Supported modes:    Client, Server
    Supported connection types:    TCP

MODBUS
    Supported modes:    Server, Client
    Supported connection types:    RTU, TCP
    Custom registers:    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
    Supported data formats:    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server
    Protocol:    HTTP(S), MQTT, Azure MQTT
    Data to server:    Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
    Modbus MQTT Gateway:    Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
    Supported modes:    TCP Master, DNP3 Outstation
    Supported connection types:    RS232, RS485, TCP

DLMS
    DLMS Support:    DLMS - standard protocol for utility meter data exchange
    Supported modes:    Client
    Supported connection types:    TCP
    COSEM:    Allows to scan meter COSEM objects for automatic detection and configuration

API
    Teltonika Networks Web API (beta) support:    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
    WEB UI:    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
    FOTA:    Firmware update from server, automatic notification
    SSH:    SSH (v1, v2)
    SMS:    SMS status, SMS configuration, send/read SMS via HTTP POST/GET
    Call:    Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
    TR-069:    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    MQTT:    MQTT Broker, MQTT publisher
    SNMP:    SNMP (v1, v2, v3), SNMP Trap, Brute force protection
    JSON-RPC:    Management API over HTTP/HTTPS
    RMS:    Teltonika Remote Management System (RMS)

IoT Platforms
    ThingWorx:    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
    Cumulocity - Cloud of Things:    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
    Azure IoT Hub:    Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
    AWS IoT Core:    Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
    CPU:    Mediatek, 580 MHz, MIPS 24KEc
    RAM:    128 MB, DDR2
    FLASH storage:    32 MB, NOR Flash

Firmware / Configuration
    WEB UI:    Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA:    Update FW
    RMS:    Update FW/configuration for multiple devices at once
    Keep settings:    Update FW without losing current configuration
    Factory settings reset:    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation
    Operating system:    RutOS (OpenWrt based Linux OS)
    Supported languages:    Busybox shell, Lua, C, C++
    Development tools:    SDK package with build environment provided
    GPL customization:    You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
    Package Manager:    The Package Manager is a service used to install additional software on the device

Serial
    RS232:    RS232 interface without flow control signals
    RS485:    Half duplex (2-wire) RS485 interface

Input / Output
    Events:    Email, RMS, SMS

SD Card
    Physical size:    Micro SD (internal)
    Applications:    Samba share
    Capacity:    Up to 2 TB
    Storage Formats:    FAT32, NTFS, ext2, ext3, ext4

POE IN
    PoE ports:    1 x PoE In
    PoE standards:    Active PoE input 802.3af Class 0 (12.94 W) on LAN port

Power
    Connector:    2-pin industrial DC power socket
    Input voltage range:    9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min
    PoE (passive):    Passive PoE over spare pairs 4,5 (+) / 7,8 (-). Possibility to power up through LAN port, passive PoE voltage: 16 - 57 VDC
    Power consumption:    Idle: < 2 W, Max: < 3.5 W

Physical Interfaces

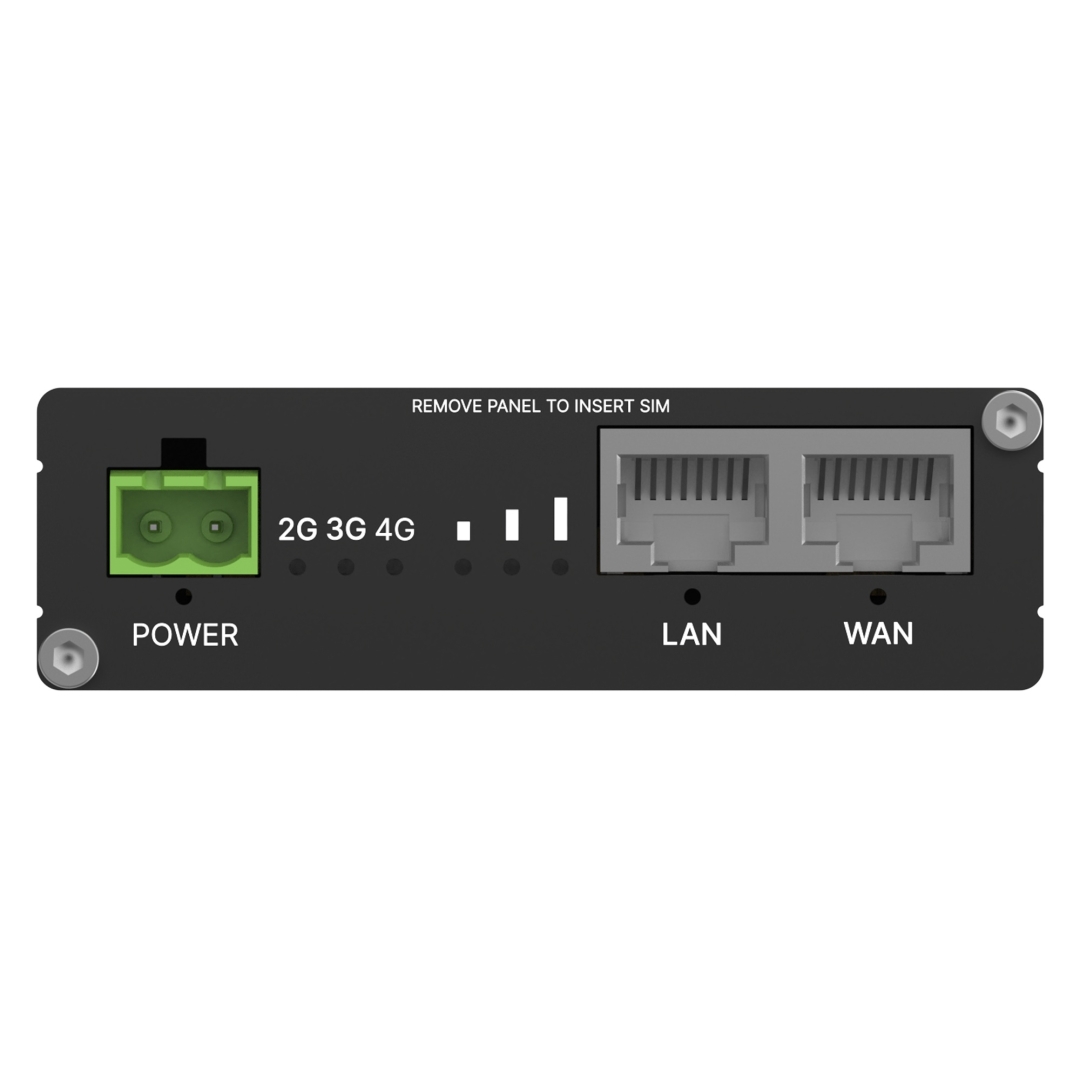

    Ethernet:    2 x RJ45 ports, 10/100 Mbps
    Status LEDs:    3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
    SIM:    2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
    Power:    1 x 2-pin power connector

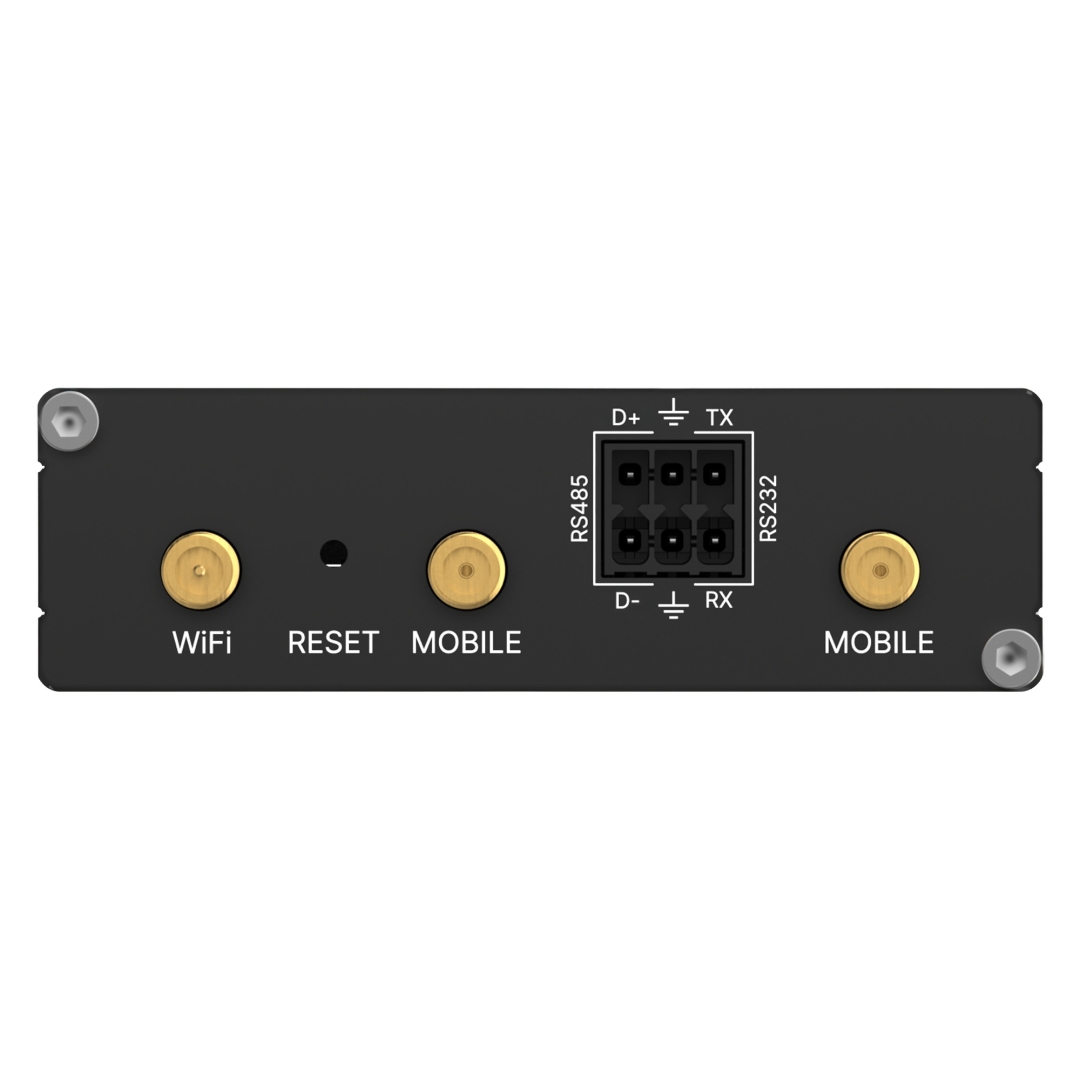

    Antennas:    2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
    RS232, RS485:    1 x 6-pin terminal block
    Reset:    Reboot/User default reset/Factory reset button

Physical Specification
    Casing material:    Anodized aluminum housing and panels
    Dimensions (W x H x D):    83 x 25 x 83 mm
    Weight:    132 g
    Mounting options:    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
    Operating temperature:    -40 °C to 75 °C
    Operating humidity:    10% to 90% non-condensing
    Ingress Protection Rating:    IP30

Regulatory & Type Approvals
    Regulatory:    CE, UKCA, CB, RCM, EAC, UCRF

Standard package:

• RUT206 router
• 2-pin terminal block
• 2X3PIN connector
• 1 x hex key
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
