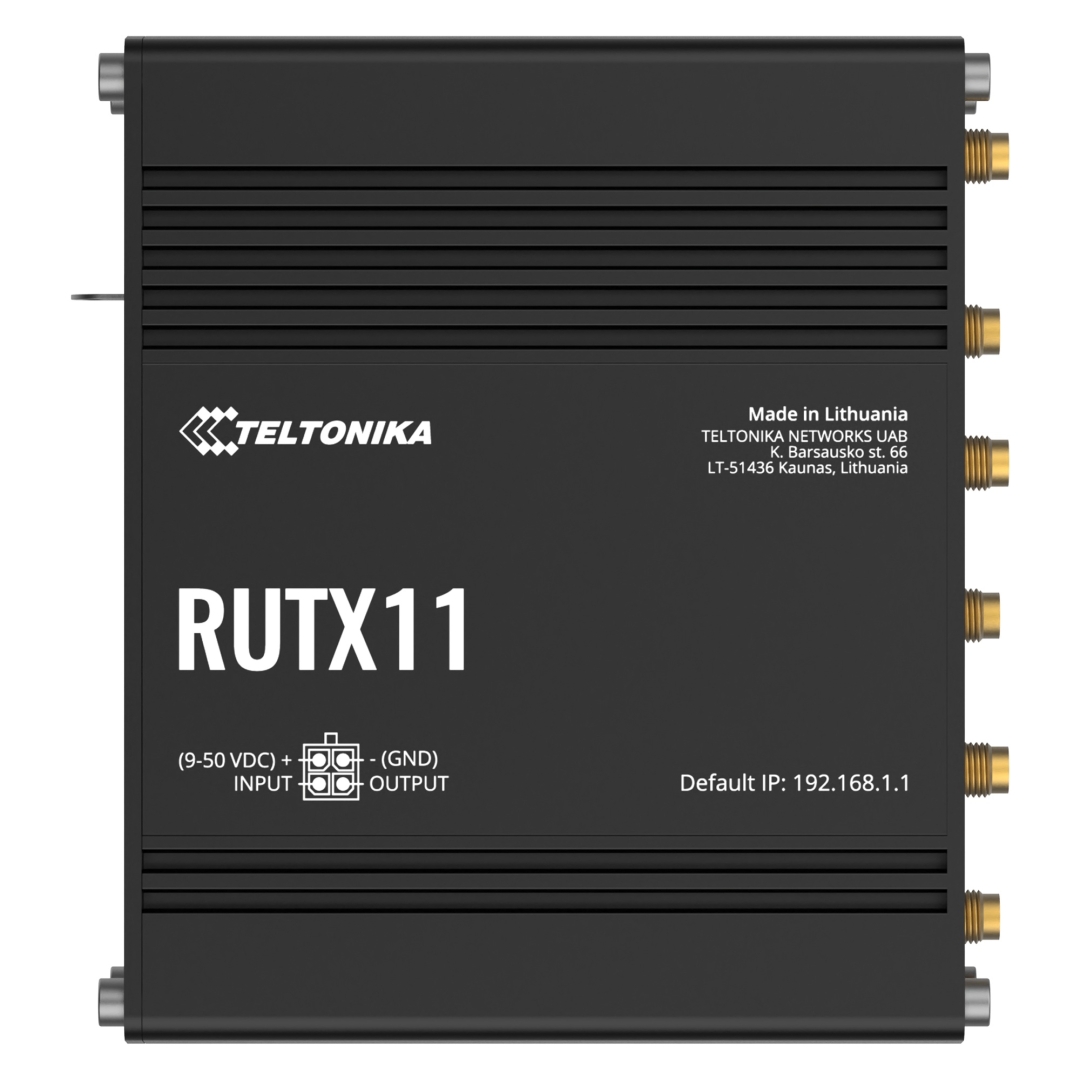

TELTONIKA LTE Cat6 pramoninis mobilaus ryšio maršrutizatorius (RUTX11)
4x Gigabit LAN, Wave-2 802.11ac dvijuostis (Dual Band) WiFi, Bluetooth LE, Tvirtas ir galingas pasirinkimas naudojant VPN, Užkardos (Farewall) ir daugybė kitų apdorojimo galimybių pritaikytų „OpenWrt“ programoms, sukurtų „RutOS“ sistemoje
Produkto savybės:
Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. „RUTX11“ comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.
Produkto specifikacijos:
Mobile:
• Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps;
• SIM switch (planed): 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection;
• Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received;
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed);
• Black/White list: Operator black/white list;
• Multiple PDN (planed): Possibility to use different PDNs for multiple network access and services;
• Band management: Band lock, Used band status display.
Wireless:
• Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA);
• WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation;
• ESSID: ESSID stealth mode.
Ethernet:
• WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Bluetooth:
• Bluetooth LE: Bluetooth low energy (LE) for short range communication/
Network:
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP);
• NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW);
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT;
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets;
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection;
• Firewall: Port forwards, traffic rules, custom rules;
• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd;
• QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e;
• DDNS: Supported >25 service providers, others can be configured manually;
• Network backup: VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover;
• Load balancing: Balance your Internet traffic over multiple WAN connections;
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW).
Security:
• Authetication: Pre-shared key, digital certificates, X.509 certificates;
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T;
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks);
• VLAN: Port based and tag based VLAN separation;
• Mobile quota control: Set up custom data limits for both SIM cards;
• WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only;
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter.
VPN:
• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods;
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC;
• IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256);
• GRE: GRE tunnel;
• PPTP, L2TP: Client/Server services can run simultaneously;
• Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code;
• DMVPN: Method of building scalable IPsec VPNs.
Monitoring & Management:
• WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• TR-069 (planed): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• Modbus (planed): Modbus TCP status/control, master and slave modes
• MQTT: MQTT Broker, MQTT publisher
• RMS: Teltonika Remote Management System (RMS)
Sysytem Characteristics:
• CPU: Quad-core ARM Cortex A7, 717 MHz;
• RAM: 256 MB, DDR3;
• FLASH memory: 256 MB SPI Flash.
Firmware/Configuration:
• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup;
• FOTA: Update FW/configuration from server;
• RMS: Update FW/configuration for multiple devices;
• Keep settings: Update FW without losing current configuration.
Firmware Customization:
• Operating system: RutOS (OpenWrt based Linux OS);
• Supported languages: Busybox shell, Lua, C, C++;
• Development tools: SDK package with build environment provided (planed).
Location Tracking:
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS;
• Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS;
• NMEA: NMEA 0183;
• Server software: Supported server software: TAVL, RMS;
• Mobile Network Geolocation: Get approximate device location on RMS based on mobile cell tower position (without using GPS);
• Geofencing: Configurable multiple geofence zones.
USB:
• Data rate: USB 2.0;
• Applications: Samba share (planed), custom scripts (planed);
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer;
• Storage formats: FAT, FAT32, NTFS.
Input/Output:
• Input: 1 x Digital Input
• Output: 1 x Digital Output
• Events: SMS, Email, RMS
Power:
• Connector: 4 pin industrial DC power socket;
• Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection;
• PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards;
• Power consumption: 11 W Max/

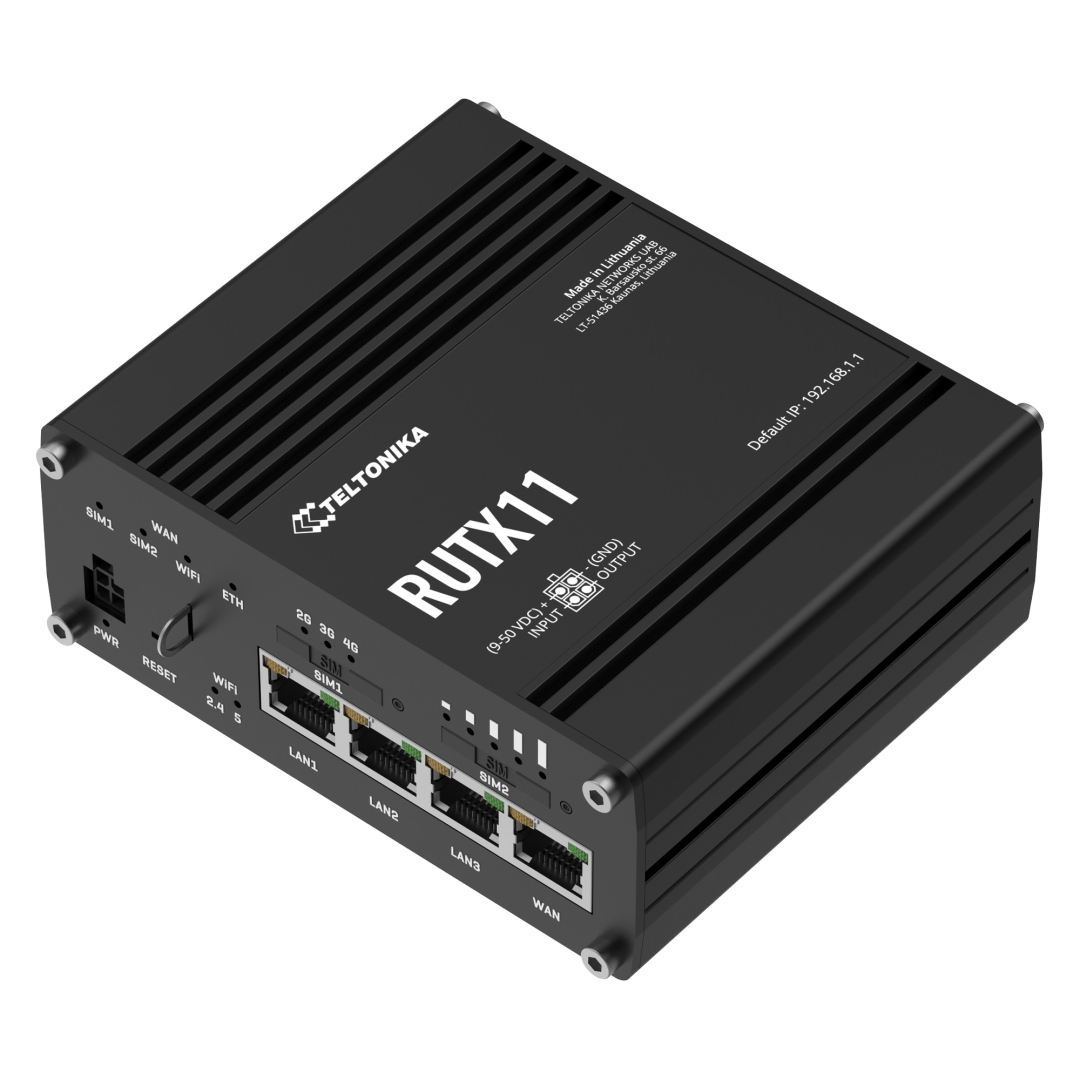

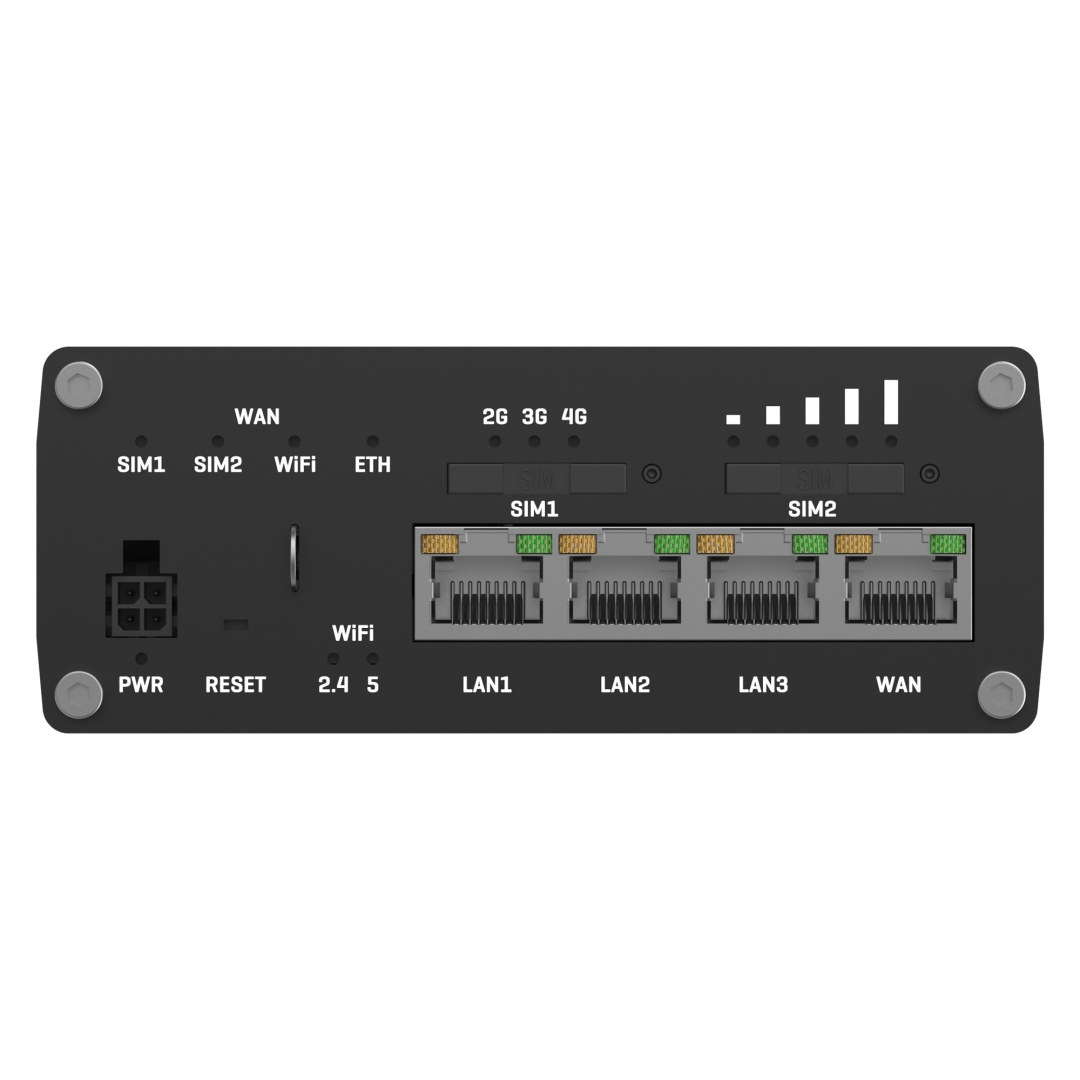

Physical Interfaces (ports, leds, antennas, buttons, SIM):
• Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps;
• I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector;
• Status LEDs: 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED;
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders;
• Power: 4 pin DC connector;

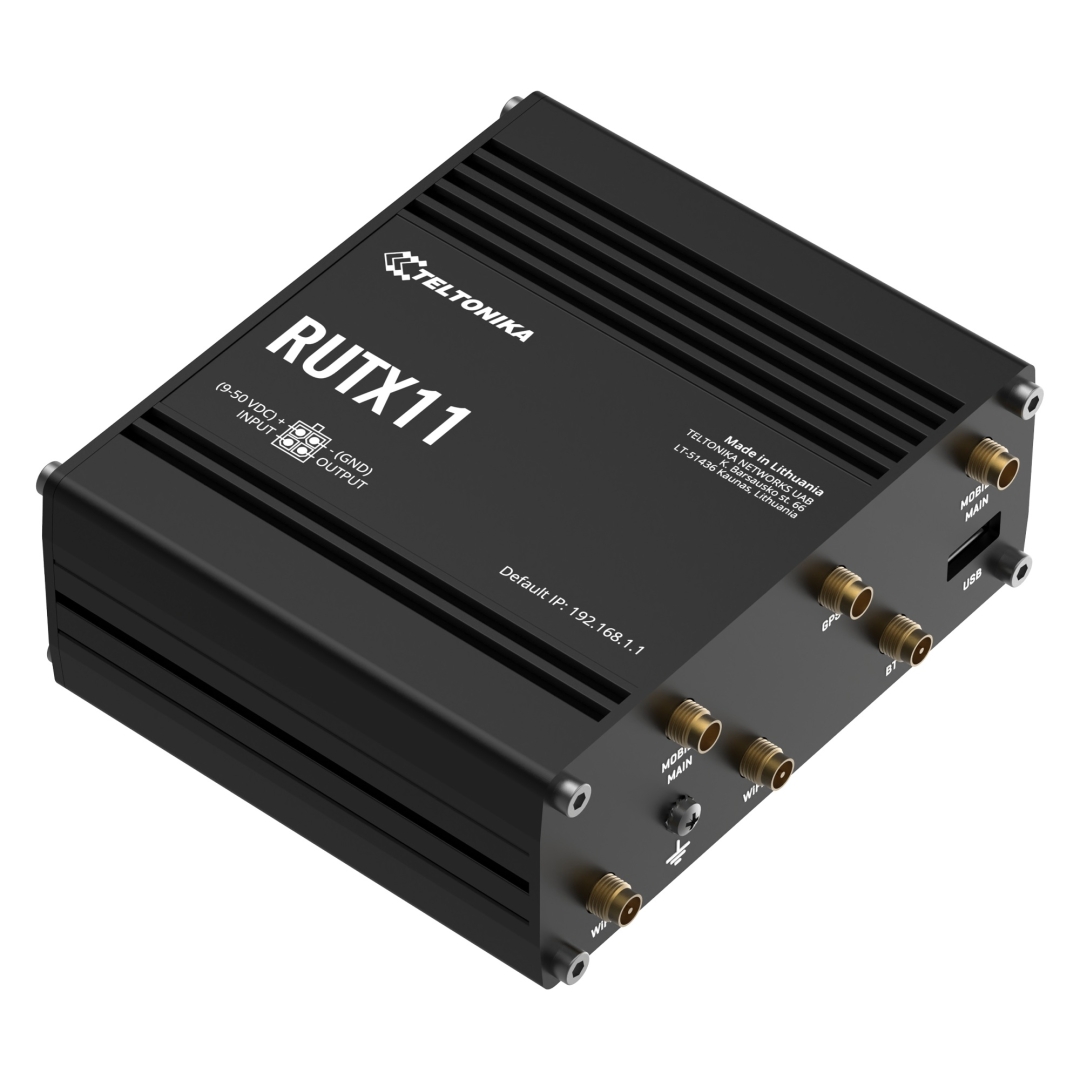

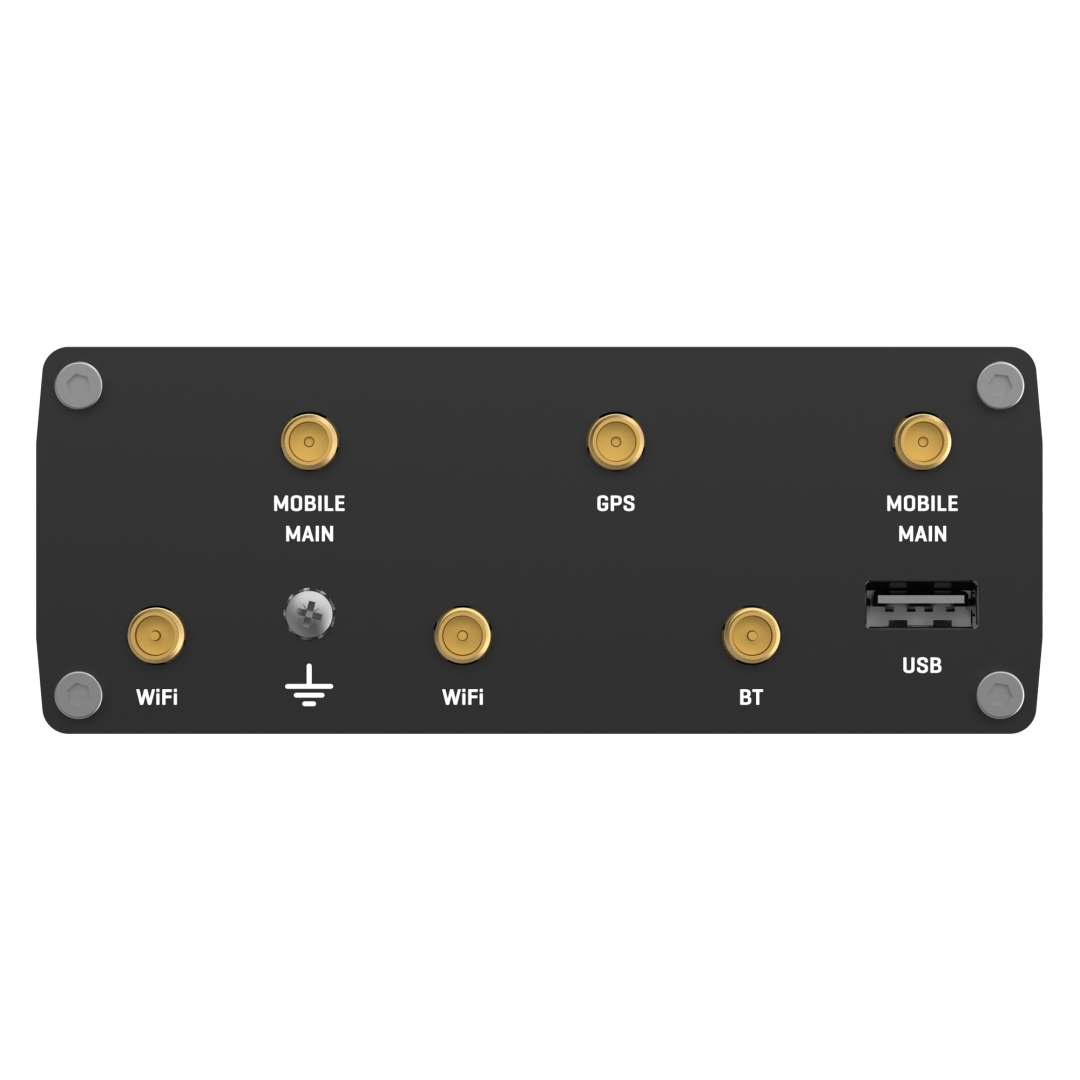

• Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS;
• USB: USB A port for external devices;
• Reset: Factory reset button.
Physical Specification:
• Casing material: Full aluminium housing;
• Dimensions: 115 mm x 95 mm x 44 mm (H x W x D);
• Weight: 456 g;
• Mounting options: DIN rail (can be mounted on two sides), flat surface placement.
Operating Environment:
• Operating temperature: -40 C to 75 C;
• Operating humidity: 10 % to 90 % non-condensing;
• Ingress Protection Rating: IP30.
